Knock Sensor: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL KNOCK SENSOR

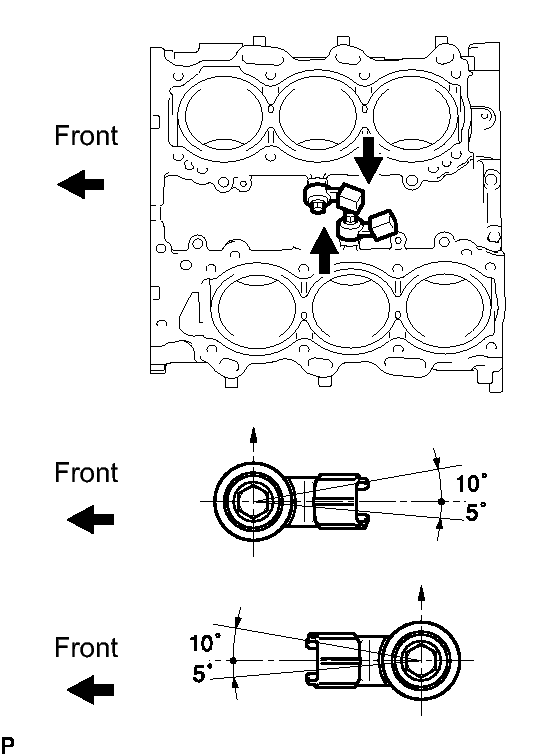

    1. Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.
      Fig 1: Identifying Knock Sensor
      GTY100855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m ( 204 kgf*cm, 15 ft.*lbf)

      HINT:

      • It is acceptable for the sensor to be tilted +10 to -5°.
      • The bank 1 connector is black and the bank 2 connector is gray.
    2. Connect the 2 knock sensor connectors.
  2. INSTALL FUEL INJECTOR SEAL  . Refer to INSTALLATION - Step 1
  3. INSTALL FUEL INJECTOR ASSEMBLY  . Refer to INSTALLATION - Step 2
  4. INSTALL NO. 1 FUEL DELIVERY PIPE  . Refer to INSTALLATION - Step 3
  5. INSTALL NO. 2 FUEL DELIVERY PIPE  . Refer to INSTALLATION - Step 4
  6. INSTALL NO. 3 FUEL PIPE  . Refer to INSTALLATION - Step 5
  7. INSTALL NO. 2 FUEL PIPE  . Refer to INSTALLATION - Step 6
  8. INSTALL FUEL PUMP ASSEMBLY  . Refer to INSTALLATION - Step 1
  9. CONNECT NO. 2 FUEL PIPE  . Refer to INSTALLATION - Step 2
  10. INSTALL NO. 1 FUEL PIPE  . Refer to INSTALLATION - Step 9
  11. INSTALL FUEL PRESSURE PULSATION DAMPER  . Refer to INSTALLATION - Step 1
  12. CONNECT WATER HOSE JOINT  . Refer to INSTALLATION - Step 11
  13. INSTALL INTAKE MANIFOLD  . Refer to INSTALLATION - Step 12
  14. INSTALL INTAKE AIR SURGE TANK  . Refer to INSTALLATION - Step 3
  15. INSTALL THROTTLE BODY  See step  1
  16. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE  See step  2
  17. CONNECT NO. 2 VENTILATION HOSE  See step  3
  18. CHECK FOR FUEL LEAKAGE  . Refer to ON-VEHICLE INSPECTION - Step 1
  19. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 6
  20. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 3
  21. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 6
  22. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 7
  23. INSTALL FRONT FENDER TO COWL SIDE SEAL LH  . Refer to INSTALLATION - Step 4
  24. INSTALL FRONT FENDER TO COWL SIDE SEAL RH  . Refer to INSTALLATION - Step 5
  25. INSTALL FRONT UPPER FENDER PROTECTOR LH  . Refer to INSTALLATION - Step 9
  26. INSTALL FRONT UPPER FENDER PROTECTOR RH  . Refer to INSTALLATION - Step 10
  27. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  28. CHECK FOR ENGINE COOLANT LEAKAGE  . Refer to ON-VEHICLE INSPECTION - Step 3
  29. CHECK FUNCTION THROTTLE BODY  See step  1
  30. INSTALL V-BANK COVER  . Refer to INSTALLATION - Step 132
  31. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 133
  32. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 134
  33. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 135
  34. PERFORM INITIALIZATION
    1. Perform initialization Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
