Accelerator Pedal: Installation: Installation

WARNING: This page is about a different car, the 2009 Lexus GS 460. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ACCELERATOR PEDAL
1. Install the accelerator pedal with the 2 nuts.

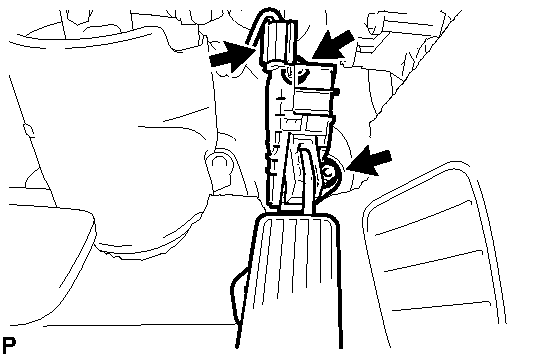

  Fig 1: Locating Nuts And Accelerator Pedal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m ( 55 kgf*cm, 48 in.*lbf)
  NOTE:
  - Avoid physical shocks to the accelerator pedal.
  - Do not disassemble the accelerator pedal assembly.
2. Connect the accelerator pedal sensor connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Refer to INITIALIZATION .
