Speed Sensor: Components: Illustration

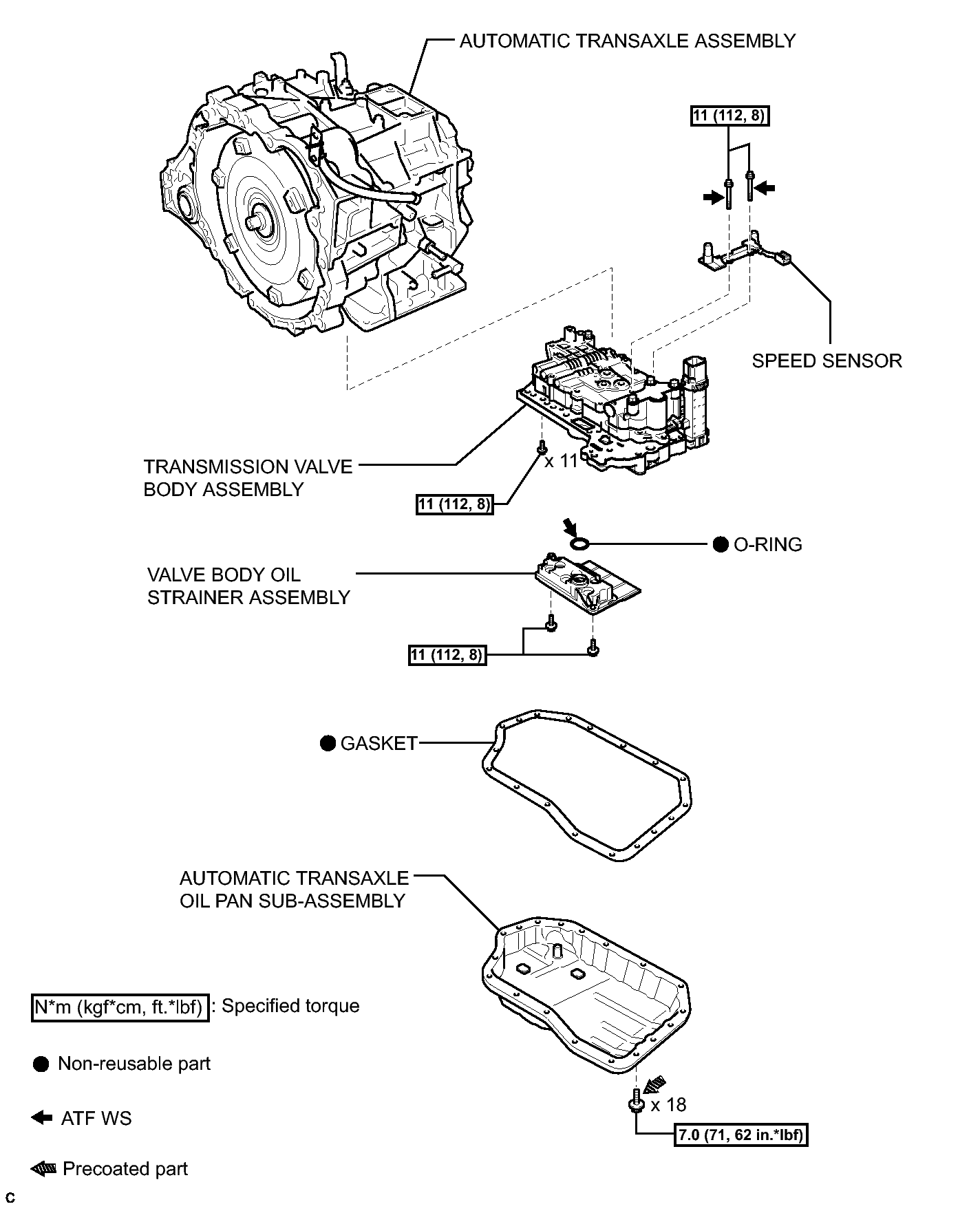

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications
GTY121720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
