Transmission Control Cable Assembly: Components: Illustration

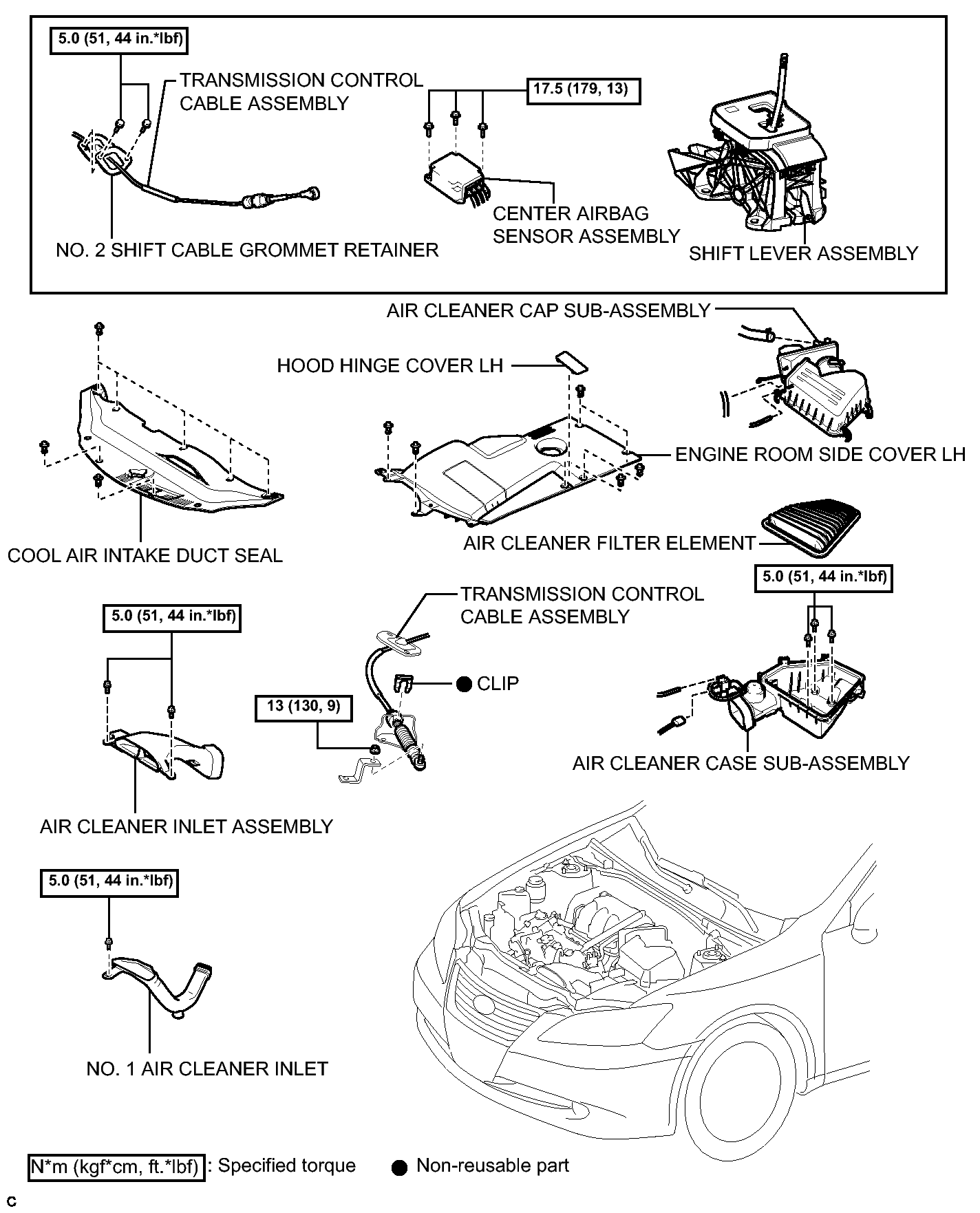

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications
GTY111432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
