Removal

2GR-FSE ENGINE CONTROL SYSTEM: INTEGRATION RELAY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal
3. REMOVE ENGINE ROOM SIDE COVER LH Removal
4. REMOVE INTEGRATION RELAY
(a) Remove the engine room No. 1 relay block cover.

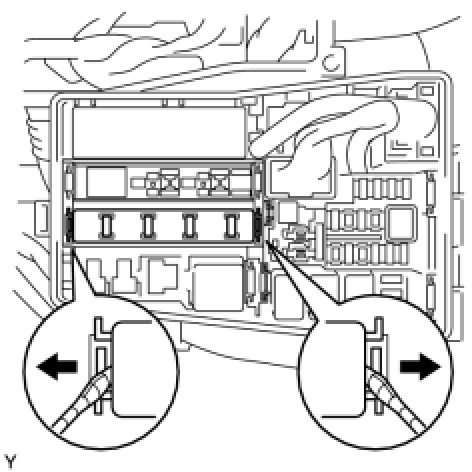

(b) Using a screwdriver, detach the 2 claws and disconnect the integration relay from the engine room No. 2 relay block.
(c) Disconnect the 3 connectors.
