Back-Up Light: Notes

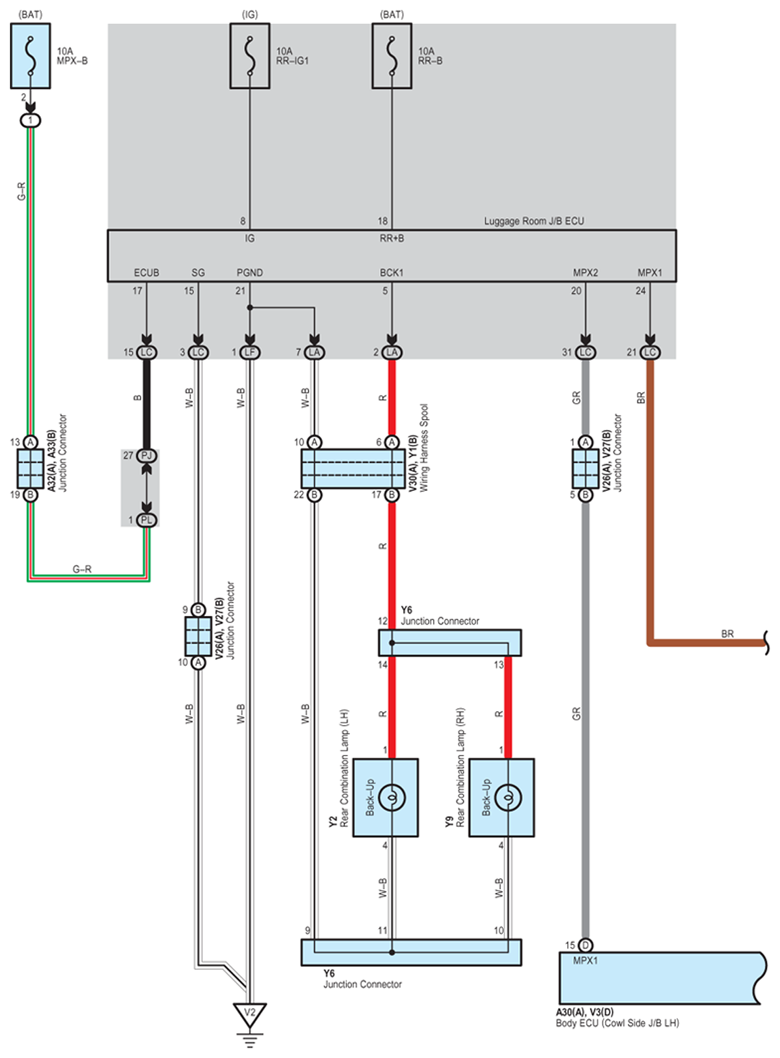

Fig 1: Back-Up Light - Circuit Diagram (1 Of 3)
G07595488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

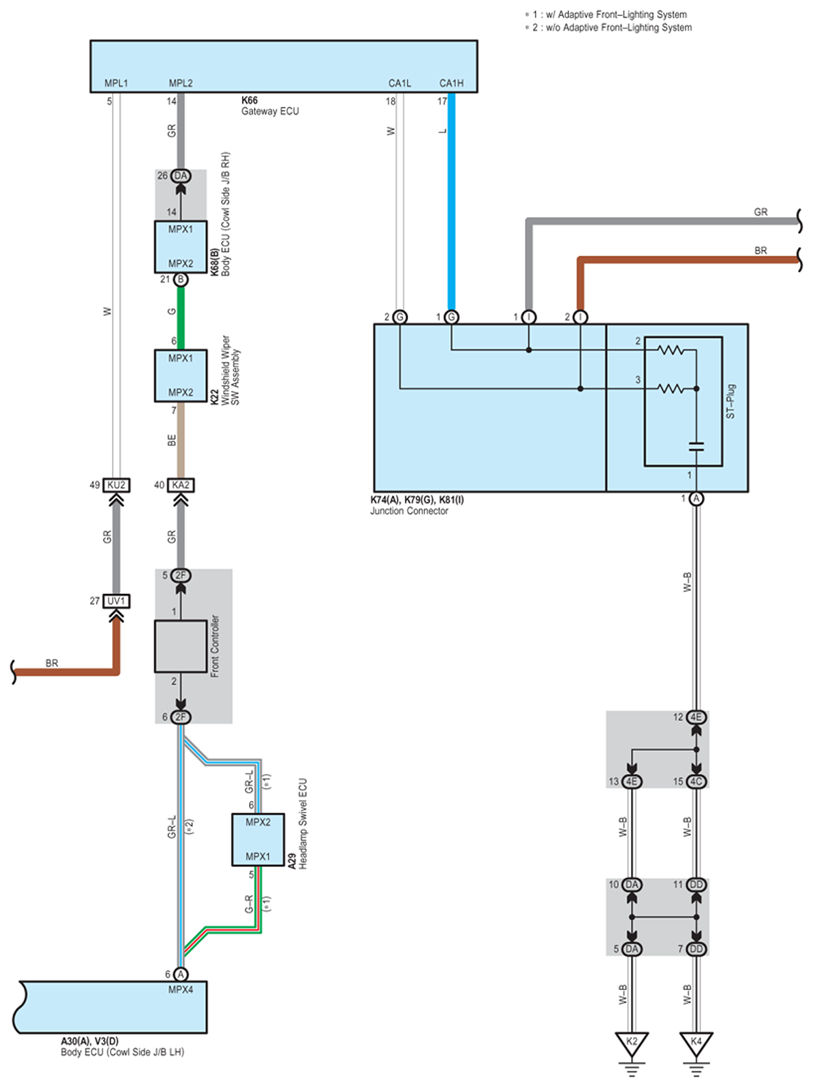

Fig 2: Back-Up Light - Circuit Diagram (2 Of 3)
G07595489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

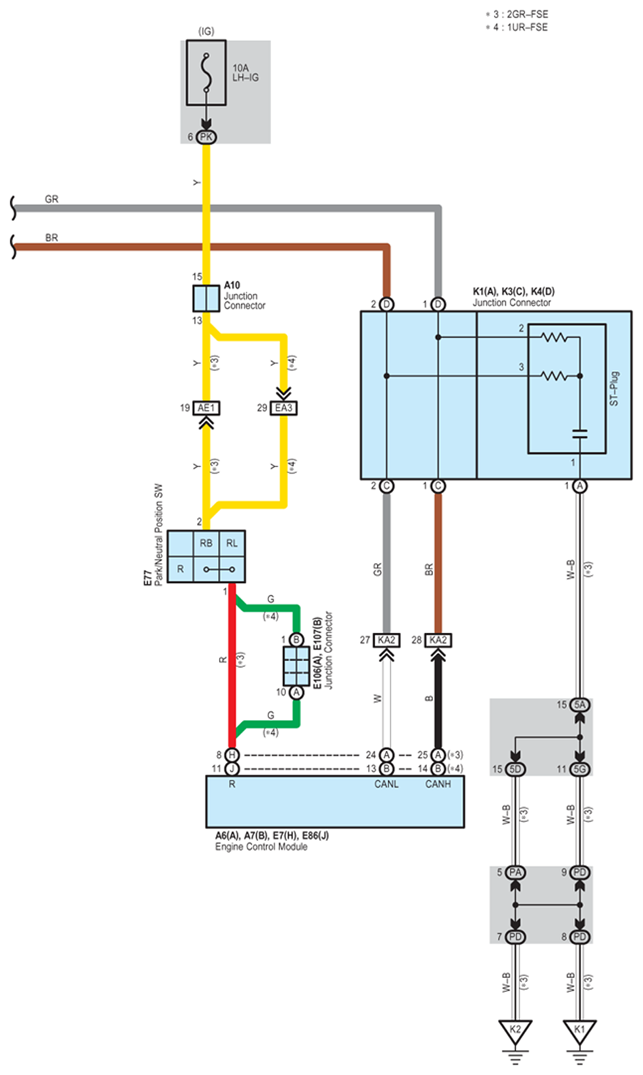

Fig 3: Back-Up Light - Circuit Diagram (3 Of 3)
G07595490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
