Climate Control Seat: Notes

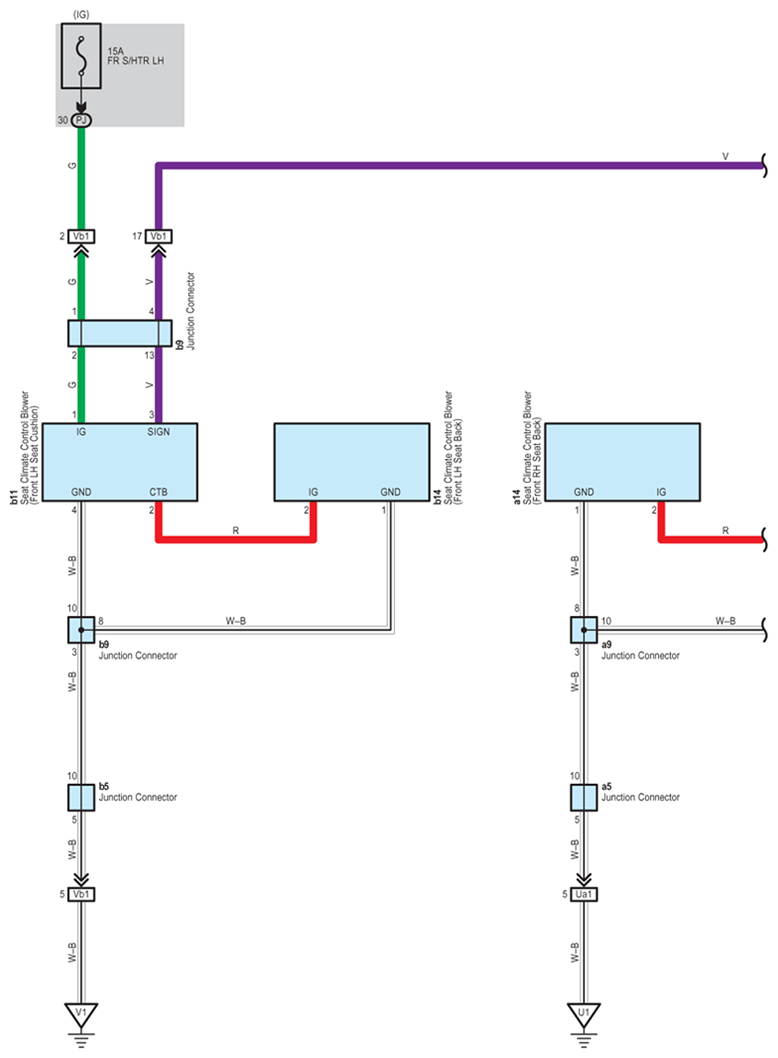

Fig 1: Climate Control Seat - Circuit Diagram (1 Of 5)
G07595767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

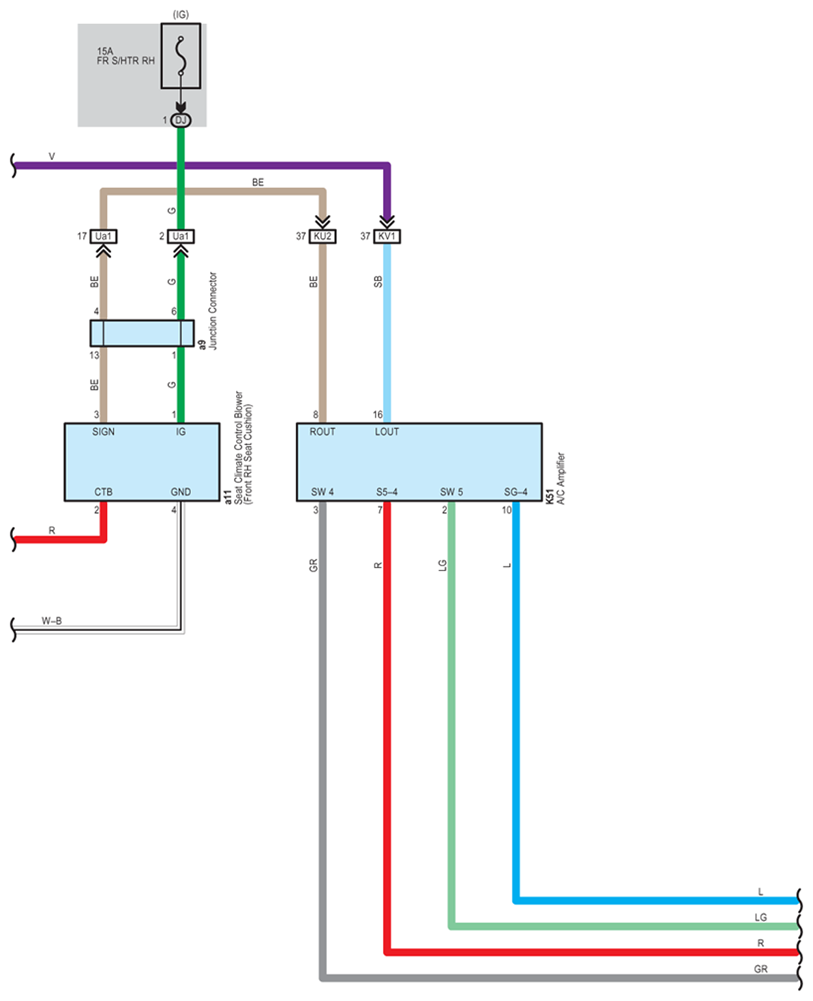

Fig 2: Climate Control Seat - Circuit Diagram (2 Of 5)
G07595768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

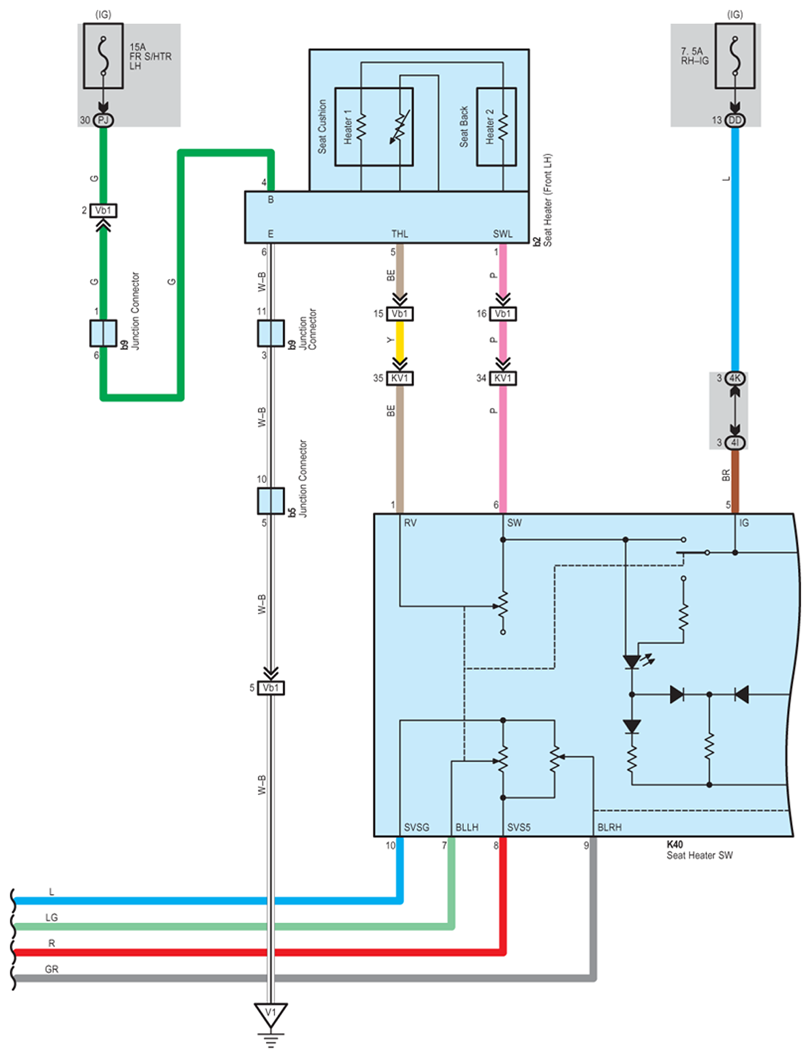

Fig 3: Climate Control Seat - Circuit Diagram (3 Of 5)
G07595769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

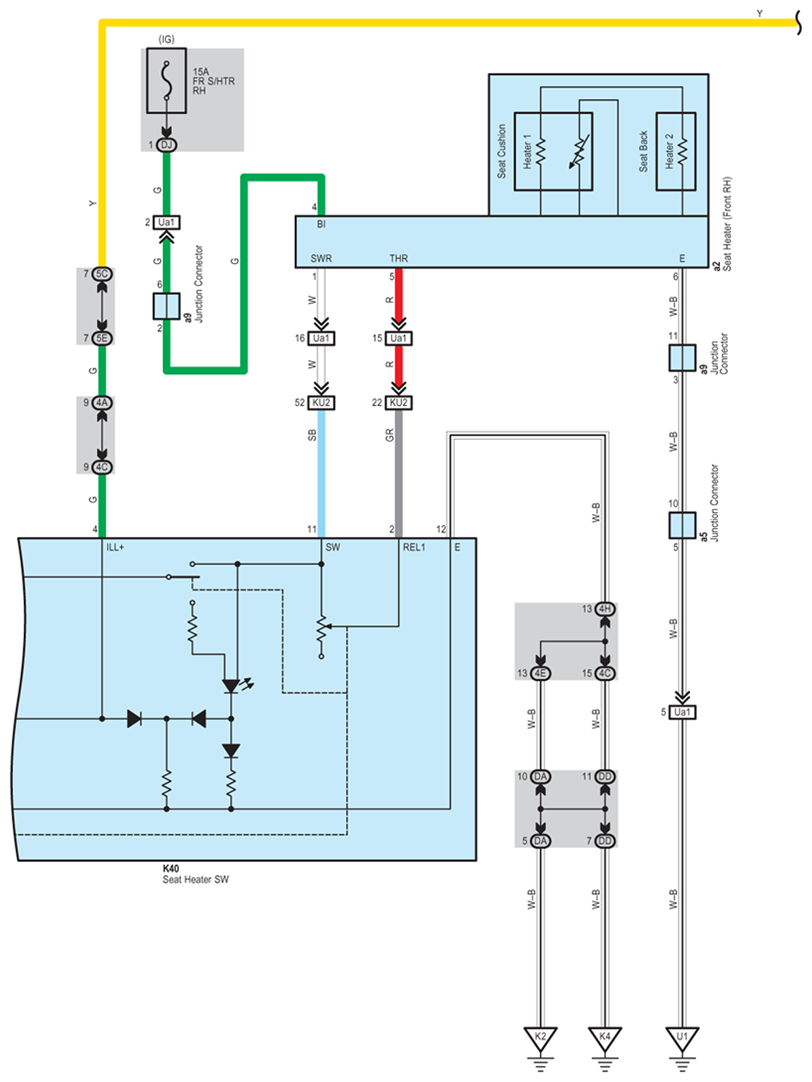

Fig 4: Climate Control Seat - Circuit Diagram (4 Of 5)
G07595770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

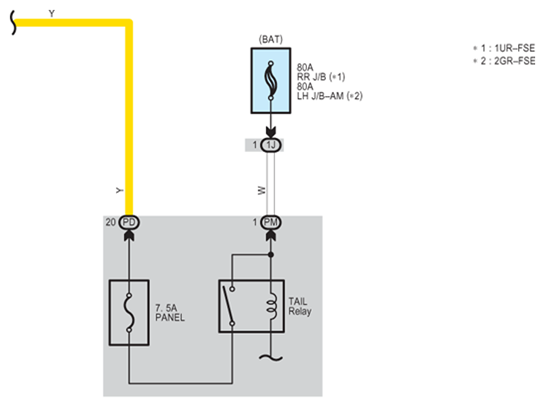

Fig 5: Climate Control Seat - Circuit Diagram (5 Of 5)
G07595771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
