Engine Control (1UR-FSE): Notes

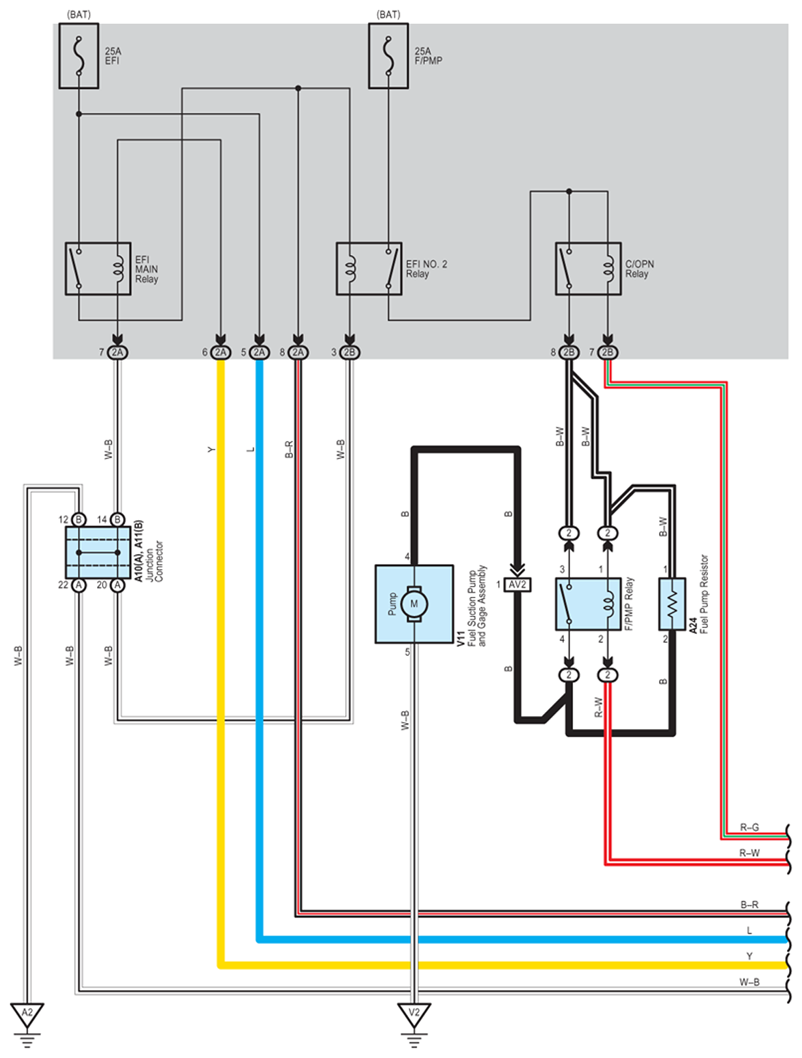

Fig 1: Engine Control (1UR-FSE) - Circuit Diagram (1 Of 28)

G07595388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

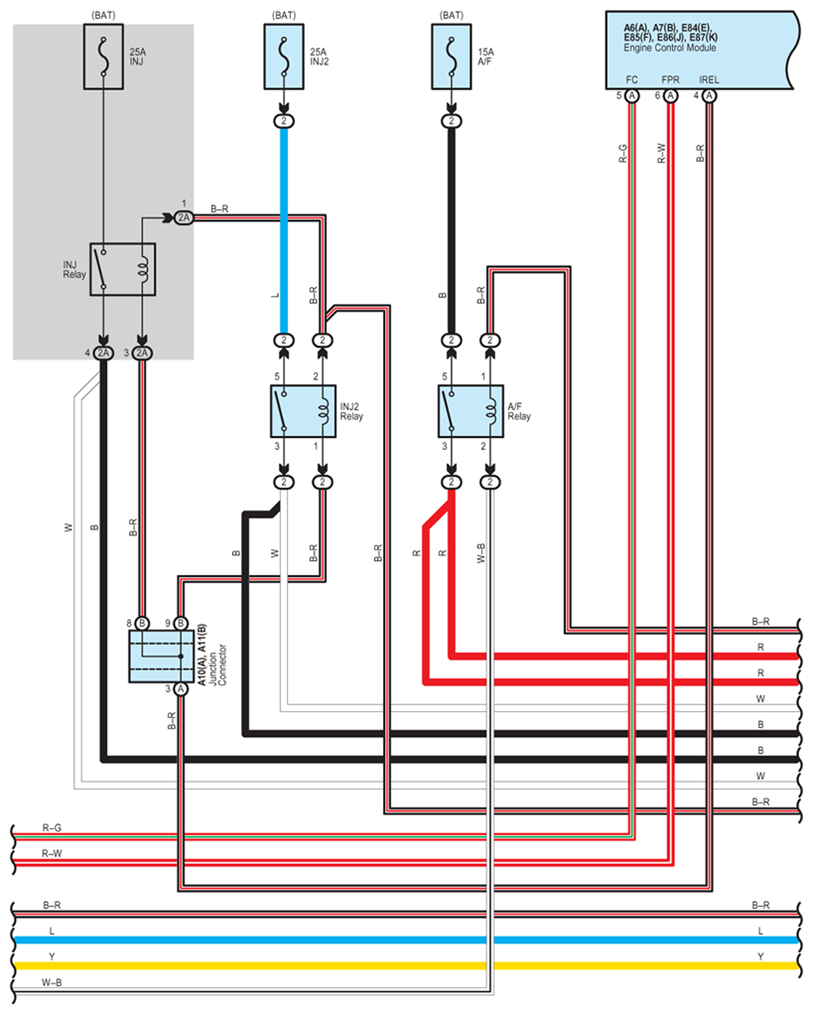

Fig 2: Engine Control (1UR-FSE) - Circuit Diagram (2 Of 28)

G07595389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

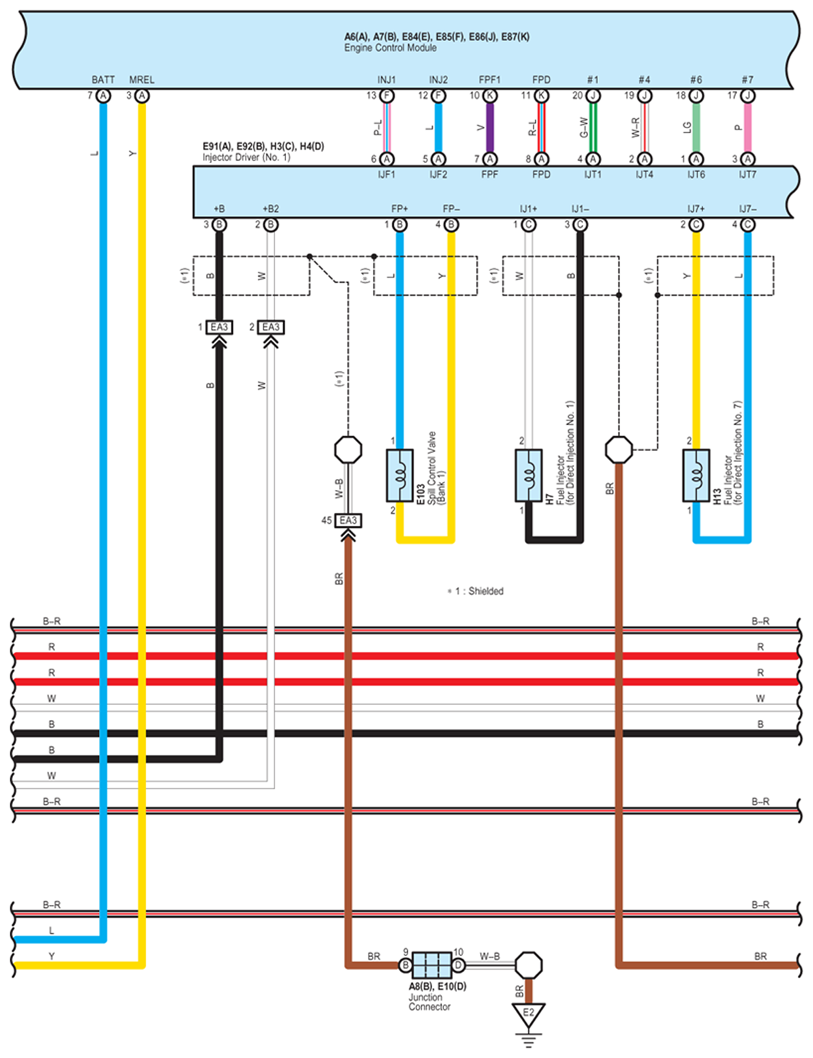

Fig 3: Engine Control (1UR-FSE) - Circuit Diagram (3 Of 28)

G07595390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

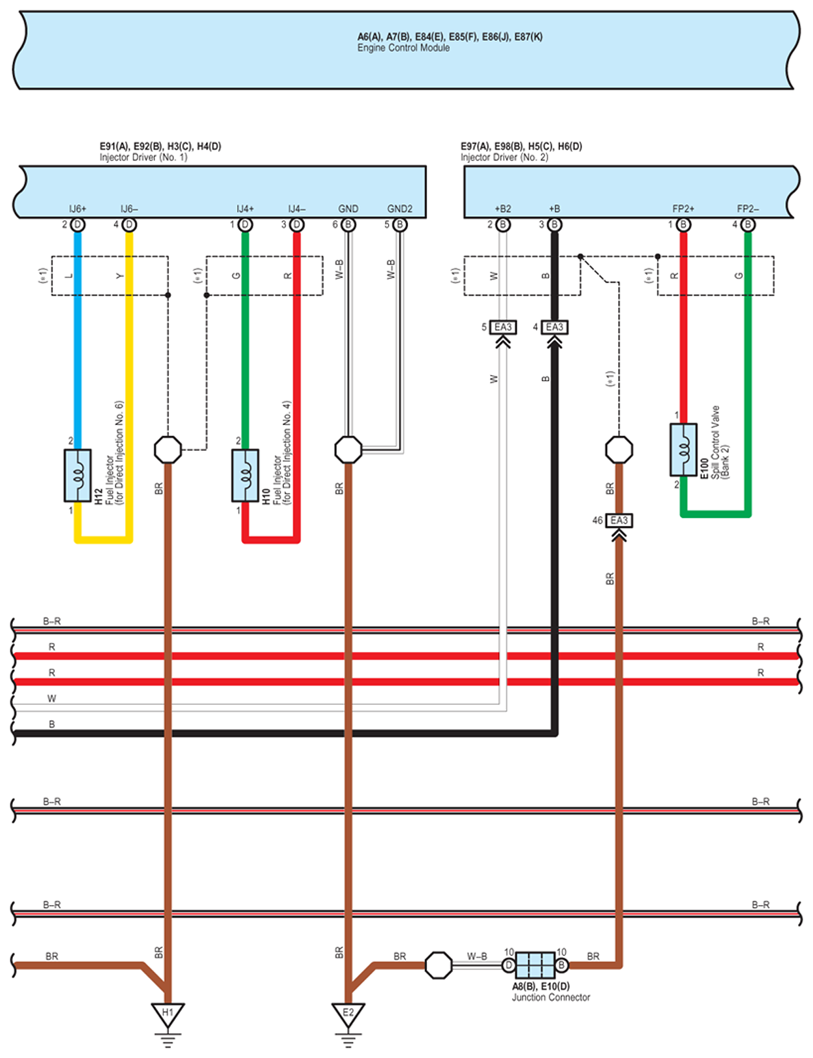

Fig 4: Engine Control (1UR-FSE) - Circuit Diagram (4 Of 28)

G07595391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

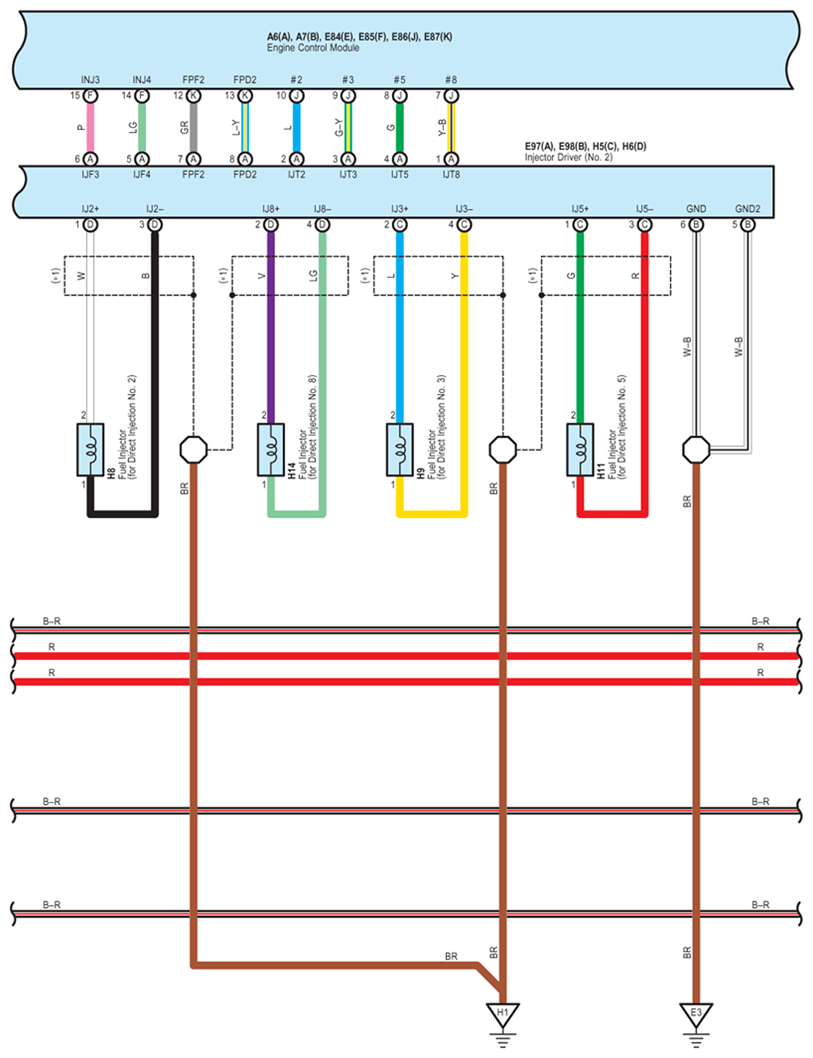

Fig 5: Engine Control (1UR-FSE) - Circuit Diagram (5 Of 28)

G07595392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

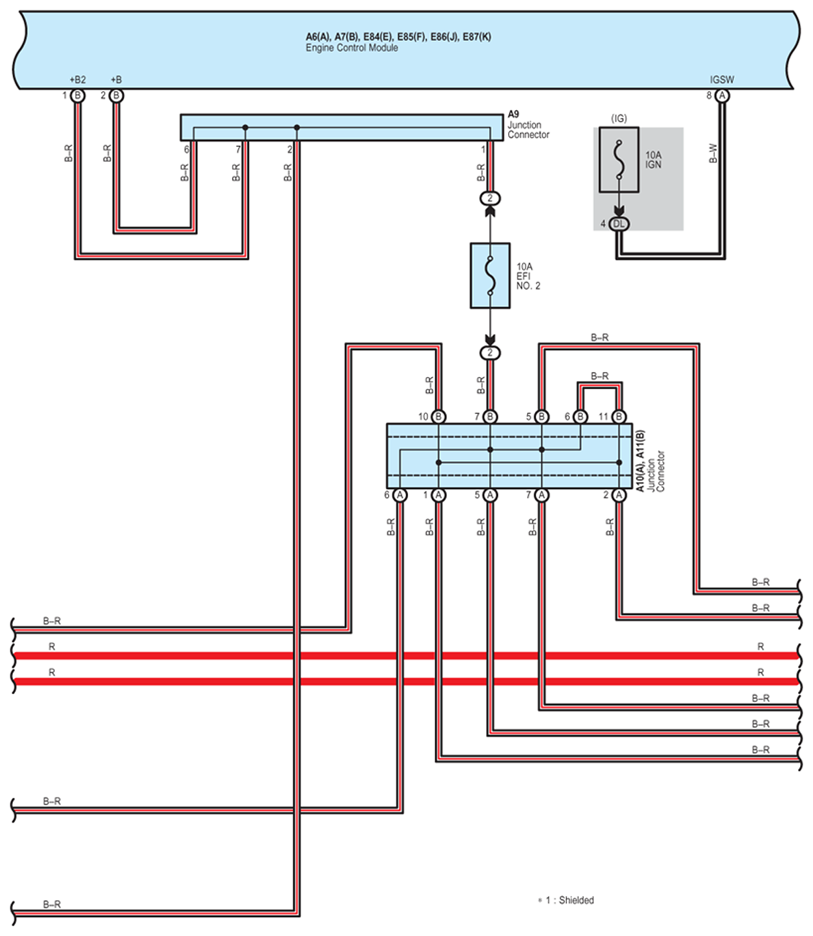

Fig 6: Engine Control (1UR-FSE) - Circuit Diagram (6 Of 28)

G07595393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Control (1UR-FSE) - Circuit Diagram (7 Of 28)

G07595394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

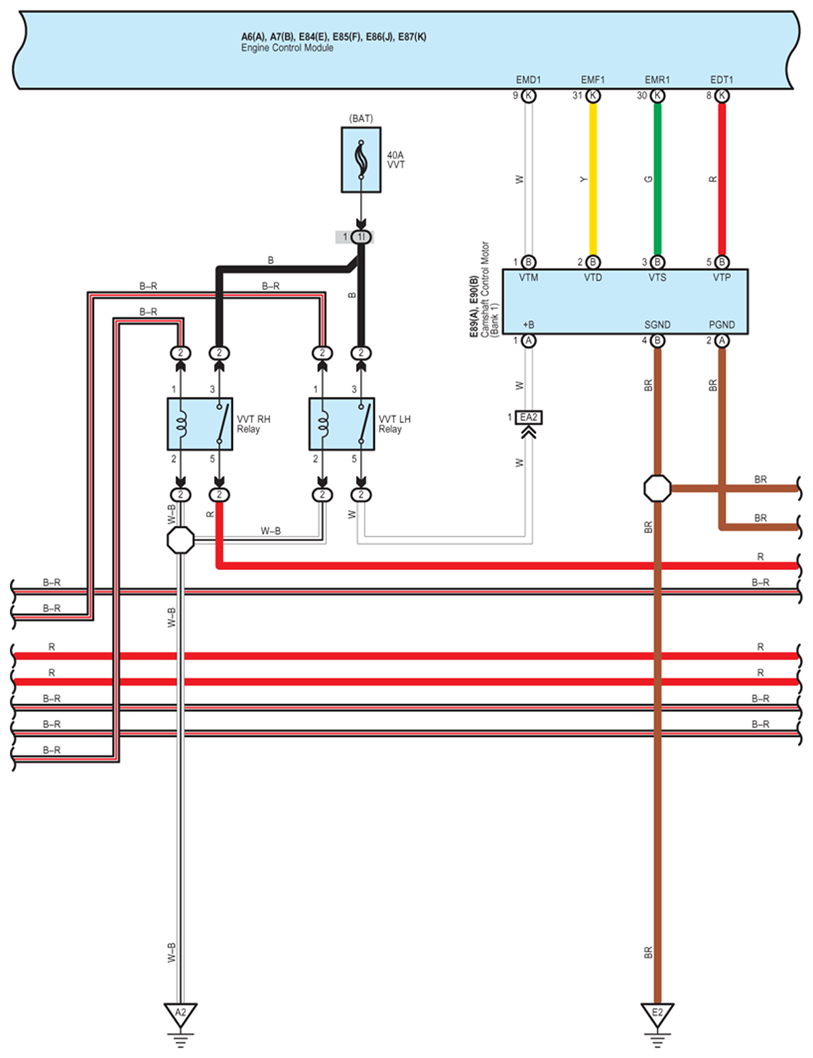

Fig 8: Engine Control (1UR-FSE) - Circuit Diagram (8 Of 28)

G07595395

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

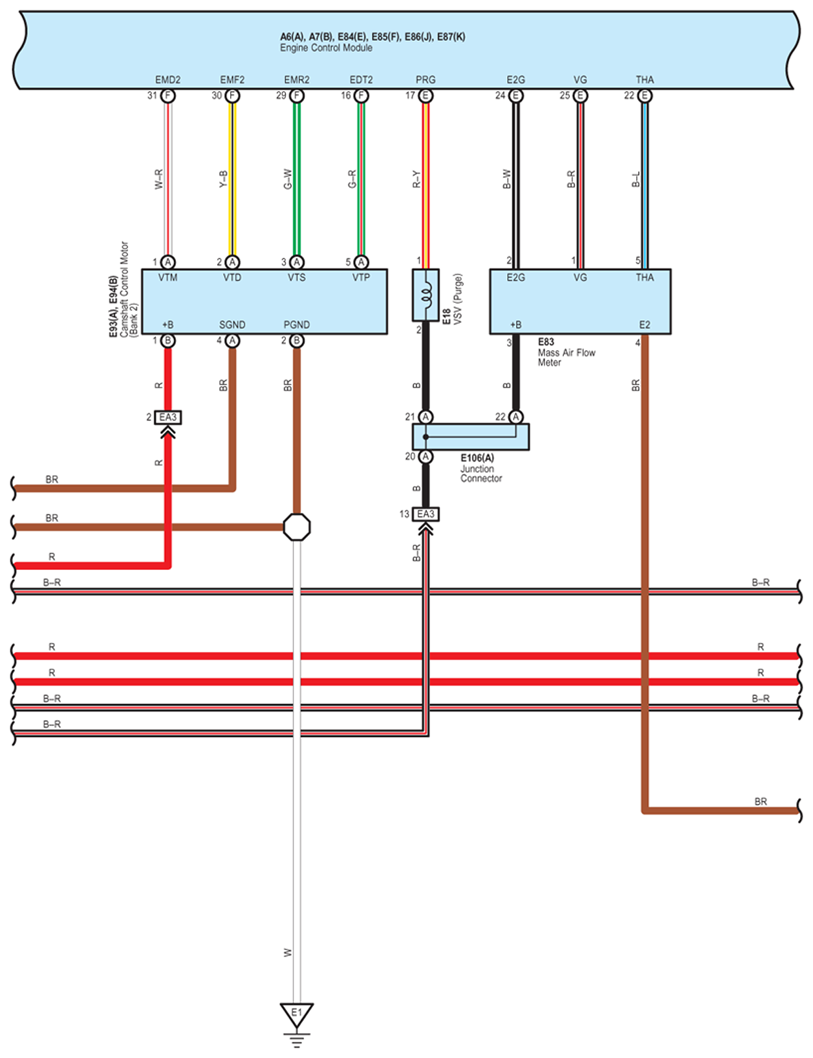

Fig 9: Engine Control (1UR-FSE) - Circuit Diagram (9 Of 28)

G07595396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

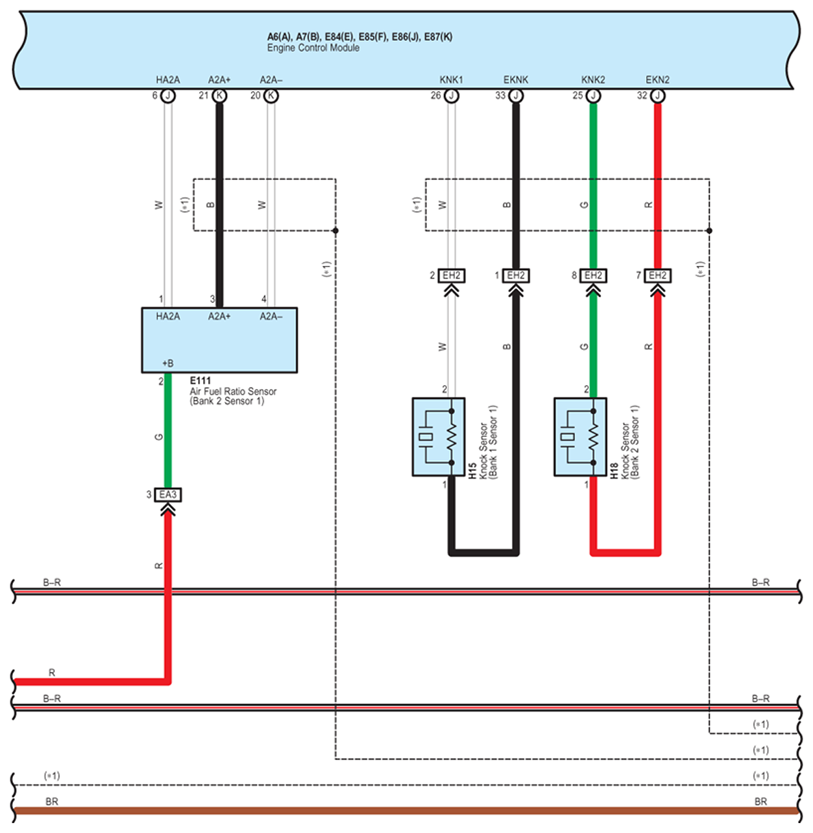

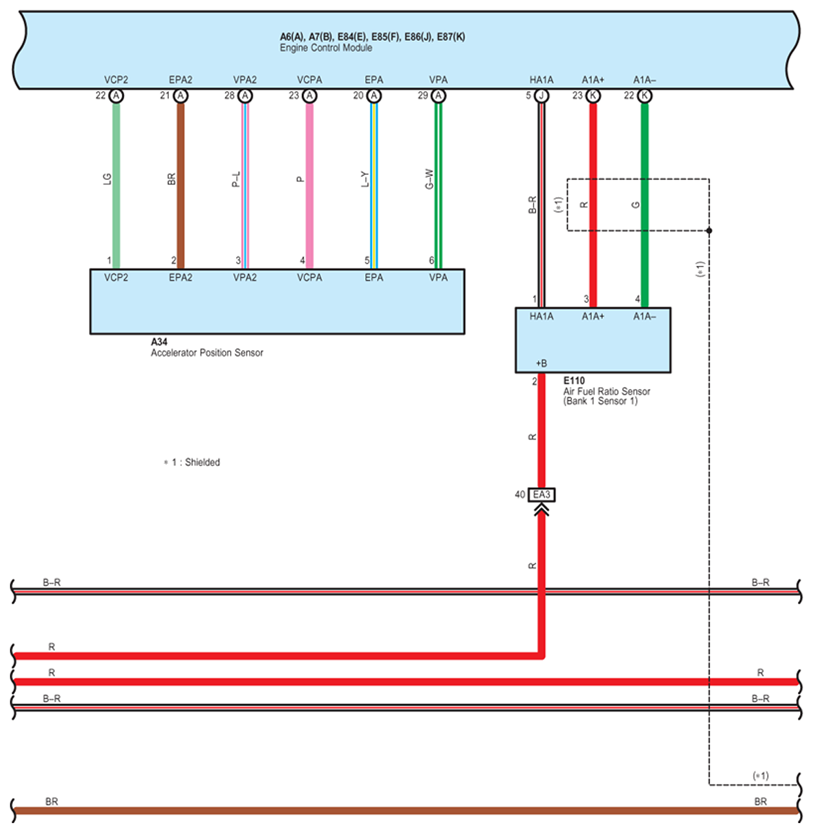

Fig 10: Engine Control (1UR-FSE) - Circuit Diagram (10 Of 28)

G07595397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

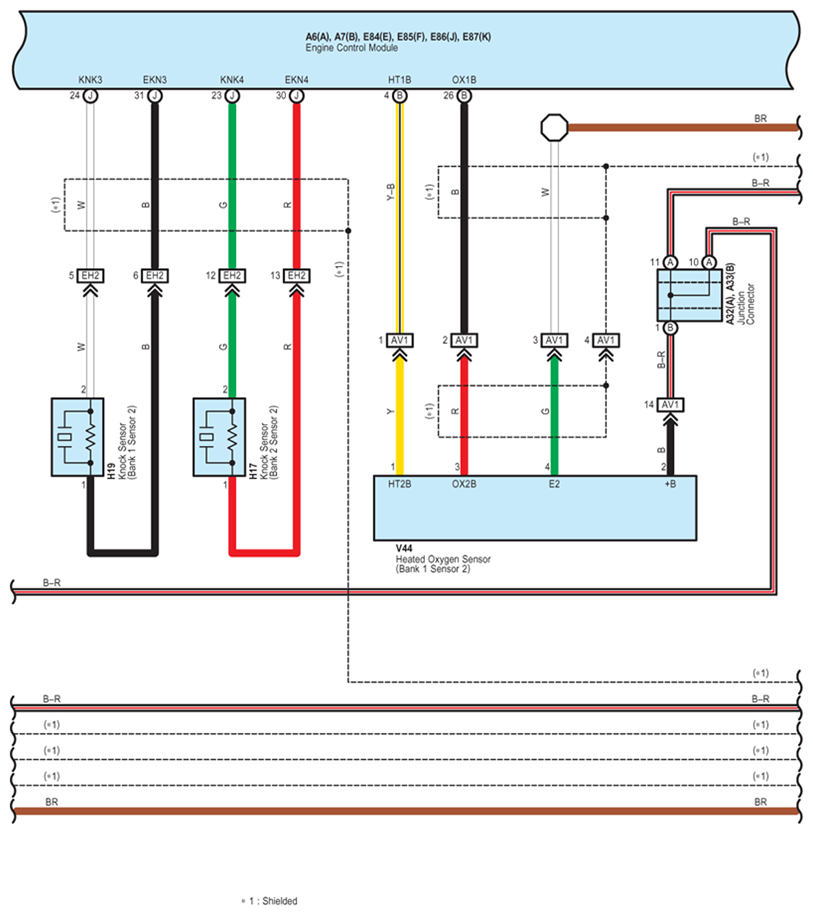

Fig 11: Engine Control (1UR-FSE) - Circuit Diagram (11 Of 28)

G07595398

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

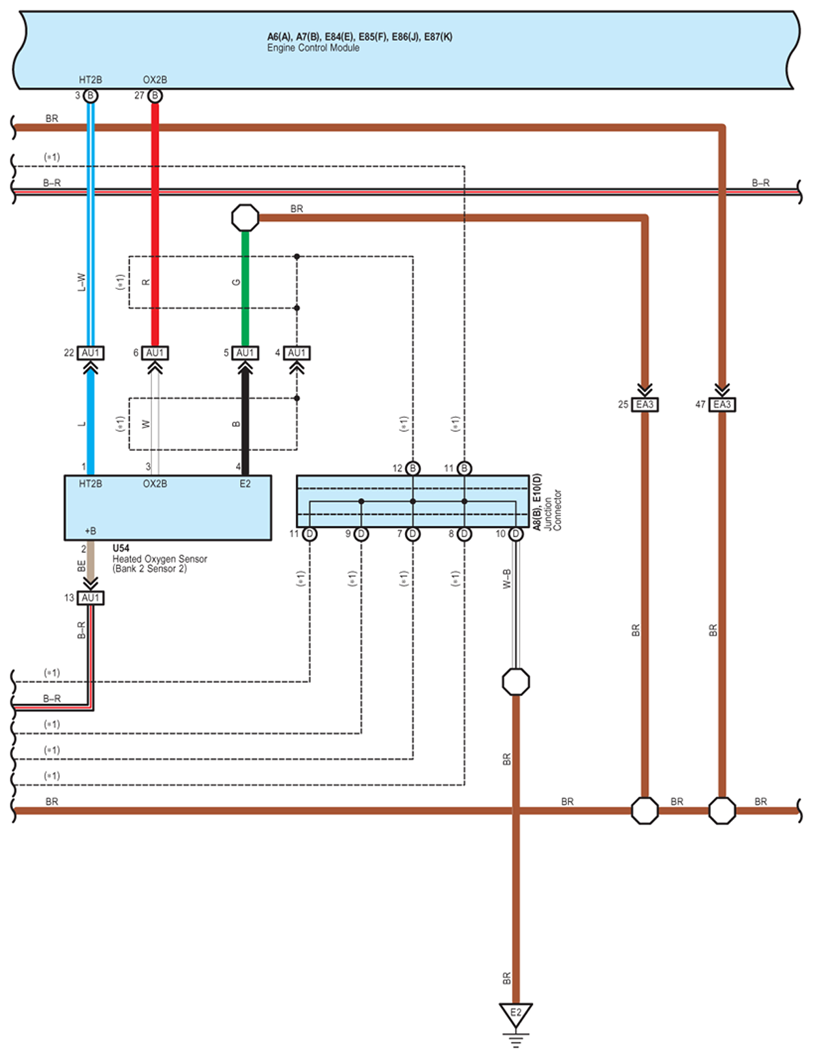

Fig 12: Engine Control (1UR-FSE) - Circuit Diagram (12 Of 28)

G07595399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

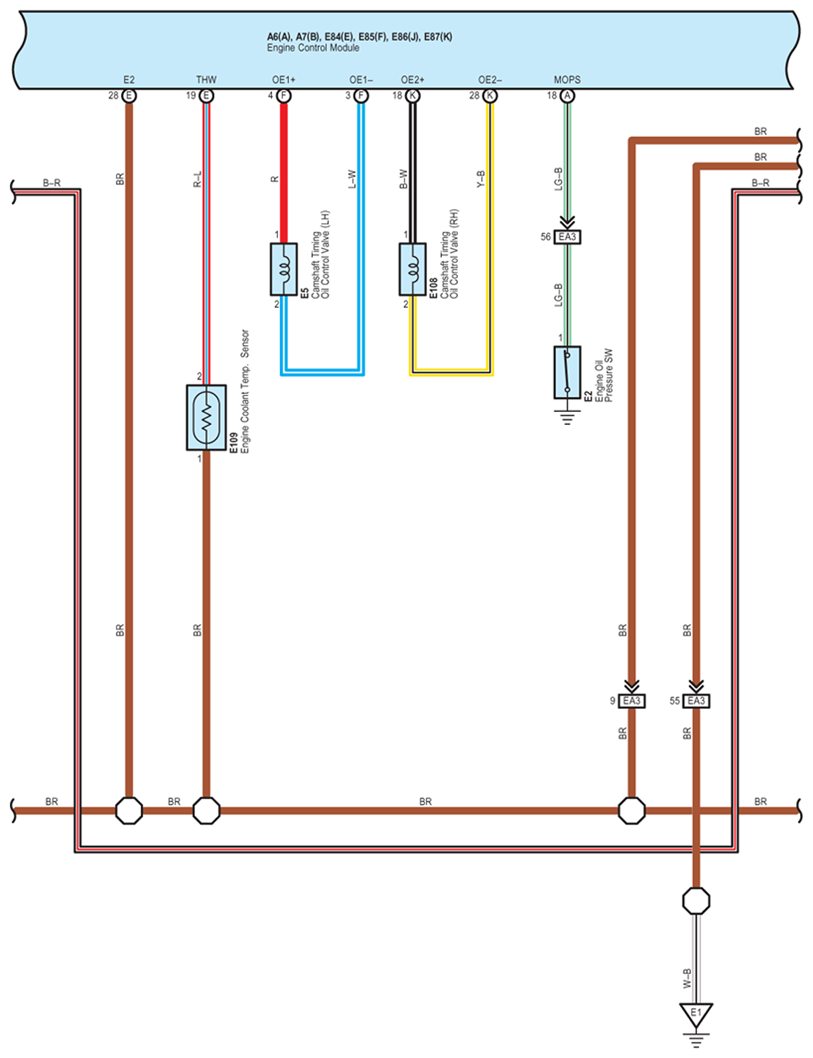

Fig 13: Engine Control (1UR-FSE) - Circuit Diagram (13 Of 28)

G07595400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

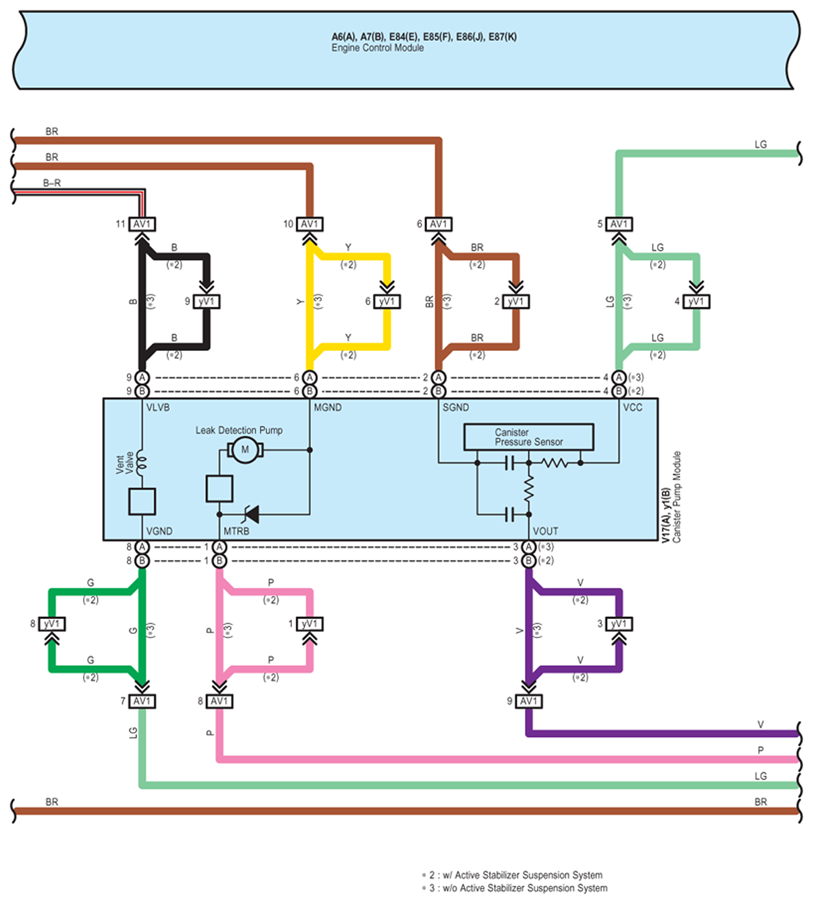

Fig 14: Engine Control (1UR-FSE) - Circuit Diagram (14 Of 28)

G07595401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Control (1UR-FSE) - Circuit Diagram (15 Of 28)

G07595402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

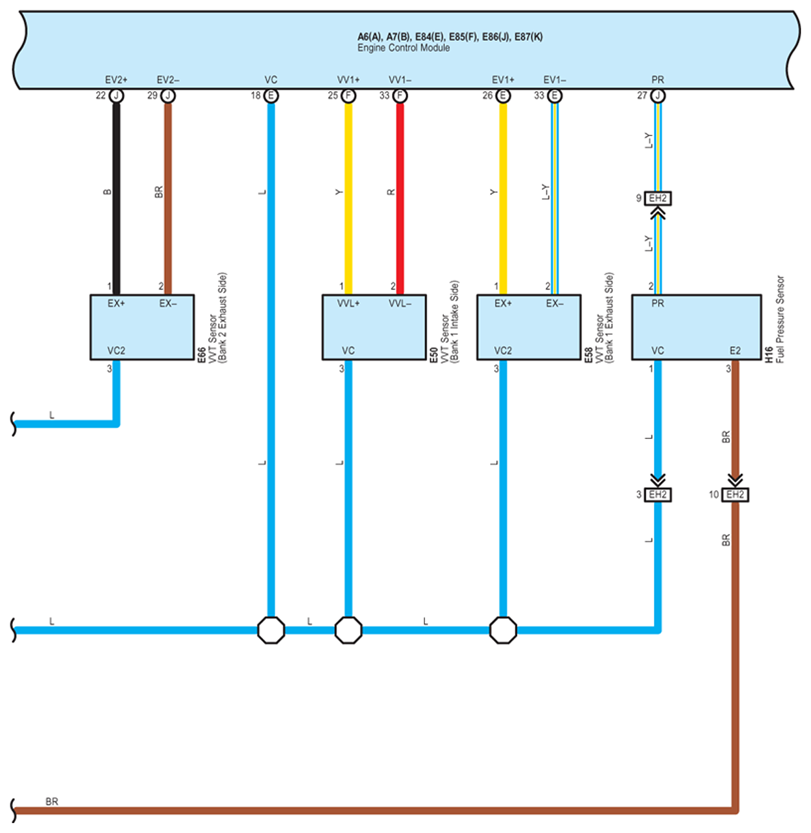

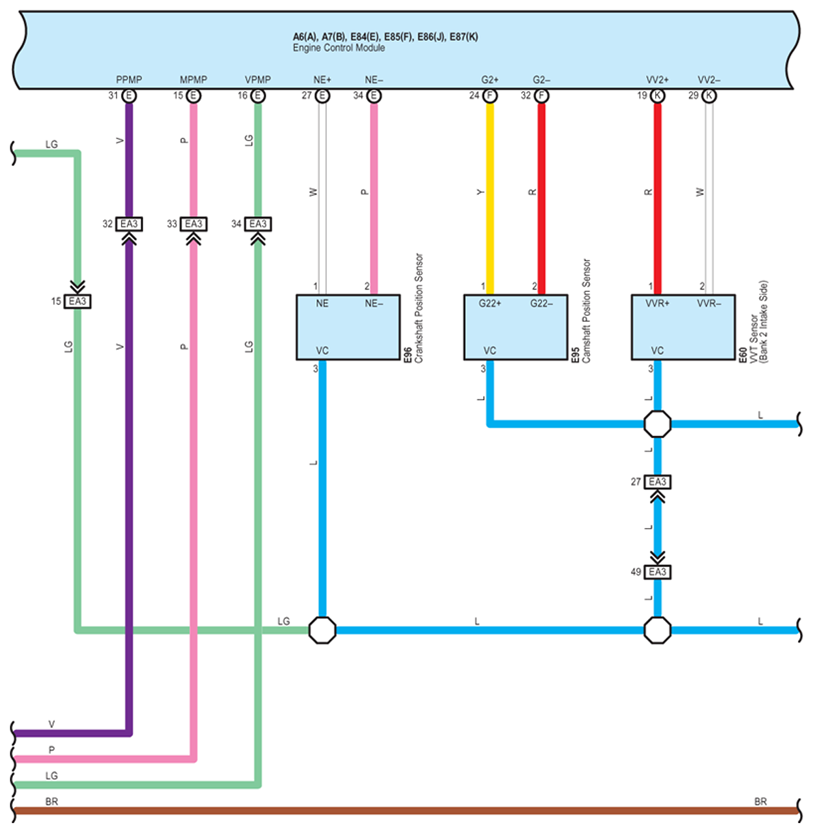

Fig 16: Engine Control (1UR-FSE) - Circuit Diagram (16 Of 28)

G07595403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

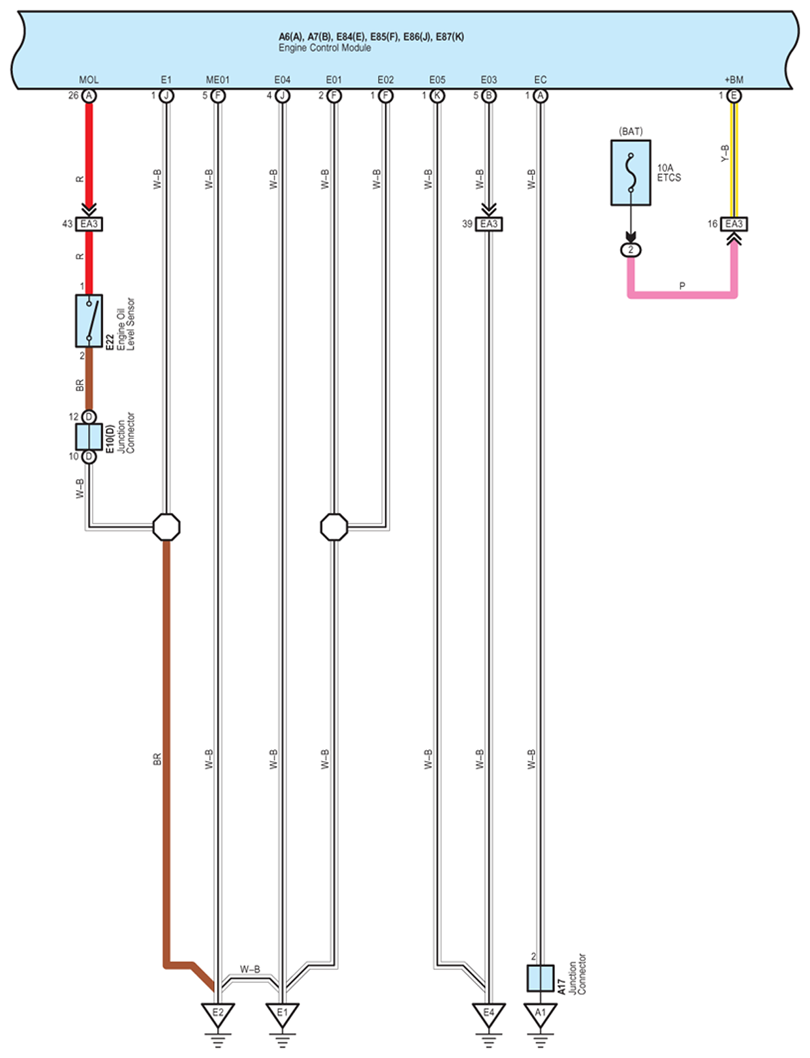

Fig 17: Engine Control (1UR-FSE) - Circuit Diagram (17 Of 28)

G07595404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

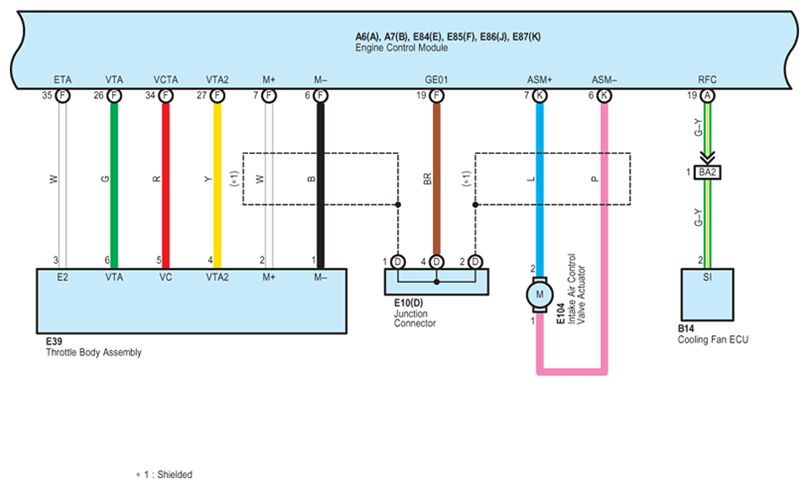

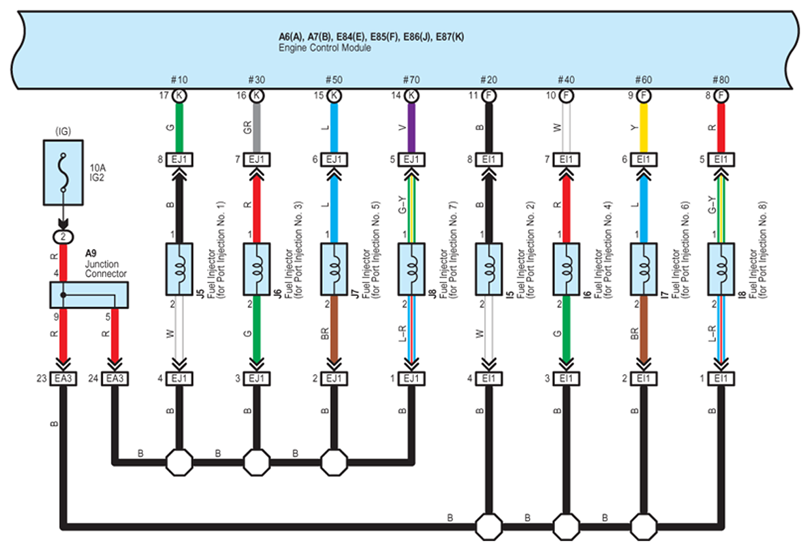

Fig 18: Engine Control (1UR-FSE) - Circuit Diagram (18 Of 28)

G07595405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Control (1UR-FSE) - Circuit Diagram (19 Of 28)

G07595406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Engine Control (1UR-FSE) - Circuit Diagram (20 Of 28)

G07595407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

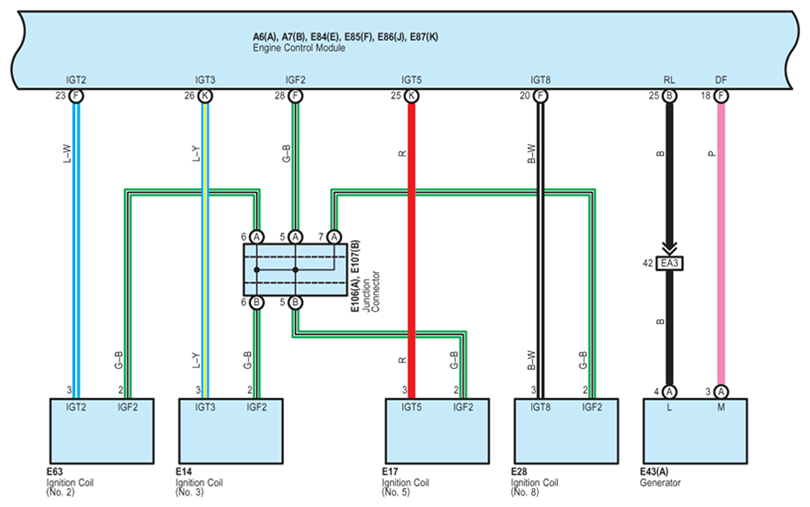

Fig 21: Engine Control (1UR-FSE) - Circuit Diagram (21 Of 28)

G07595408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

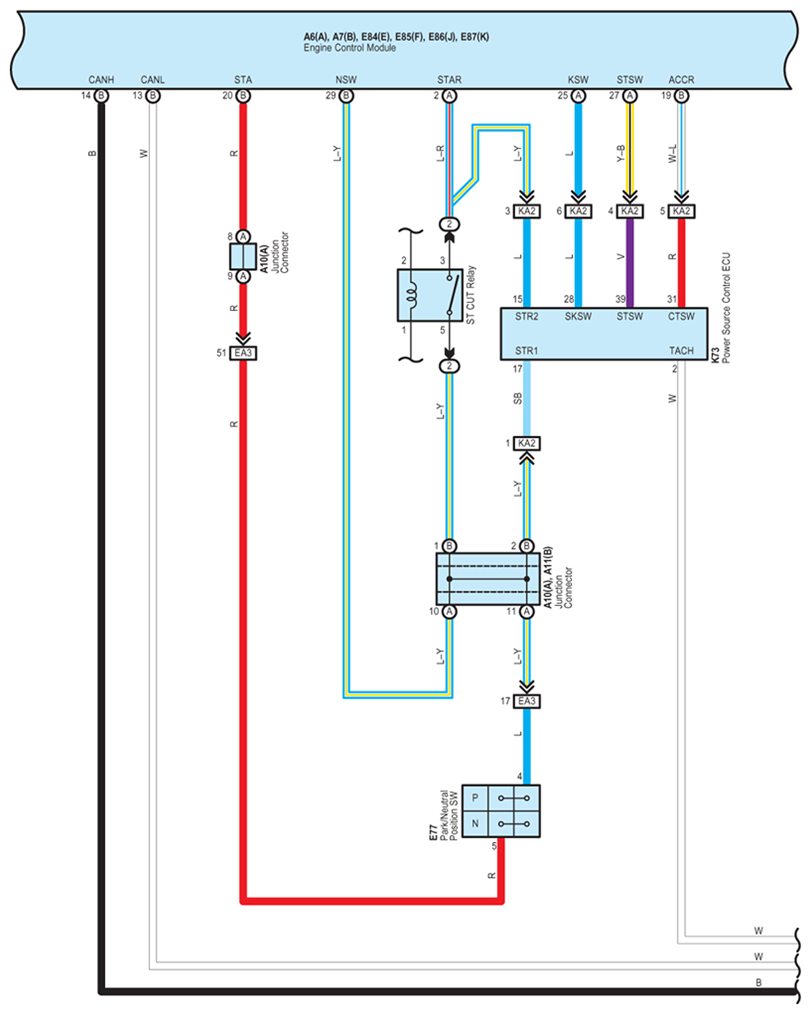

Fig 22: Engine Control (1UR-FSE) - Circuit Diagram (22 Of 28)

G07595409

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Engine Control (1UR-FSE) - Circuit Diagram (23 Of 28)

G07595410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

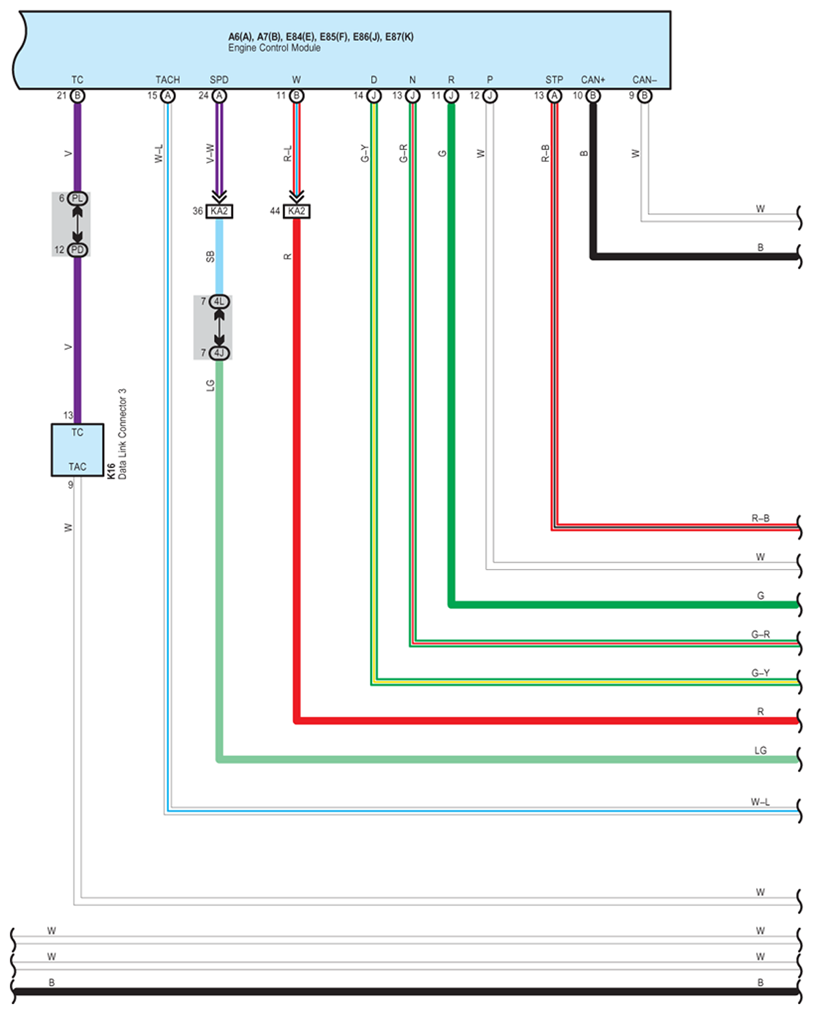

Fig 24: Engine Control (1UR-FSE) - Circuit Diagram (24 Of 28)

G07595411

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

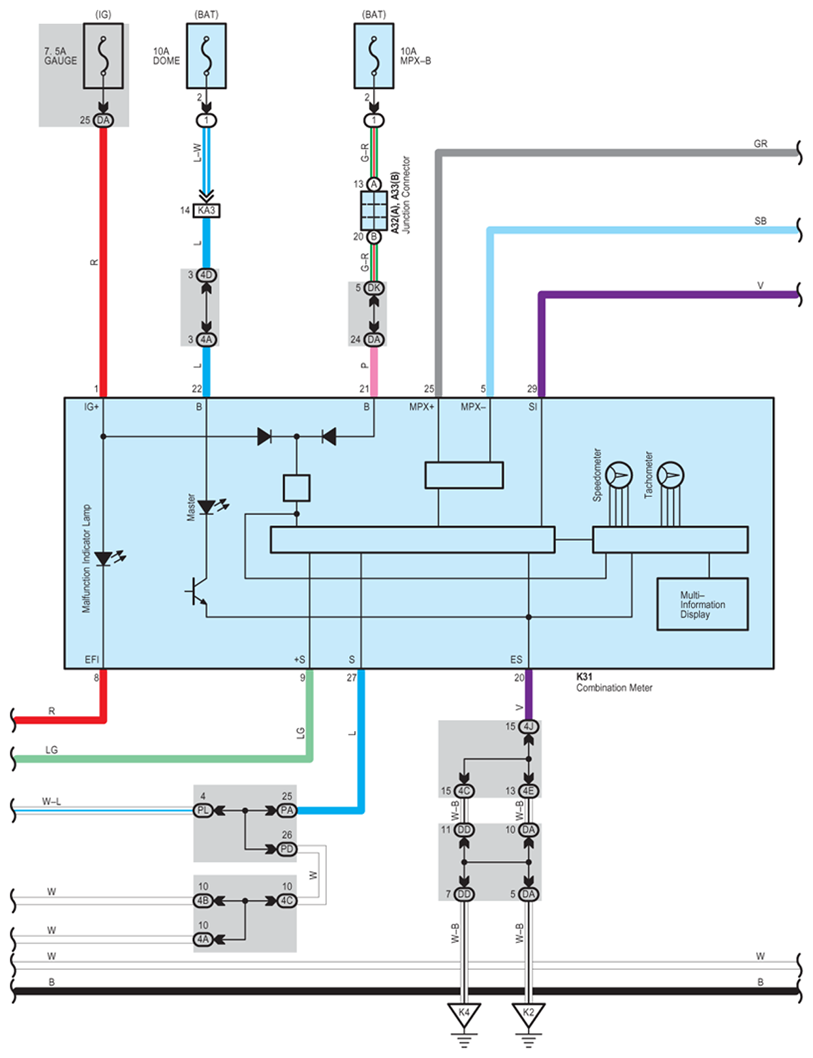

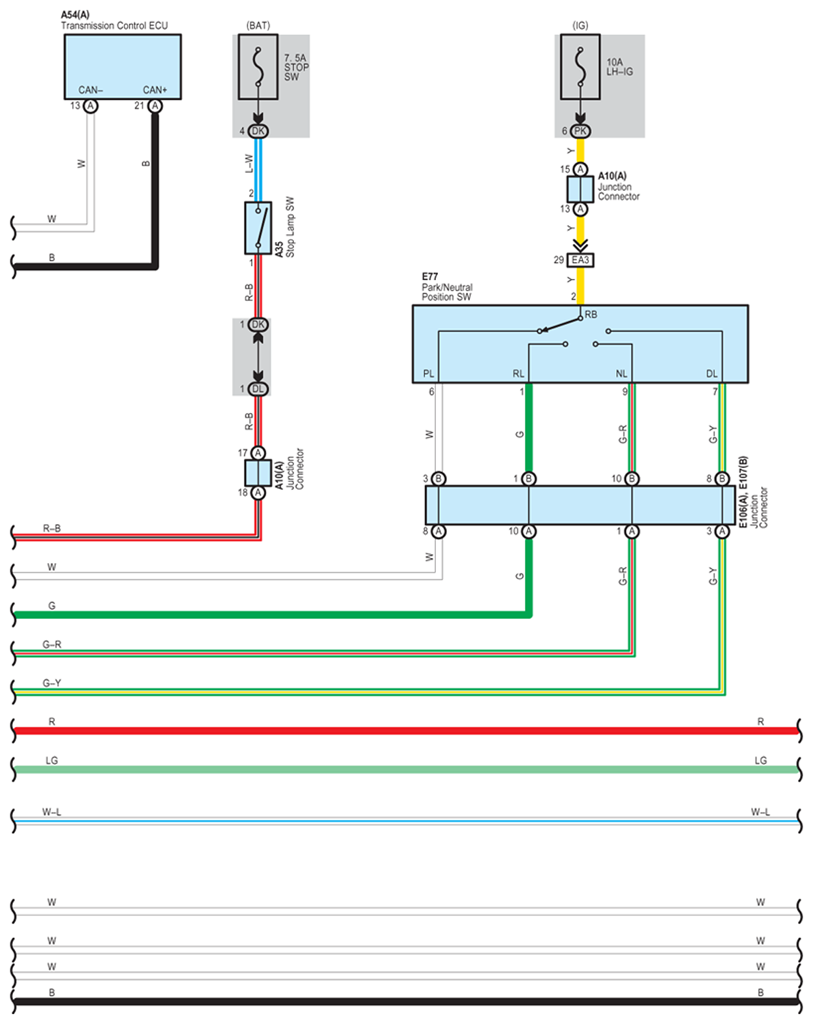

Fig 25: Engine Control (1UR-FSE) - Circuit Diagram (25 Of 28)

G07595412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

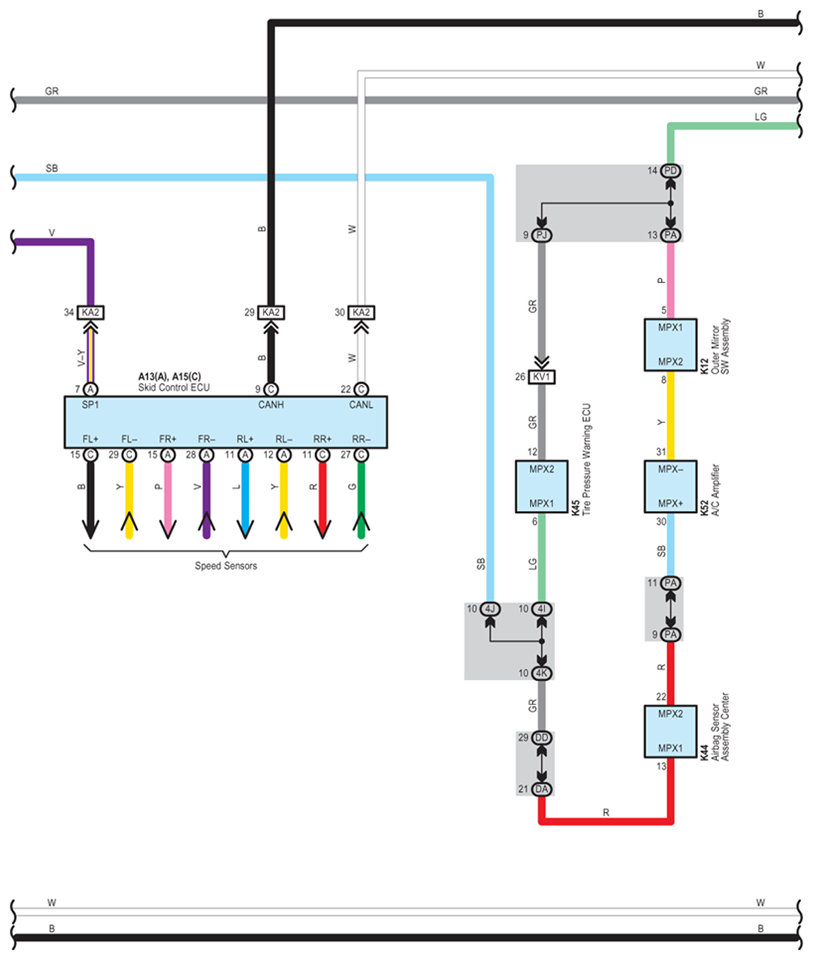

Fig 26: Engine Control (1UR-FSE) - Circuit Diagram (26 Of 28)

G07595413

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

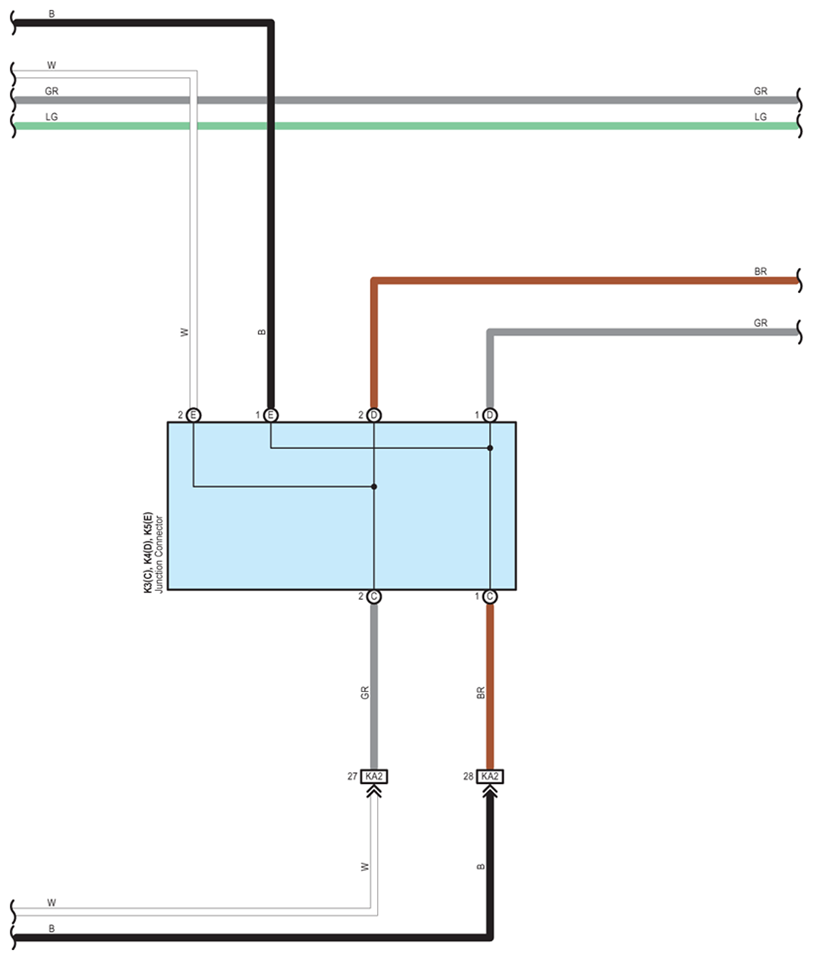

Fig 27: Engine Control (1UR-FSE) - Circuit Diagram (27 Of 28)

G07595414

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

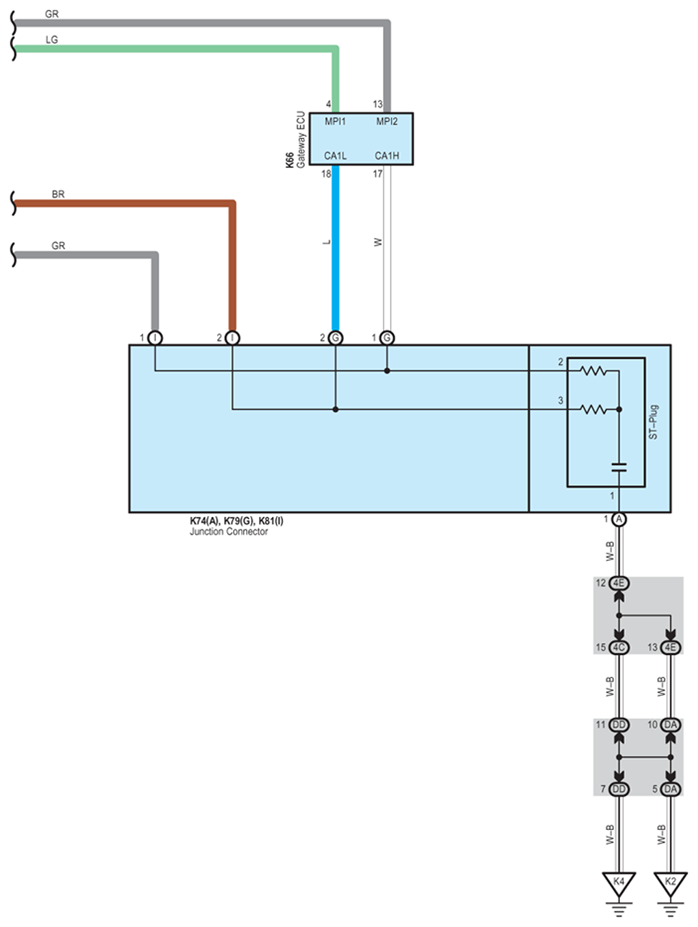

Fig 28: Engine Control (1UR-FSE) - Circuit Diagram (28 Of 28)

G07595415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
