OEM System Circuits: Illumination: Notes

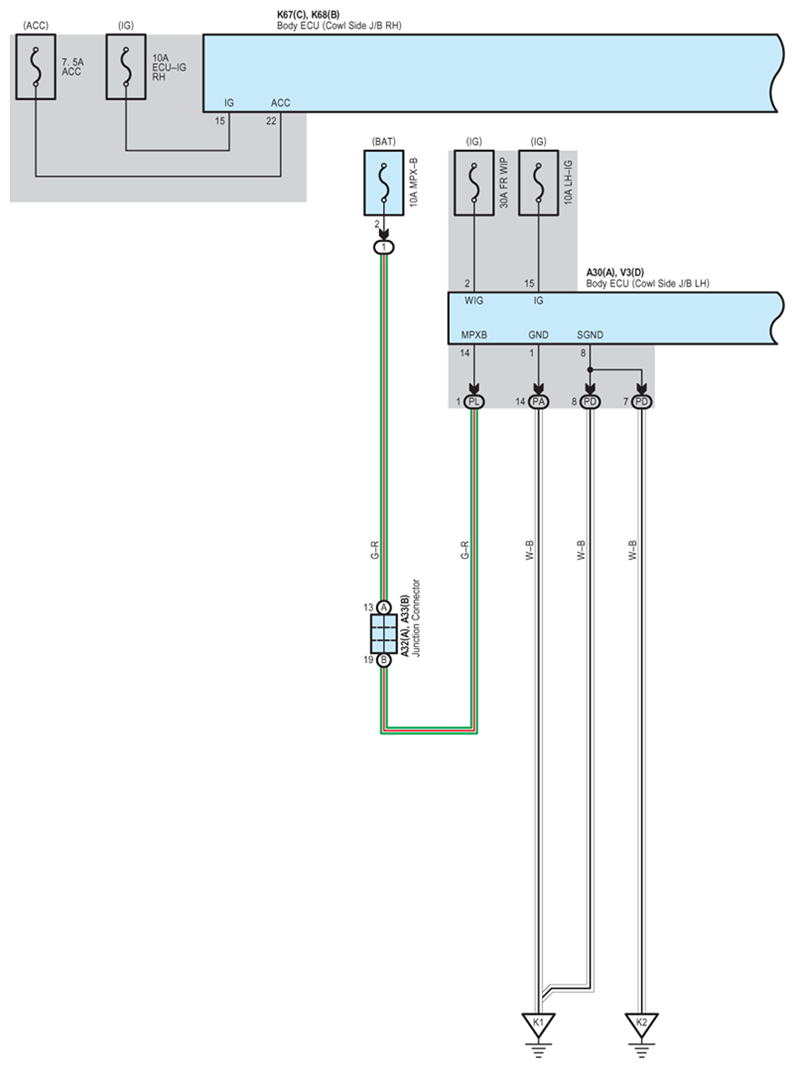

Fig 1: Illumination - Circuit Diagram (1 Of 10)

G07595469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

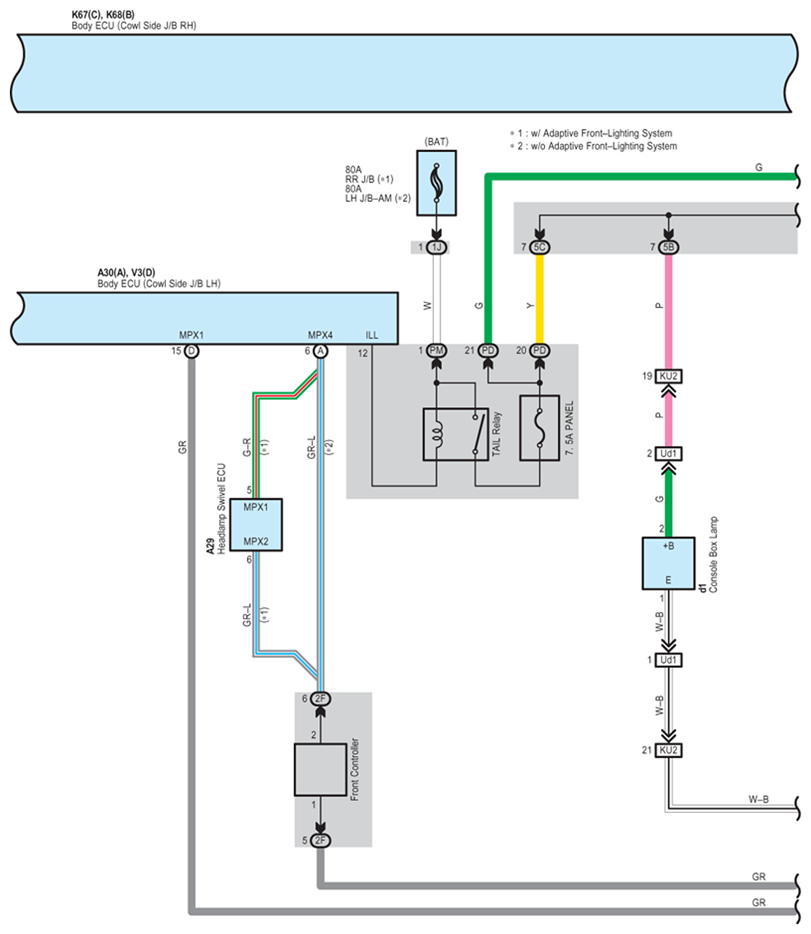

Fig 2: Illumination - Circuit Diagram (2 Of 10)

G07595470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

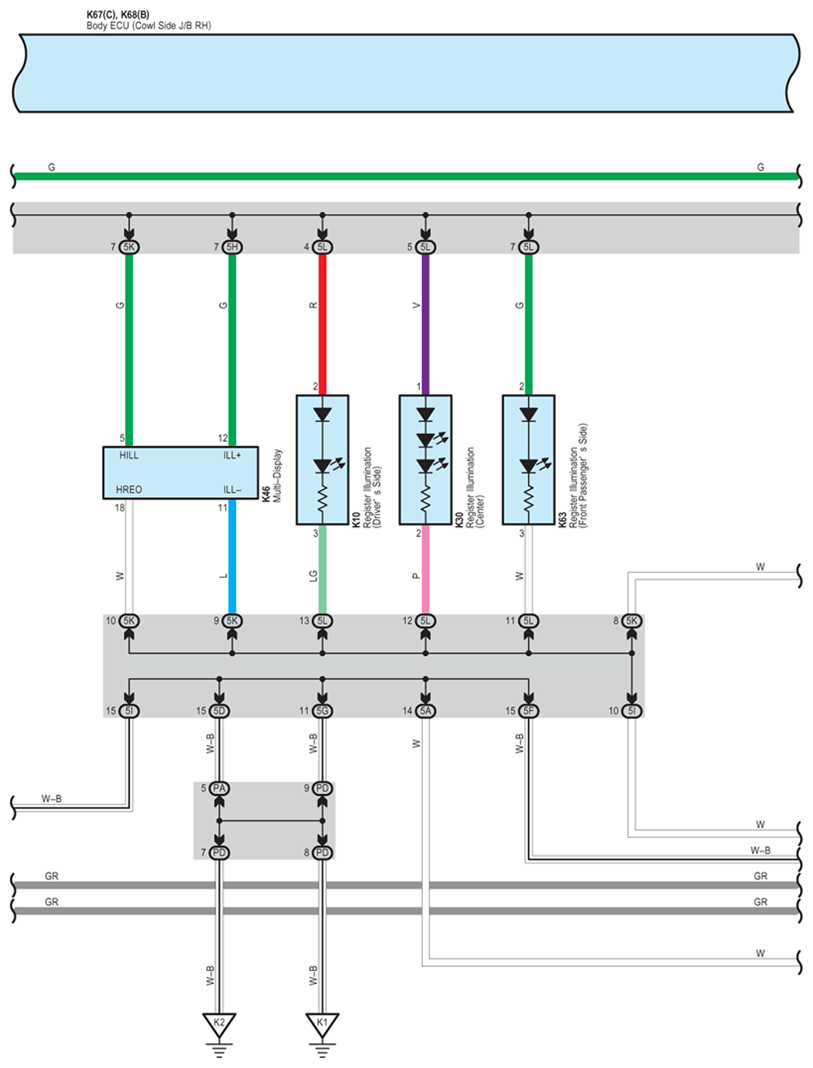

Fig 3: Illumination - Circuit Diagram (3 Of 10)

G07595471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

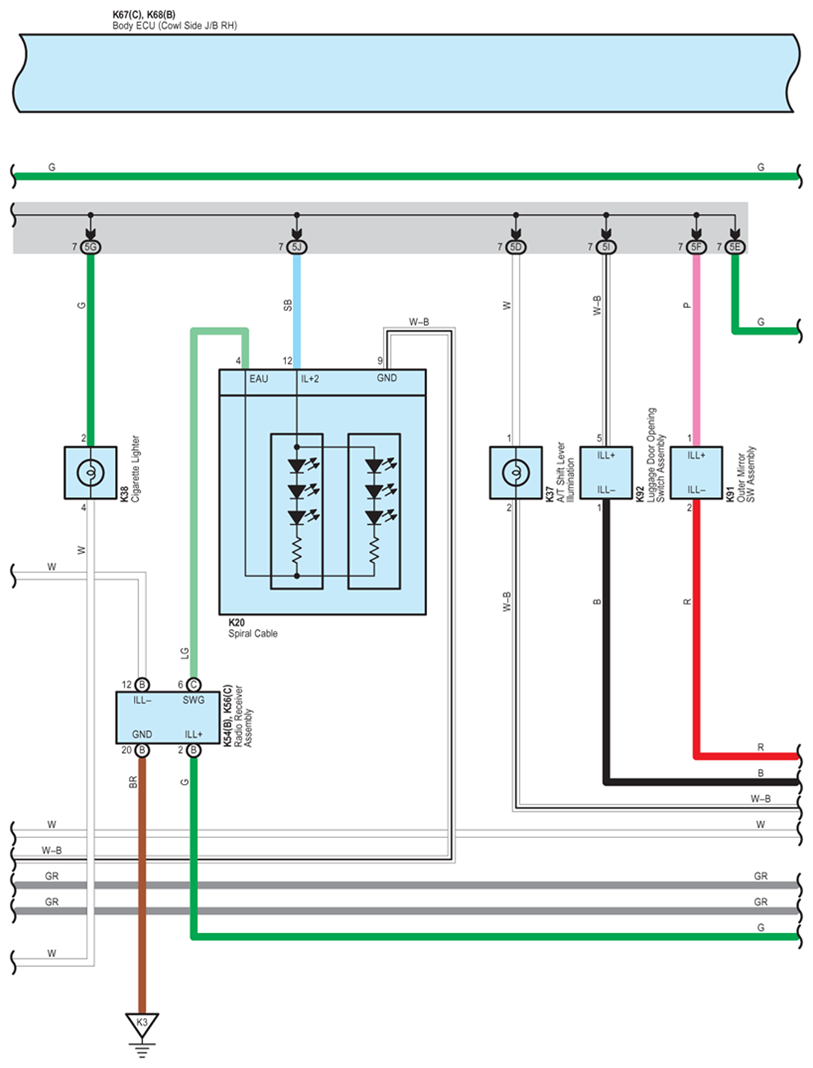

Fig 4: Illumination - Circuit Diagram (4 Of 10)

G07595472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

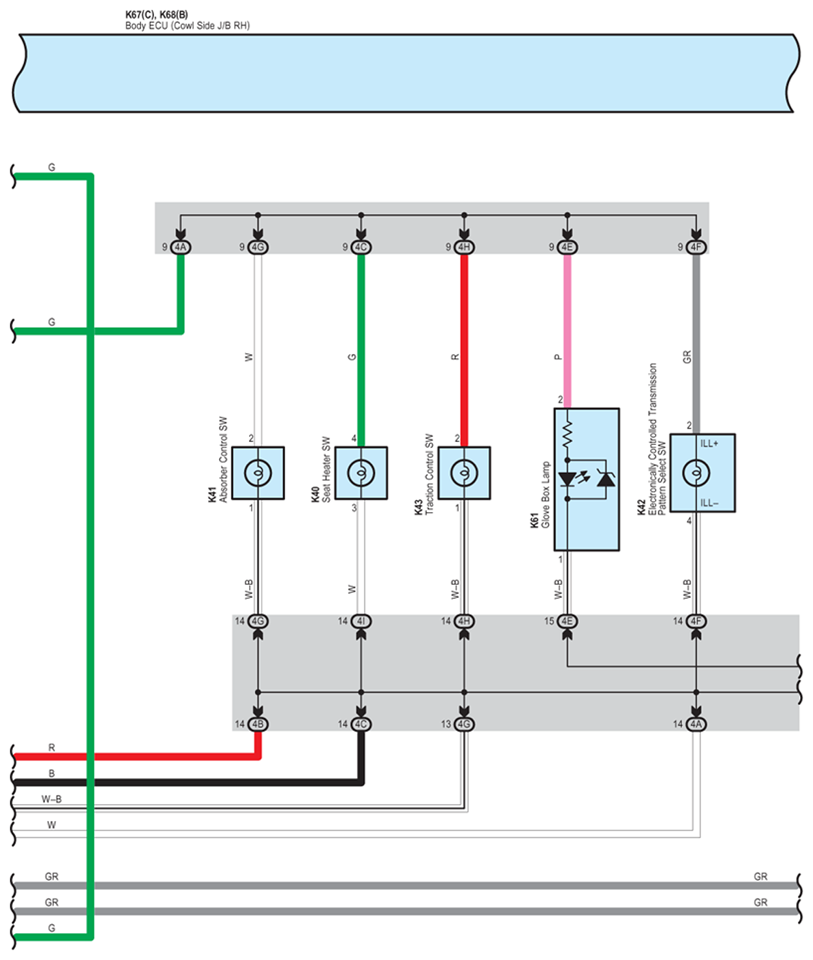

Fig 5: Illumination - Circuit Diagram (5 Of 10)

G07595473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

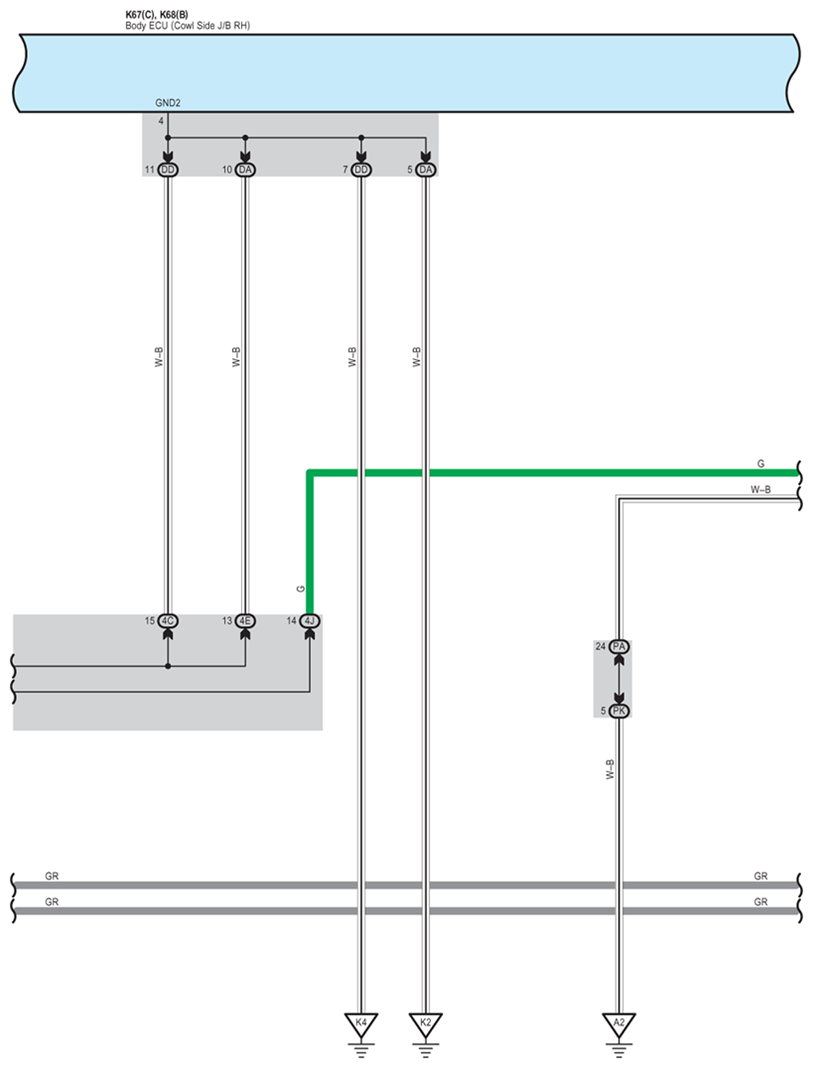

Fig 6: Illumination - Circuit Diagram (6 Of 10)

G07595474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

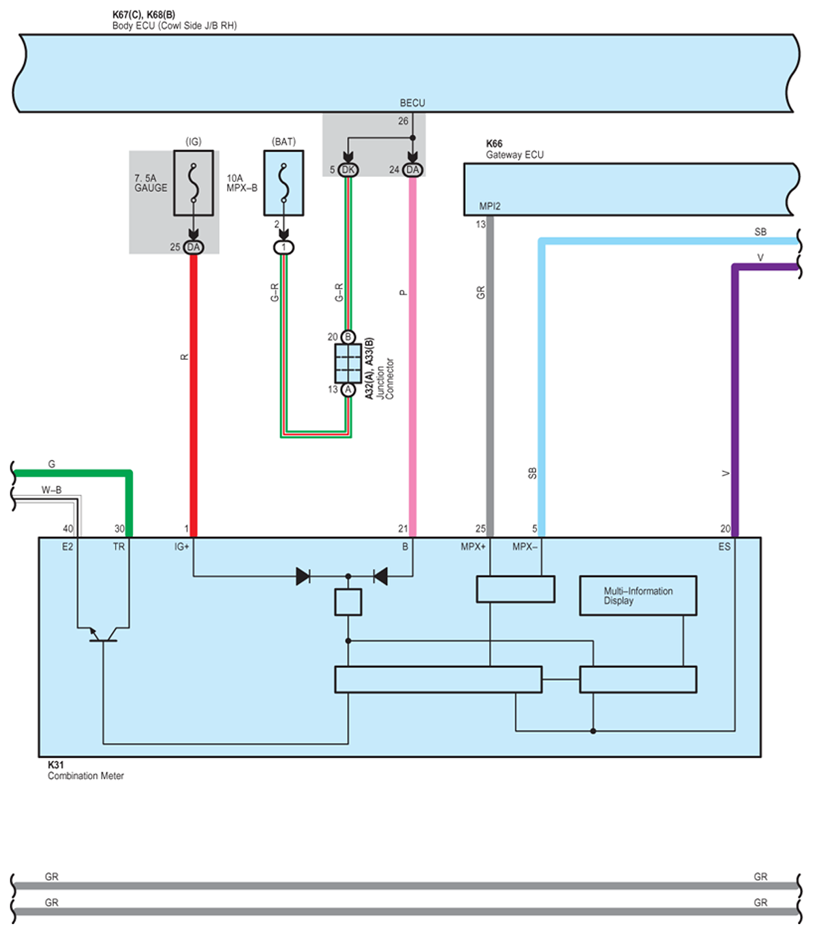

Fig 7: Illumination - Circuit Diagram (7 Of 10)

G07595475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

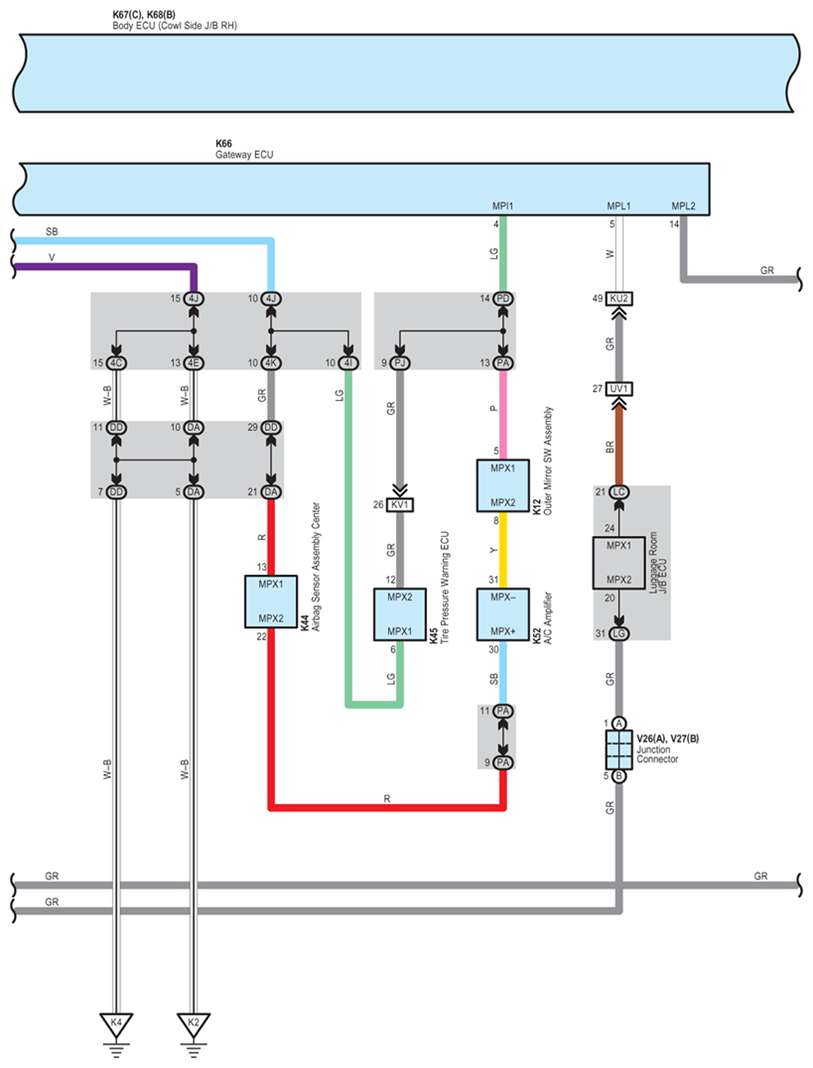

Fig 8: Illumination - Circuit Diagram (8 Of 10)

G07595476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Illumination - Circuit Diagram (9 Of 10)

G07595477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Illumination - Circuit Diagram (10 Of 10)

G07595478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
