Power Source: Notes — 2009 Lexus GS 350 AWD Service Manual ~ LEMON Manuals

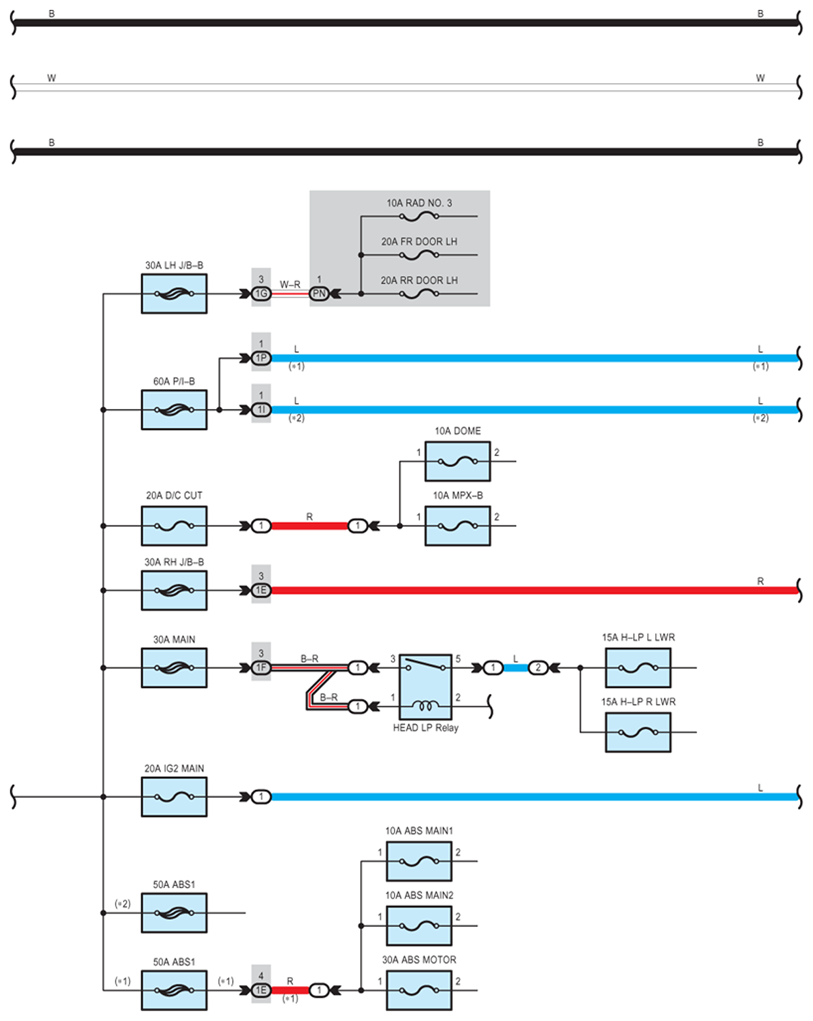

Fig 1: Power Source - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

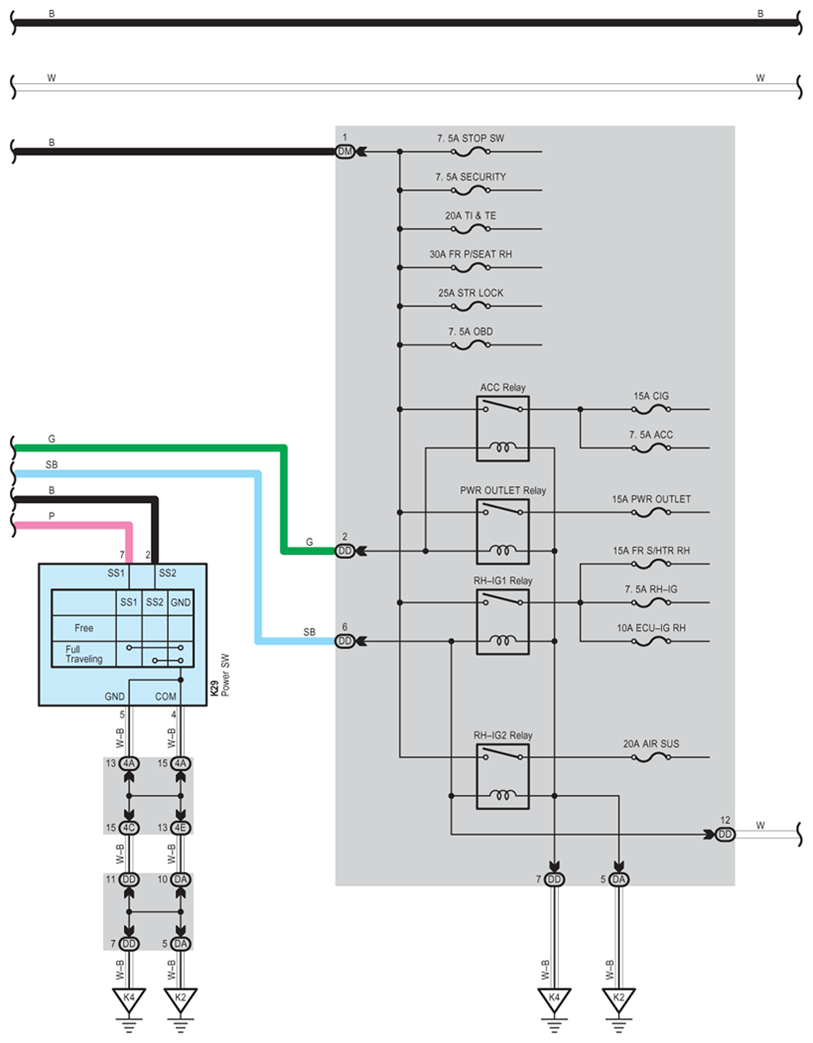

Fig 2: Power Source - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

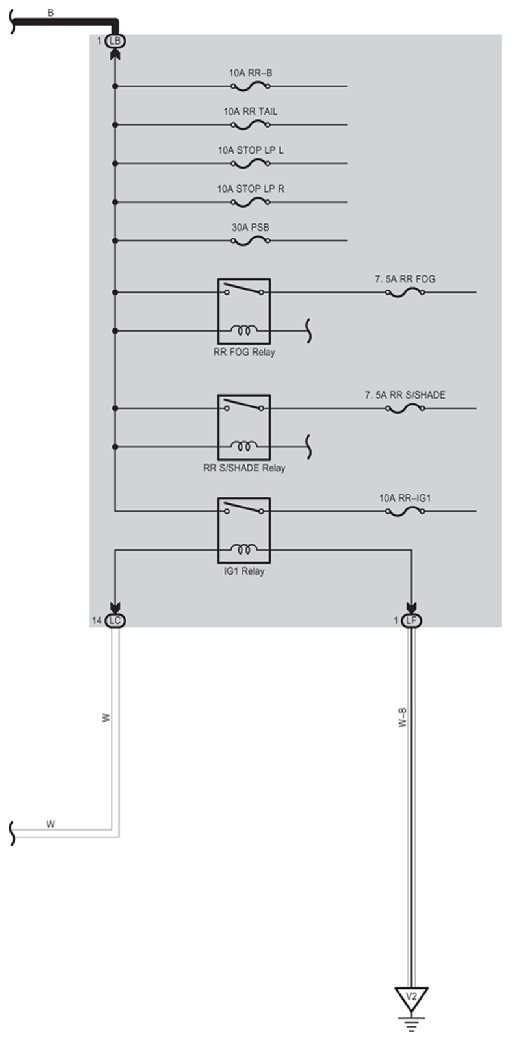

Fig 3: Power Source - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

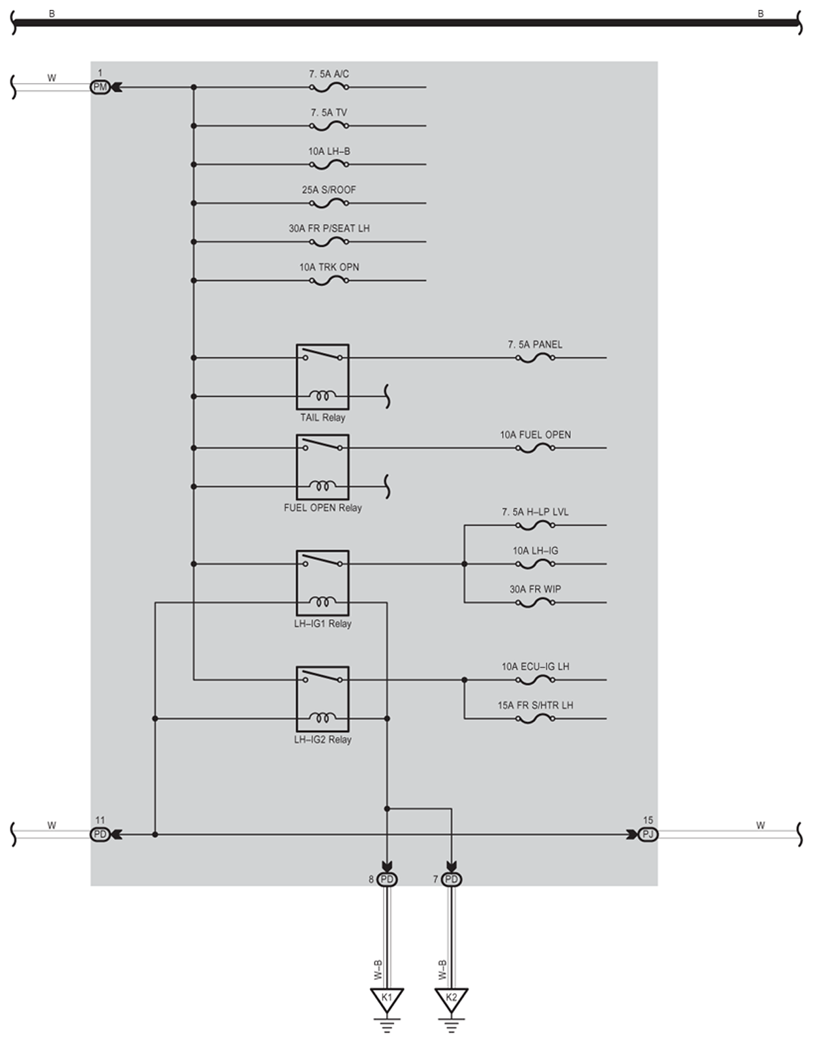

Fig 4: Power Source - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

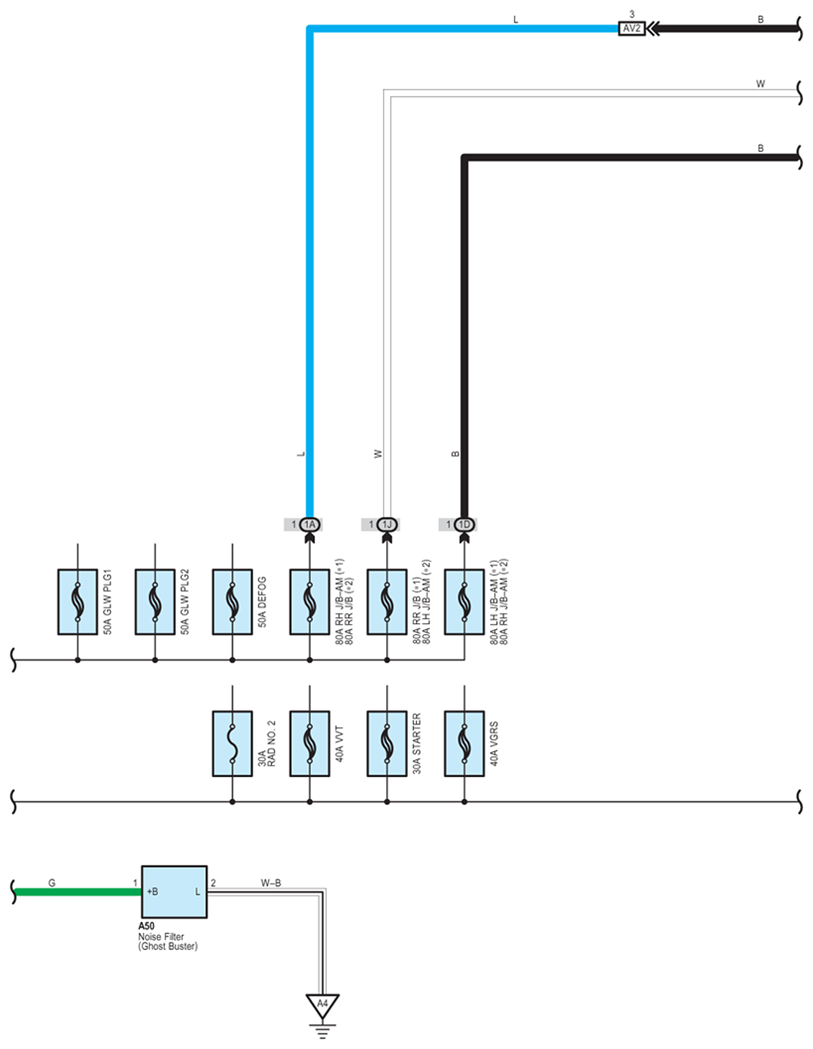

Fig 5: Power Source - Circuit Diagram (5 Of 7)

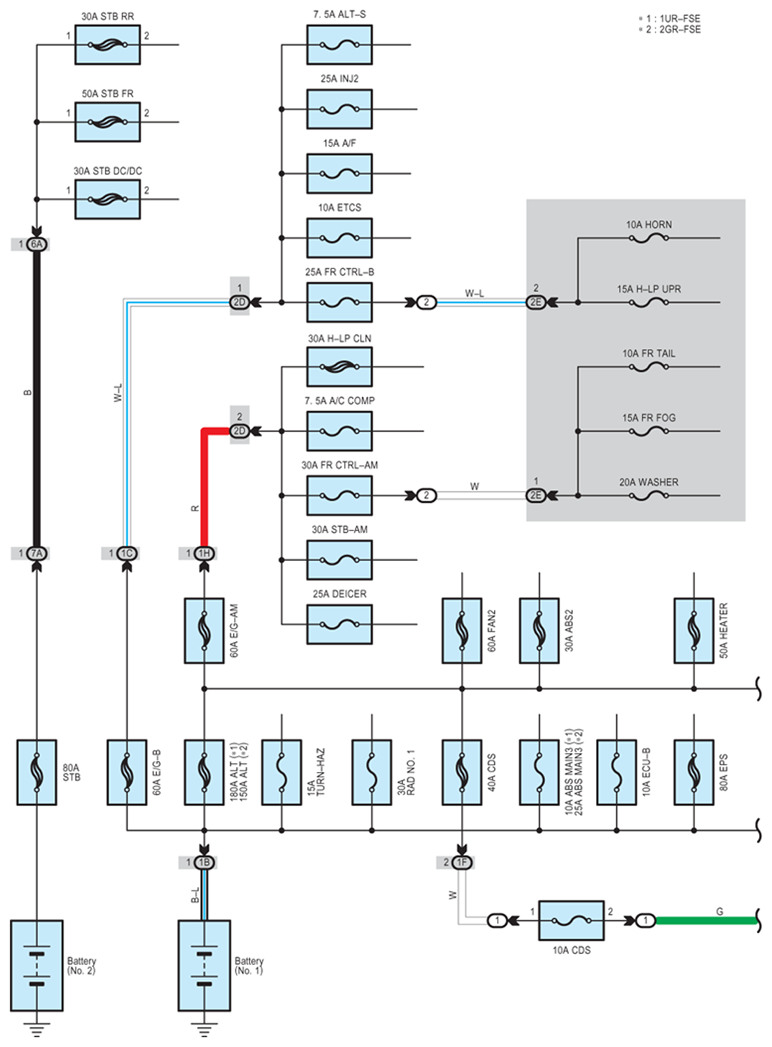

Fig 6: Power Source - Circuit Diagram (6 Of 7)

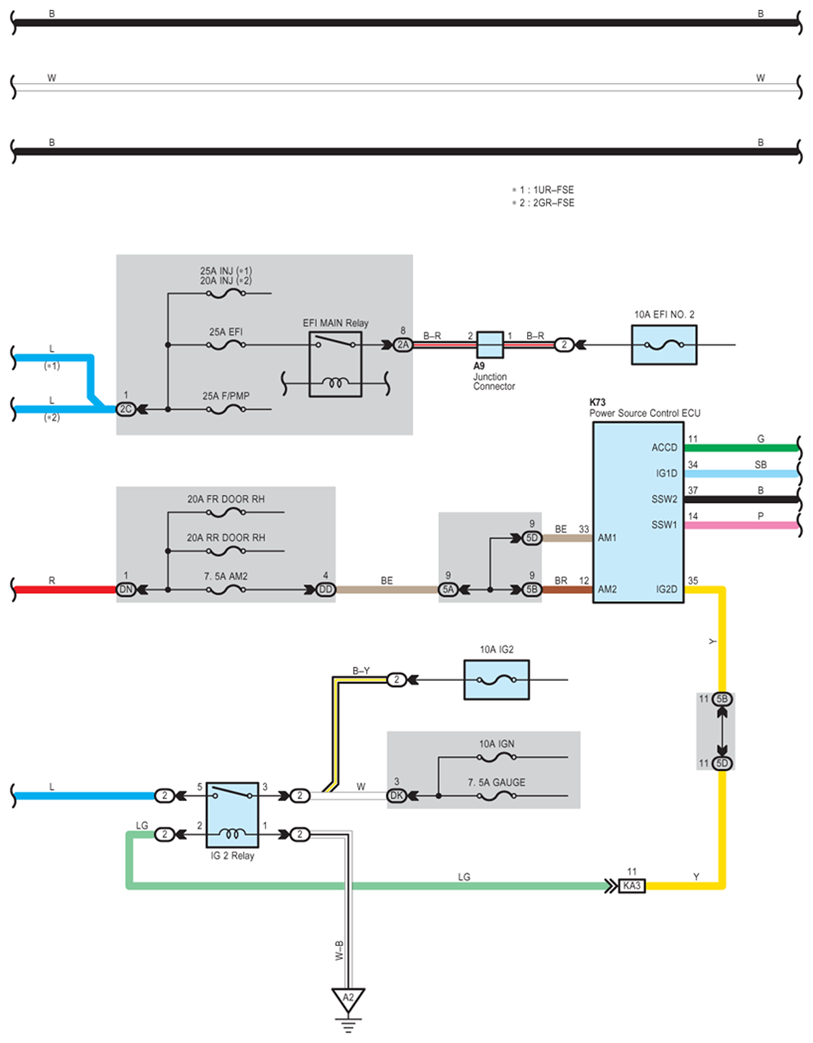

Fig 7: Power Source - Circuit Diagram (7 Of 7)
