Shift Lock: Notes

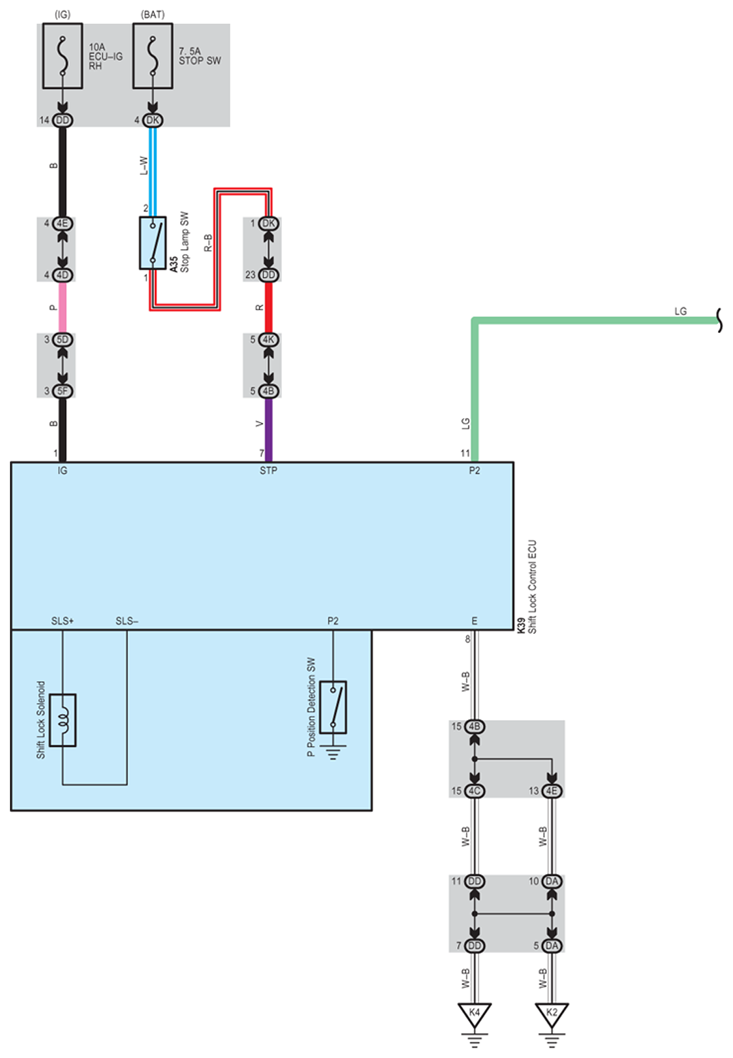

Fig 1: Shift Lock - Circuit Diagram (1 Of 3)
G07595734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

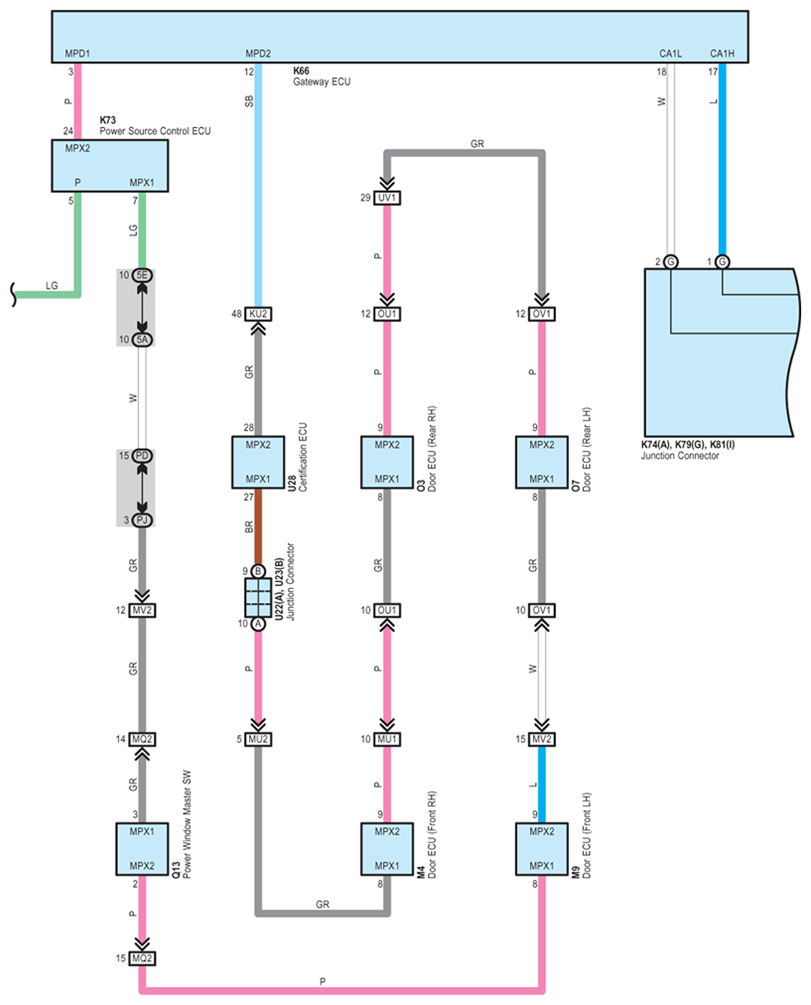

Fig 2: Shift Lock - Circuit Diagram (2 Of 3)
G07595735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

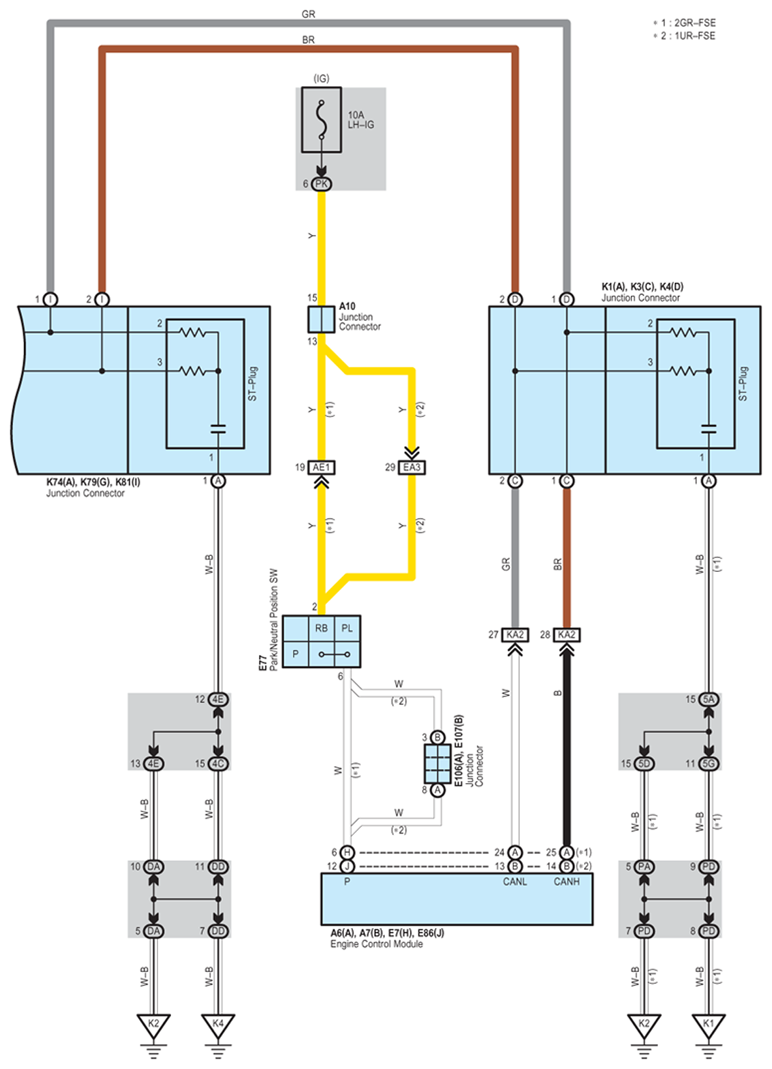

Fig 3: Shift Lock - Circuit Diagram (3 Of 3)
G07595736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
