OEM System Circuits: Taillight: Notes

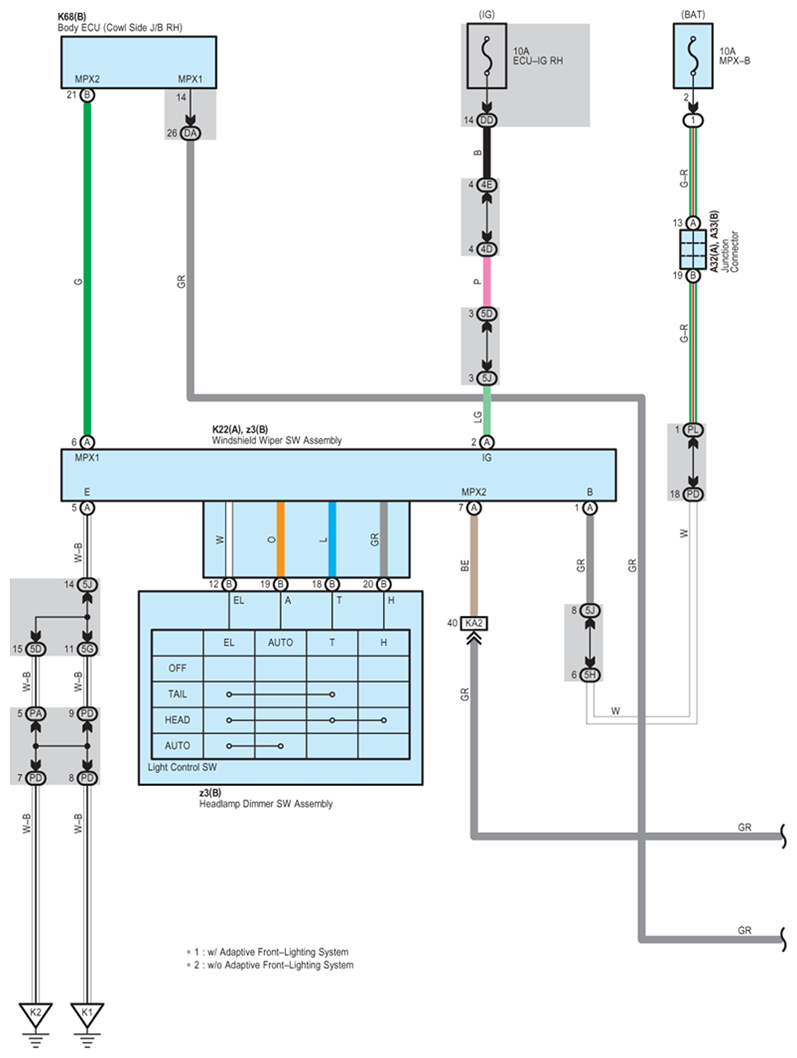

Fig 1: Taillight - Circuit Diagram (1 Of 7)

G07595479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

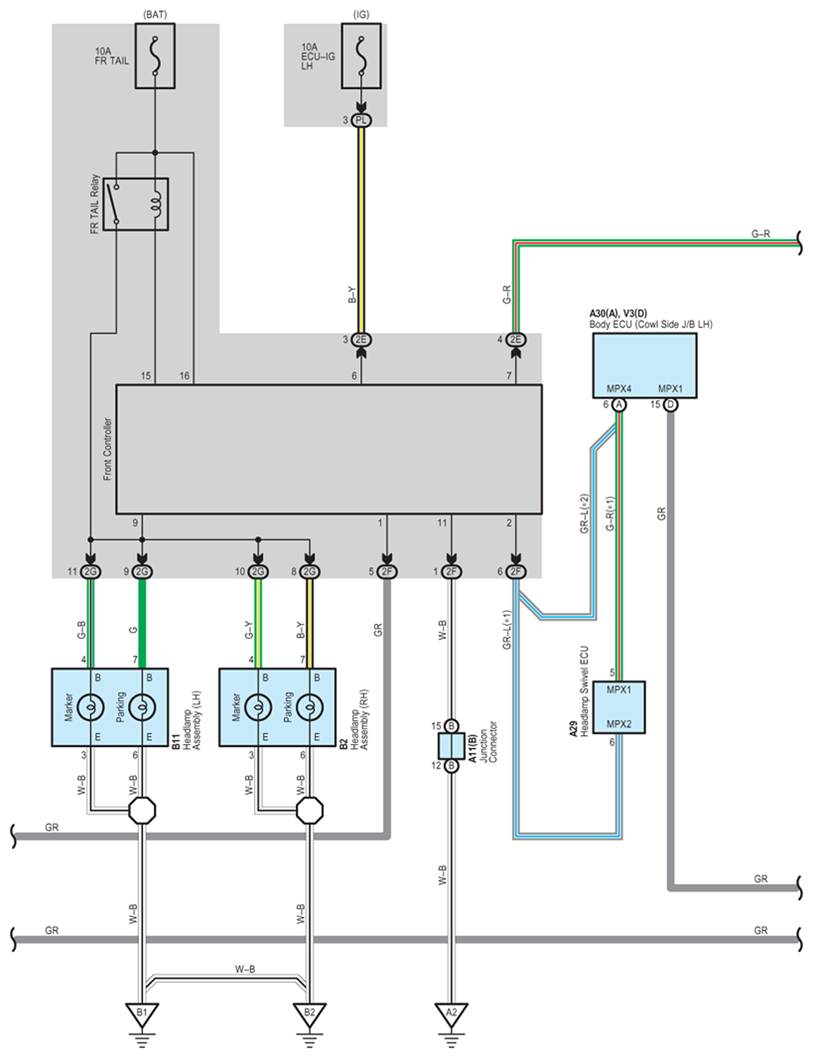

Fig 2: Taillight - Circuit Diagram (2 Of 7)

G07595480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

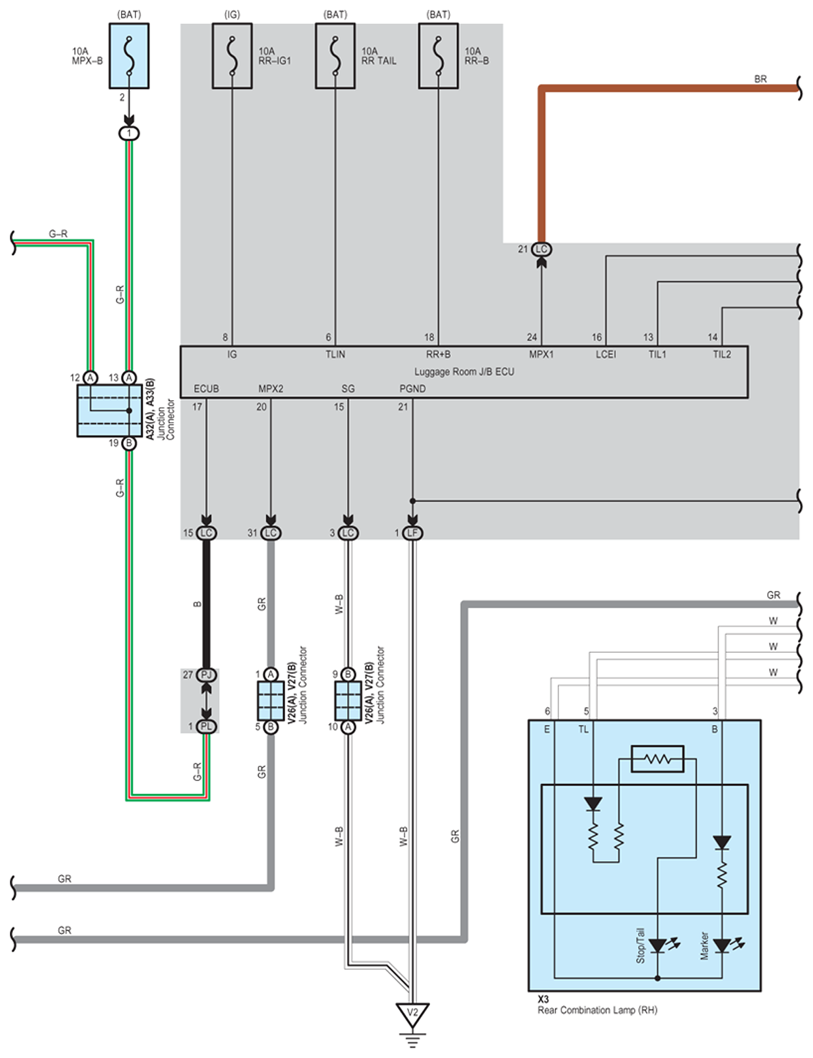

Fig 3: Taillight - Circuit Diagram (3 Of 7)

G07595481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

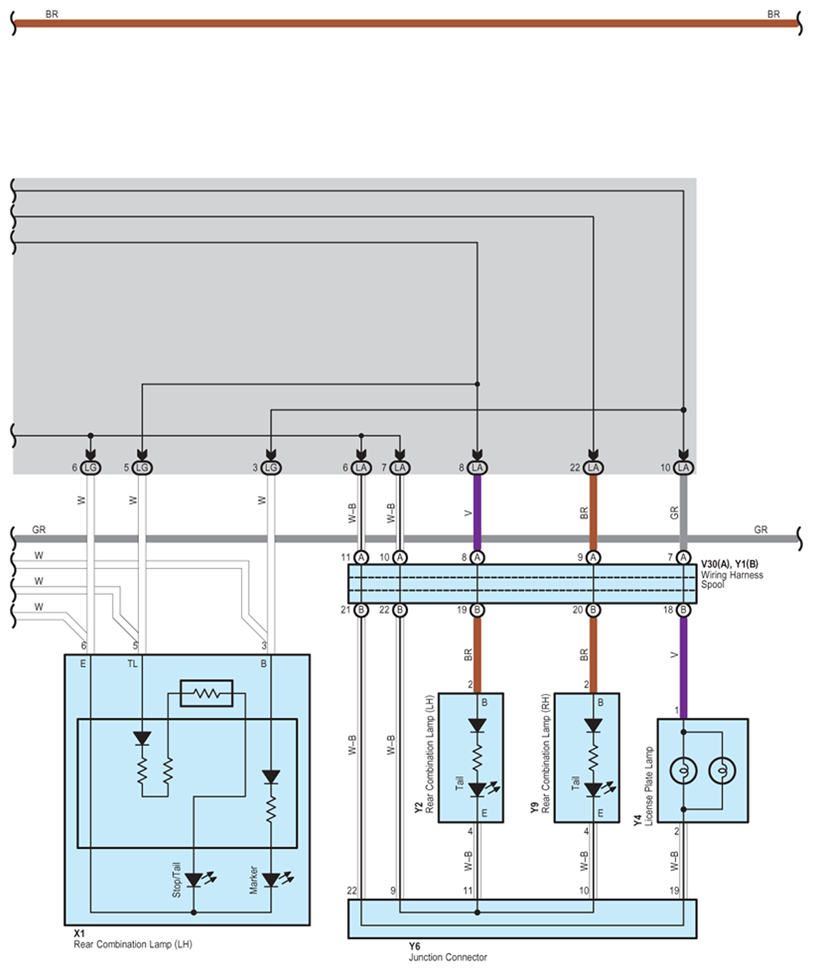

Fig 4: Taillight - Circuit Diagram (4 Of 7)

G07595482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

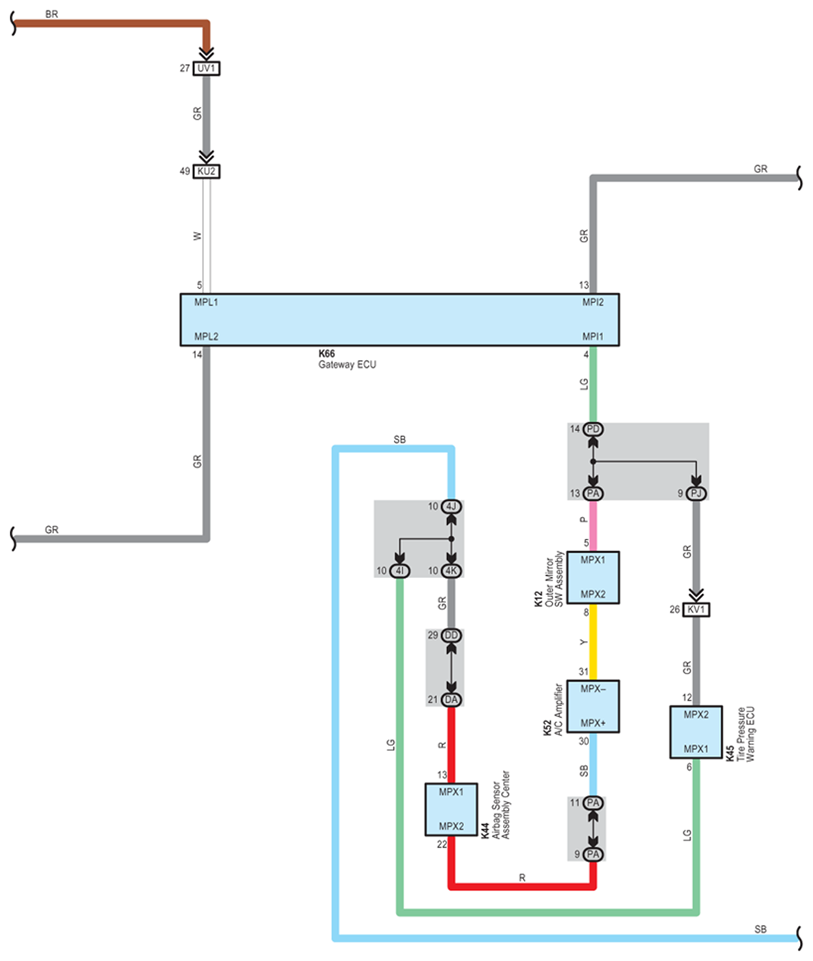

Fig 5: Taillight - Circuit Diagram (5 Of 7)

G07595483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

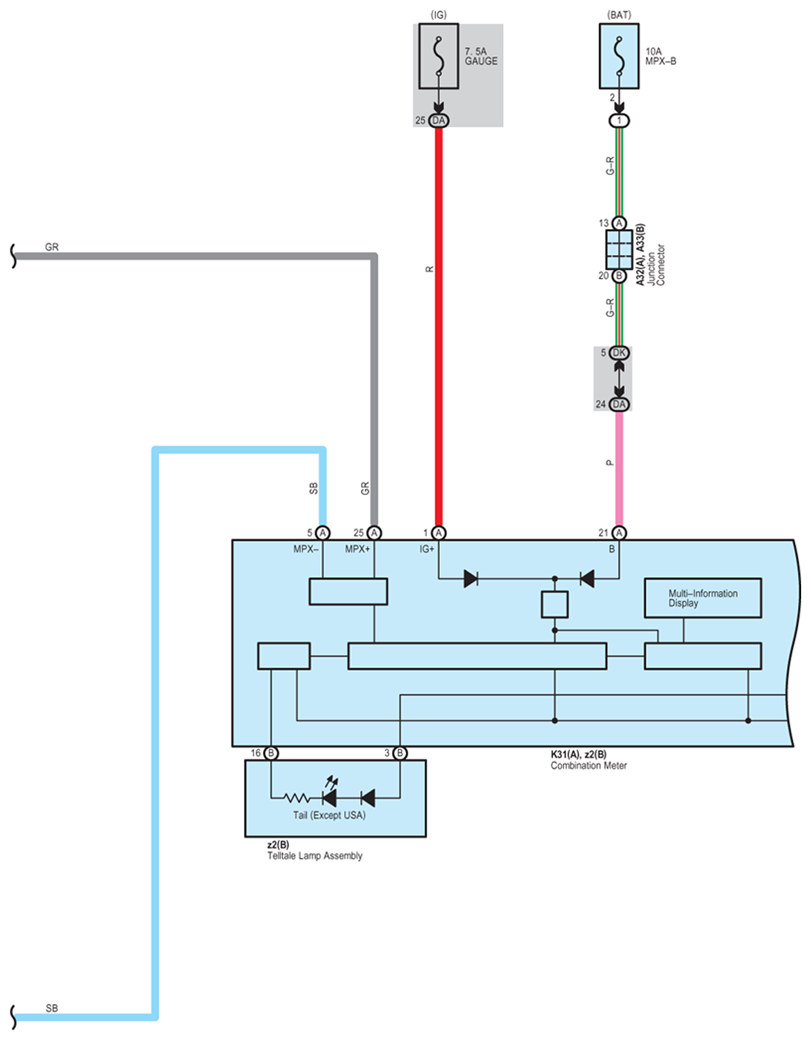

Fig 6: Taillight - Circuit Diagram (6 Of 7)

G07595484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

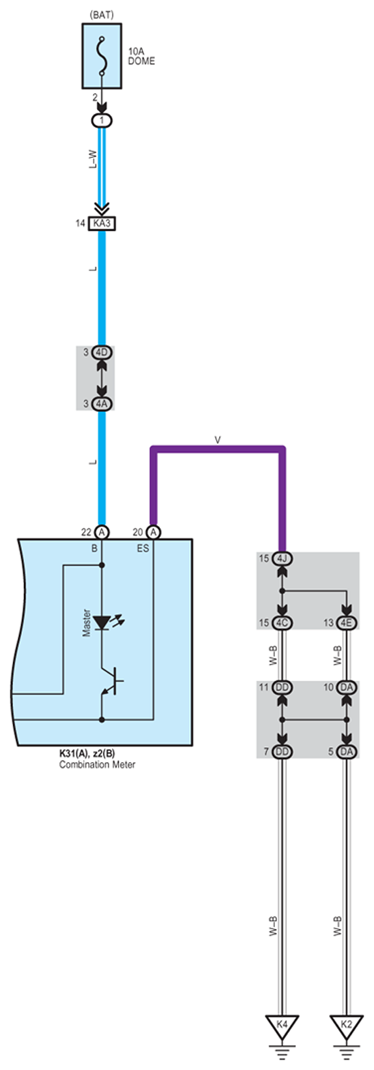

Fig 7: Taillight - Circuit Diagram (7 Of 7)

G07595485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
