Back Window Glass: Components: Illustration

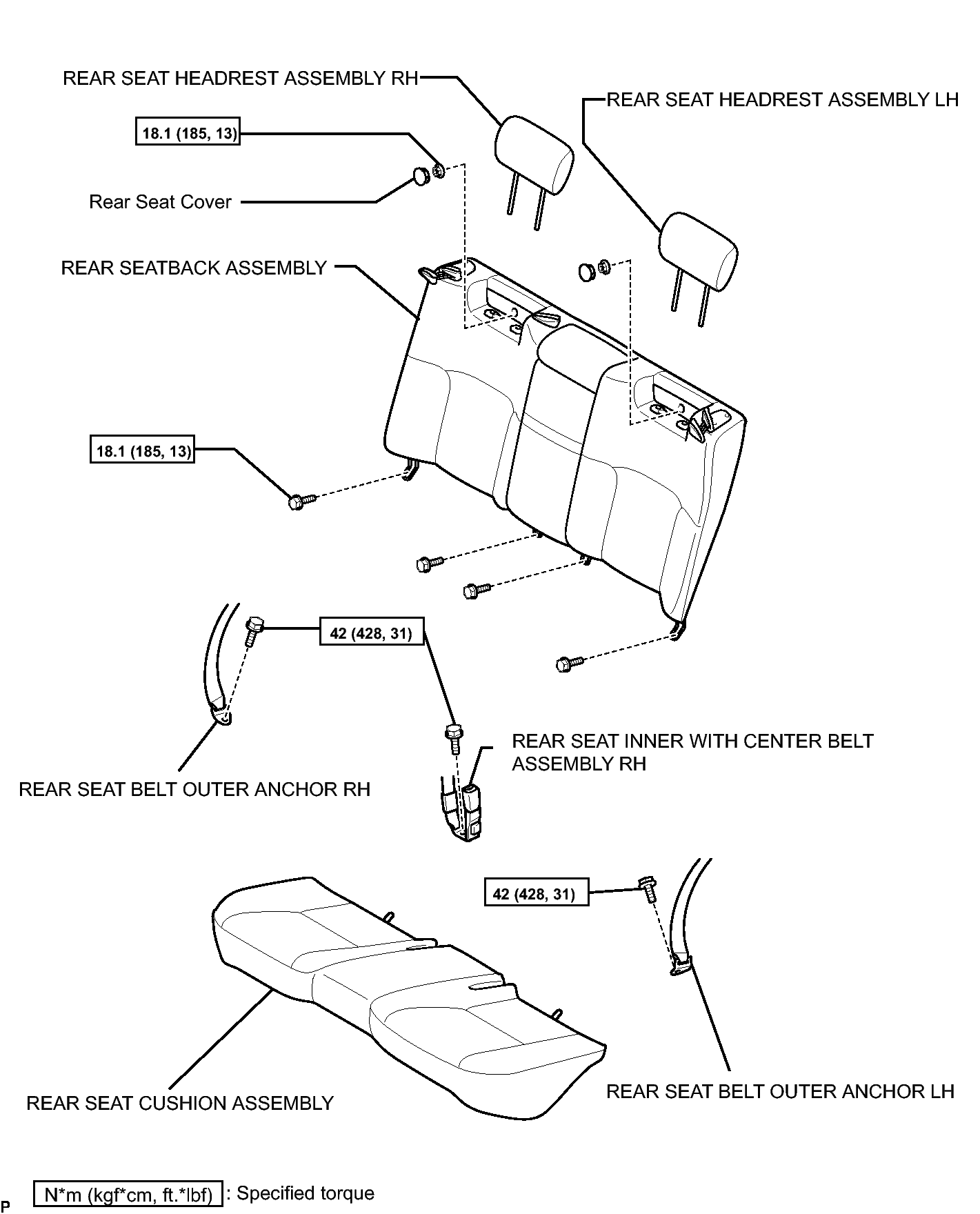

Fig 1: Identifying Back Window Glass Replacement Components With Torque Specifications (1 Of 4)
GTY102803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

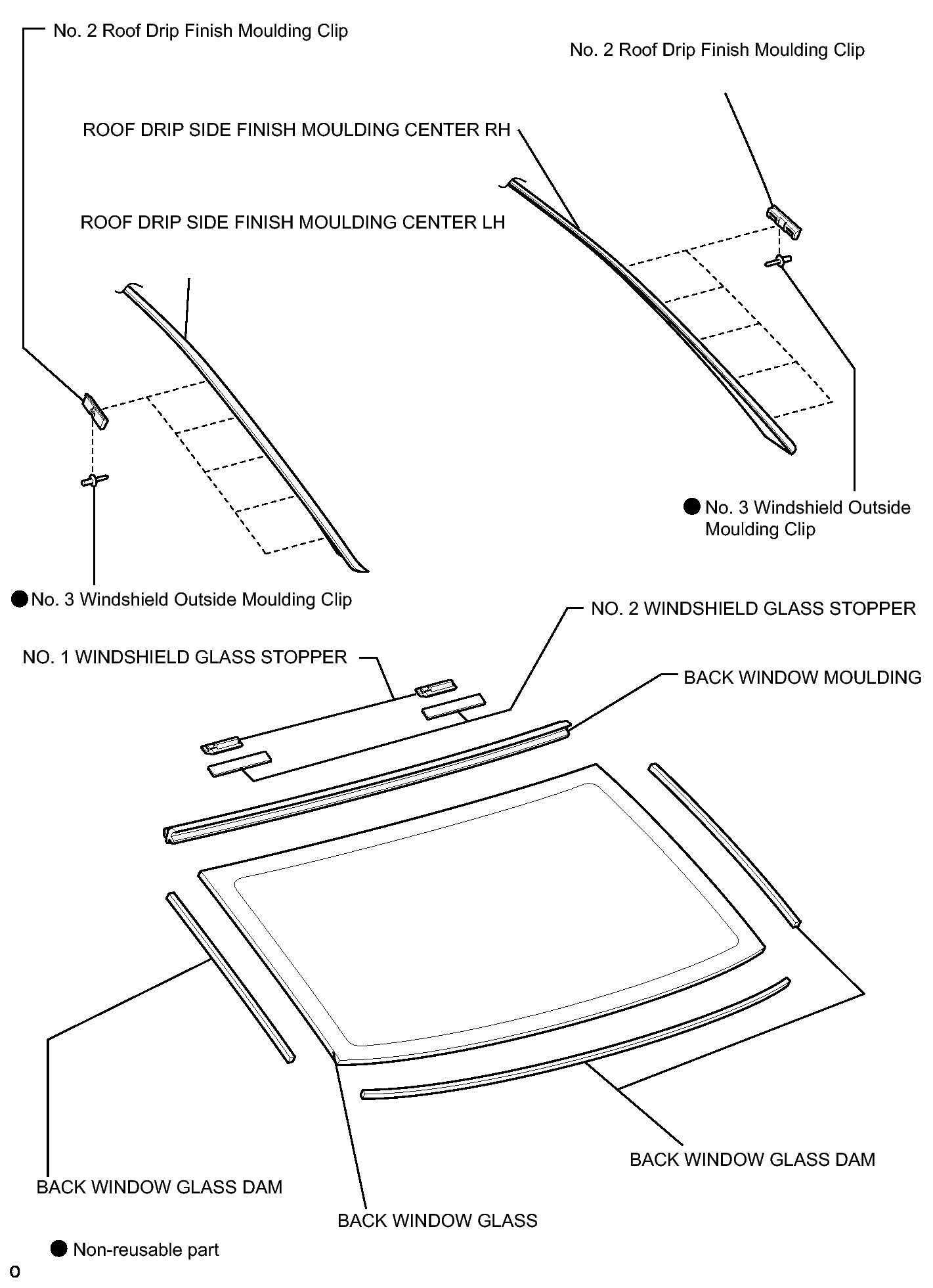

Fig 1: Identifying Back Window Glass Replacement Components (2 Of 4)
GTY101628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

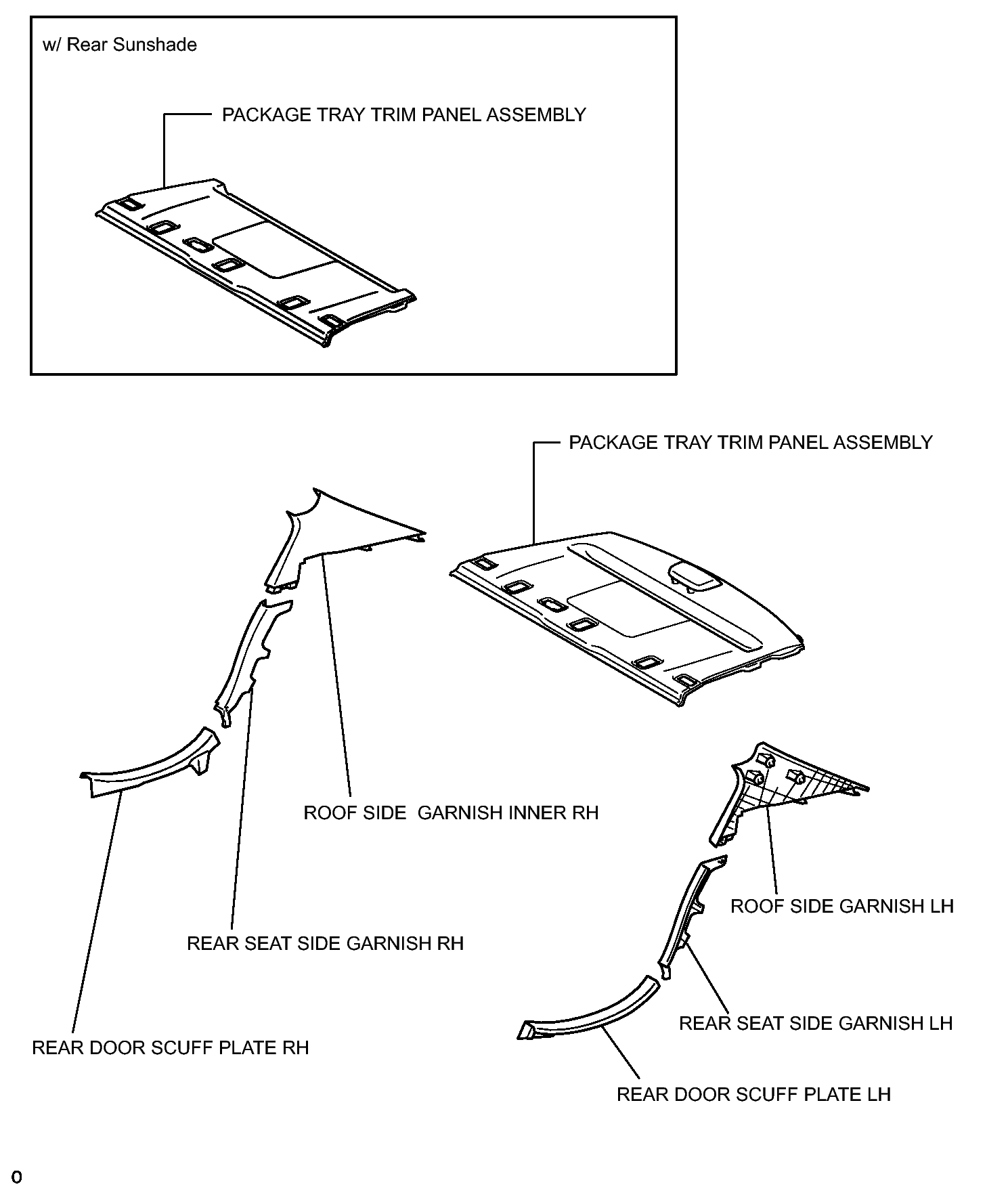

Fig 1: Identifying Back Window Glass Replacement Components (3 Of 4)
GTY106141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Back Window Glass Replacement Components (4 Of 4)
GTY106241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
