DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

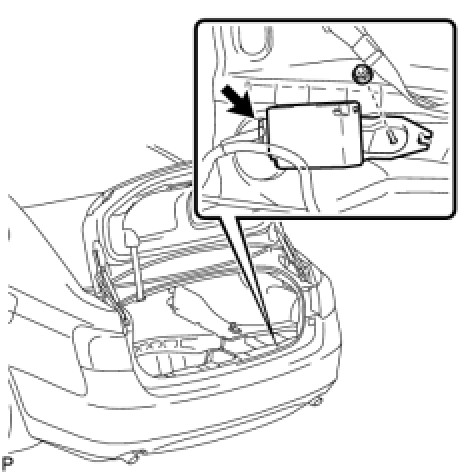

1. INSTALL DOOR CONTROL RECEIVER
(a) Install the receiver with the nut.
(b) Connect the receiver connector.

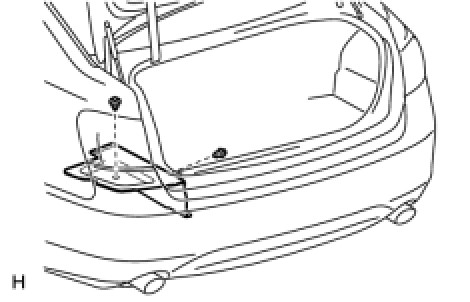

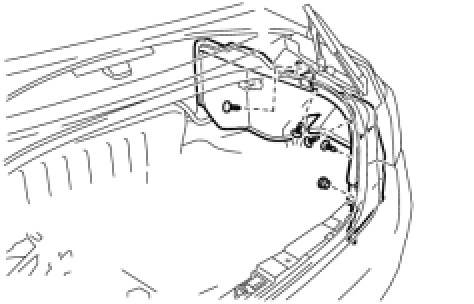

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER RH
(a) Install the trim cover with the 5 clips.

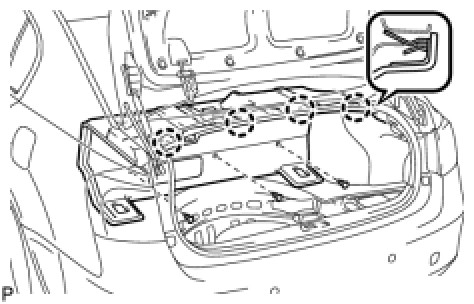

3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT





(a) Attach the 4 claws to install the trim cover.
(b) Install the 3 clips.

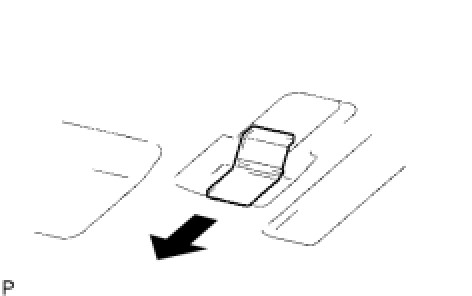

(c) Attach the hook.

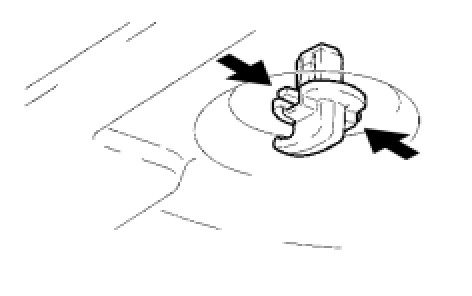

(d) Install the rope hook.

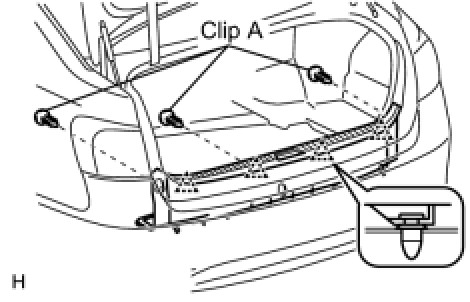

4. INSTALL REAR FLOOR FINISH PLATE
(a) Install the finish plate with the 4 clips.
(b) Install the 3 clips labeled A.
(c) Install the 2 bolts and 2 hooks on the both side.

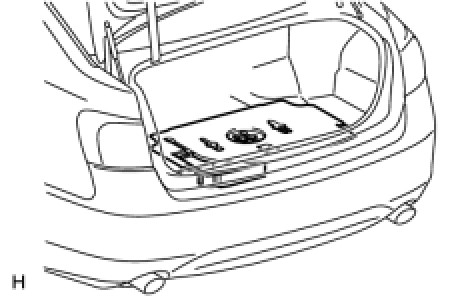

5. INSTALL TOOL BOX





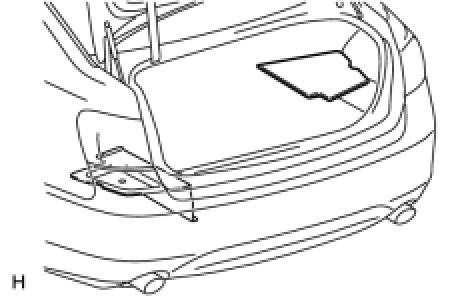

6. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER LH
(a) Install the compartment trim side cover LH with the 2 clips.





7. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER RH

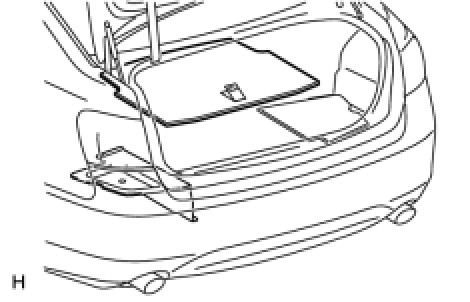

8. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
