DOOR LOCK: DOOR CONTROL RECEIVER: REMOVAL

REMOVAL





1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT





2. REMOVE LUGGAGE COMPARTMENT TRIM SIDE COVER RH





3. REMOVE LUGGAGE COMPARTMENT TRIM SIDE COVER LH

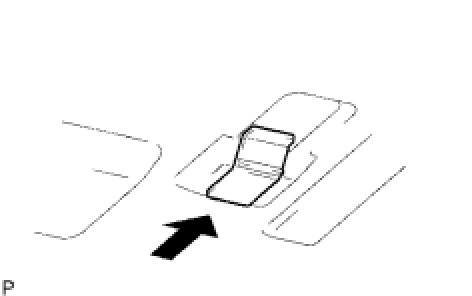

(a) Remove the 2 clips and compartment trim side cover LH.





4. REMOVE TOOL BOX





5. REMOVE REAR FLOOR FINISH PLATE
(a) Remove the 2 bolts and 2 hooks.

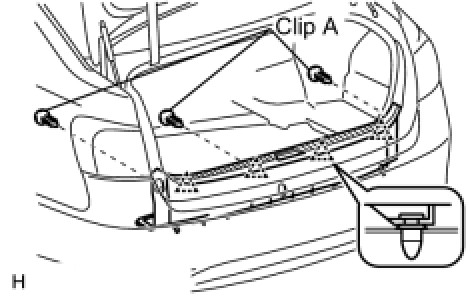

(b) Remove the 3 clips labeled A.
(c) Detach the 4 clips to remove the finish plate.
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT





(a) Detach the hook.





(b) Remove the rope hook.





(c) Remove the 3 clips.
(d) Detach the 4 claws and remove the trim cover.





7. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER RH
(a) Remove the 5 clips and trim cover.





8. REMOVE DOOR CONTROL RECEIVER
(a) Disconnect the receiver connector.
(b) Remove the nut and receiver.
