Navigation Check Mode

HINT:

• This mode displays GPS satellite information.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE
2. NAVIGATION CHECK
   1. Select "Navigation Check" from the "Diagnosis MENU" screen.

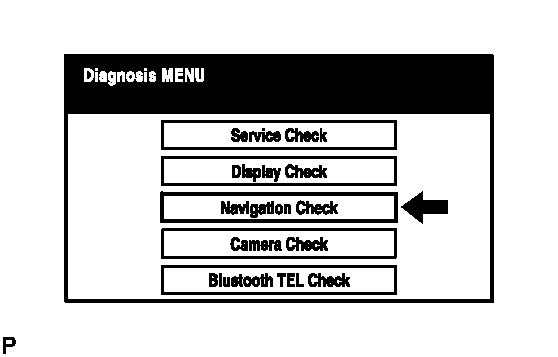

      Fig 1: Identifying Diagnosis MENU Screen Display Screen Display - Navigation Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. GPS INFORMATION
   1. Select "GPS Information" from the "Navigation Check" screen.

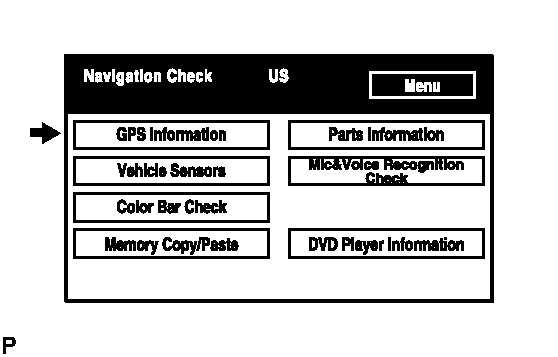

      Fig 2: Identifying Navigation Check Screen Display - GPS Information

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When GPS information is displayed, check the GPS conditions.
      Fig 3: Identifying GPS Information Screen Display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • This screen is updated once per second when input signals to the vehicle are changed.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION .
4. VEHICLE SENSORS

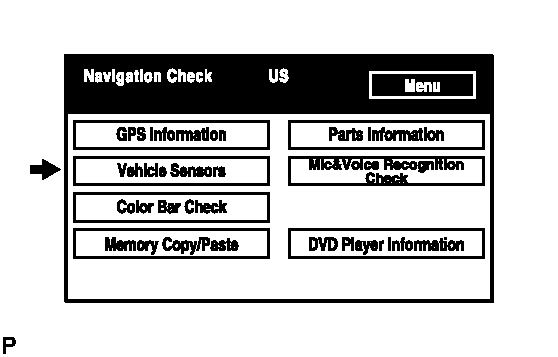

   1. Select "Vehicle Sensors" from the "Navigation Check" screen.
      Fig 4: Navigation Check Screen Display - Vehicle Sensors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check all the signals and sensors when vehicle signal information is displayed.

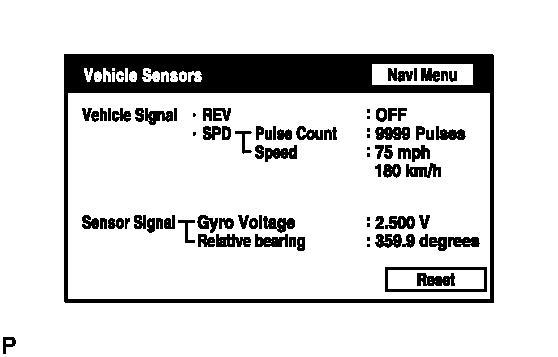

      Fig 5: Identifying Vehicle Sensors Screen Display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • This screen is updated once per second when input signals to the vehicle are changed.
      • This screen displays vehicle signals input to the navigation ECU.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION .
5. COLOR BAR CHECK
   1. Select "Color Bar Check" from the "Navigation Check" screen.

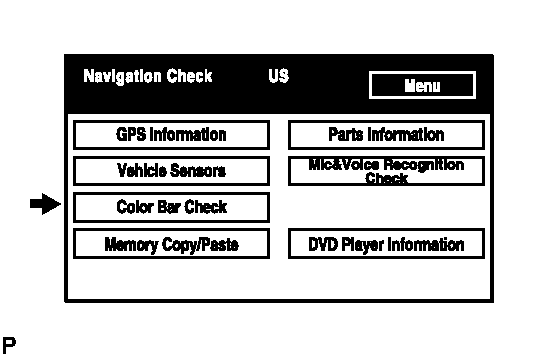

      Fig 6: Identifying Navigation Check Screen Display - Color Bar Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.

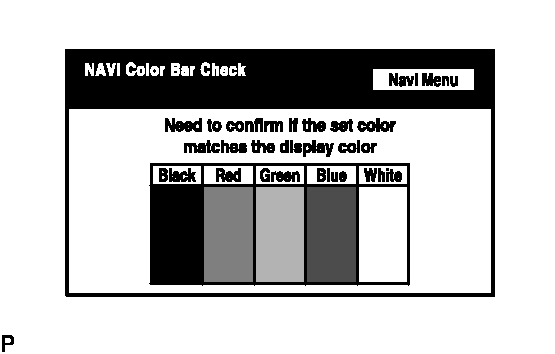

      Fig 7: Identifying NAVI Color Bar Check Screen Display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Colors will not be displayed full-screen as in "Display Check Mode".
      • This screen displays the navigation ECU display color.
6. MEMORY COPY/PASTE CHECK

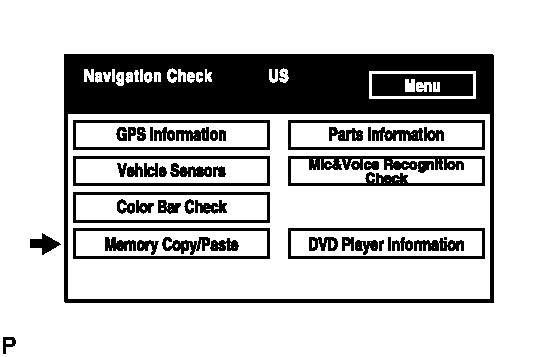

   Fig 8: Navigation Check Screen Display - Memory Copy/Paste

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   This function cannot be used.

7. PARTS INFORMATION

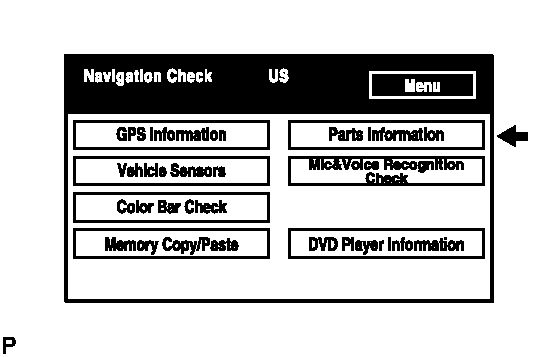

   1. Select "Parts Information" from the "Navigation Check" screen.
      Fig 9: Identifying Navigation Check Screen Display - Parts Information

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check the navigation and disc information when the "Parts Information" screen is displayed.

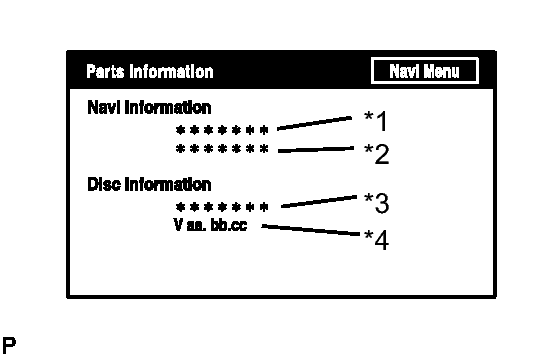

      Fig 10: Identifying Parts Information Screen Display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SCREEN DESCRIPTION:



      Display	Contents
      Navigation Manufacturer/*1	Navigation ECU manufacturer is displayed.
      Navigation Version/*2	Navigation ECU version is displayed.
      Disc Manufacturer/*3	Map disc manufacturer is displayed.
      Disc Version/*4	Map disc version is displayed.

8. MIC & VOICE RECOGNITION CHECK

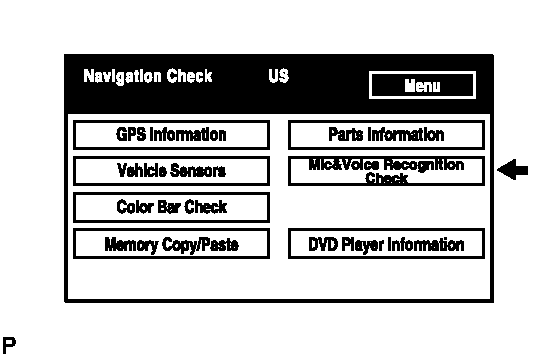

   1. Select "Mic & Voice Recognition Check" on the "Navigation Check" screen to display "MICROPHONE & VOICE RECOGNITION CHECK" screen.
      Fig 11: Identifying Navigation Check Screen Display - Mic & Voice Recognition Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When a voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
      Fig 12: Identifying Microphone & Voice Recognition Check Screen Display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Push the recording switch and perform voice recording.
   4. Check that the recording indicator remains on while recording and that the recorded voice is played normally.

      HINT:

      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION .
      • This function is controlled by the navigation ECU.
9. DVD PLAYER INFORMATION CHECK
   1. Select "DVD Player Information" from the "Navigation Check" screen.
      Fig 13: Identifying Navigation Check Screen Display - DVD Player Information

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

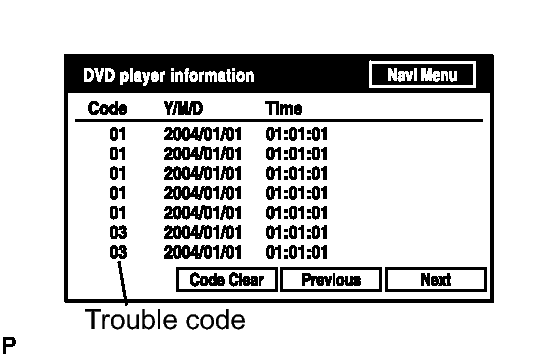

   2. Check for DTCs.
      Fig 14: Identifying DVD Player Information Screen Display

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

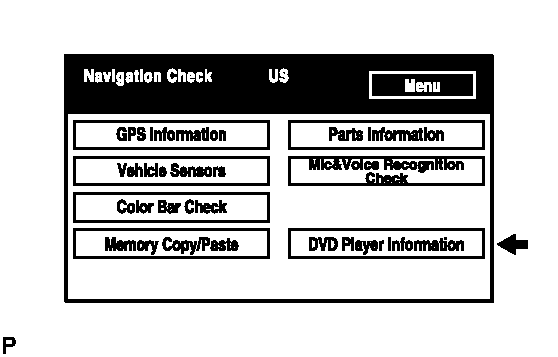

      HINT:

      • This is a DVD player check function in the navigation ECU.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION .
