Mass Air Flow Meter: Installation: Installation

INSTALL MASS AIR FLOW METER

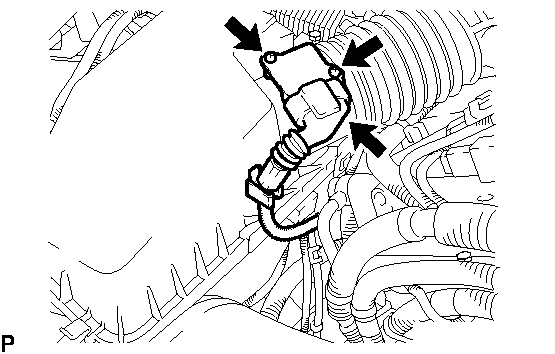

Fig 1: Identifying Mass Air Flow Meter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install a new O-ring to the MAF meter.
2. Install the MAF meter with the 2 screws.
3. Connect the MAF meter connector.
INSTALL ENGINE ROOM SIDE COVER RH See step 33
INSTALL COOL AIR INTAKE DUCT SEAL See step 34
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization. Refer to INITIALIZATION .
  NOTE:
  Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
