Fuel Lid Opener: Notes

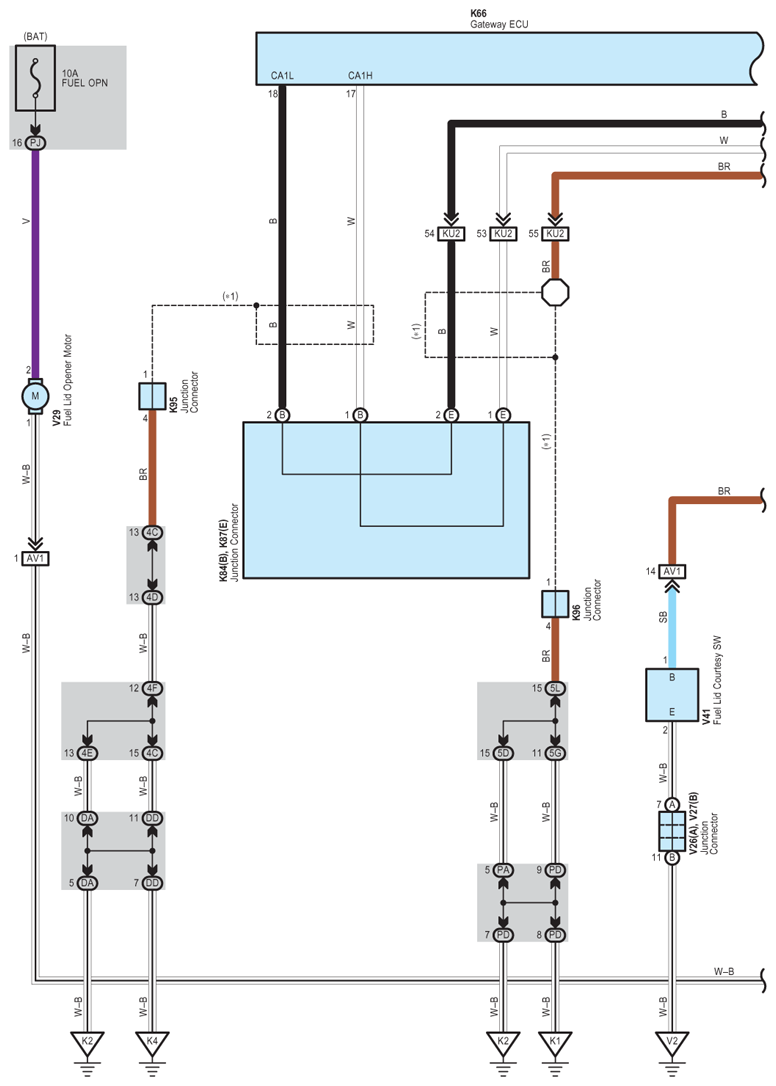

Fig 1: Fuel Lid Opener - Circuit Diagram (1 Of 3)
G07617167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

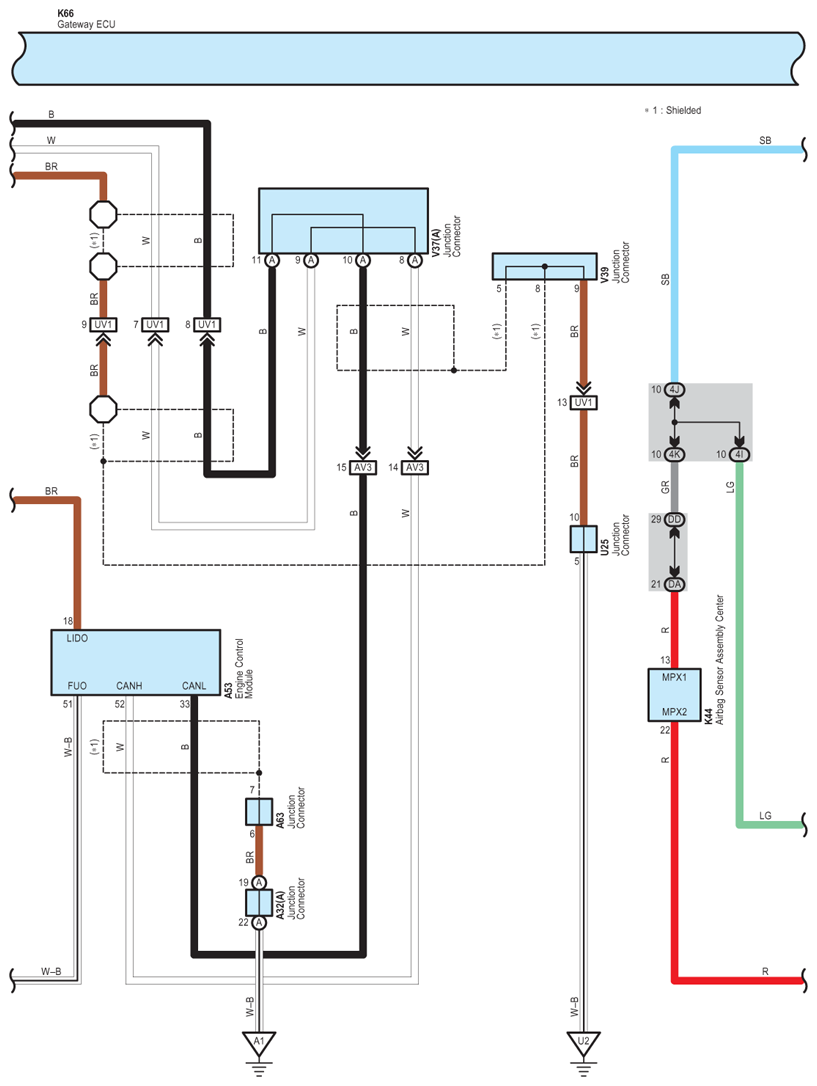

Fig 2: Fuel Lid Opener - Circuit Diagram (2 Of 3)
G07617168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

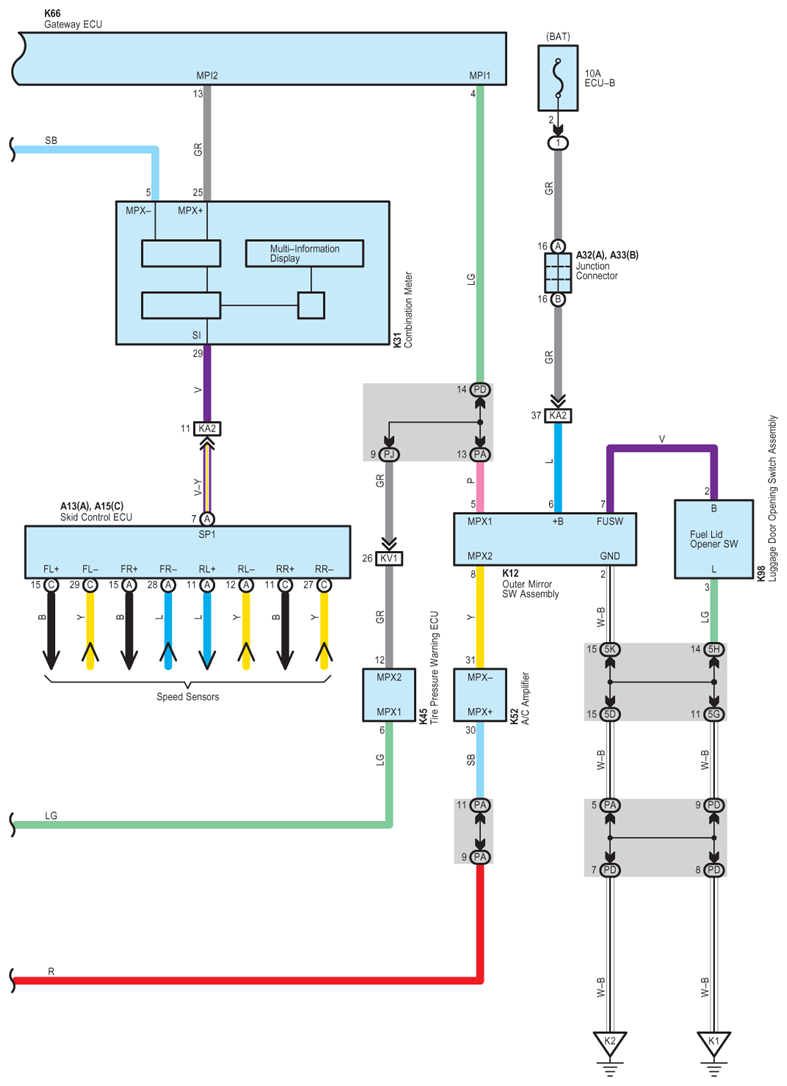

Fig 3: Fuel Lid Opener - Circuit Diagram (3 Of 3)
G07617169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
