OEM System Circuits: Taillight: Notes

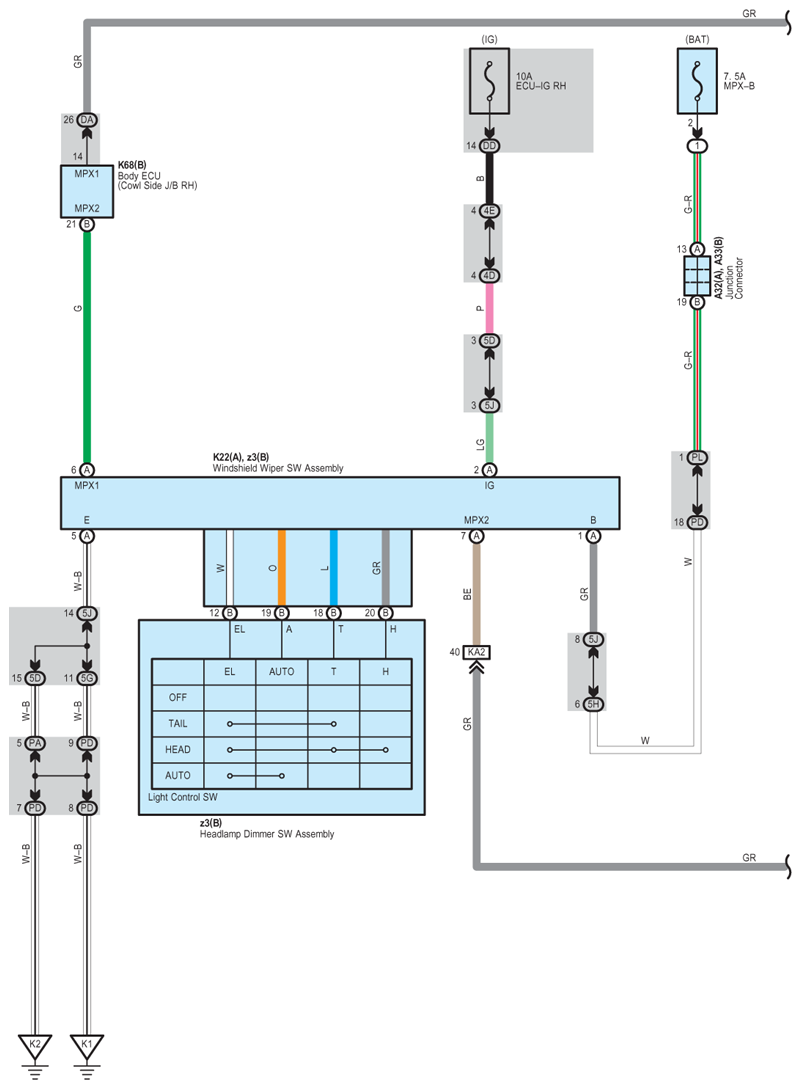

Fig 1: Taillight - Circuit Diagram (1 Of 6)

G07616957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

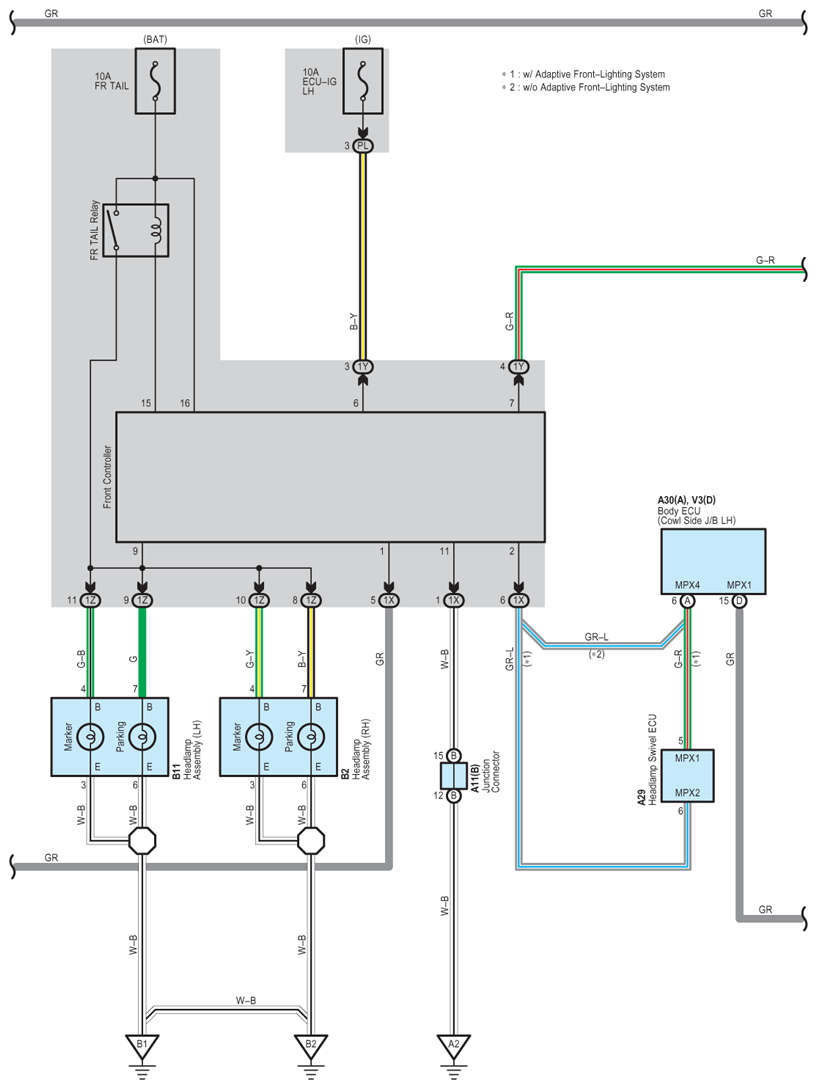

Fig 2: Taillight - Circuit Diagram (2 Of 6)

G07616958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

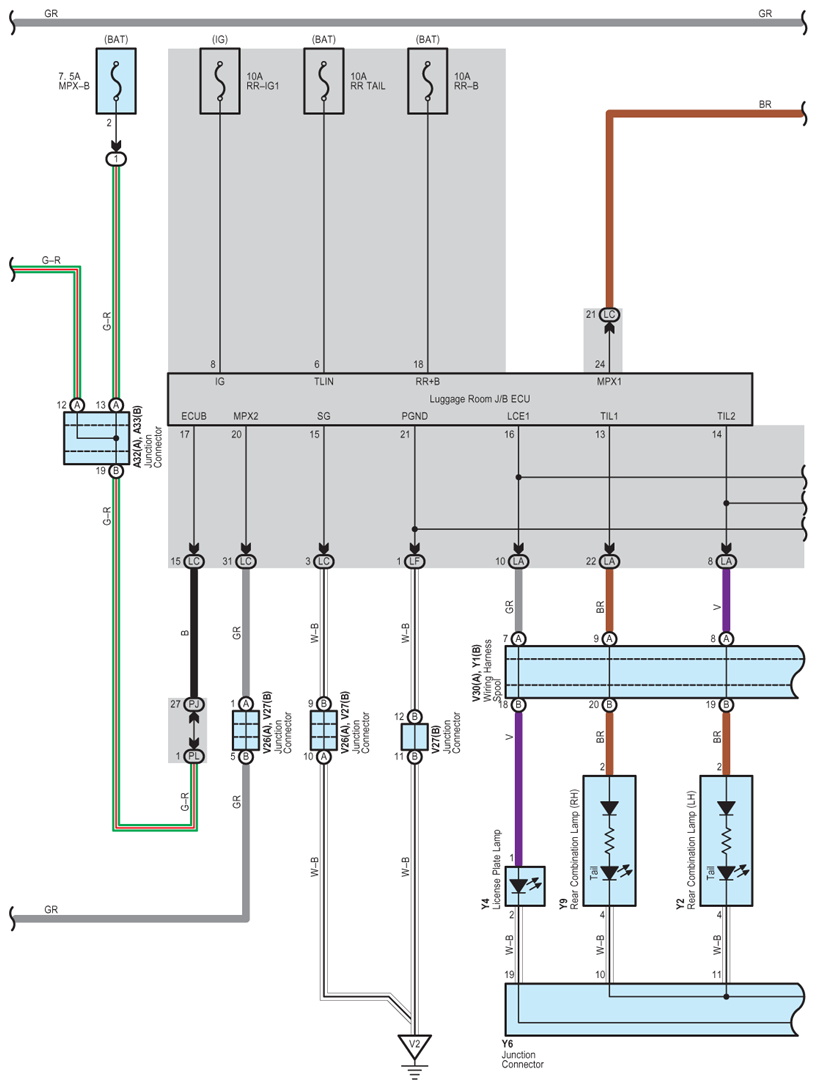

Fig 3: Taillight - Circuit Diagram (3 Of 6)

G07616959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

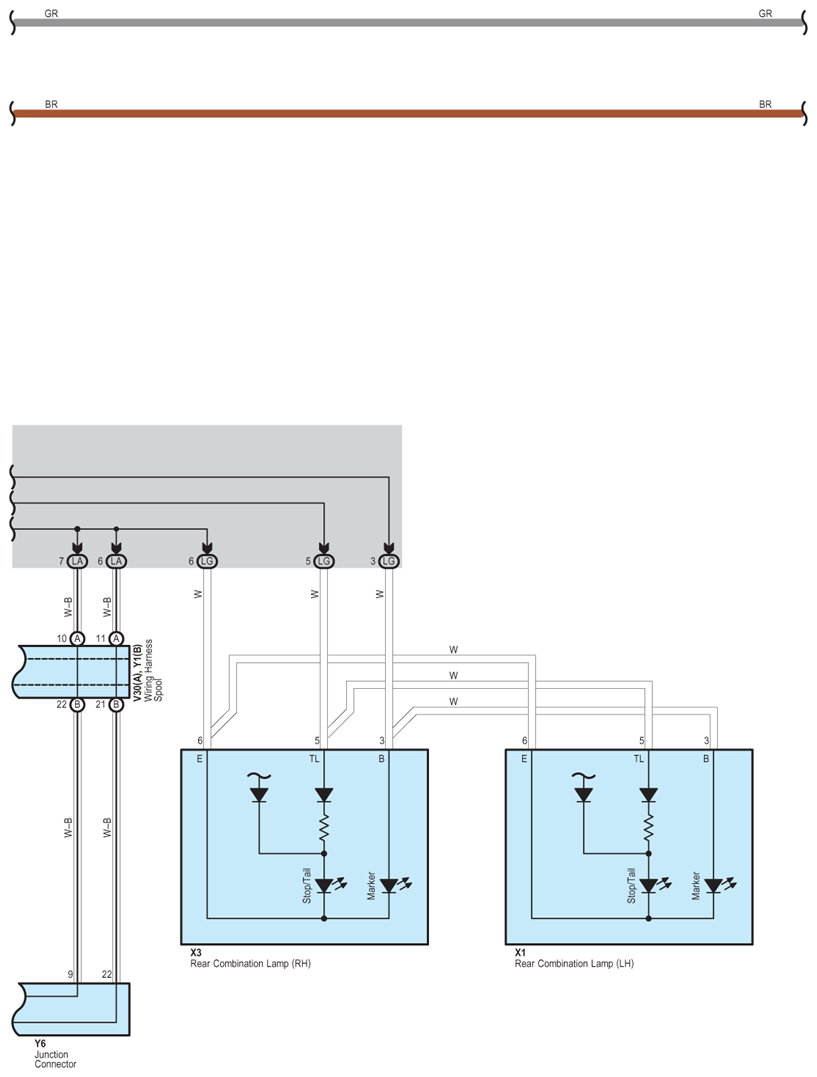

Fig 4: Taillight - Circuit Diagram (4 Of 6)

G07616960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

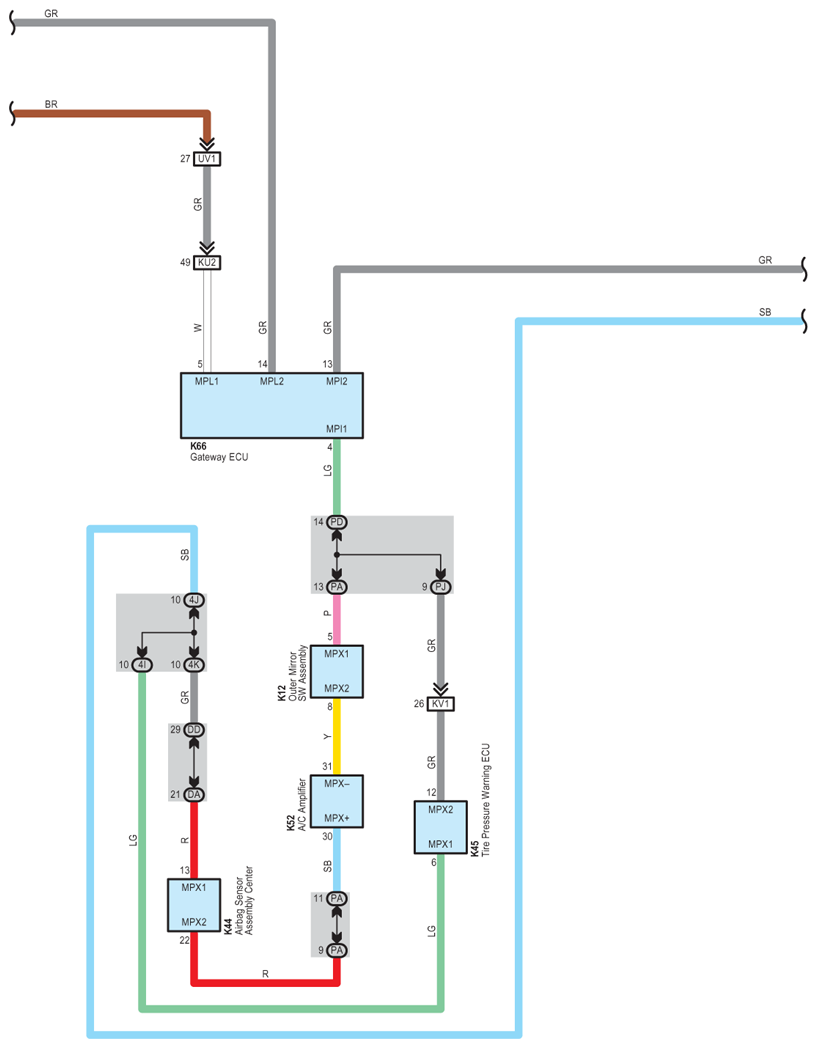

Fig 5: Taillight - Circuit Diagram (5 Of 6)

G07616961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

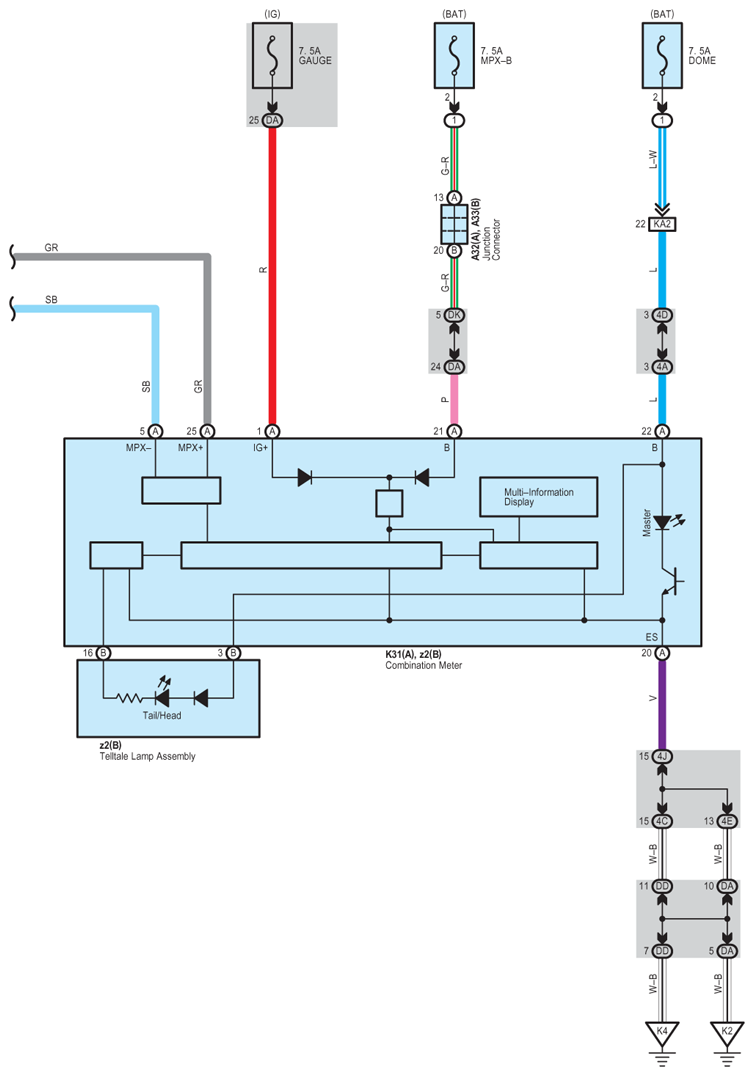

Fig 6: Taillight - Circuit Diagram (6 Of 6)

G07616962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
