VGRS System: Notes

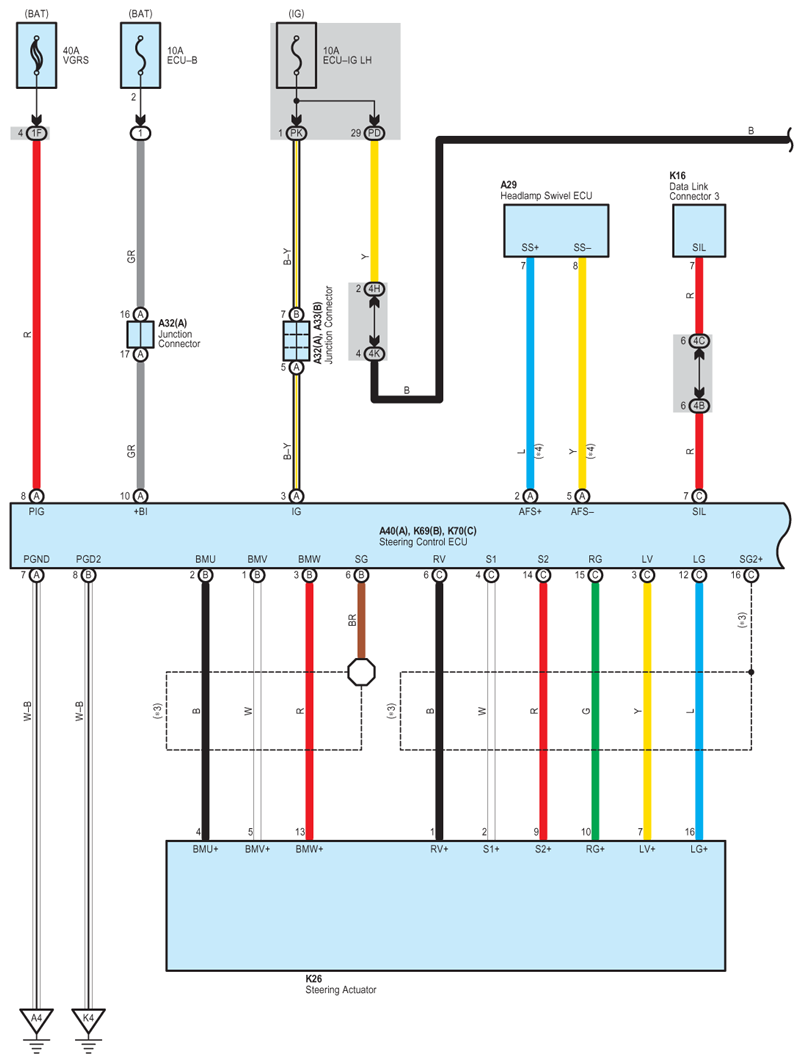

Fig 1: VGRS System - Circuit Diagram (1 Of 9)

G07617097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

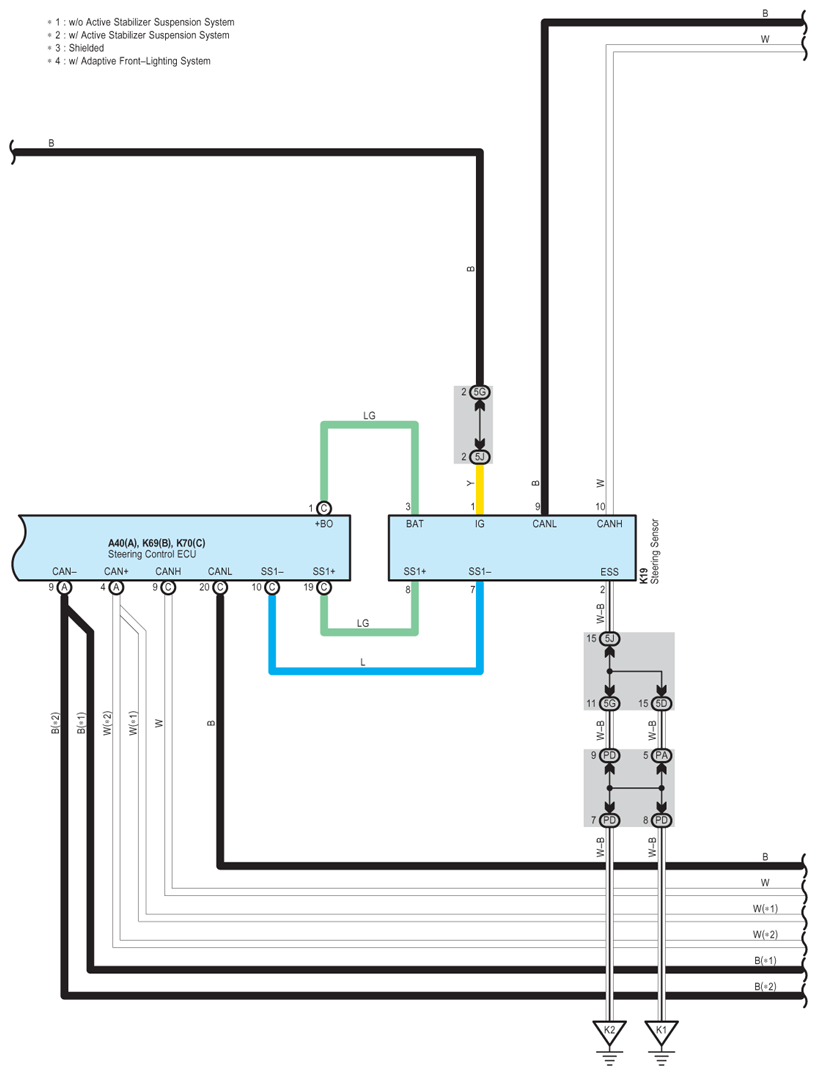

Fig 2: VGRS System - Circuit Diagram (2 Of 9)

G07617098

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

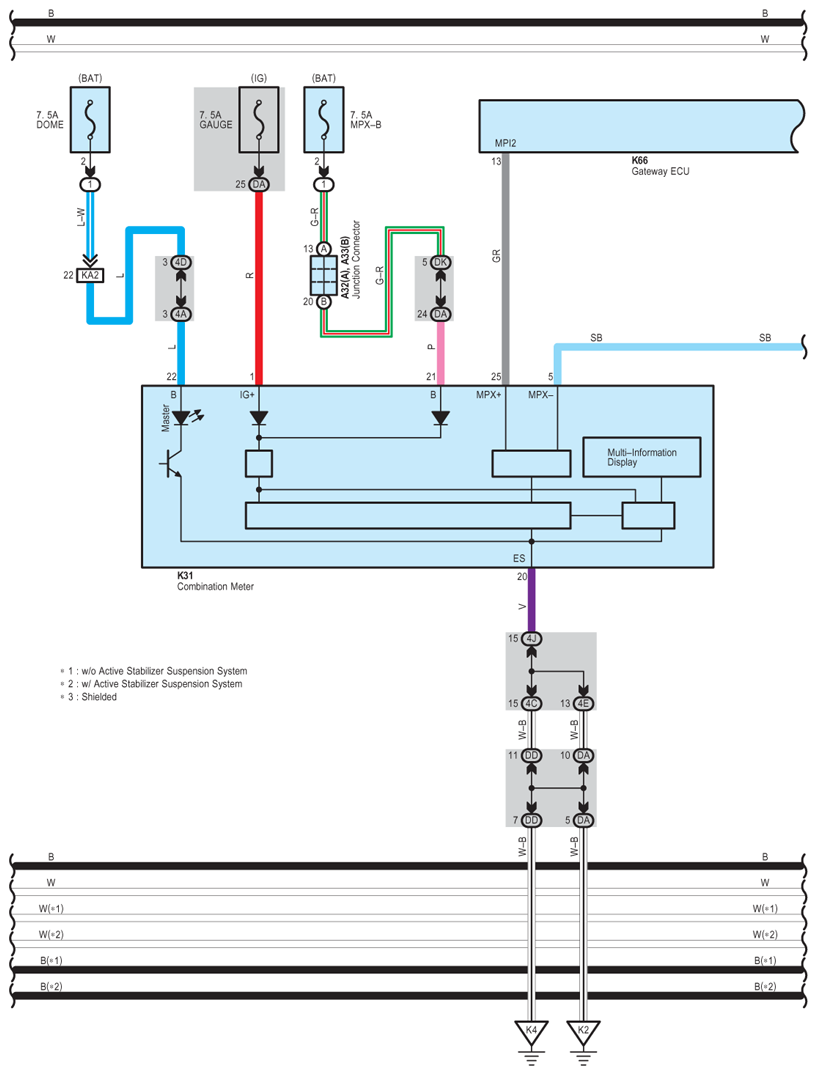

Fig 3: VGRS System - Circuit Diagram (3 Of 9)

G07617099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

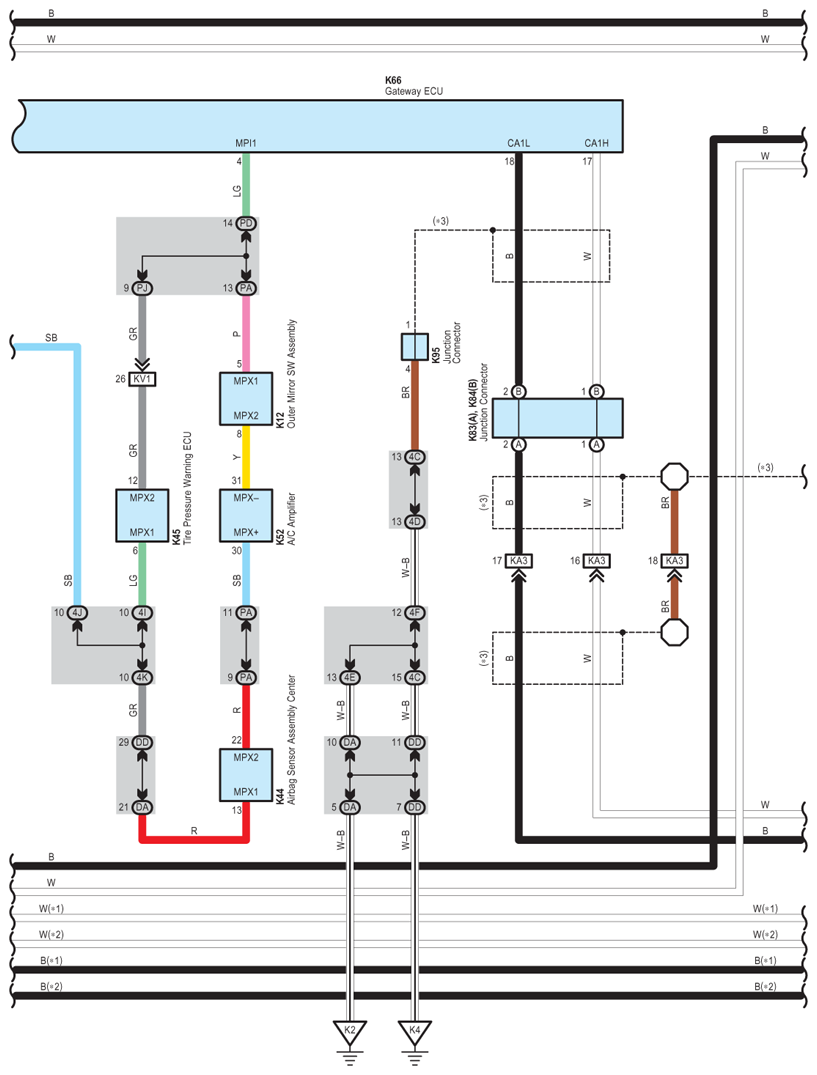

Fig 4: VGRS System - Circuit Diagram (4 Of 9)

G07617100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: VGRS System - Circuit Diagram (5 Of 9)

G07617101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

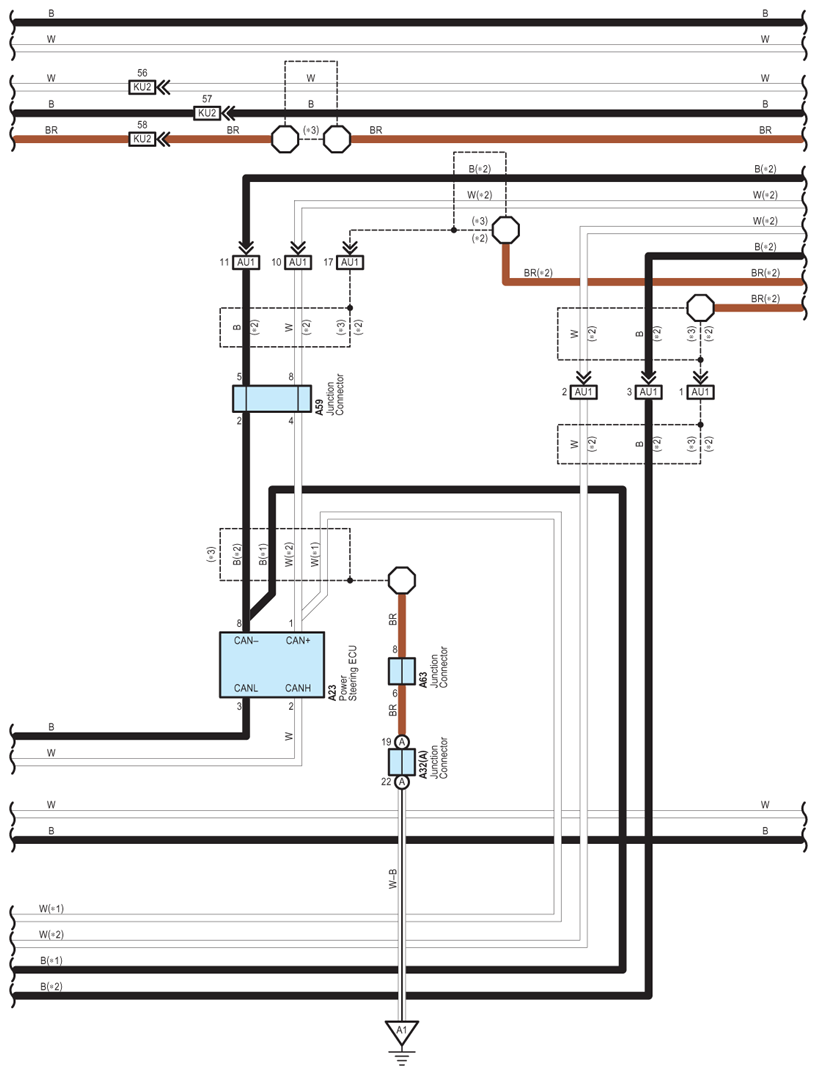

Fig 6: VGRS System - Circuit Diagram (6 Of 9)

G07617102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

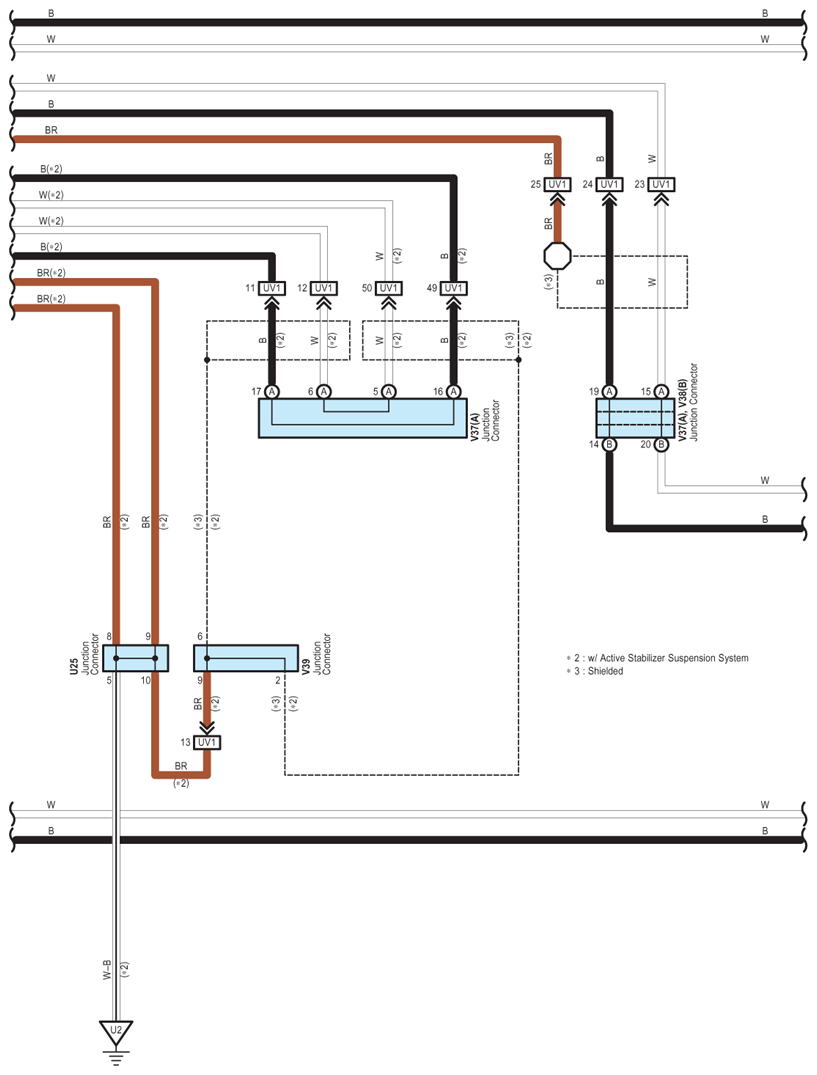

Fig 7: VGRS System - Circuit Diagram (7 Of 9)

G07617103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

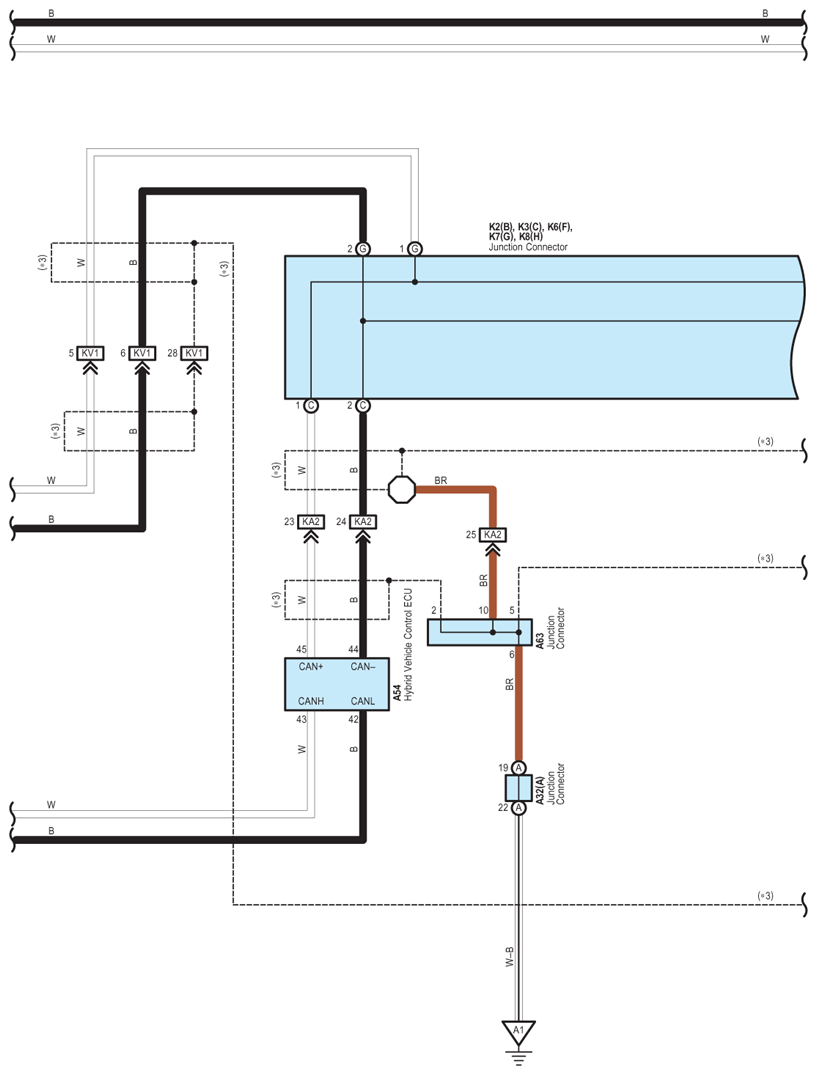

Fig 8: VGRS System - Circuit Diagram (8 Of 9)

G07617104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

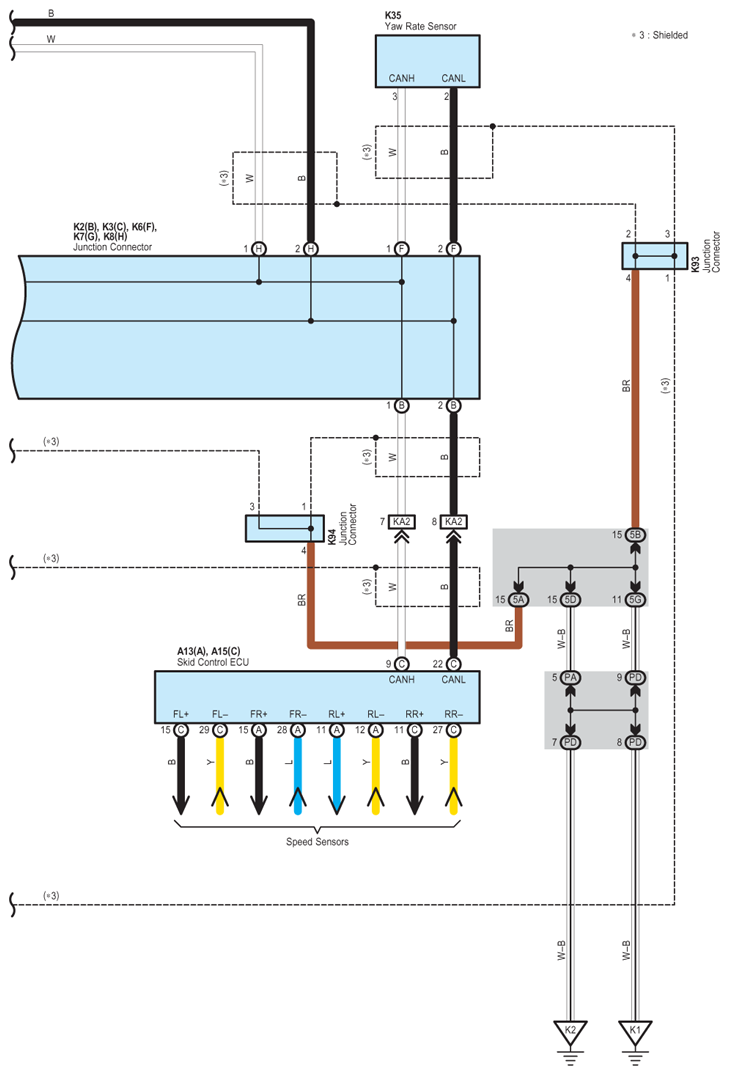

Fig 9: VGRS System - Circuit Diagram (9 Of 9)

G07617105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
