Keyless Entry Module: Testing and Inspection

DOOR LOCK: DOOR CONTROL RECEIVER: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. CHECK DOOR CONTROL RECEIVER
(a) Disconnect the U36 receiver connector.

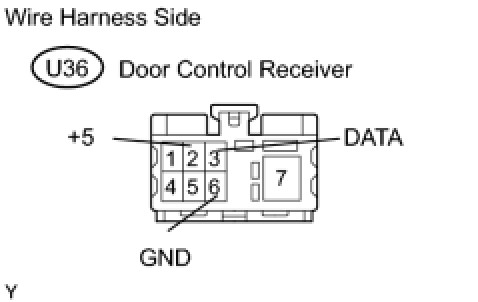

(b) Measure the voltage of the wire harness side connector.

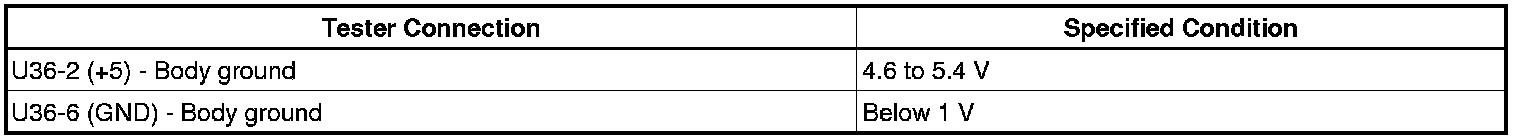

Standard voltage:





- If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the U36 connector.
(d) Measure the voltage of the connector.

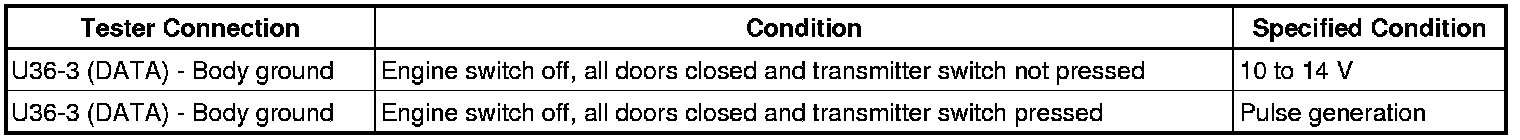

Standard voltage:





- If the result is not as specified, the receiver may have a malfunction.
