1UR-FSE ENGINE CONTROL SYSTEM: MASS AIR FLOW METER: INSTALLATION

INSTALLATION

1. INSTALL MASS AIR FLOW METER

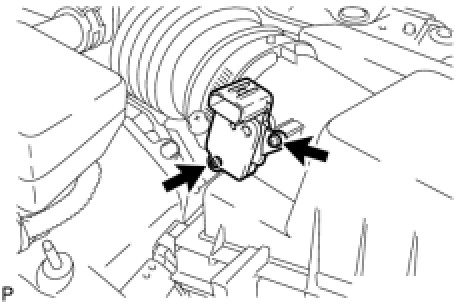

(a) Install the mass air flow meter with the 2 screws.
NOTE:
Make sure the O-ring is not pinched.

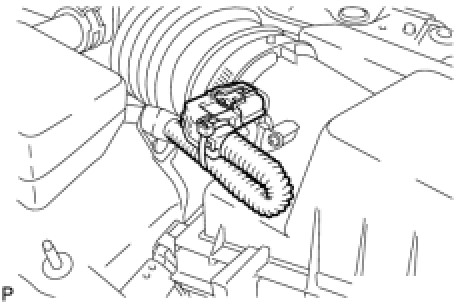

(b) Connect the mass air flow meter connector.
2. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
3. INSTALL ENGINE ROOM SIDE COVER RH Installation
4. INSTALL COOL AIR INTAKE DUCT SEAL Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
