Camshaft Oil Control Valve: Installation: Installation

  1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
    1. Apply a light coat of engine oil to a new O-ring, and install it to the oil control valve.
    2. Install the oil control valve with the bolt.

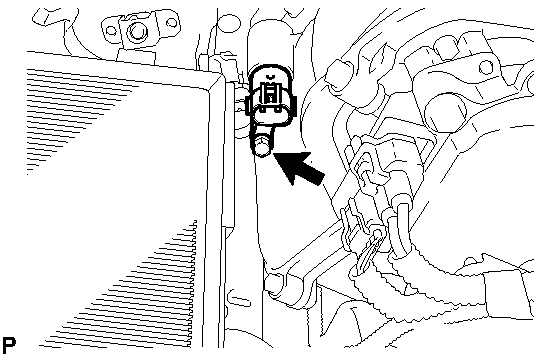

      Fig 1: Locating Bolt And Oil Control Valve
      GTY104109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m ( 102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the oil control valve (connecting surface with cylinder head cover sub-assembly).
      • Make sure that the O-ring is not cracked or does not jump out of position when installing the oil control valve.
    3. Connect the camshaft timing oil control valve connector.

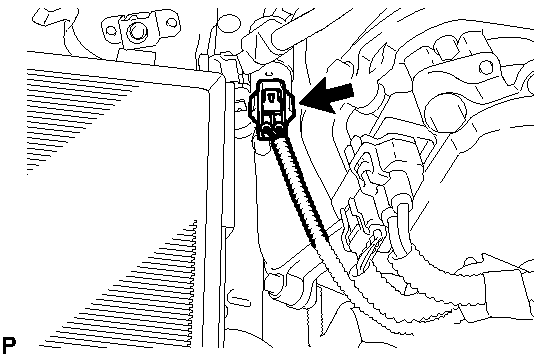

      Fig 2: Locating Camshaft Timing Oil Control Valve Connector
      GTY103608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
    1. Apply a light coat of engine oil to a new O-ring, and install it to the oil control valve.
    2. Install the oil control valve with the bolt.

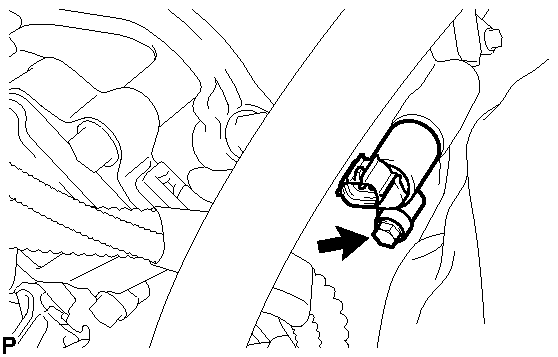

      Fig 3: Locating Bolt And Oil Control Valve
      GTY102486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m ( 102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the oil control valve (connecting surface with cylinder head cover sub-assembly).
      • Make sure that the O-ring is not cracked or does not jump out of position when installing the oil control valve.
    3. Connect the camshaft timing oil control valve connector.

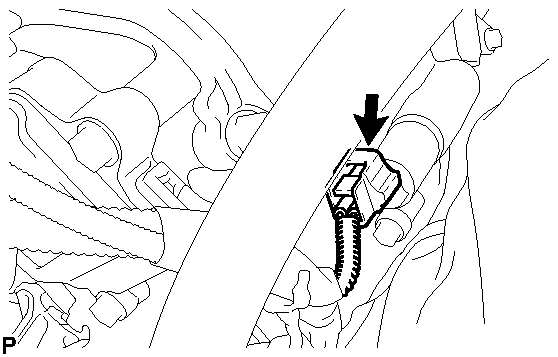

      Fig 4: Locating Camshaft Timing Oil Control Valve Connector
      GTY105564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  . Refer to INSTALLATION - Step 46
  4. INSTALL NO. 1 AIR CLEANER INLET  . Refer to INSTALLATION - Step 68
  5. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 72
  6. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 69
  7. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 70
  8. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 68
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Refer to INITIALIZATION .
