Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 6
  2. REMOVE ENGINE UNDER COVER
  3. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 3
  4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

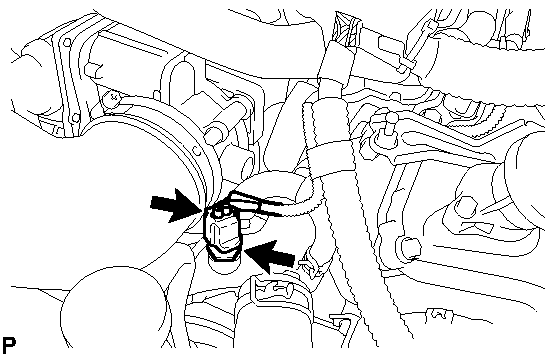

      Fig 1: Locating Engine Coolant Temperature Sensor Connector
      GTY105574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine coolant temperature sensor.
    3. Remove the gasket from the engine coolant temperature sensor.
