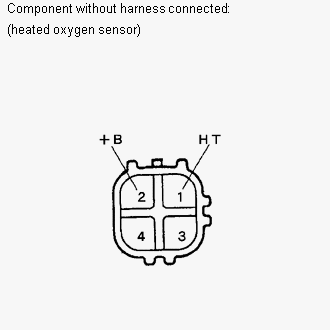

Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
| Tester Connection |
Condition |
Specified Condition |
| 1 (HT) - 2 (+B) |
20°C (68°F) |
11 to 16 Ω |
If the result is not as specified, replace the sensor.
