VVT Sensor: Removal: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 7
  2. REMOVE ENGINE ROOM SIDE COVER LH  . Refer to REMOVAL - Step 8
  3. REMOVE ENGINE ROOM SIDE COVER RH  . Refer to REMOVAL - Step 9
  4. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 6
  5. REMOVE NO. 1 AIR CLEANER INLET  . Refer to REMOVAL - Step 18
  6. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  . Refer to REMOVAL - Step 19
  7. REMOVE VVT SENSOR
    1. Disconnect the 4 VVT sensors.

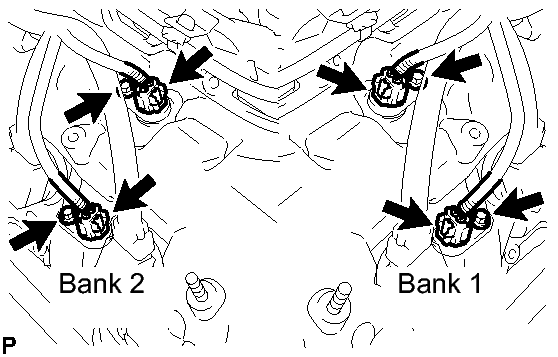

      Fig 1: Locating Bolts And VVT Sensors
      GTY105323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 VVT sensors.
