Audio System, LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi Display: Notes

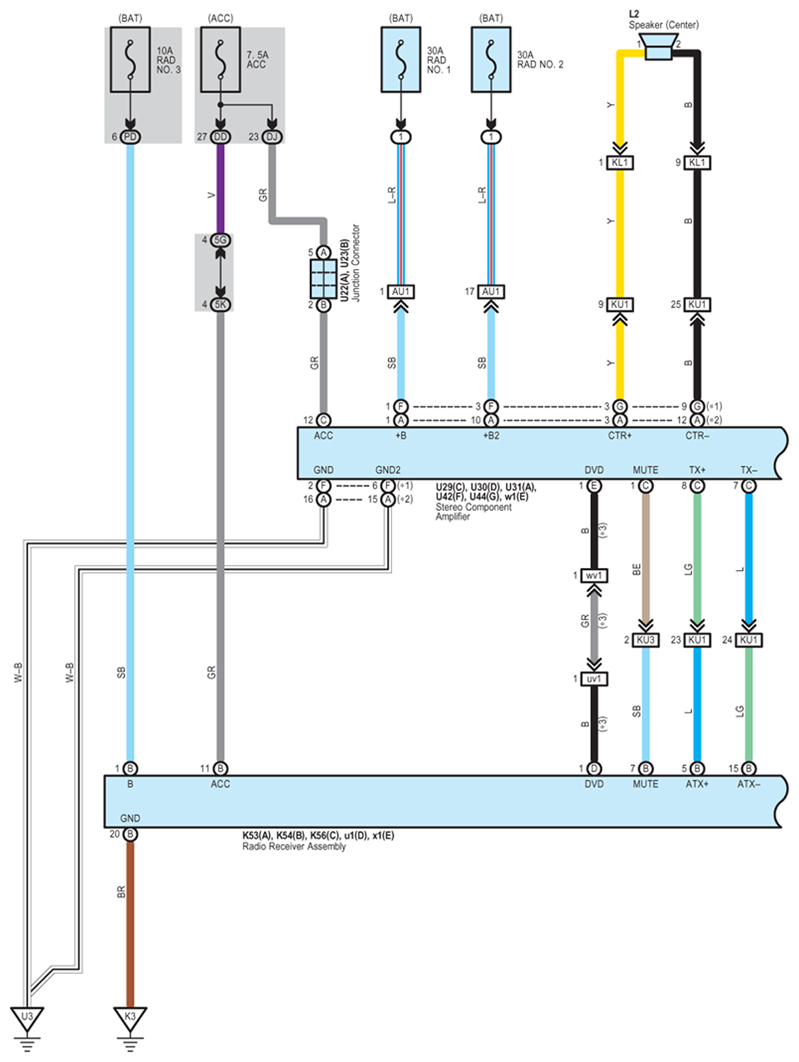

Fig 1: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

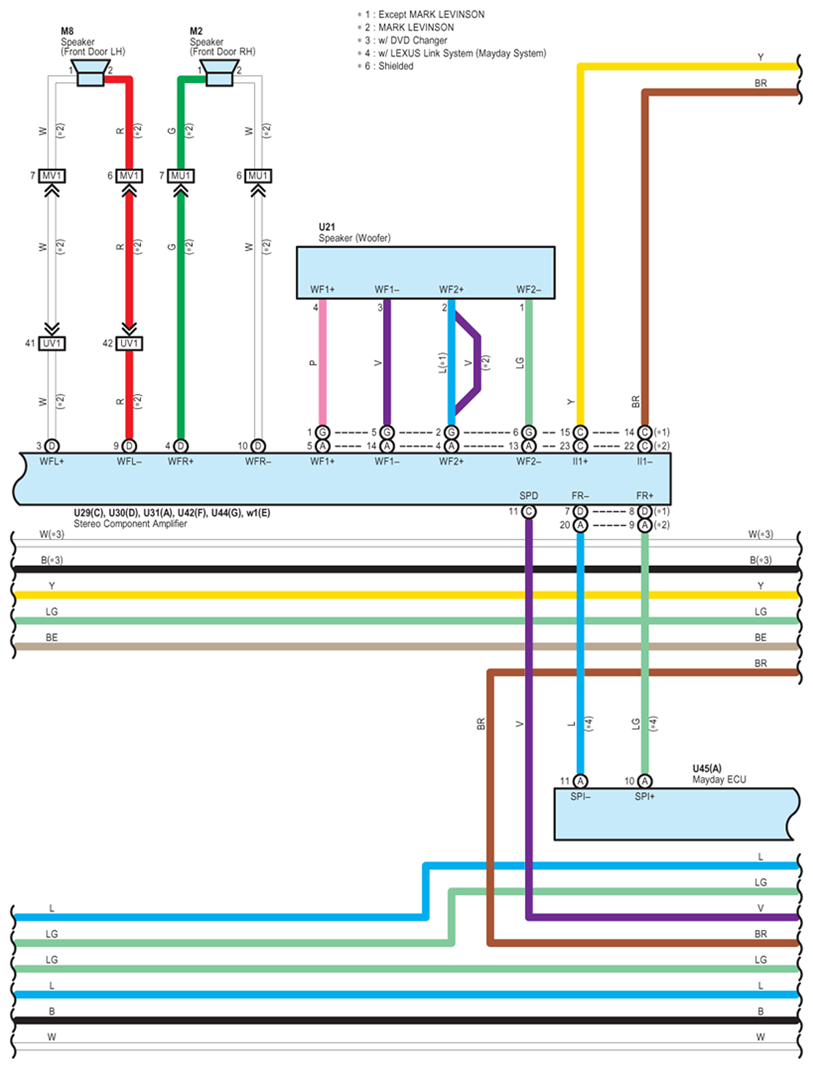

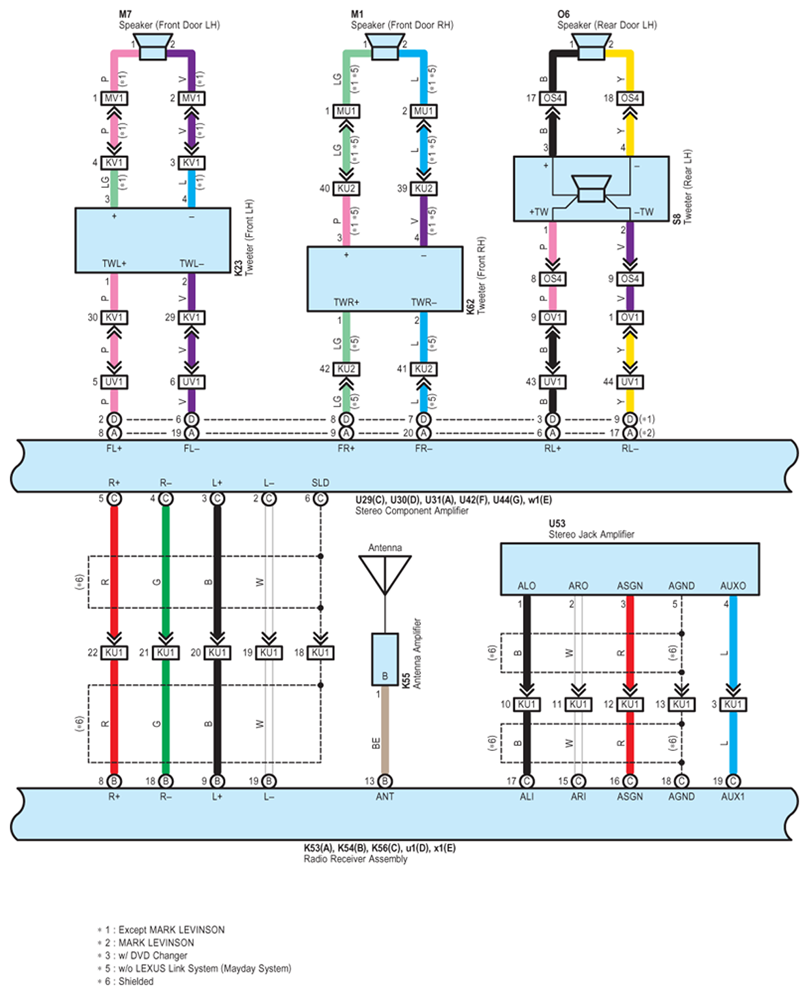

Fig 2: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

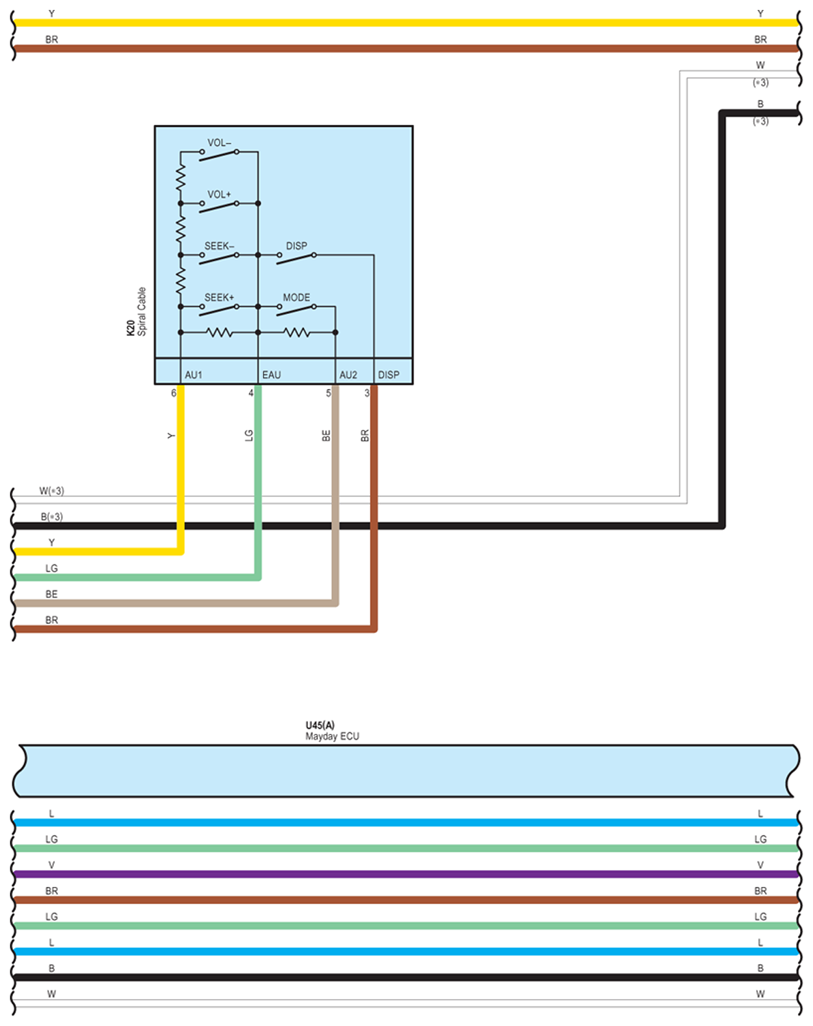

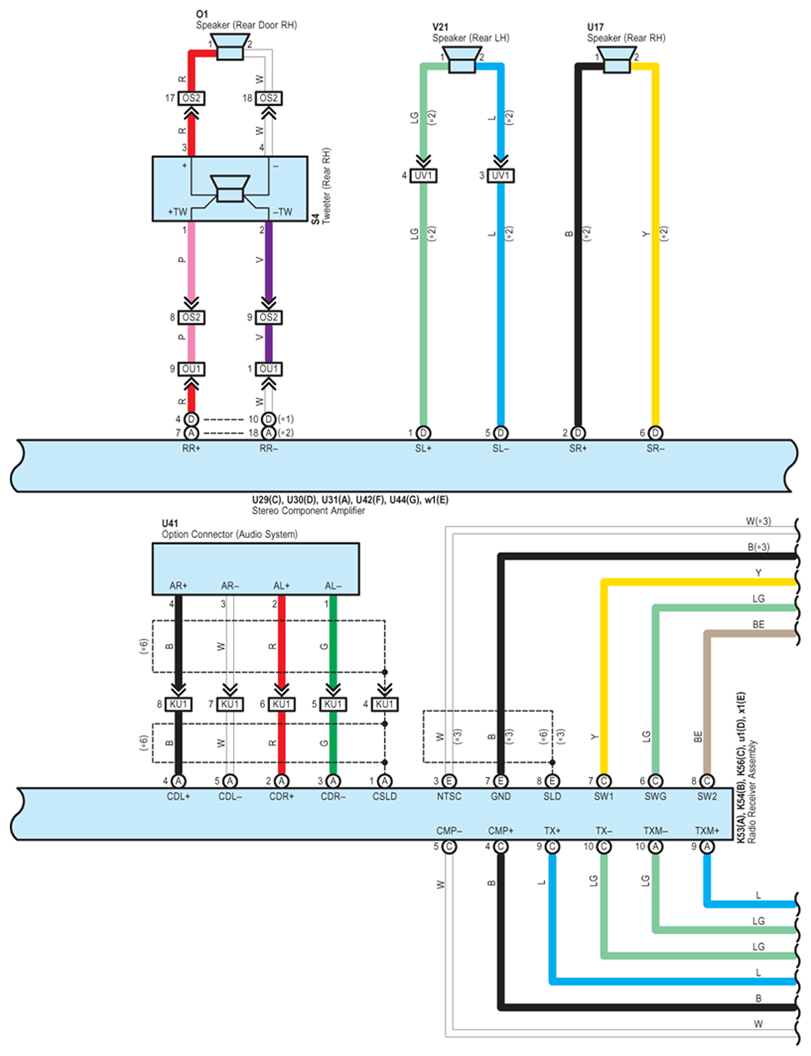

Fig 3: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

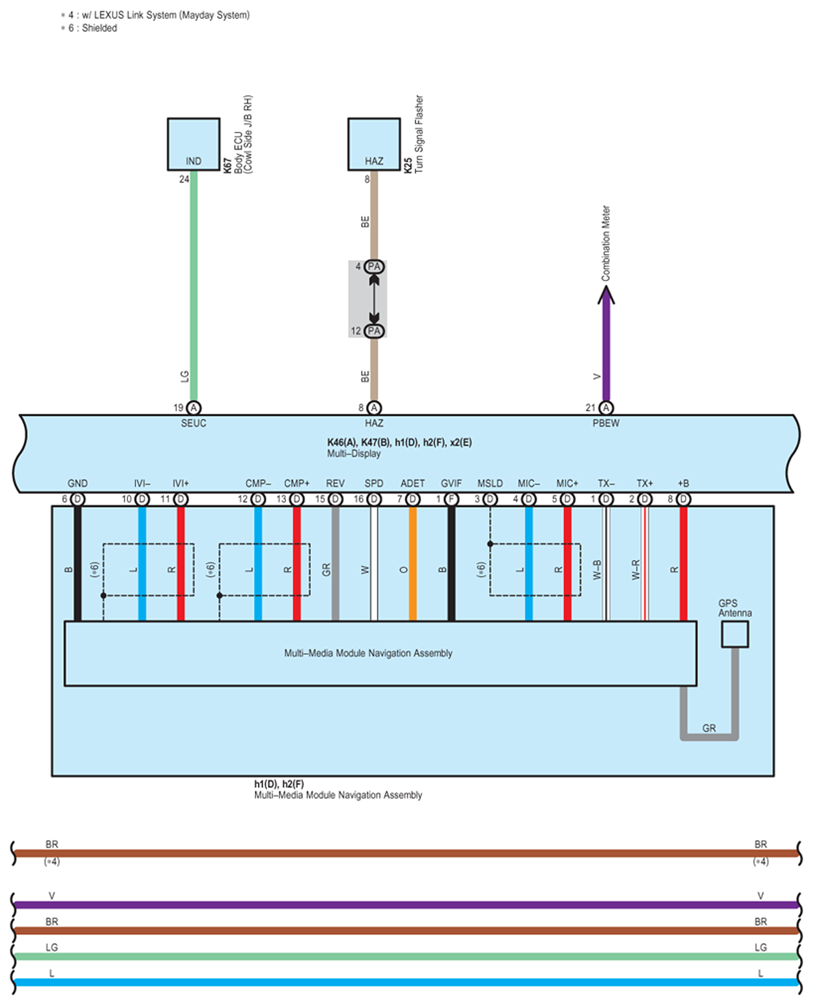

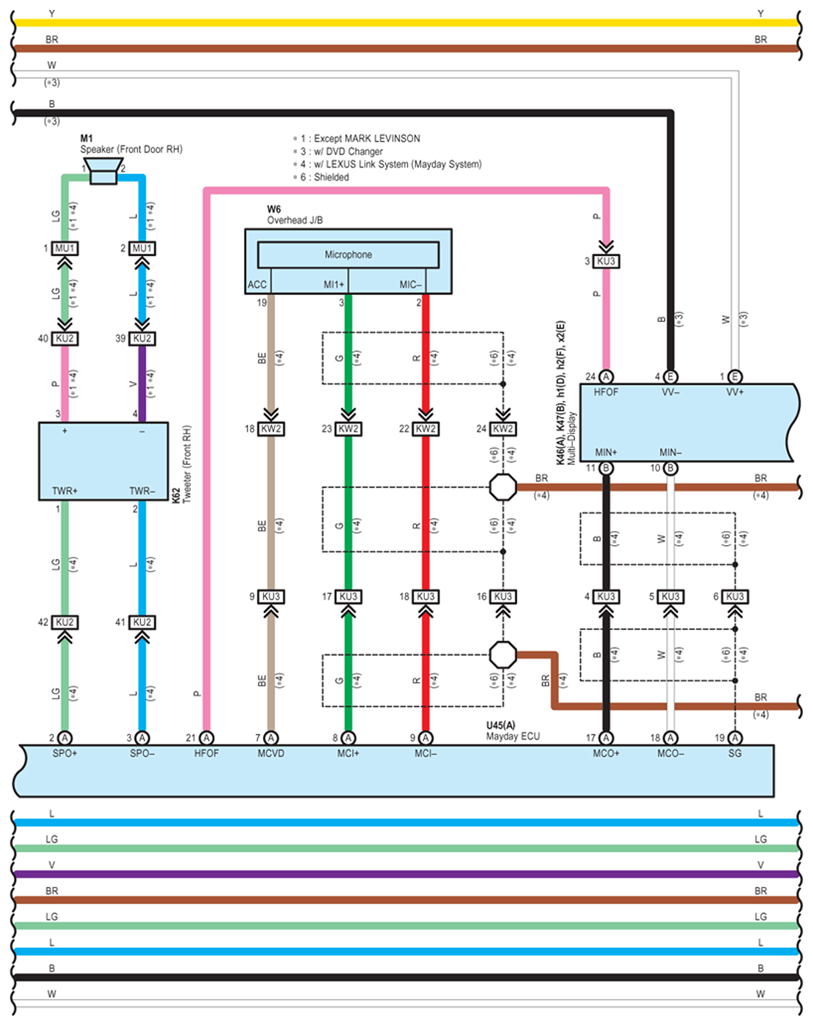

Fig 6: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

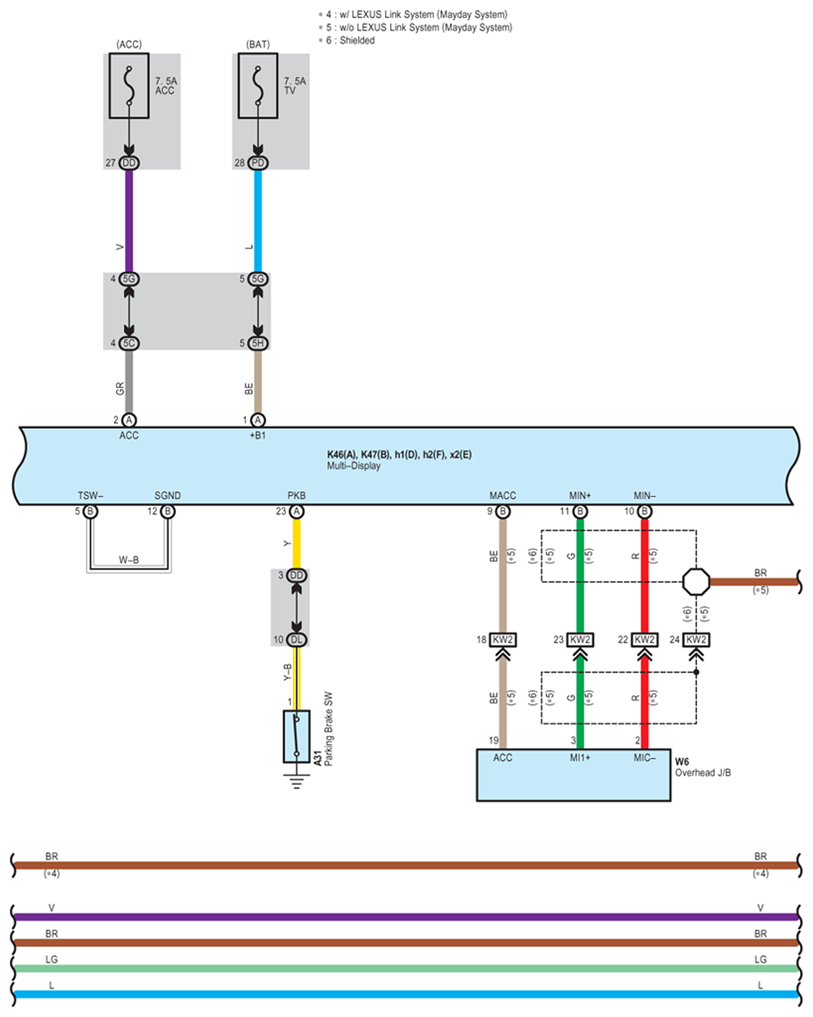

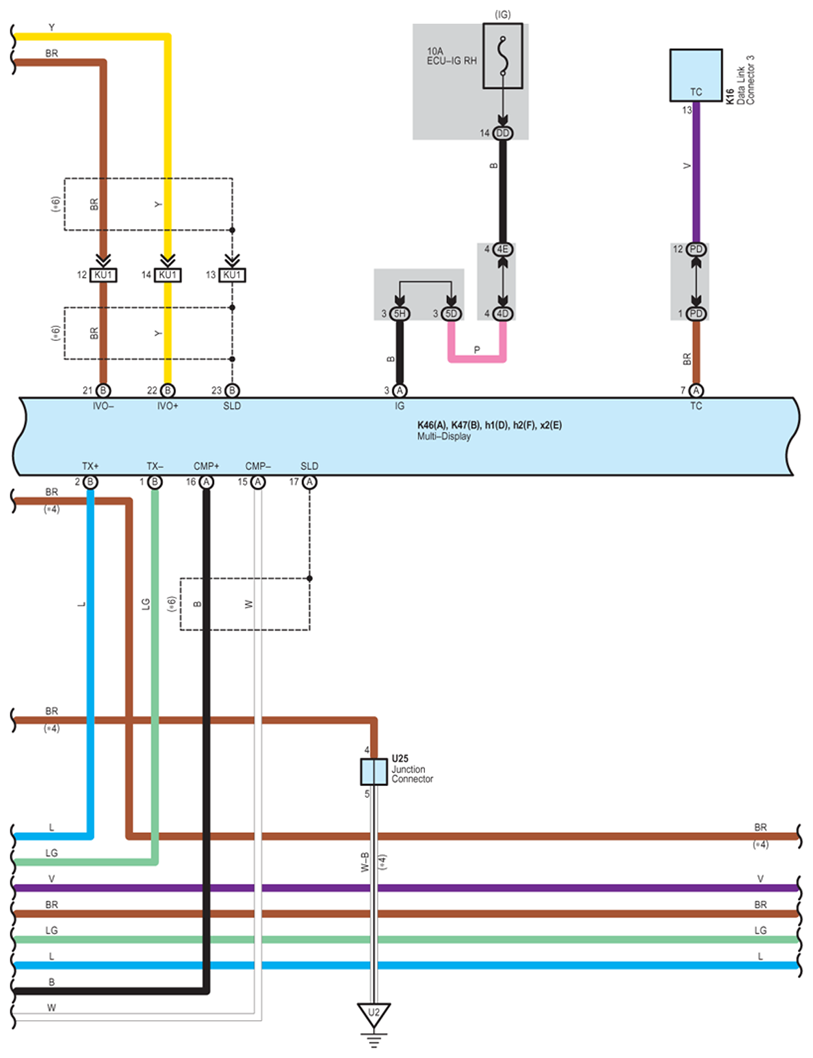

Fig 7: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

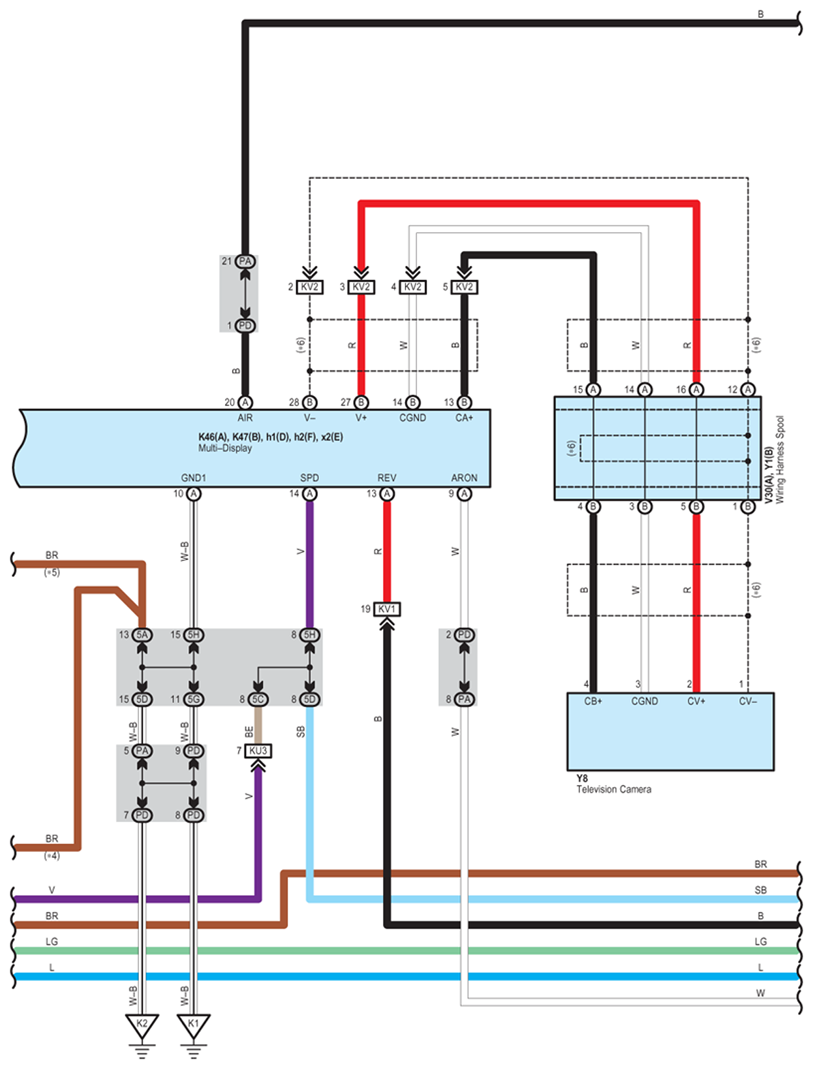

Fig 8: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

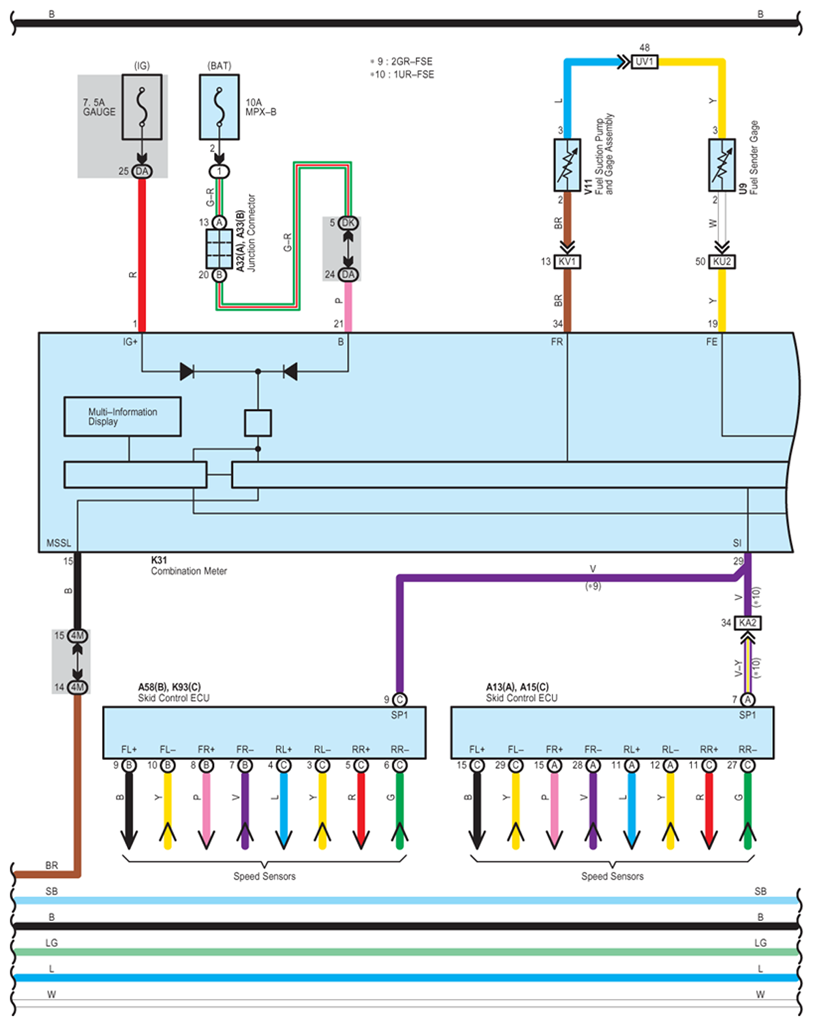

Fig 9: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

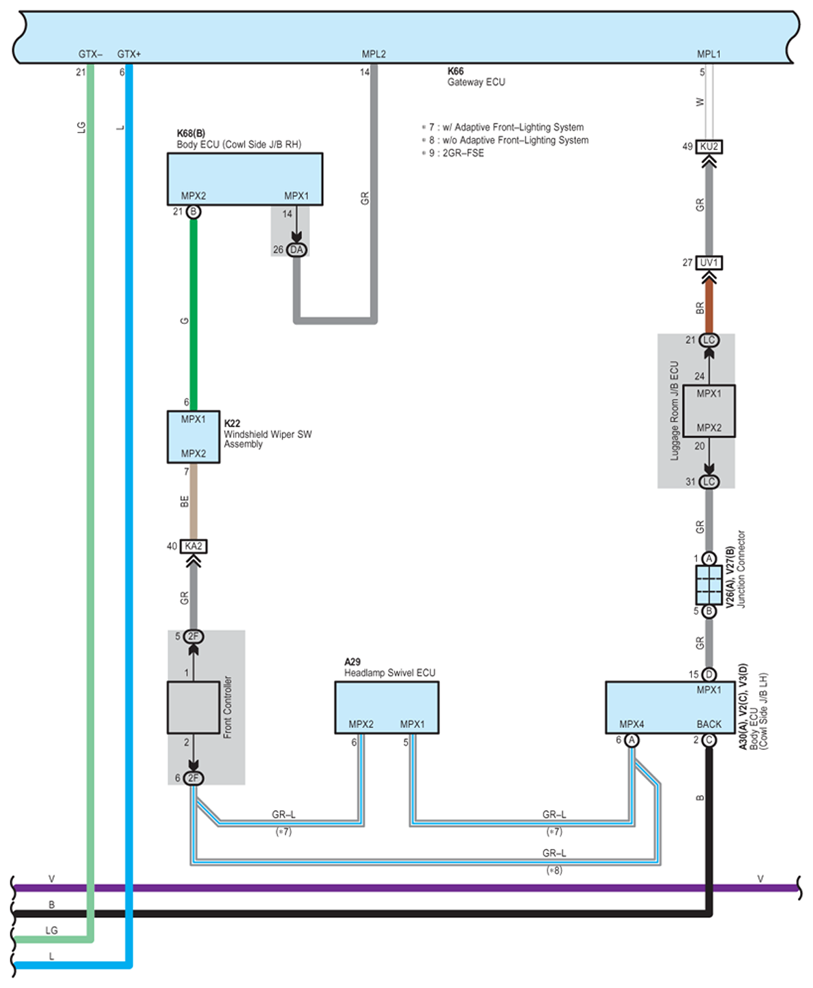

Fig 11: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (11 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

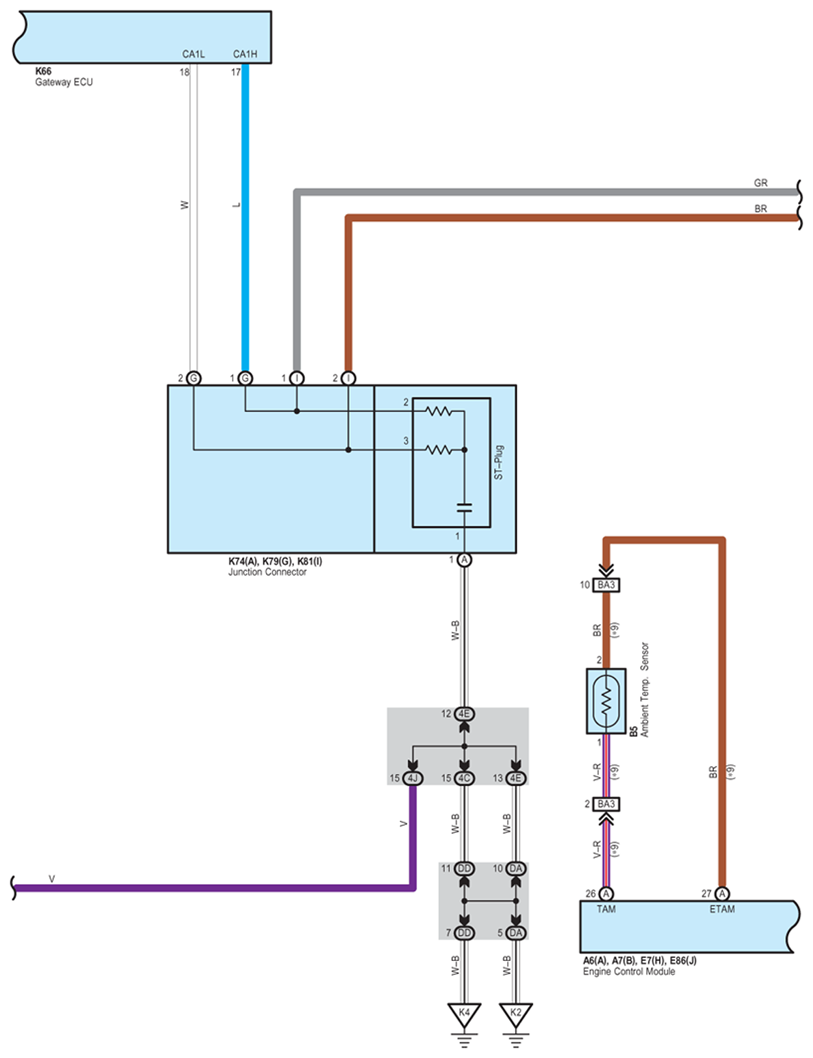

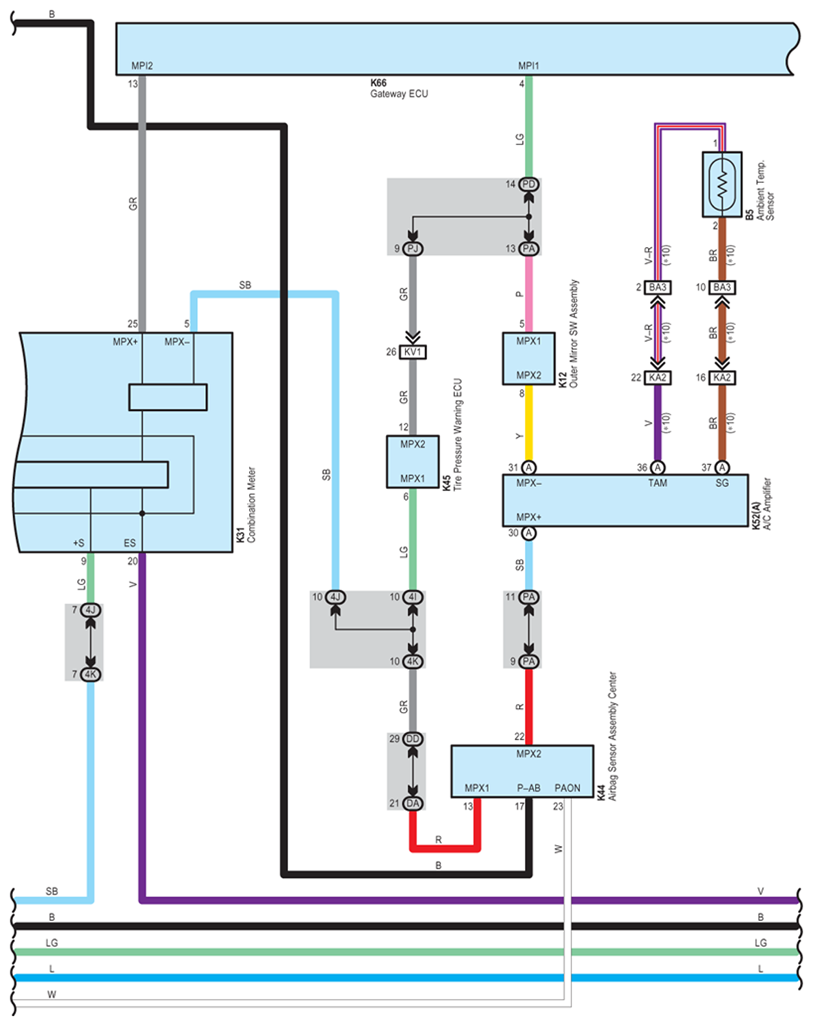

Fig 12: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (12 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (13 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (14 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

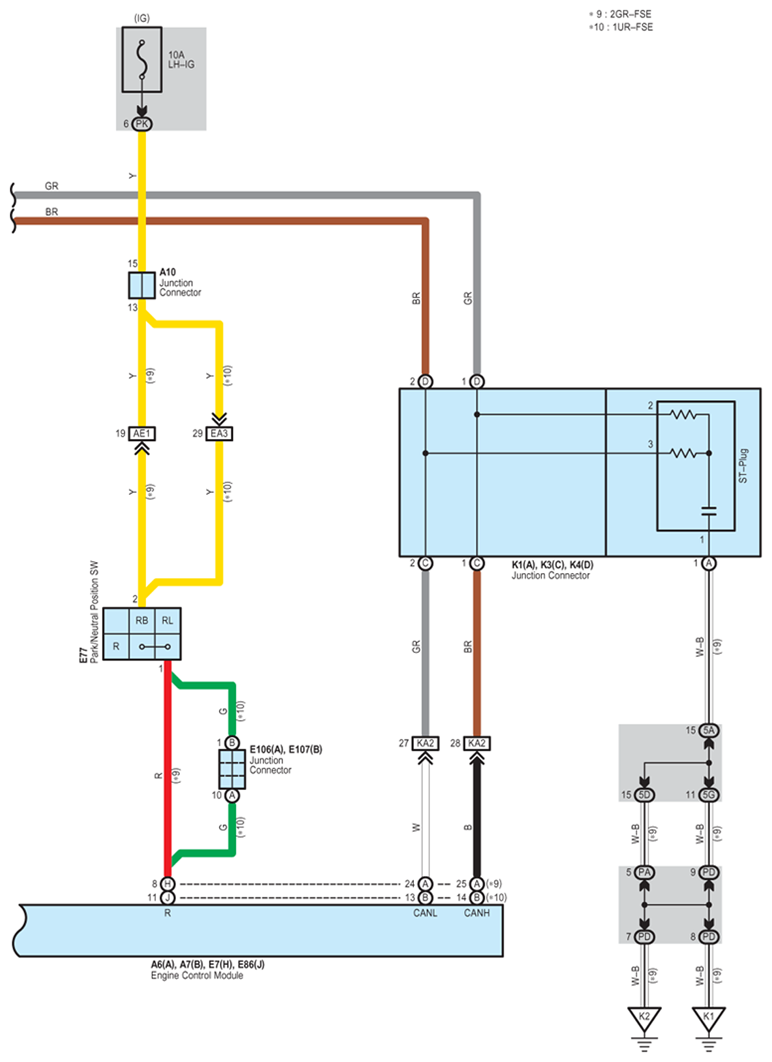

Fig 15: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display - Circuit Diagram (15 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
