Dynamic Radar Cruise Control (1UR-FSE): Notes

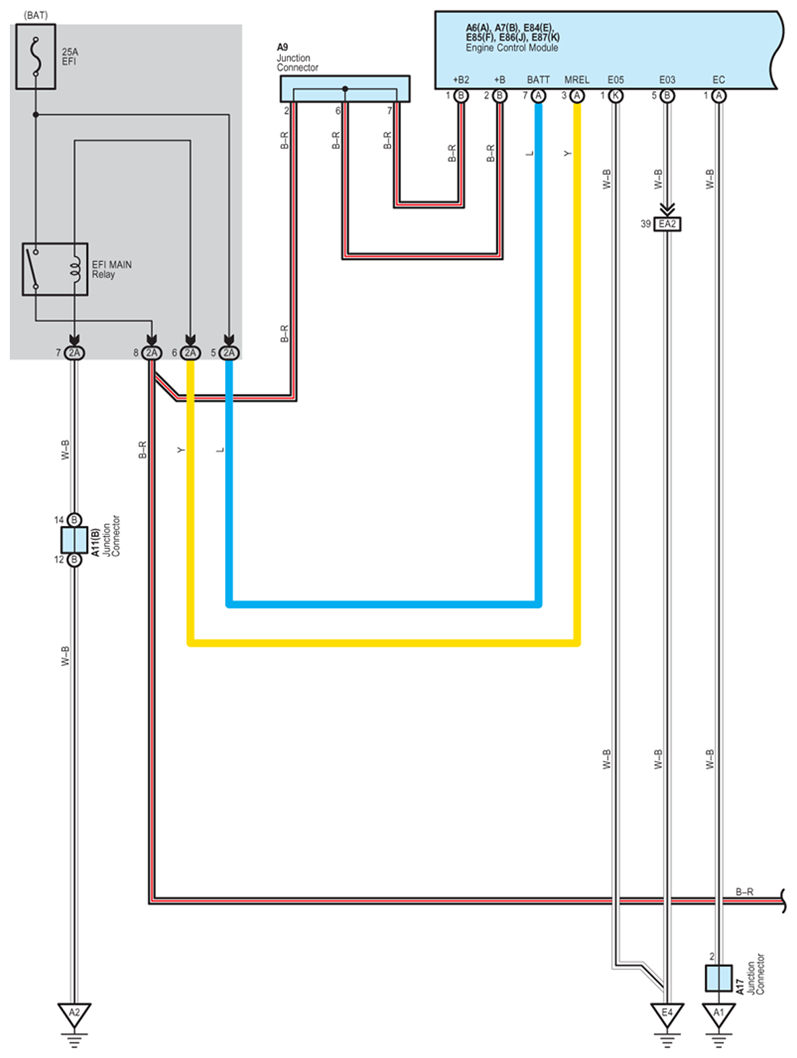

Fig 1: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (1 Of 24)

G07595594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

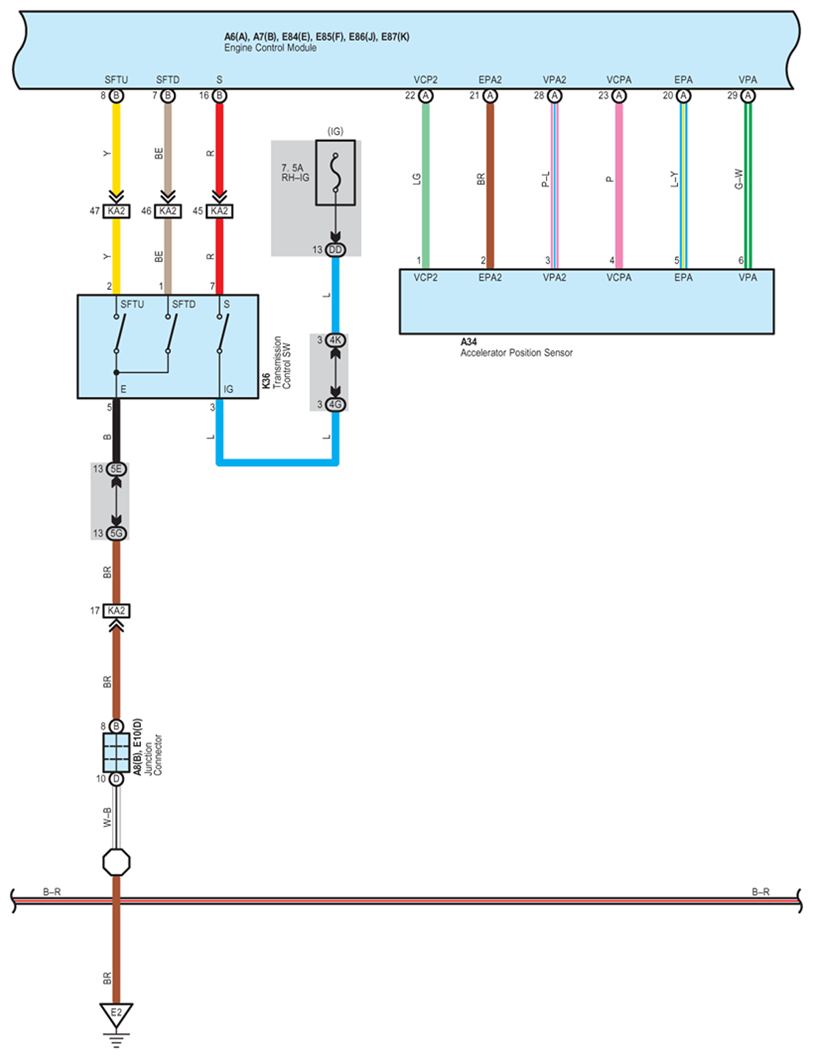

Fig 2: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (2 Of 24)

G07595595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

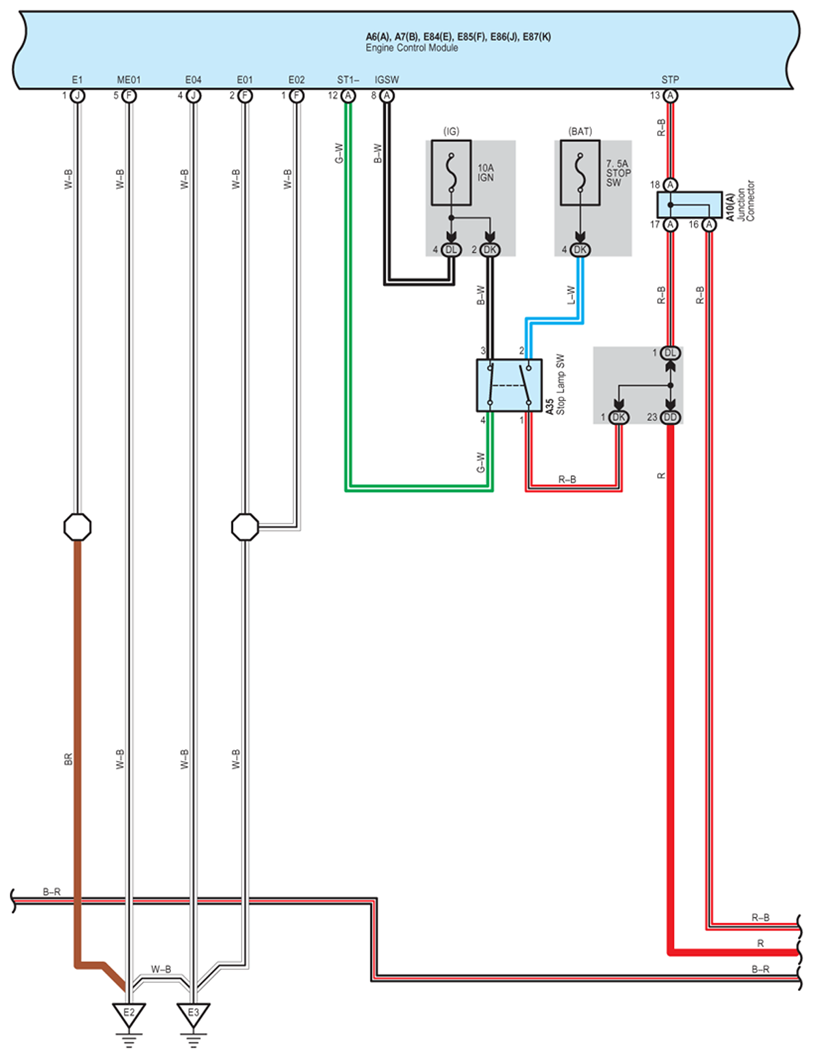

Fig 3: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (3 Of 24)

G07595596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

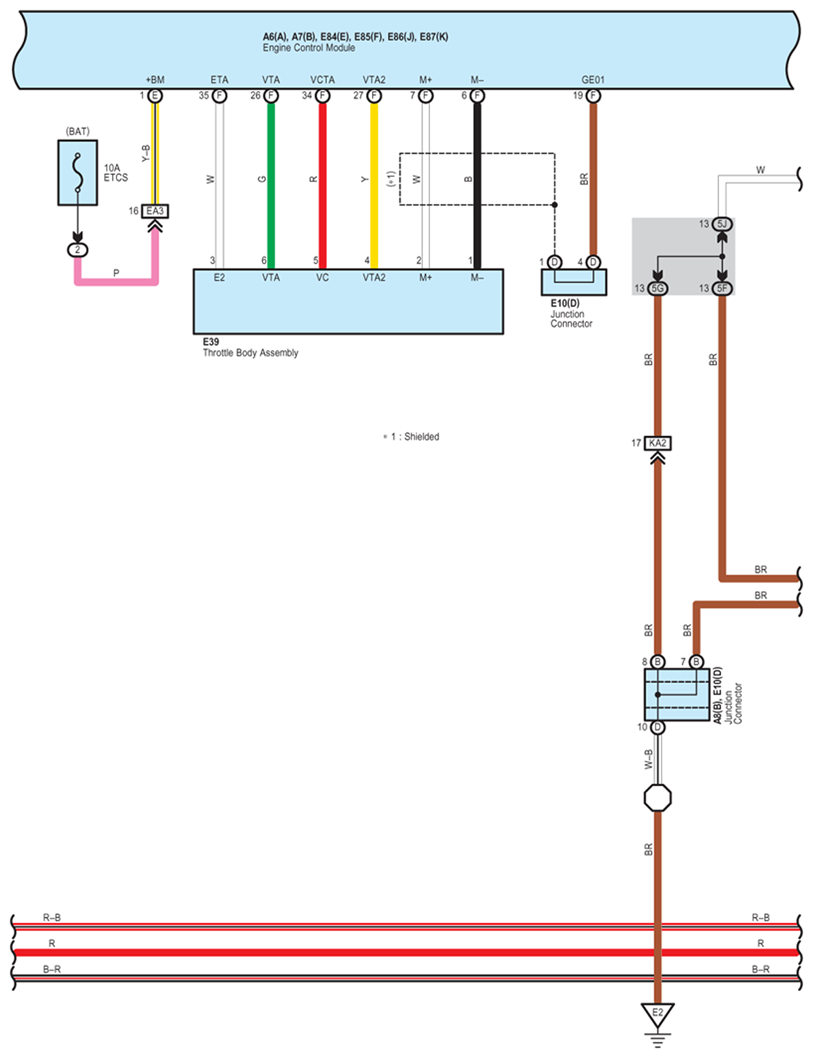

Fig 4: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (4 Of 24)

G07595597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (5 Of 24)

G07595598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

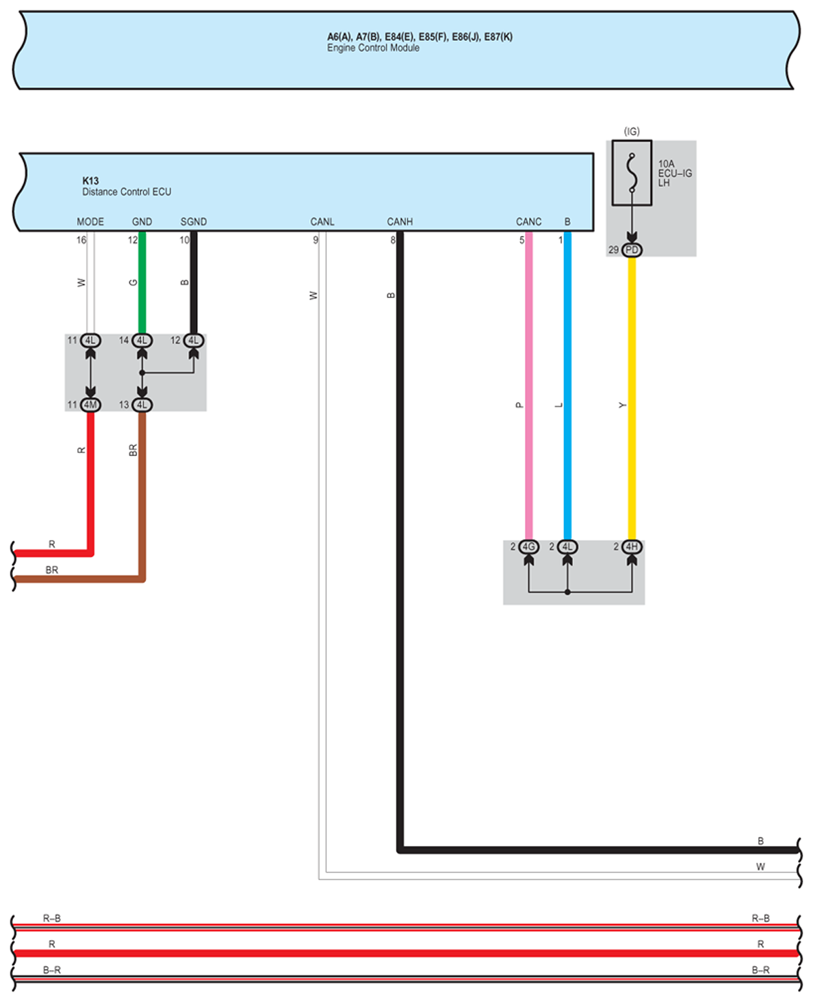

Fig 6: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (6 Of 24)

G07595599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

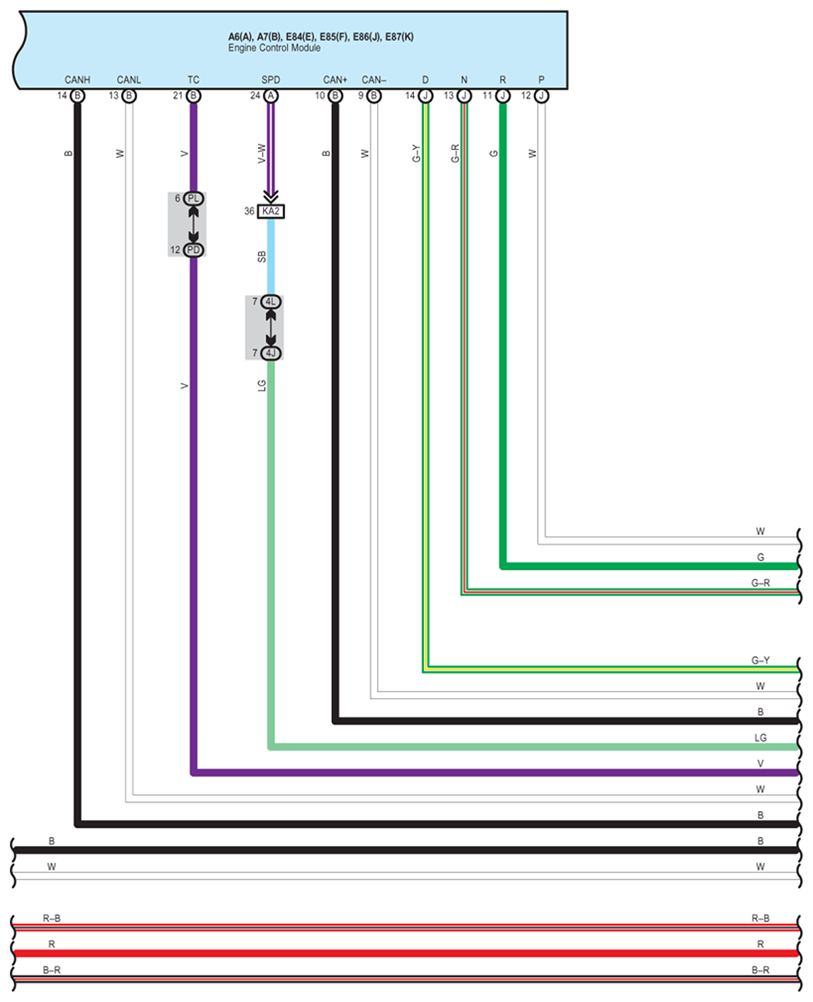

Fig 7: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (7 Of 24)

G07595600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

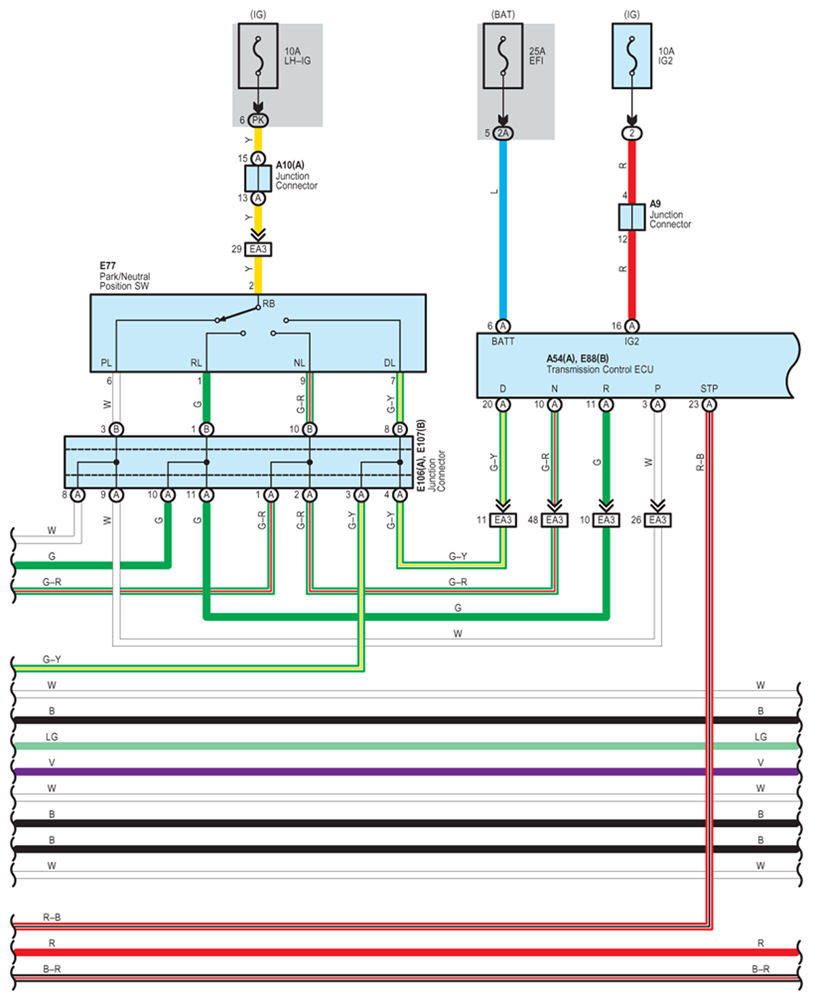

Fig 8: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (8 Of 24)

G07595601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

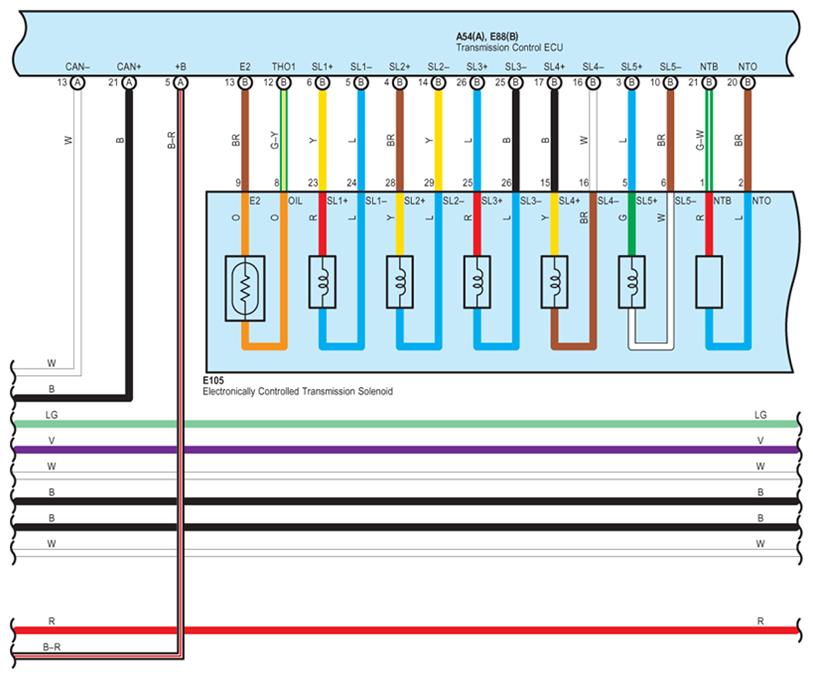

Fig 9: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (9 Of 24)

G07595602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

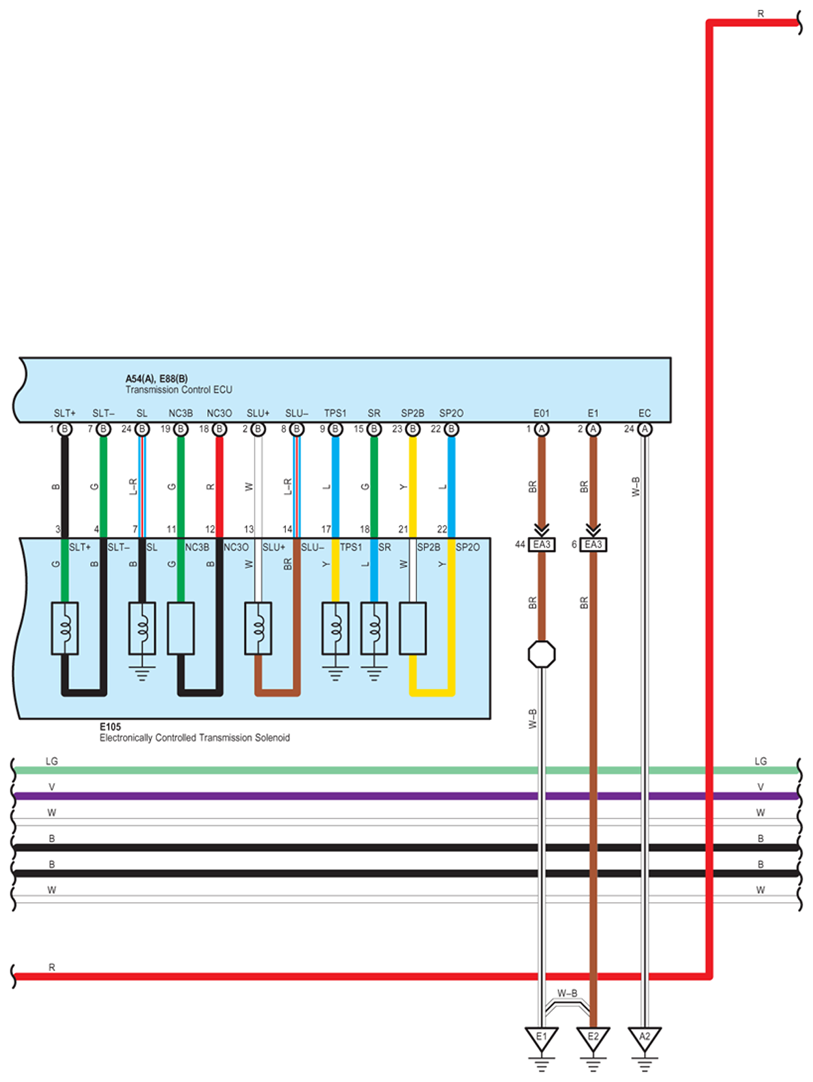

Fig 10: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (10 Of 24)

G07595603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

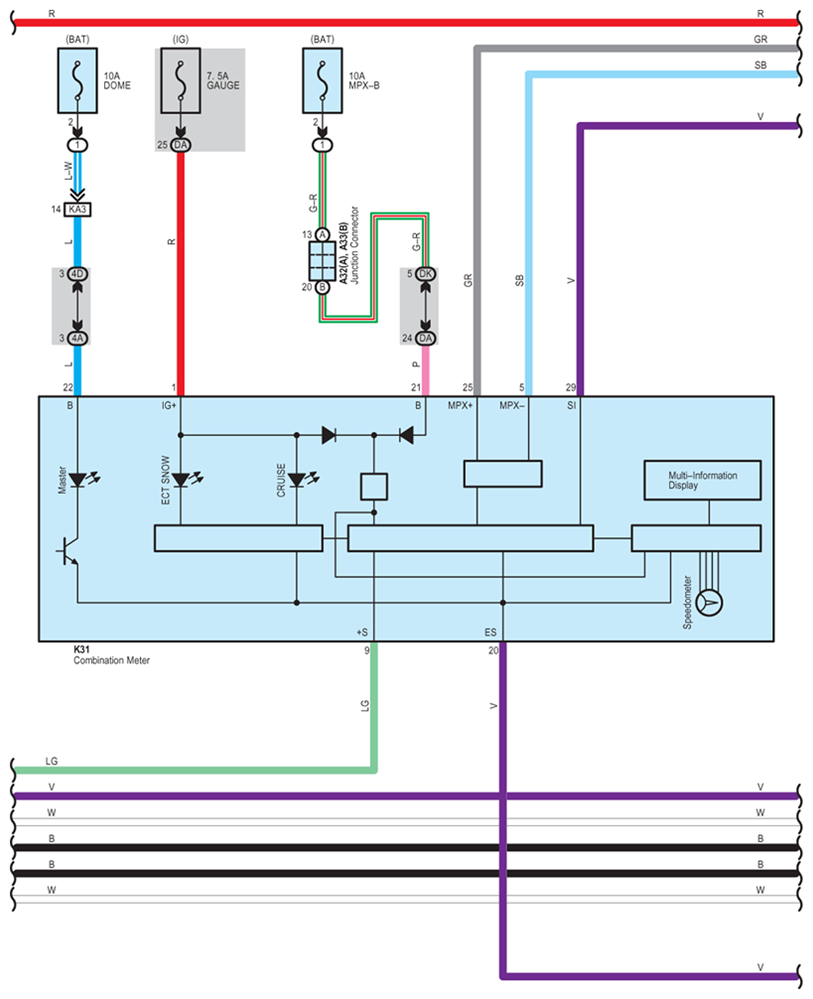

Fig 11: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (11 Of 24)

G07595604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

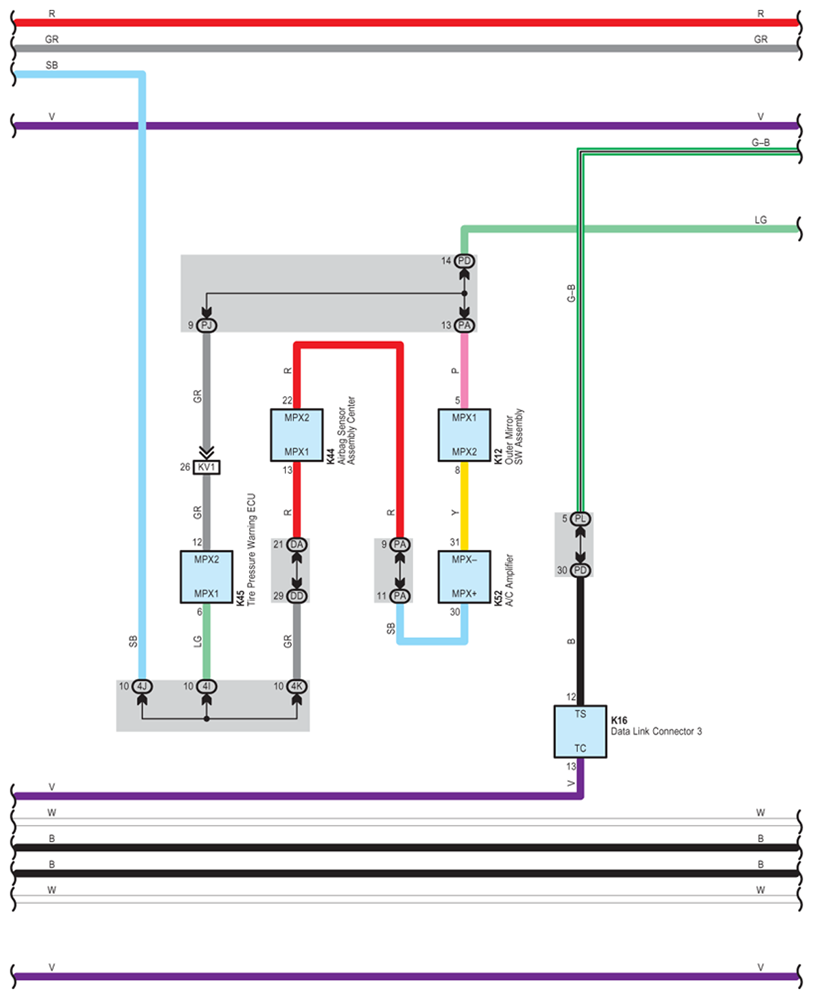

Fig 12: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (12 Of 24)

G07595605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

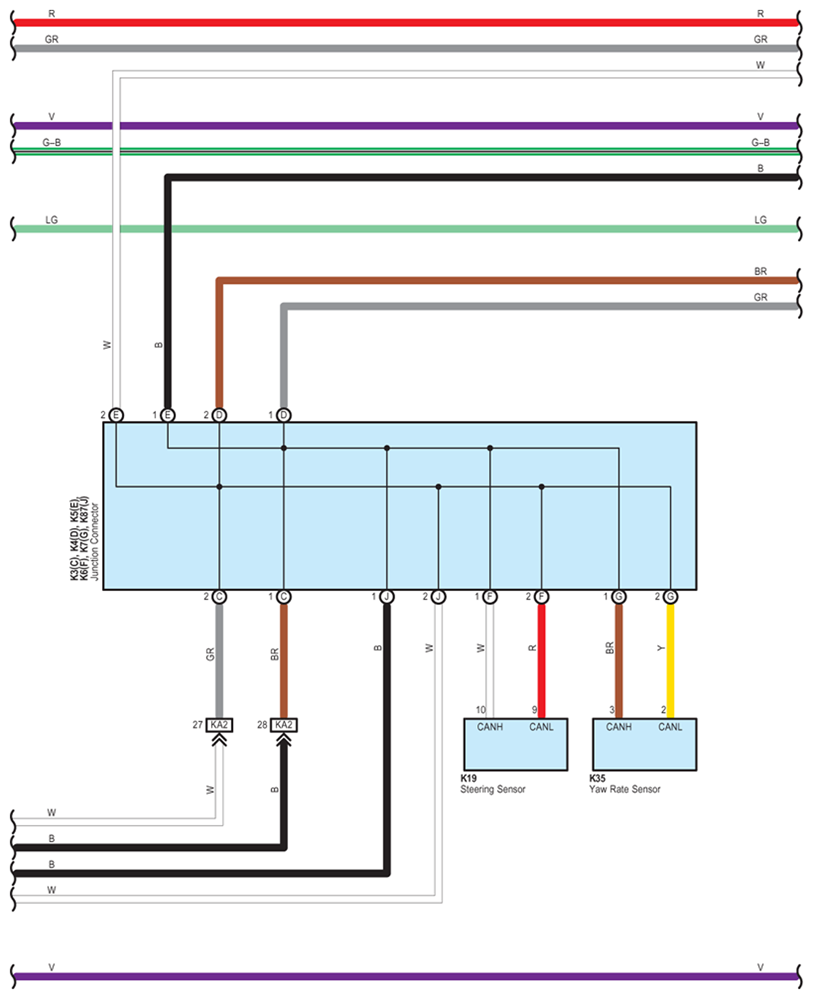

Fig 13: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (13 Of 24)

G07595606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

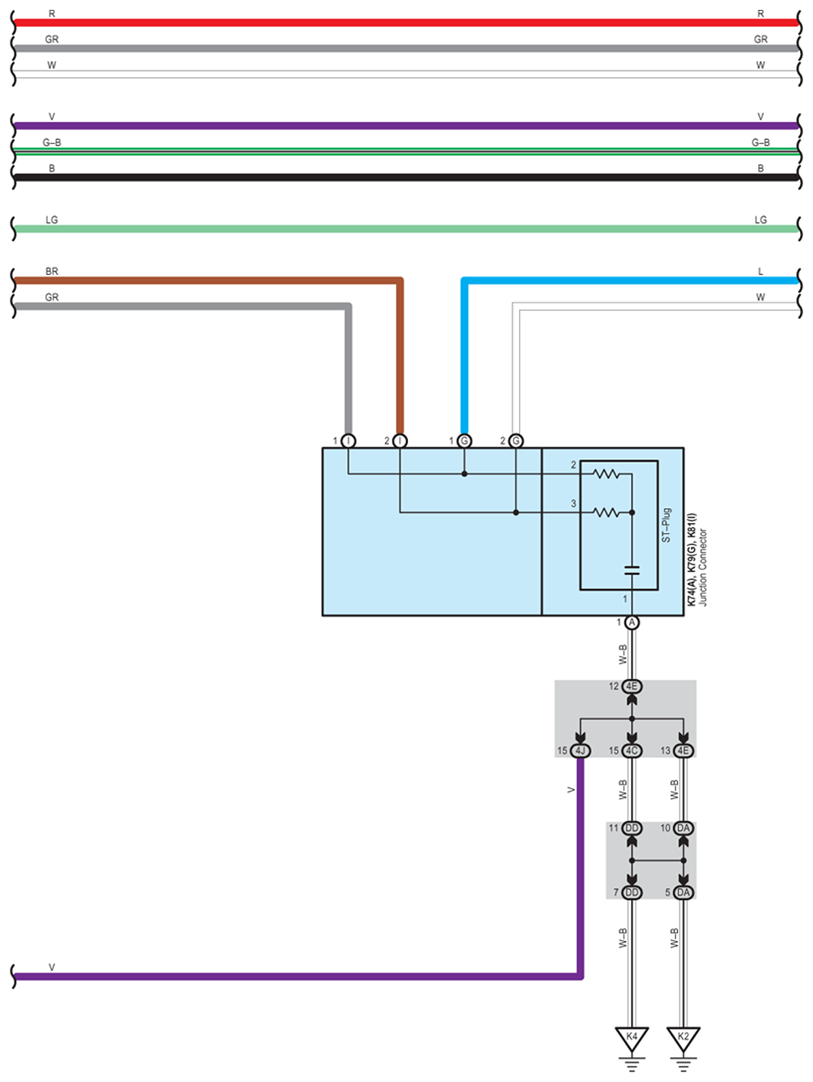

Fig 14: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (14 Of 24)

G07595607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

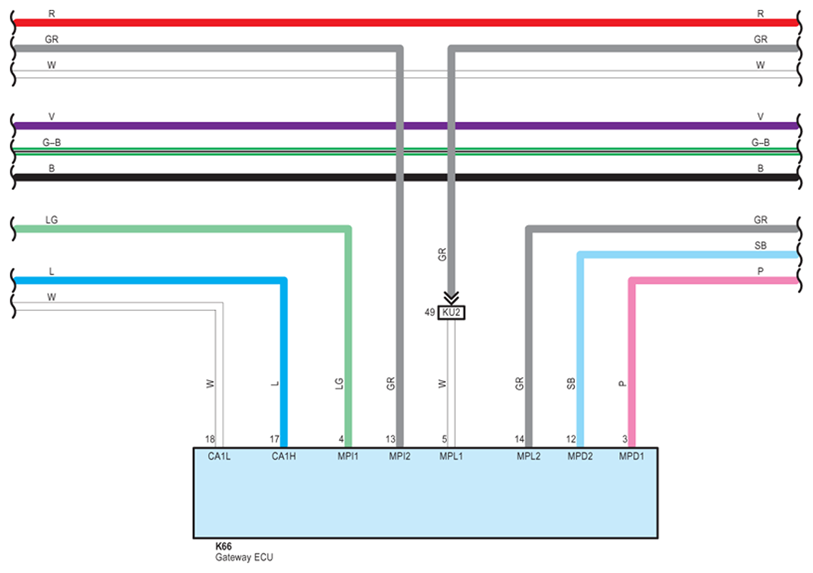

Fig 15: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (15 Of 24)

G07595608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

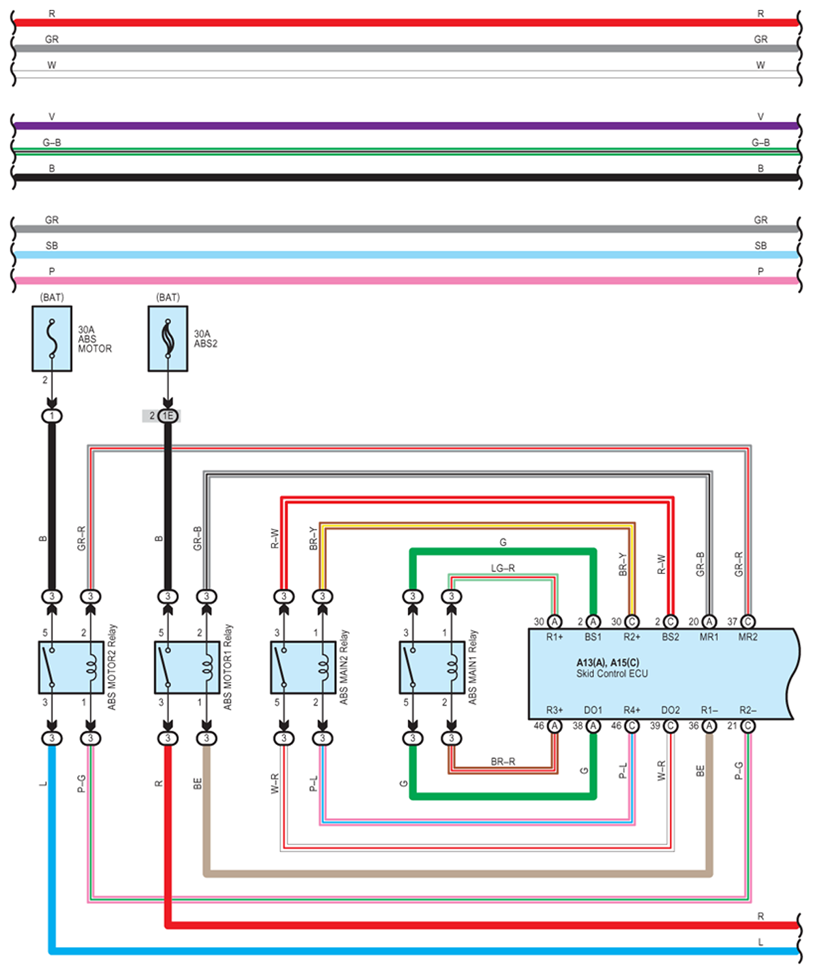

Fig 16: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (16 Of 24)

G07595609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

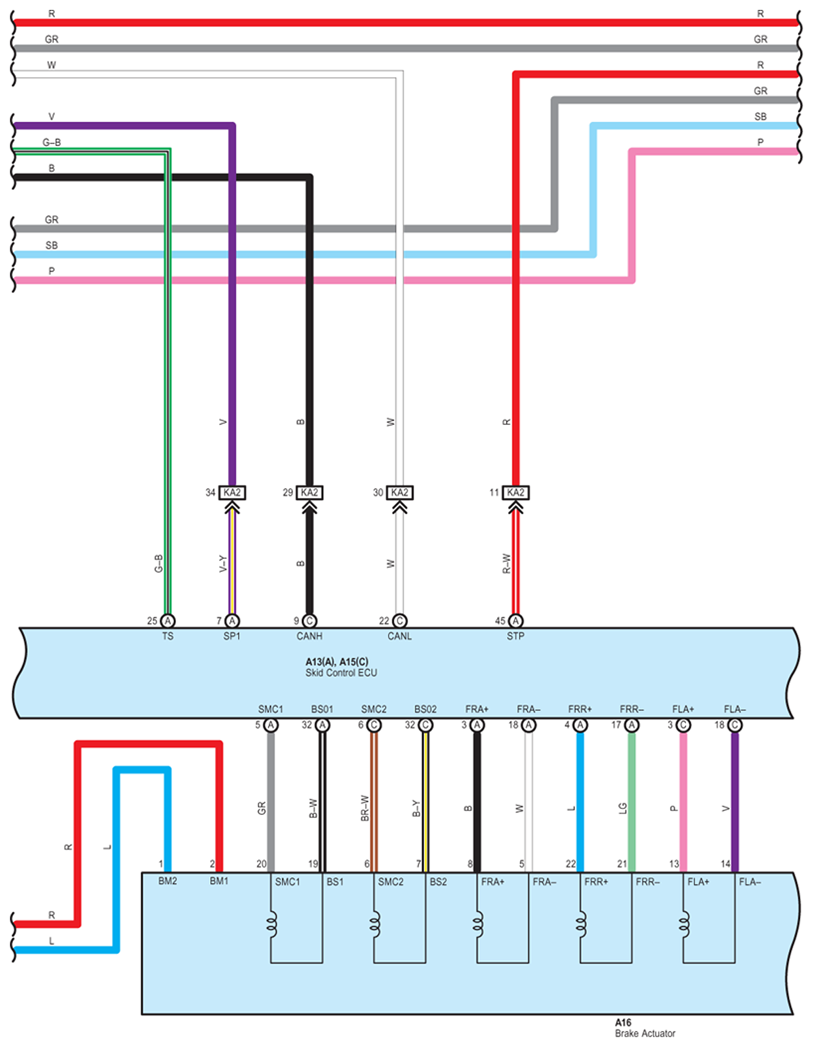

Fig 17: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (17 Of 24)

G07595610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

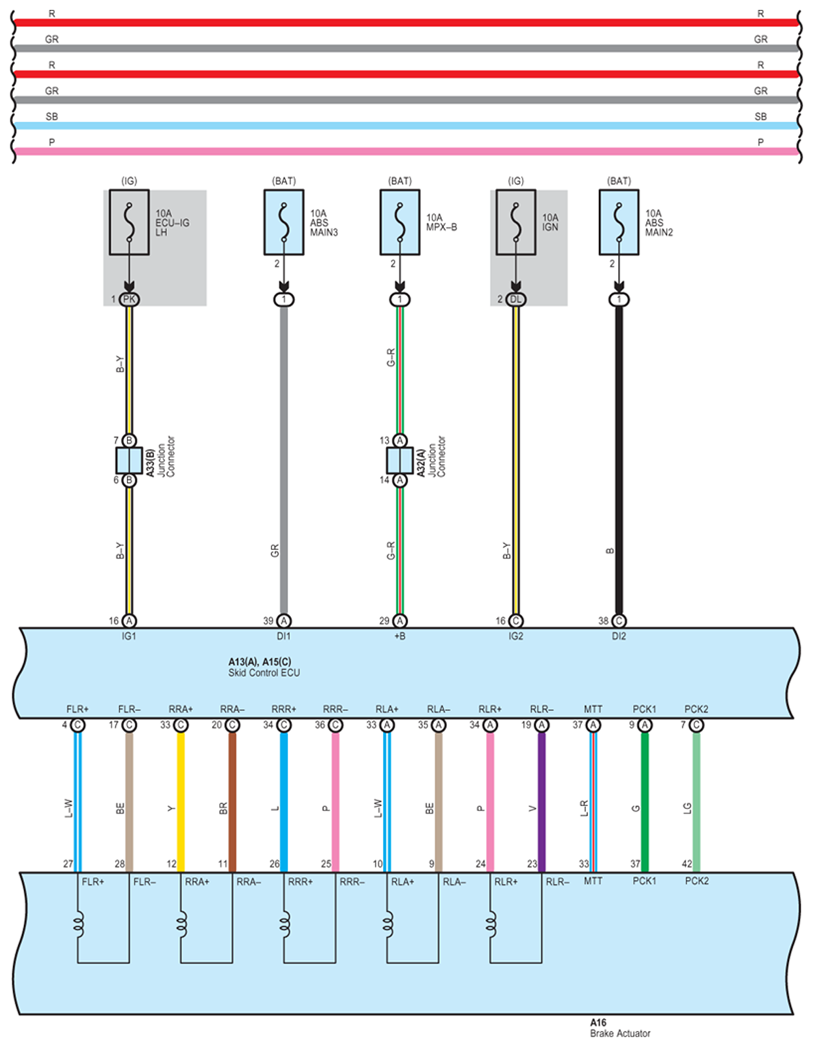

Fig 18: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (18 Of 24)

G07595611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

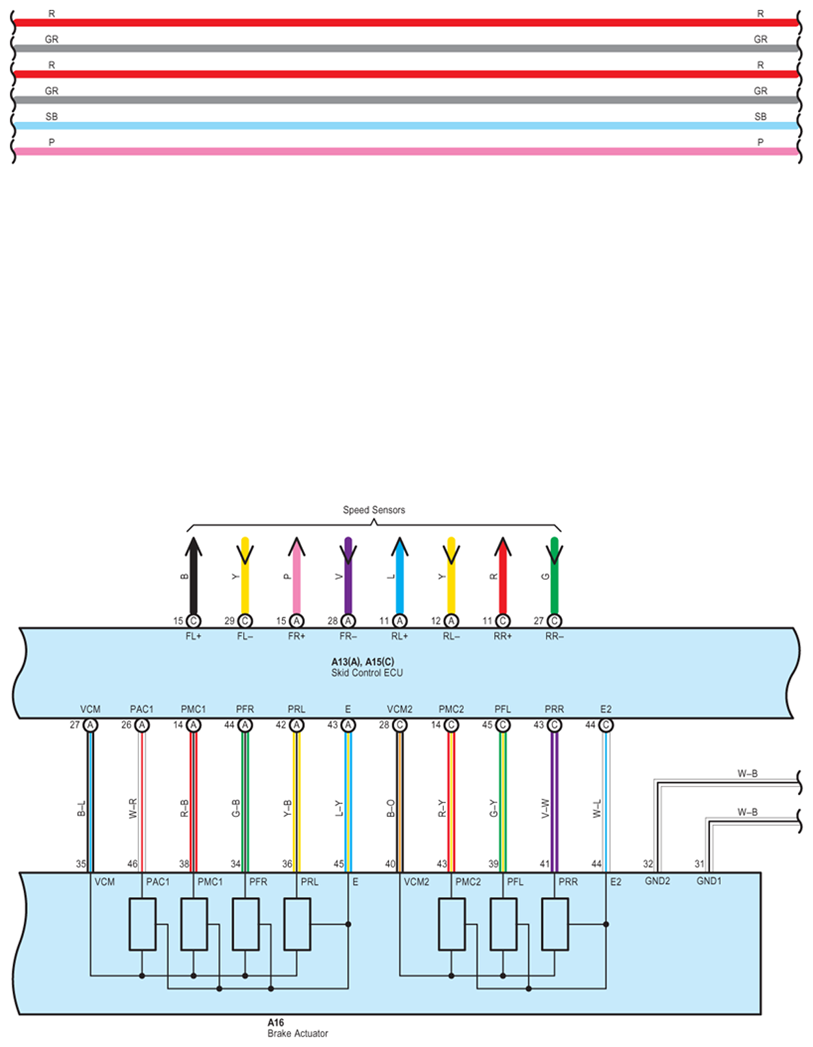

Fig 19: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (19 Of 24)

G07595612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

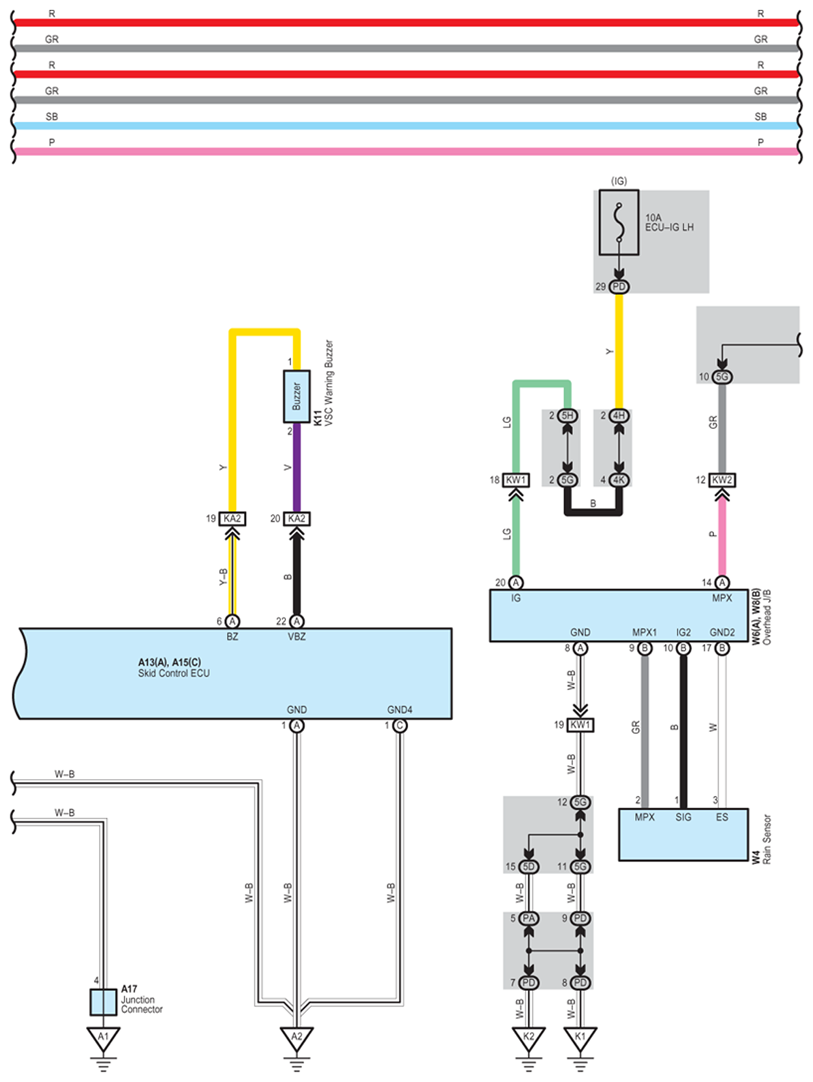

Fig 20: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (20 Of 24)

G07595613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

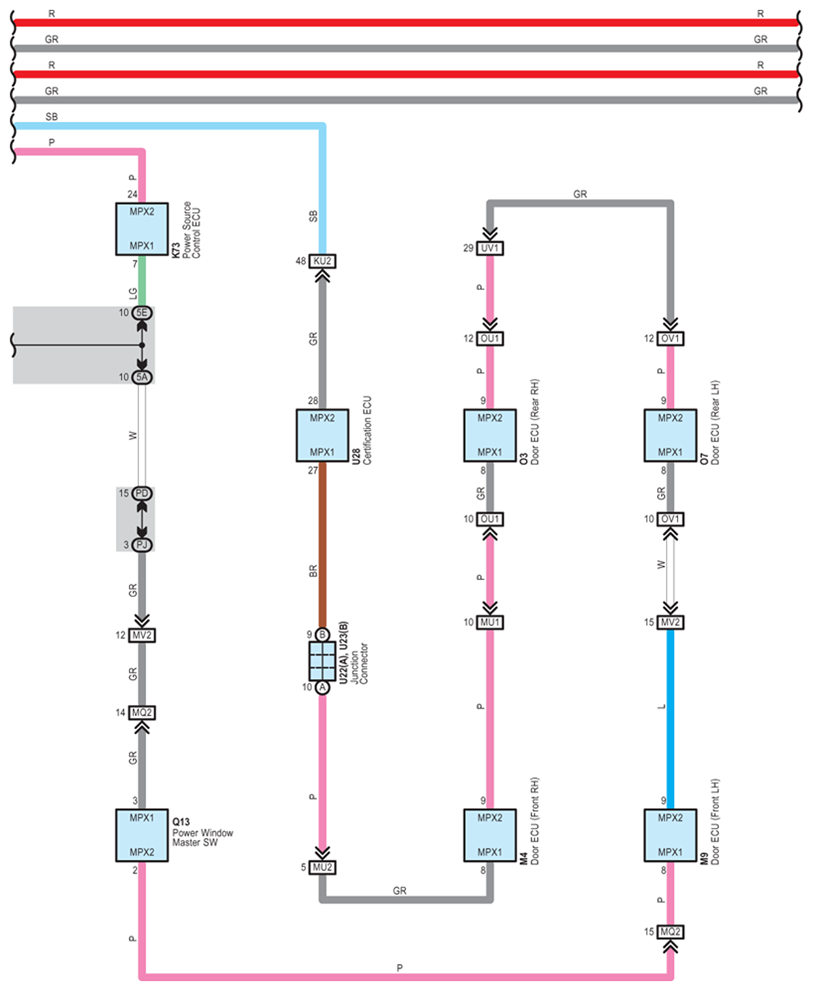

Fig 21: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (21 Of 24)

G07595614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

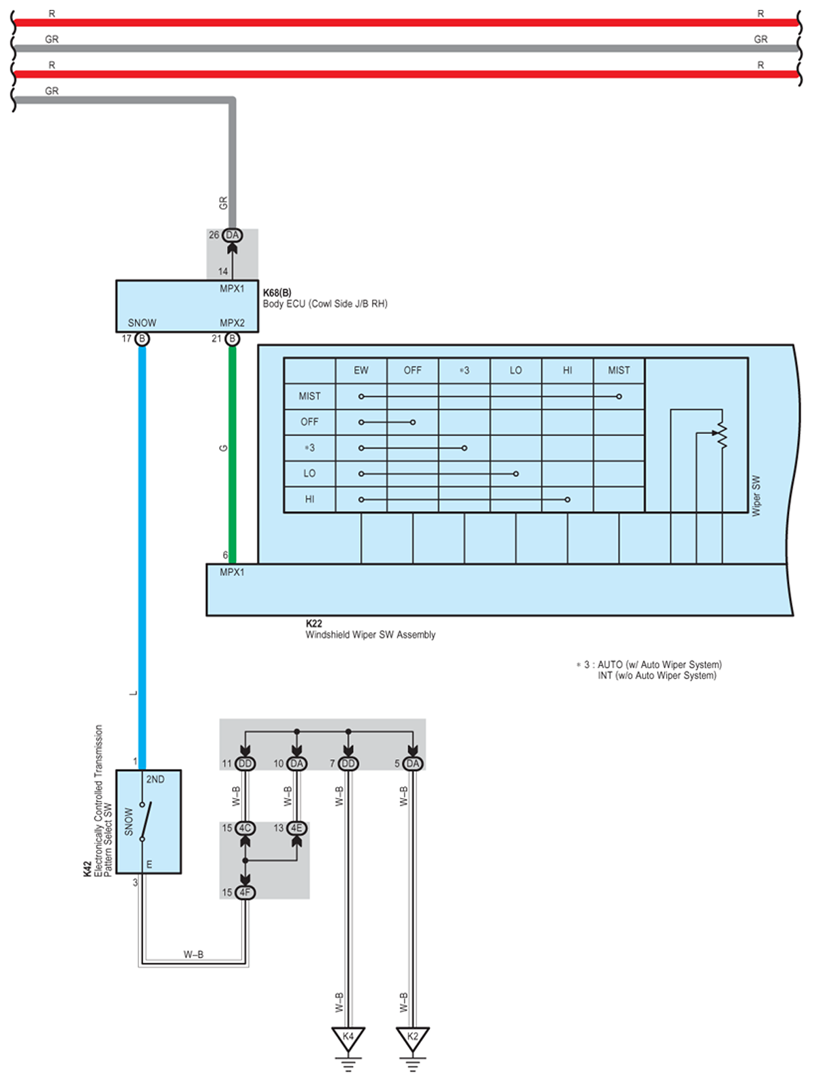

Fig 22: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (22 Of 24)

G07595615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

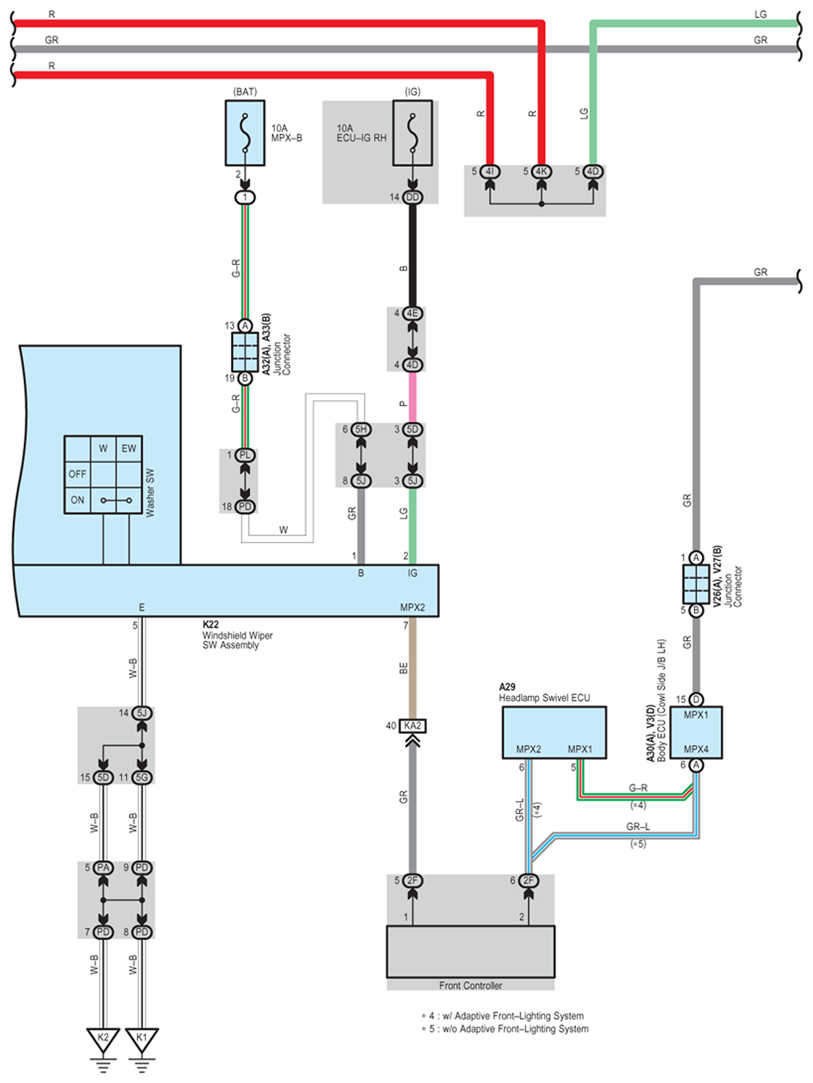

Fig 23: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (23 Of 24)

G07595616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

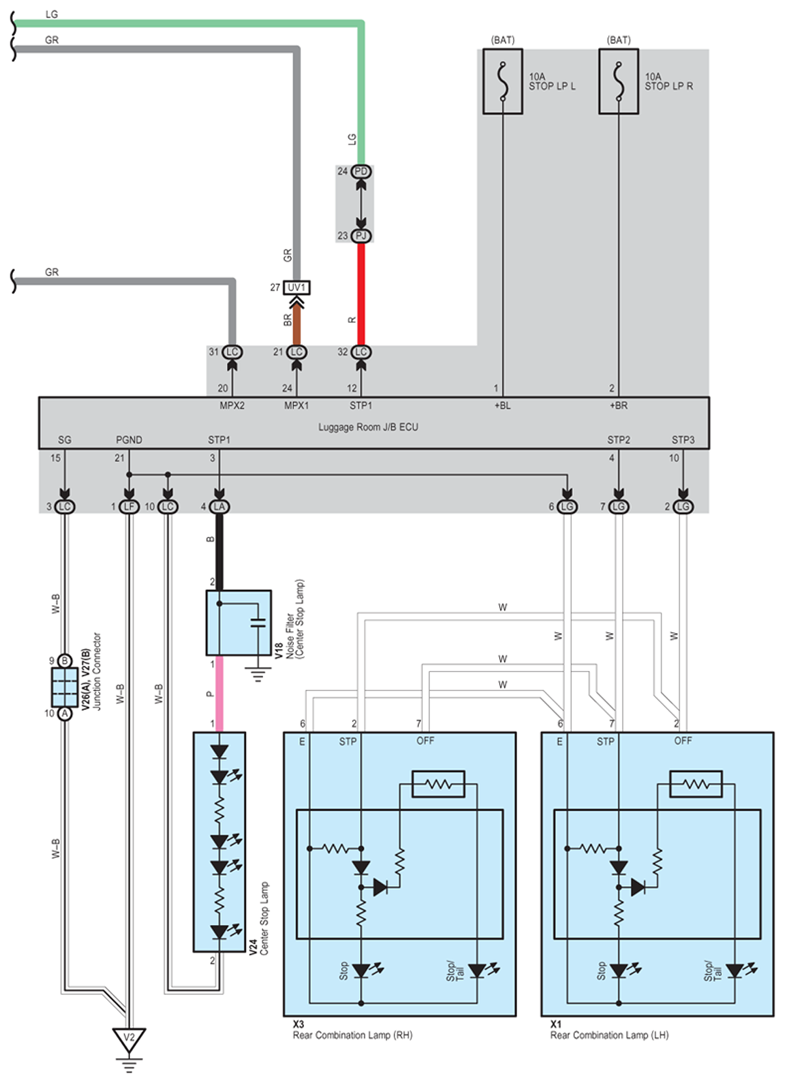

Fig 24: Dynamic Radar Cruise Control (1UR-FSE) - Circuit Diagram (24 Of 24)

G07595617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
