Seat Beat Warning: Notes

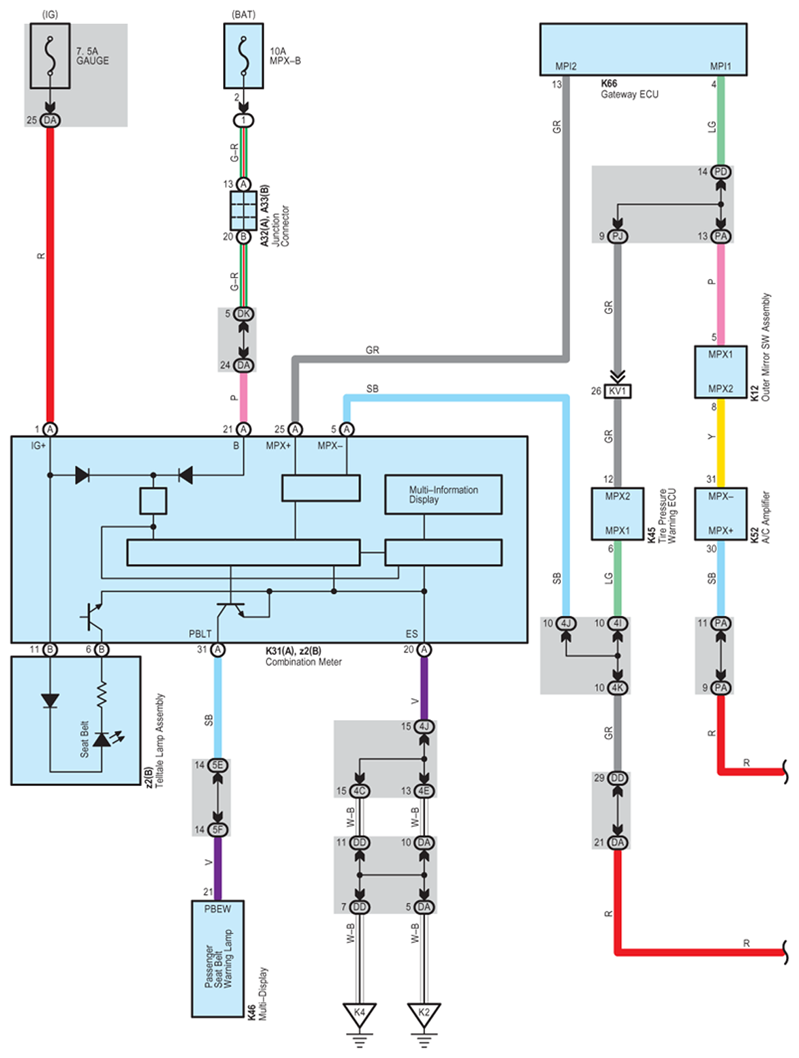

Fig 1: Seat Beat Warning - Circuit Diagram (1 Of 2)
G07595753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

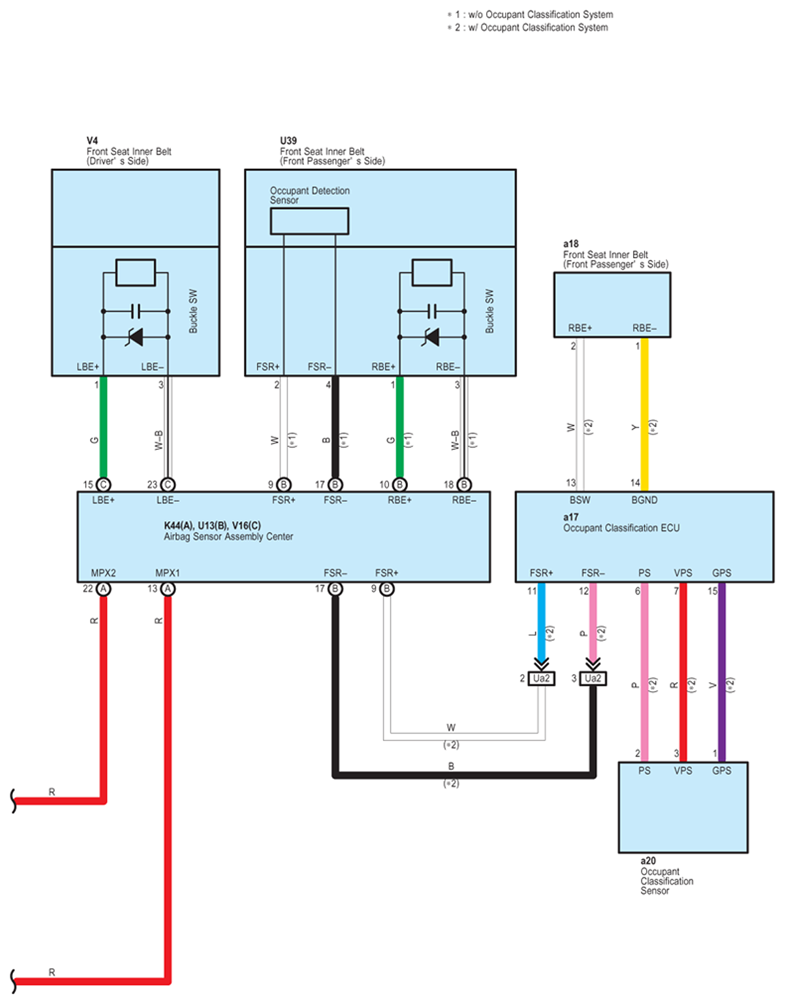

Fig 2: Seat Beat Warning - Circuit Diagram (2 Of 2)
G07595754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
