Integration Relay: Installation: Installation

INSTALL INTEGRATION NO. 1 RELAY
1. Connect the 3 connectors.

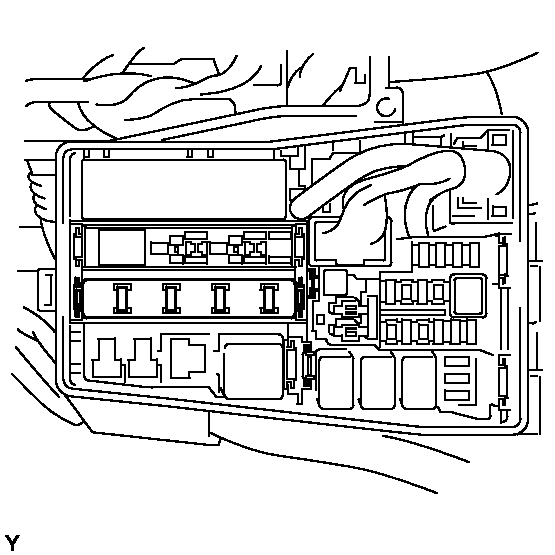

  Fig 1: Identifying Integration Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the integration relay to the engine room No. 2 relay block.
3. Install the engine engine room No. 1 relay block cover.
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 70
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 71
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Refer to INITIALIZATION .
