Mass Air Flow Meter: Installation: Installation

INSTALL MASS AIR FLOW METER
1. Install the mass air flow meter with the 2 screws.

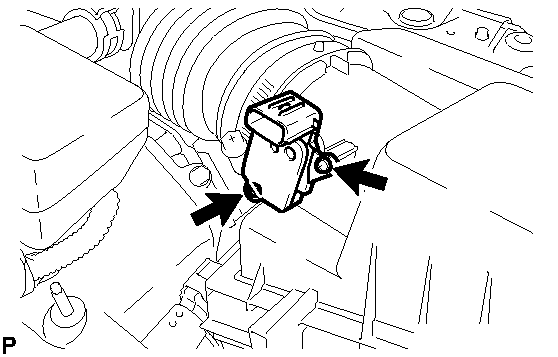

  Fig 1: Locating Screws And Mass Air Flow Meter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure the O-ring is not pinched.
2. Connect the mass air flow meter connector.

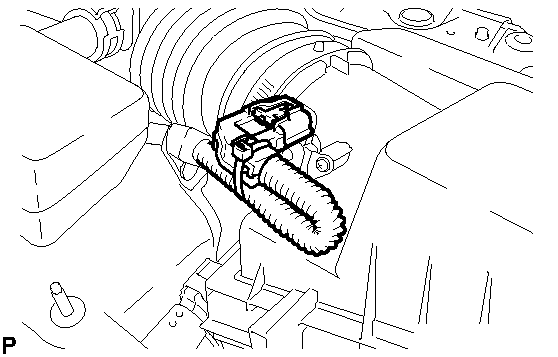

  Fig 2: Identifying Mass Air Flow Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 72
INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 69
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 69
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Refer to INITIALIZATION .
