Section 20 (Engine Control System (Service Information)): ECM: Removal: Removal

WARNING: This page is about a different car, the 2009 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  2. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 15
  3. REMOVE ENGINE ROOM SIDE COVER LH  . Refer to REMOVAL - Step 17
  4. REMOVE ECM BOX COVER
      Fig 1: Locating ECM Box Cover Bolts
      GTY105180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Remove all water on and around the cover.
      • Perform the inspection indoors to avoid rain.
      • Be sure to prevent water intrusion to the ECM (connectors and screw parts).
    1. Remove the 3 bolts and cover.
  5. DISCONNECT WIRE HARNESS

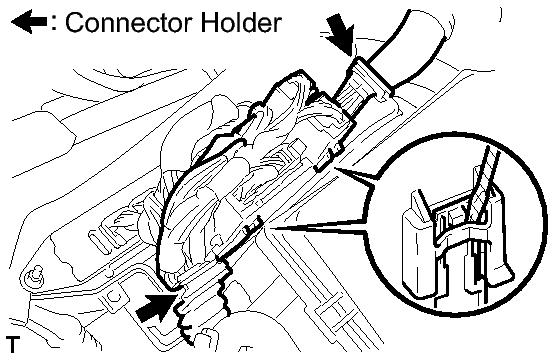

      Fig 2: Disconnecting Connector Holders
      GTY104808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screw driver, detach the 2 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the 2 connector holders.
    3. Disconnect the 6 connectors.
  6. REMOVE ECM

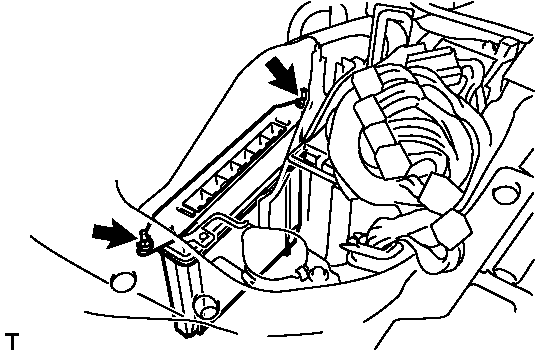

      Fig 3: Locating ECM Connector Nuts
      GTY105181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 nuts and ECM.
