Front Speed Sensor: Installation: Installation

INSTALL SPEED SENSOR FRONT LH
1. Using a hexagon wrench (5 mm), install the front speed sensor with the bolt to the steering knuckle.

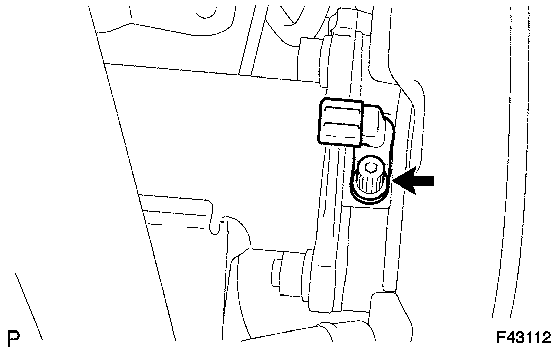

  Fig 1: Identifying Front Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

  NOTE:
  Make sure the sensor tip is clean.
2. Connect the speed sensor connector.

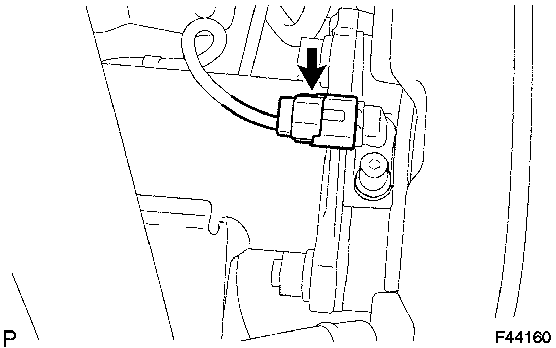

  Fig 2: Identifying Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: 112 N*m (1137 kgf*cm, 82 ft.*lbf)
CHECK SPEED SENSOR SIGNAL
HINT:

Refer to TEST MODE PROCEDURE
