Remote Control Mirror: Notes

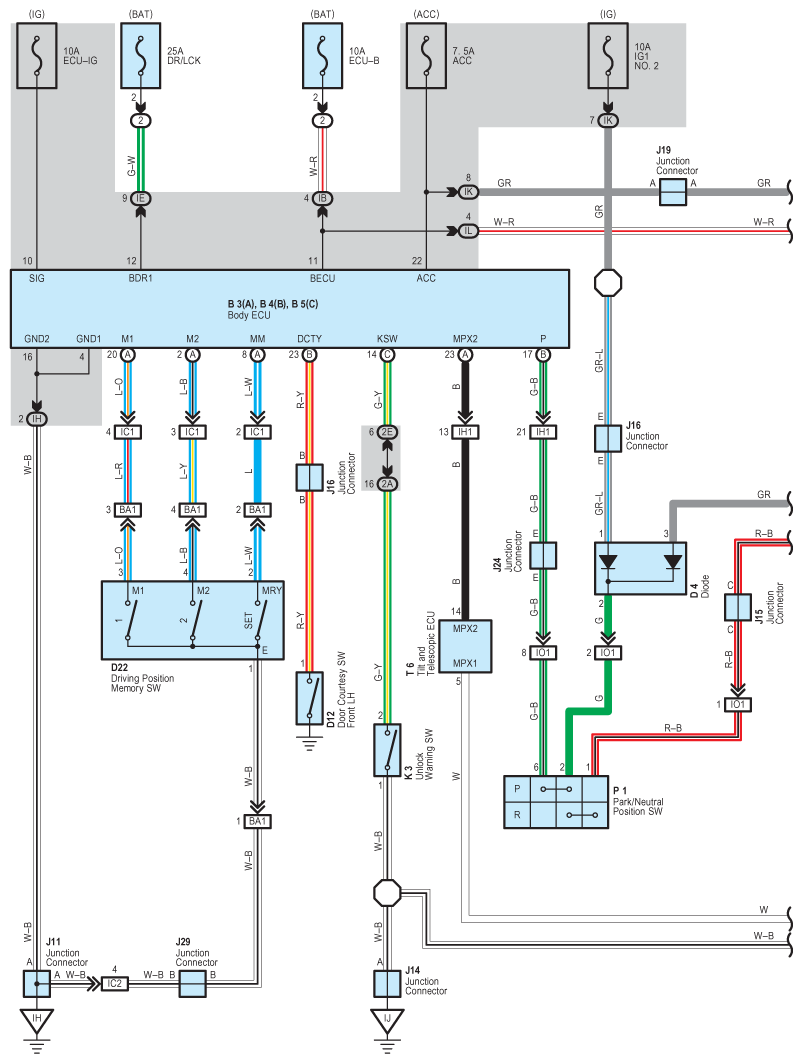

Fig 1: Remote Control Mirror - Circuit Diagram (1 Of 3)
G07619905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

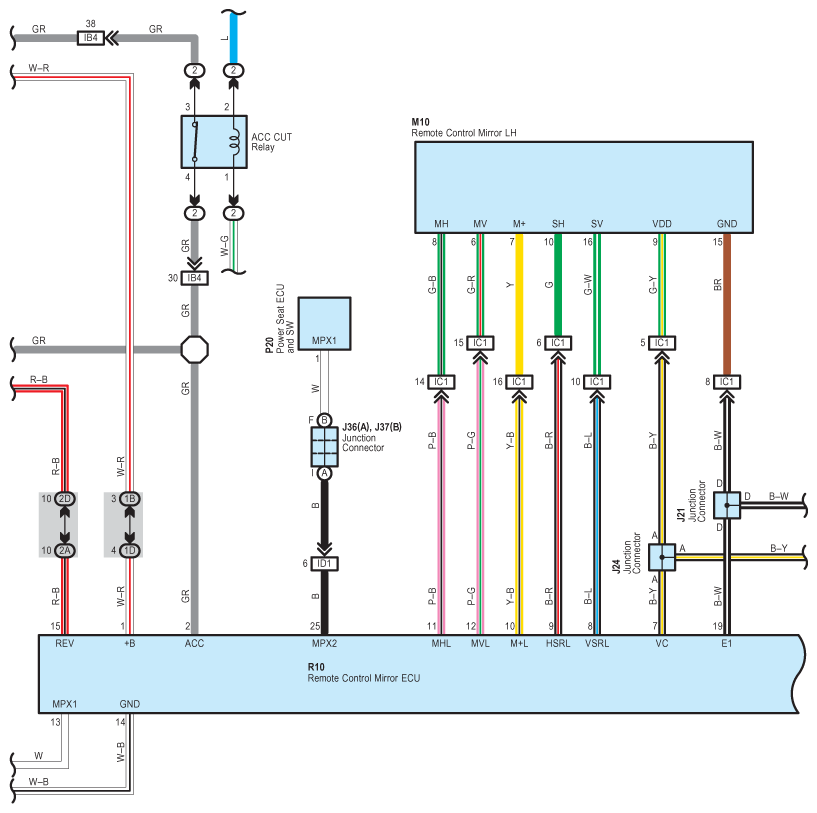

Fig 2: Remote Control Mirror - Circuit Diagram (2 Of 3)
G07619906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

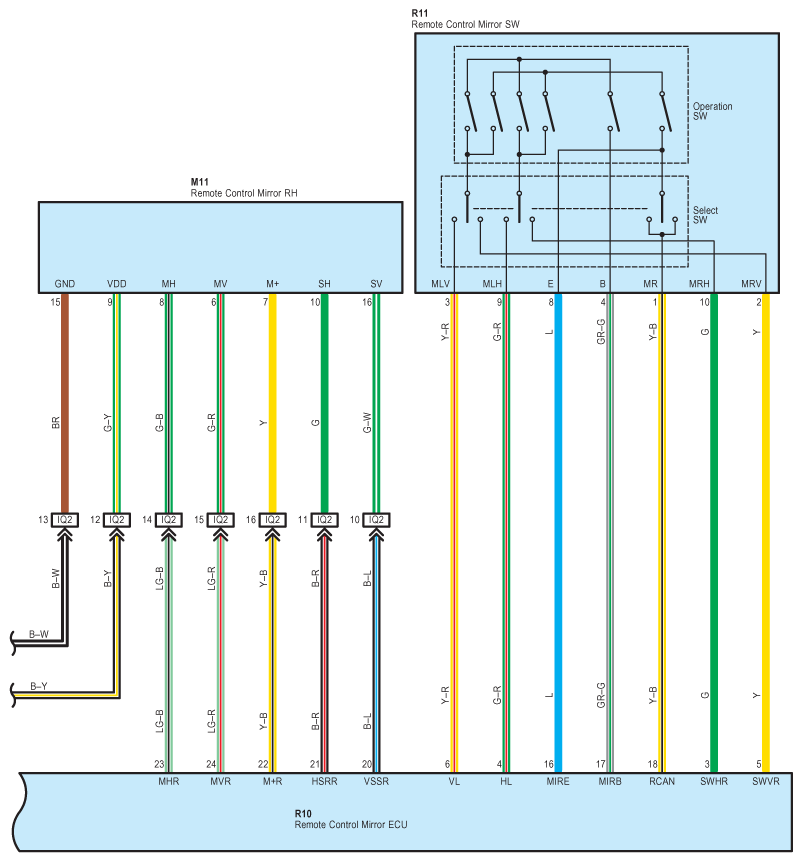

Fig 3: Remote Control Mirror - Circuit Diagram (3 Of 3)
G07619907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
