Accelerator Pedal: Removal: Removal

  1. REMOVE ACCELERATOR PEDAL ROD ASSEMBLY
    1. Disconnect a accelerator pedal connector.

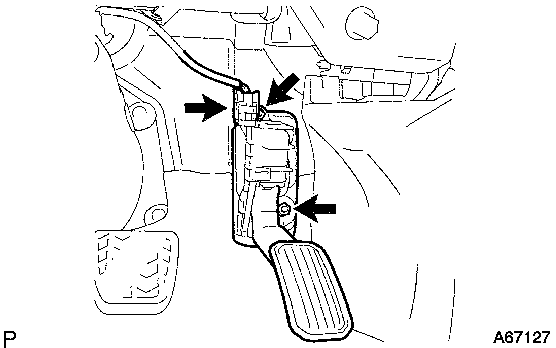

      Fig 1: Identifying Accelerator Pedal Assembly Nuts
      GTY129178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal assembly.
