Engine Control System (Service Information): ECM: Installation: Installation

INSTALL ECM
1. Install the ECM bracket No. 2 with the 2 screws to the ECM.

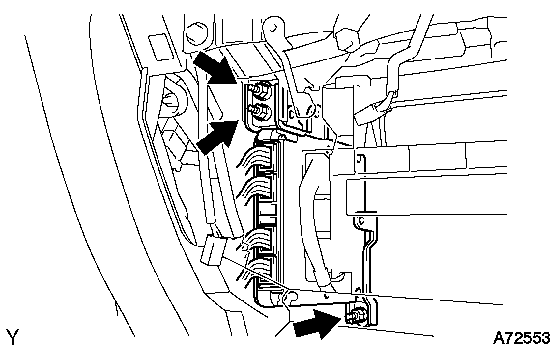

  Fig 1: Identifying ECM Connector Nut & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the ECM bracket No. 1 with the 2 screws to ECM.
3. Install the ECM with the 3 nuts.
  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
4. Connect the 5 ECM connector.
INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
INSTALL INSTRUMENT PANEL ORNAMENT
INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2
