Center Differential Lock: Notes

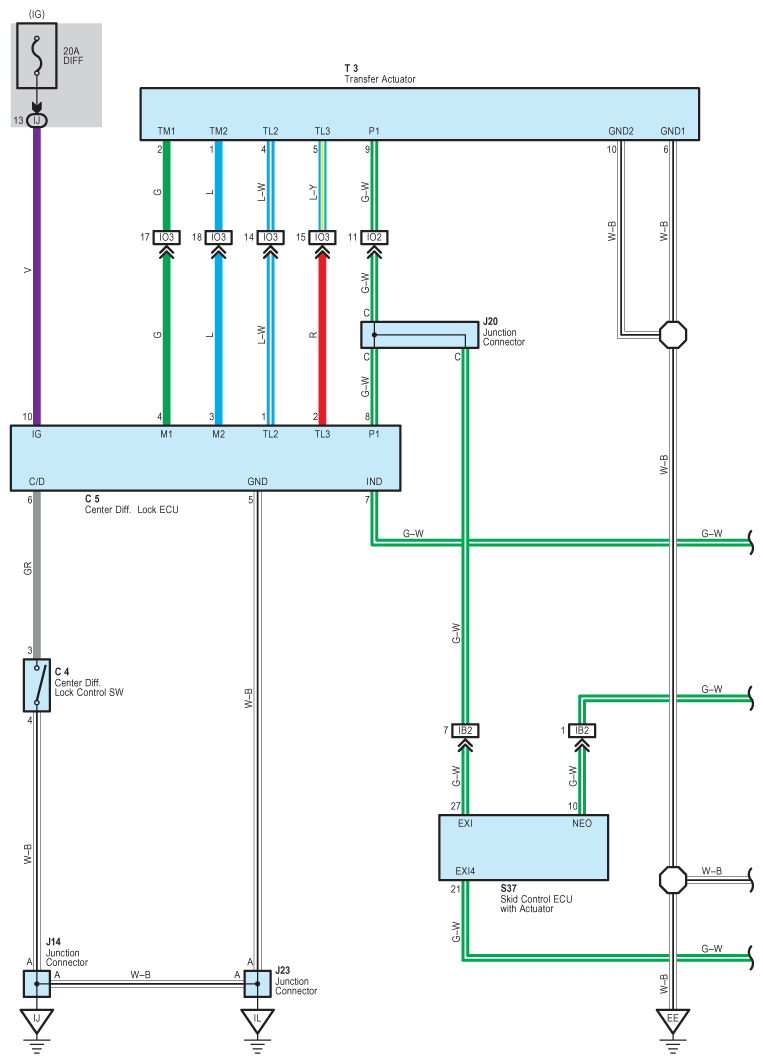

Fig 1: Center Differential Lock - Circuit Diagram (1 Of 2)
G07619895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

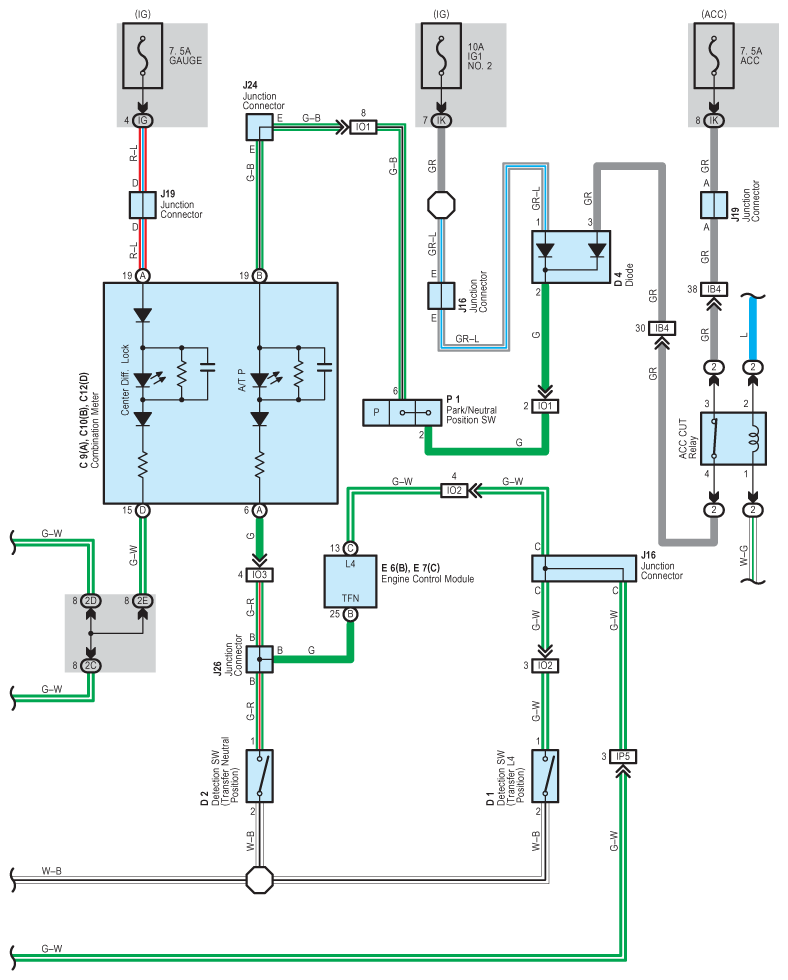

Fig 2: Center Differential Lock - Circuit Diagram (2 Of 2)
G07619896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
