Cruise Control: Notes

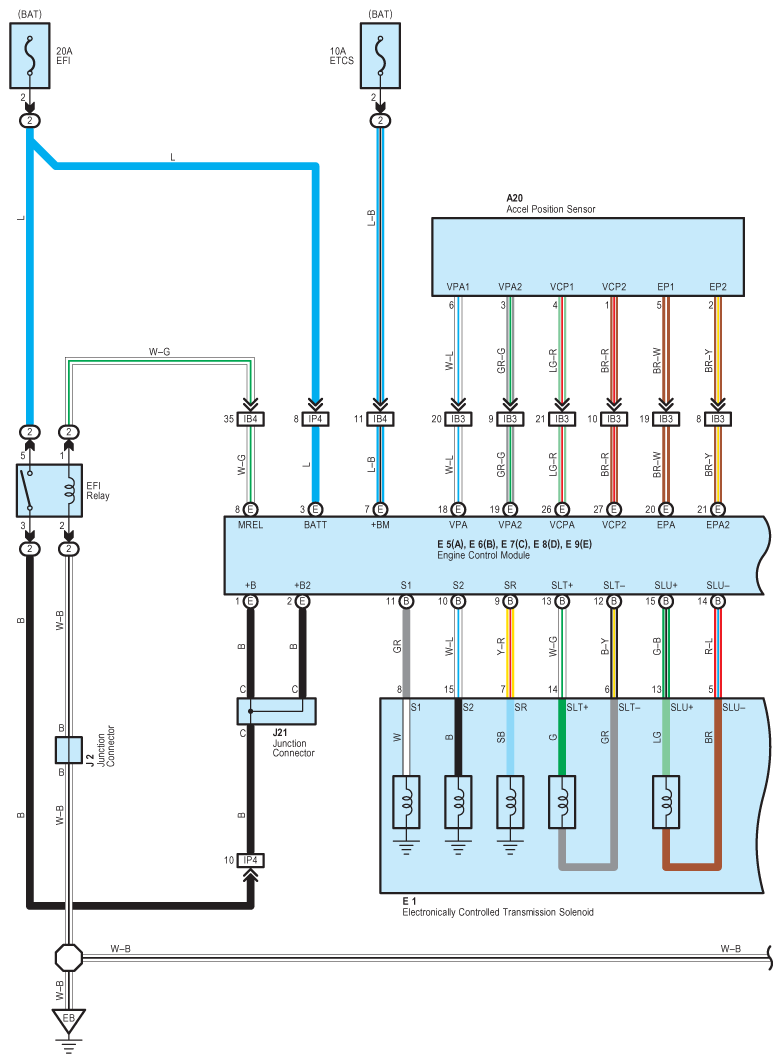

Fig 1: Cruise Control - Circuit Diagram (1 Of 4)
G07619877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

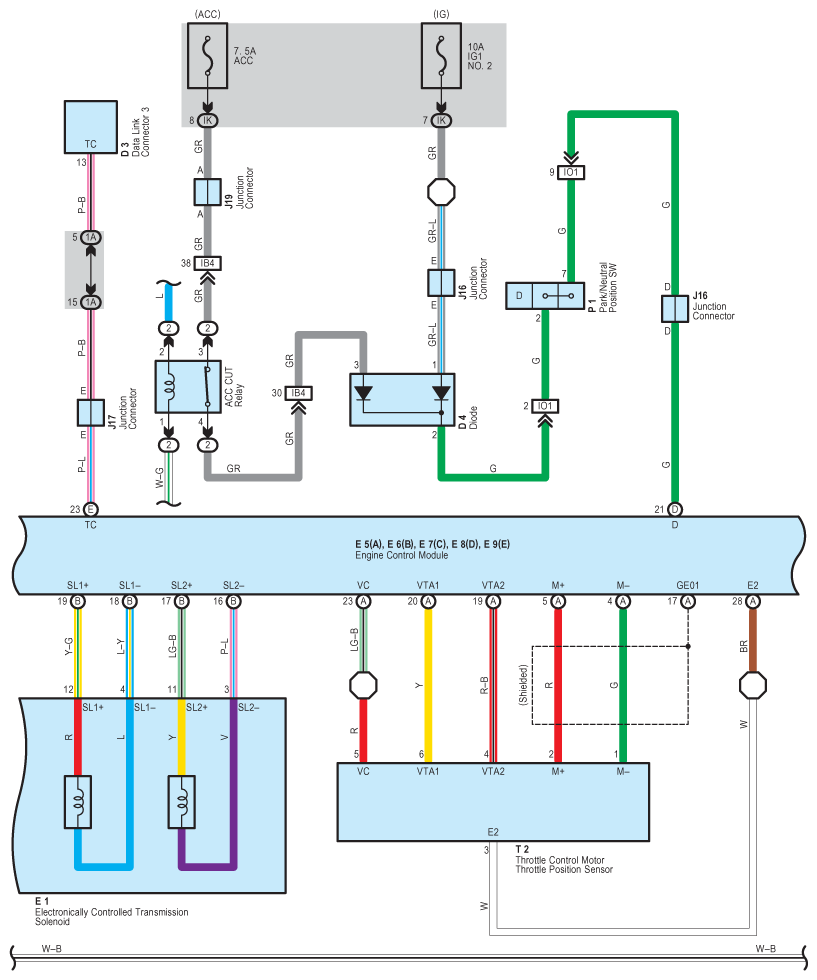

Fig 2: Cruise Control - Circuit Diagram (2 Of 4)
G07619878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

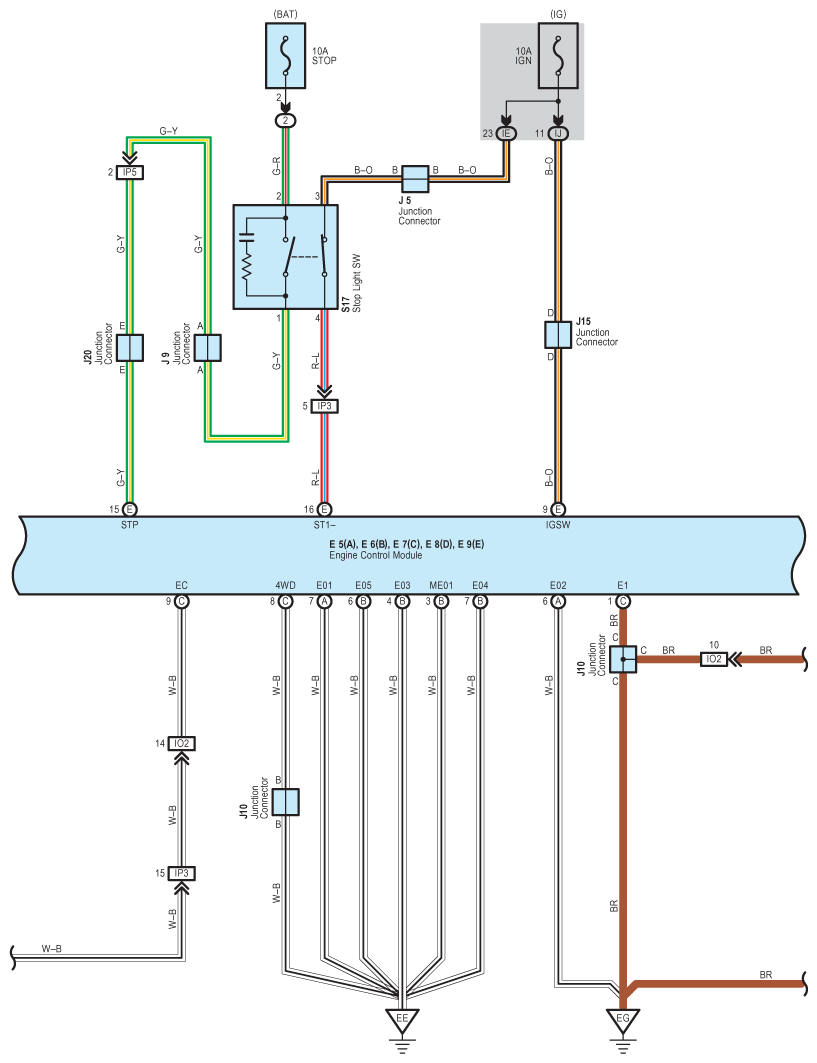

Fig 3: Cruise Control - Circuit Diagram (3 Of 4)
G07619879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

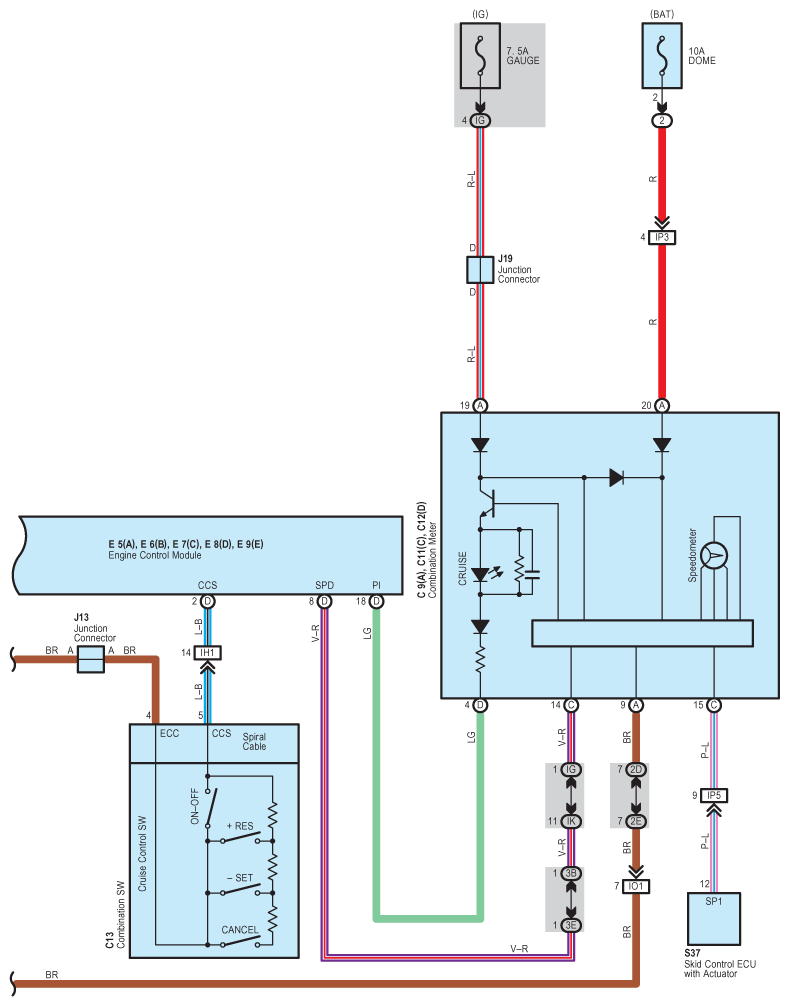

Fig 4: Cruise Control - Circuit Diagram (4 Of 4)
G07619880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
