Kinetic Dynamic Suspension System: Notes

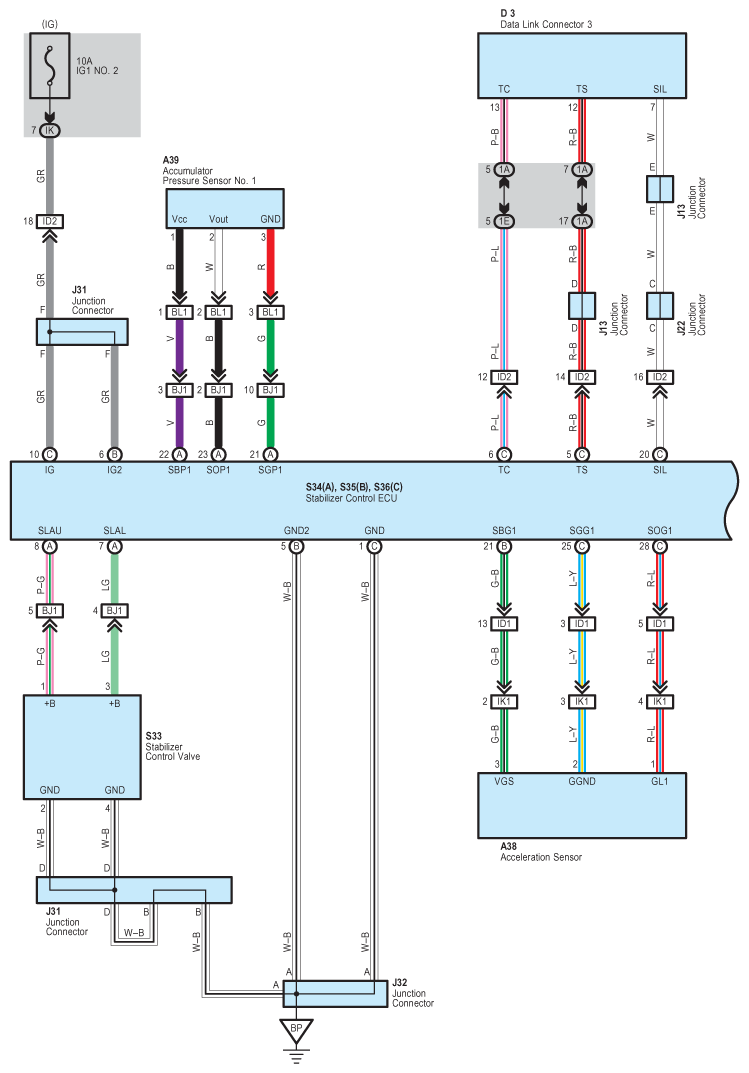

Fig 1: Kinetic Dynamic Suspension System - Circuit Diagram (1 Of 2)
G07619893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

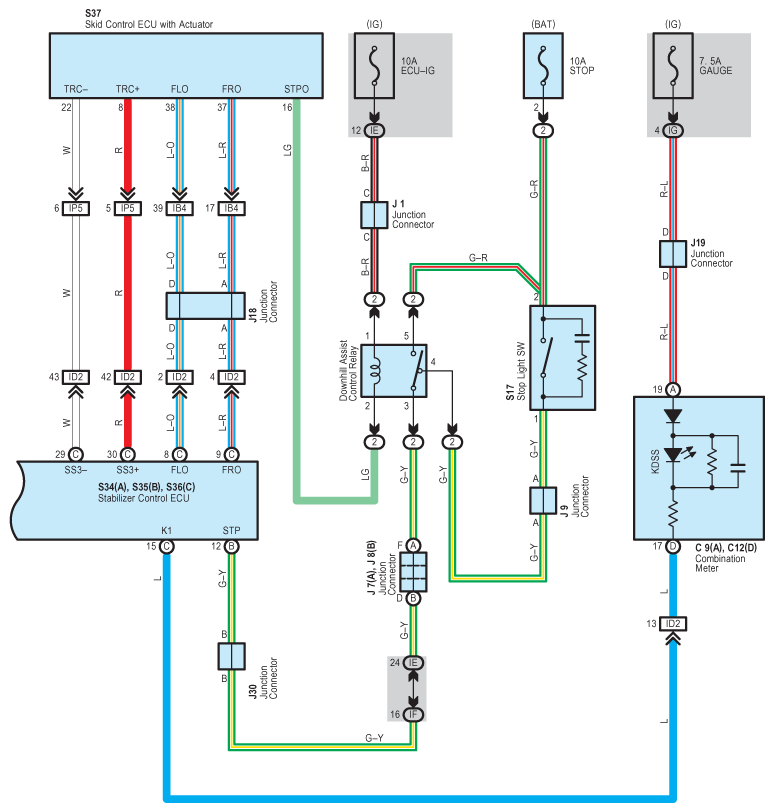

Fig 2: Kinetic Dynamic Suspension System - Circuit Diagram (2 Of 2)
G07619894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
