LEXUS Navigation System and Parking Assist (Rear View Monitor): Notes

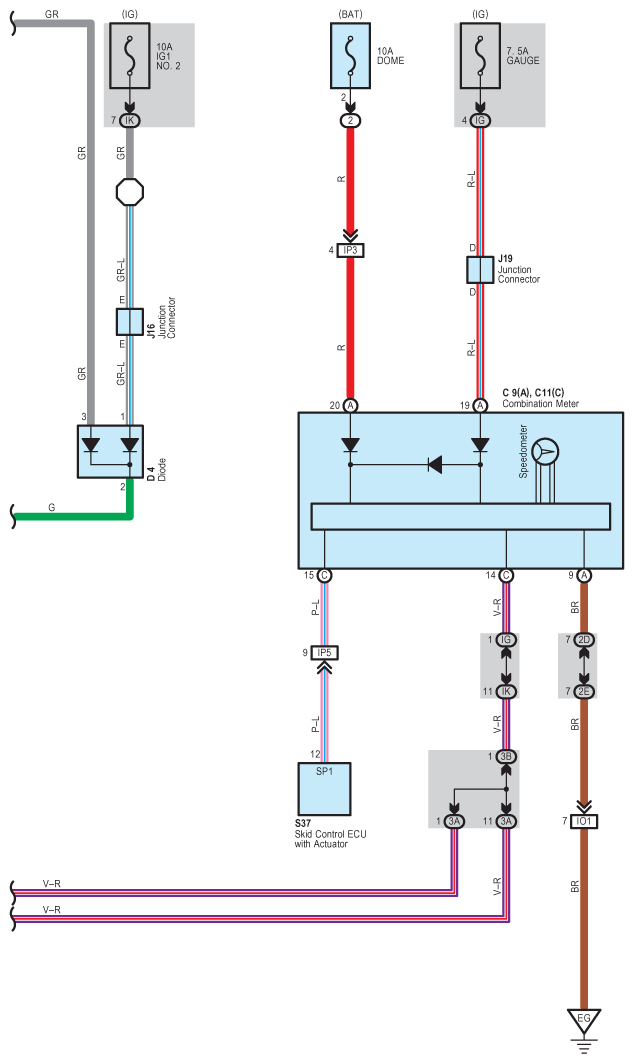

Fig 1: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

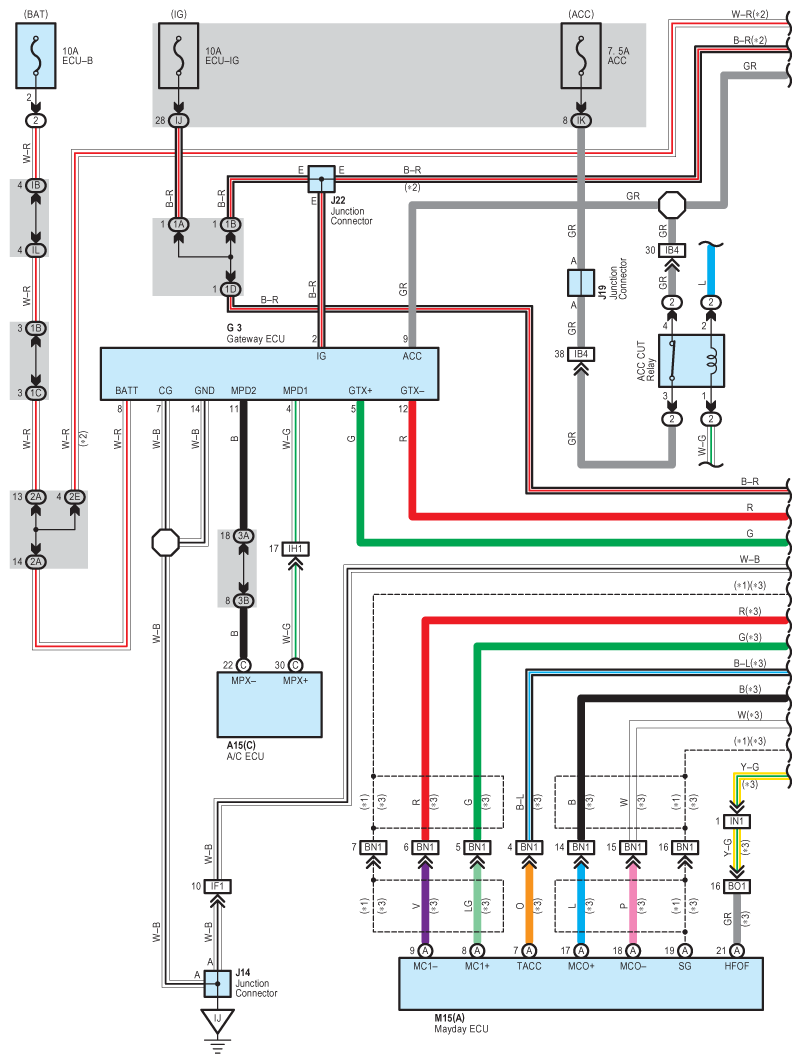

Fig 2: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

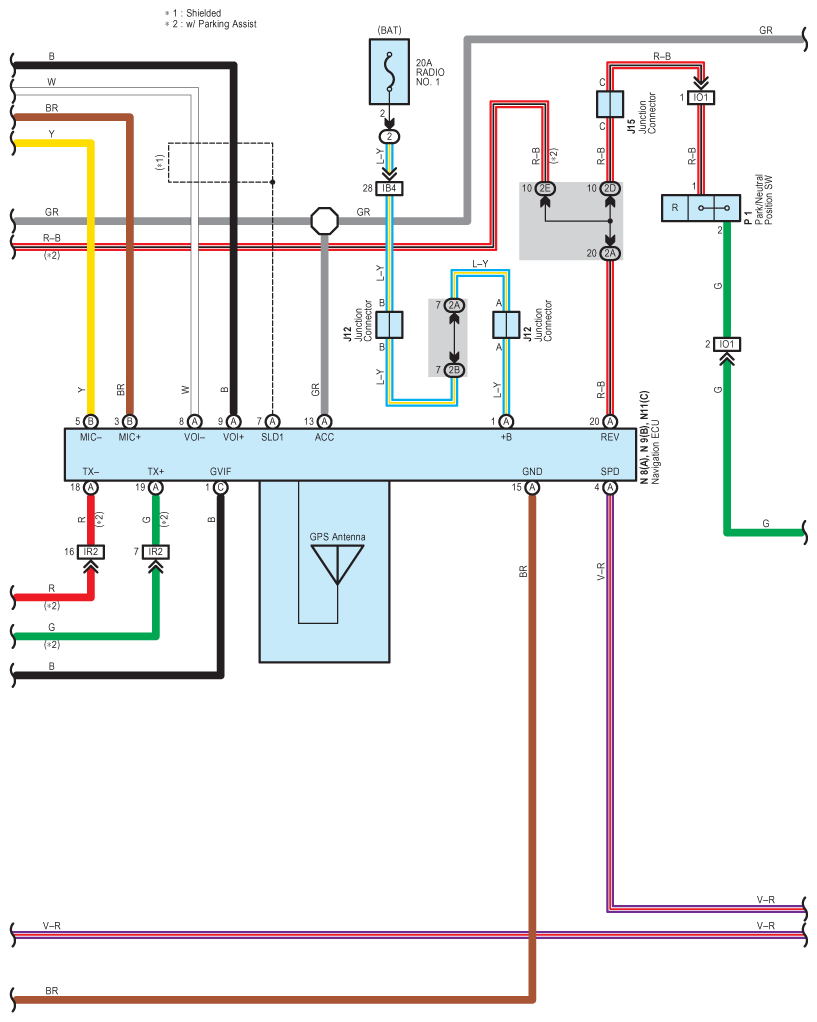

Fig 3: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

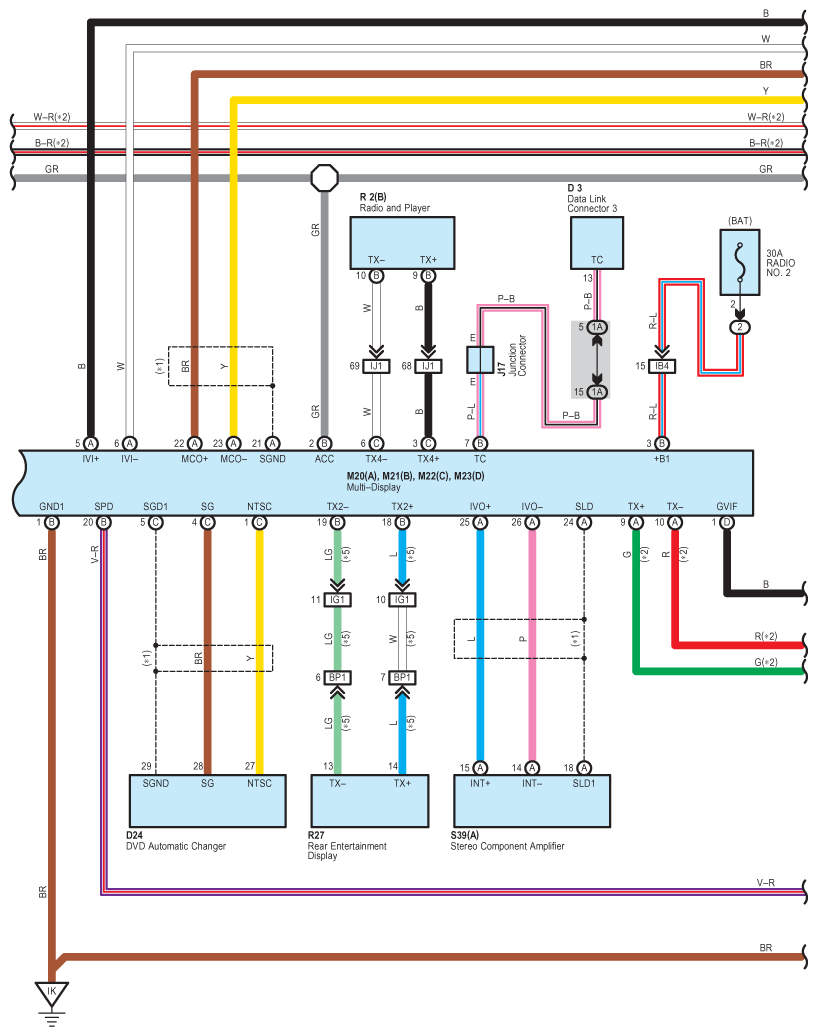

Fig 4: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (4 Of 6)

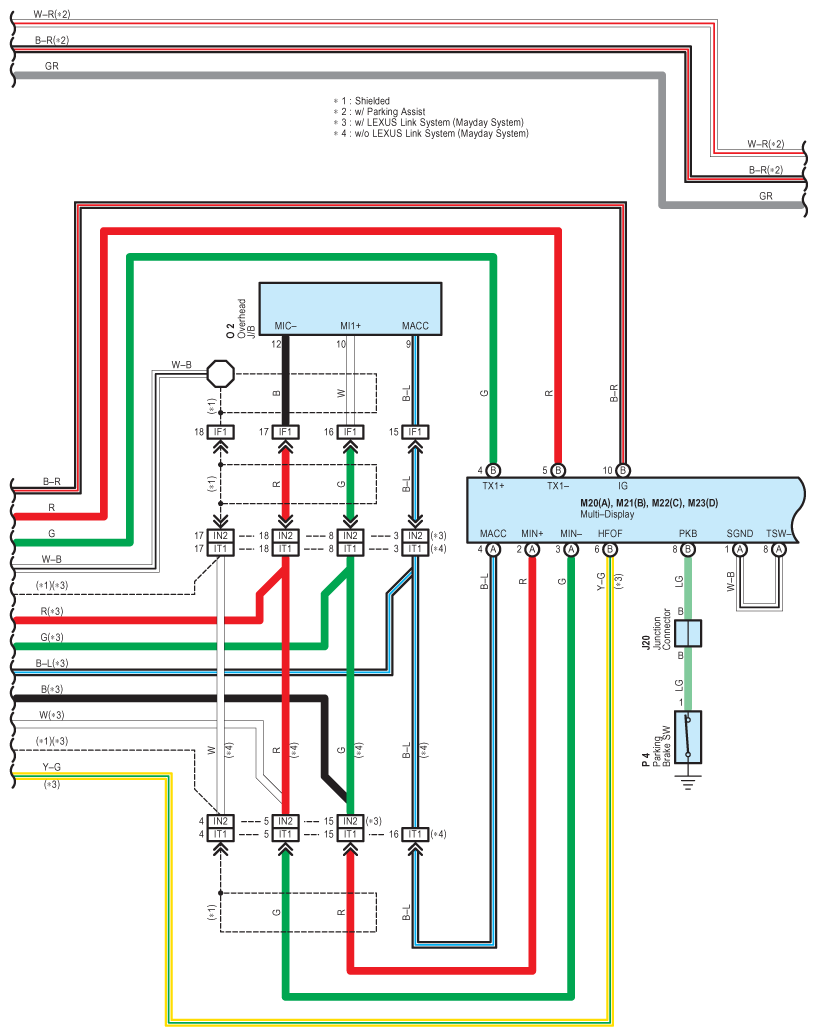

Fig 5: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (5 Of 6)

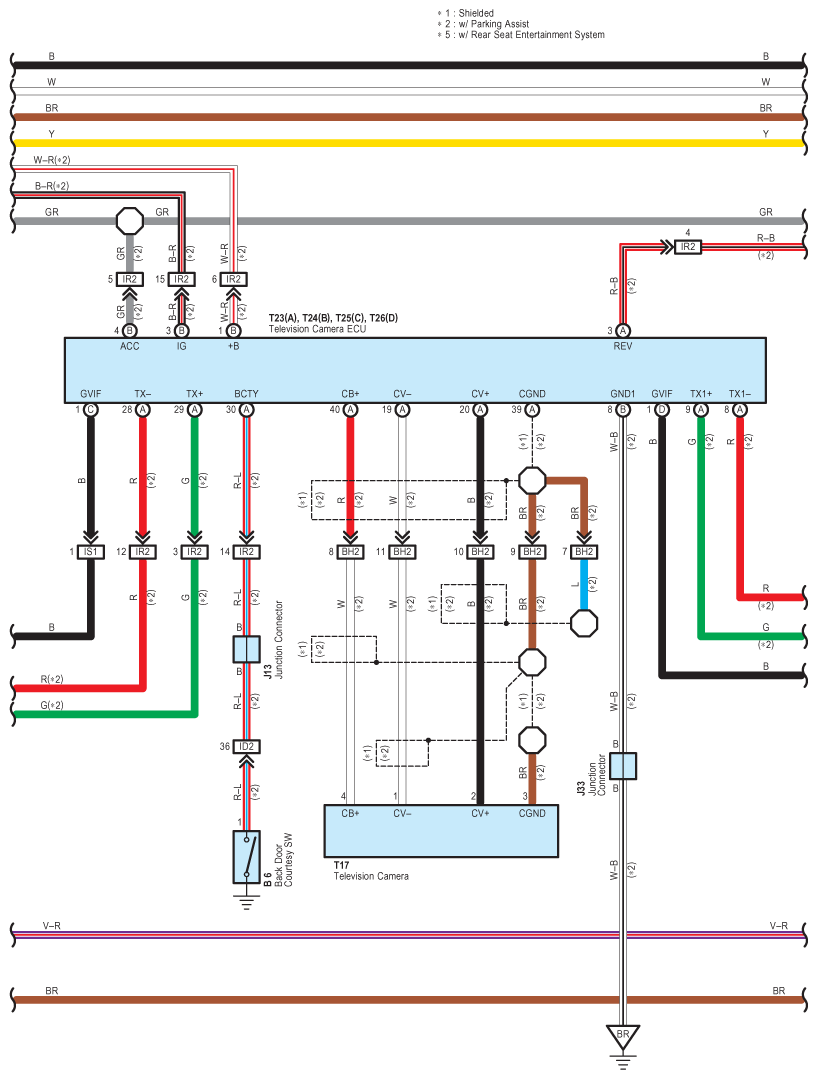

Fig 6: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (6 Of 6)
