Multiplex Communication System (BEAN): Notes

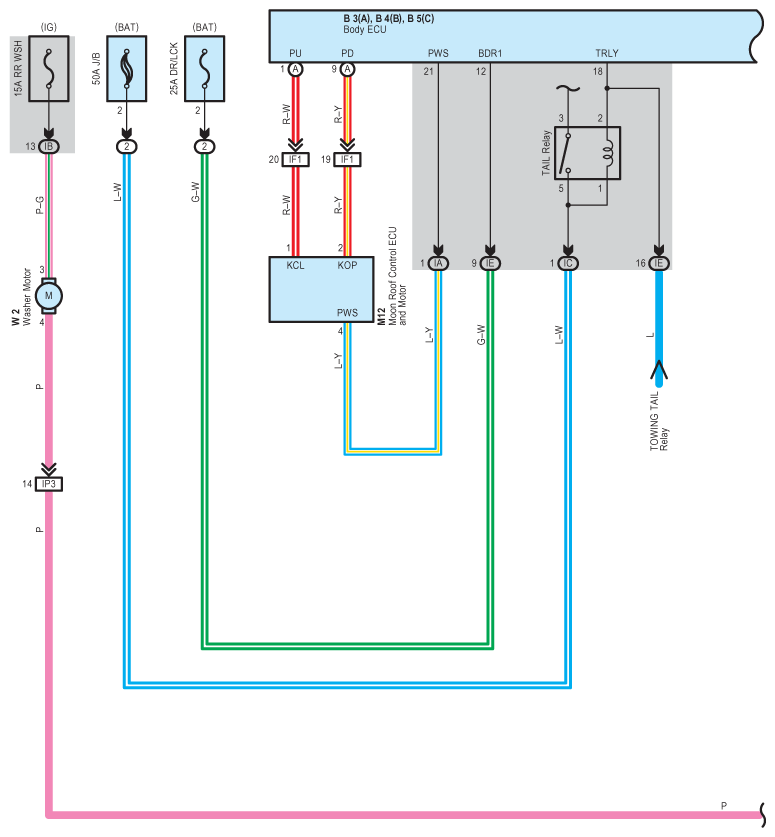

Fig 1: Multiplex Communication System (BEAN) - Circuit Diagram (1 Of 21)

G07619790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

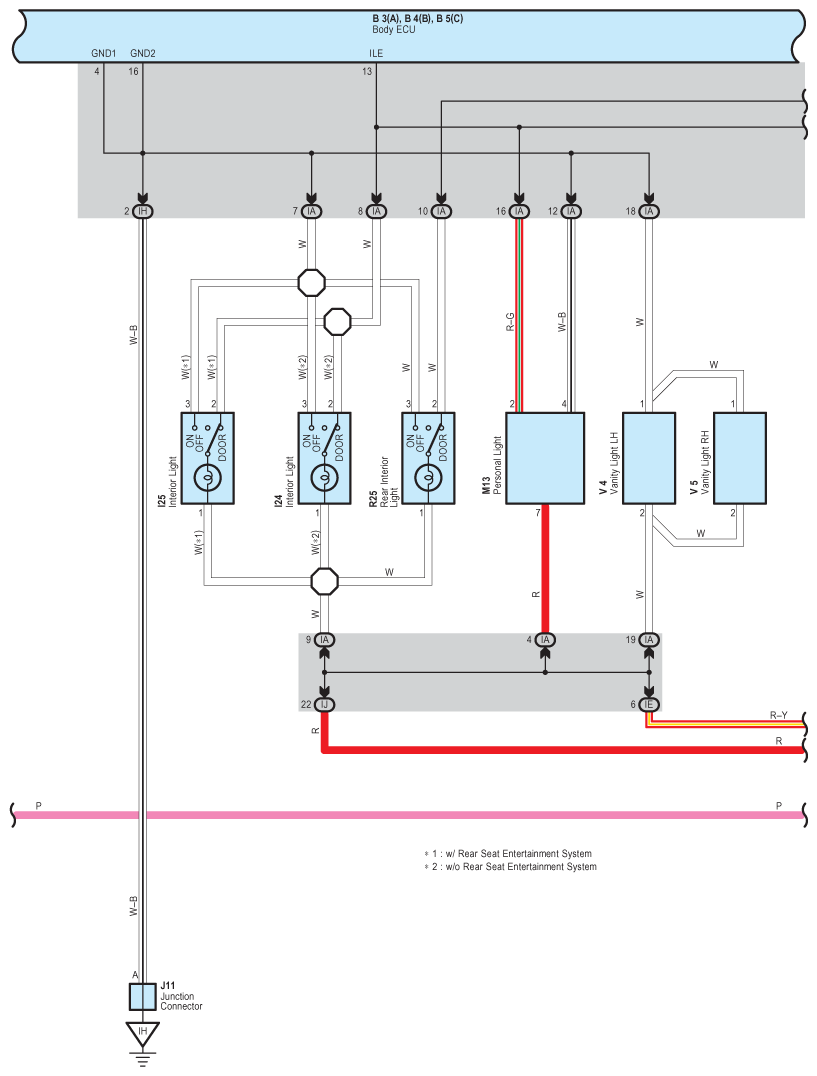

Fig 2: Multiplex Communication System (BEAN) - Circuit Diagram (2 Of 21)

G07619791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

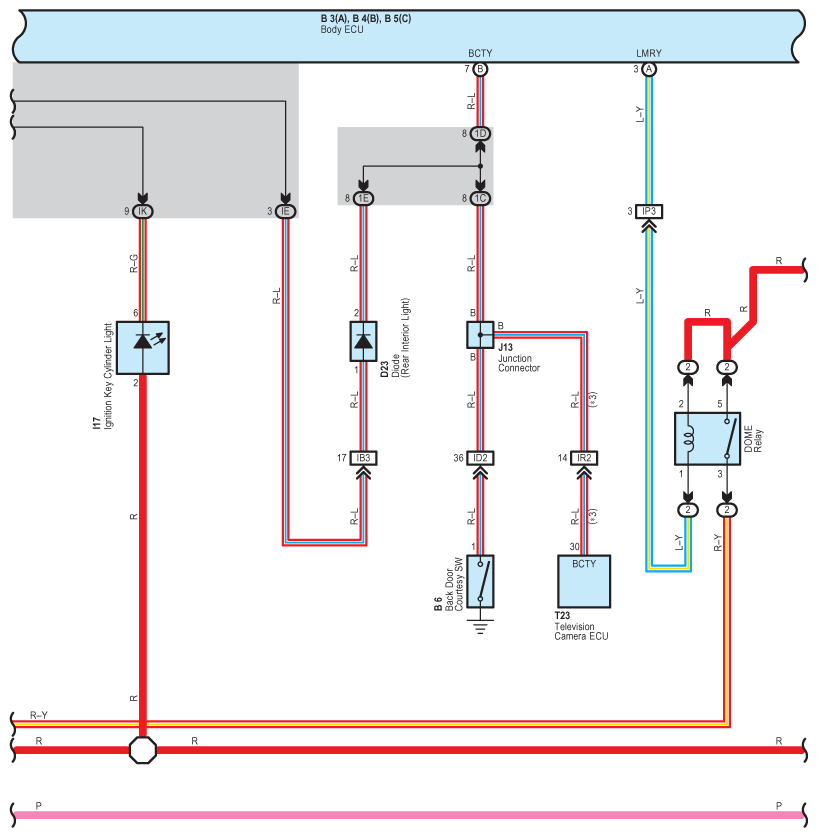

Fig 3: Multiplex Communication System (BEAN) - Circuit Diagram (3 Of 21)

G07619792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

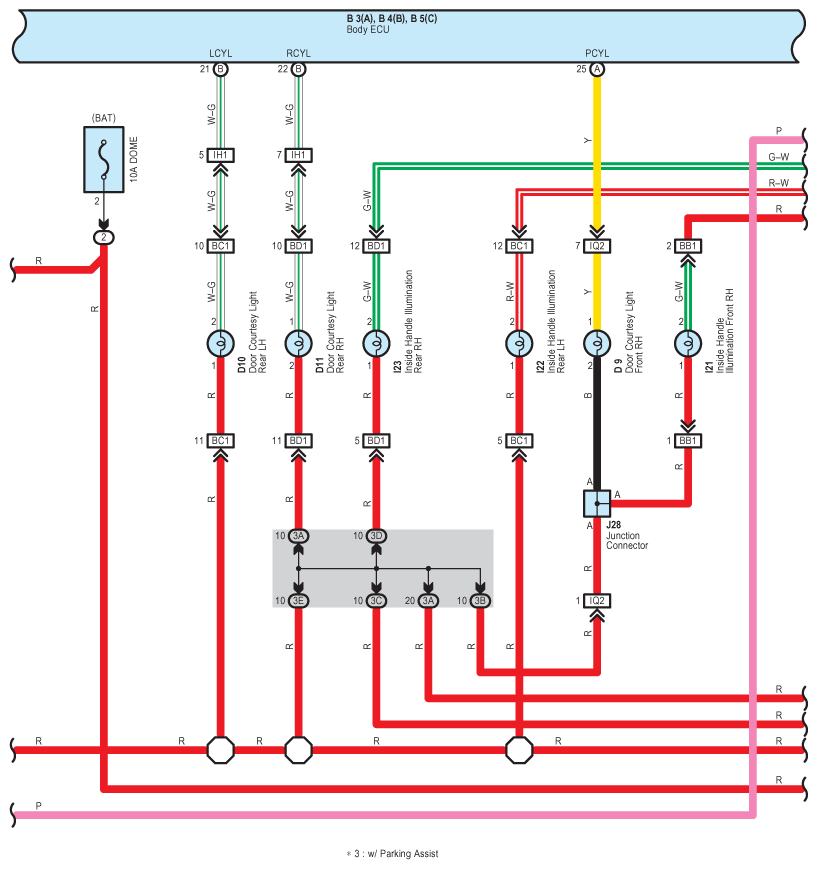

Fig 4: Multiplex Communication System (BEAN) - Circuit Diagram (4 Of 21)

G07619793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

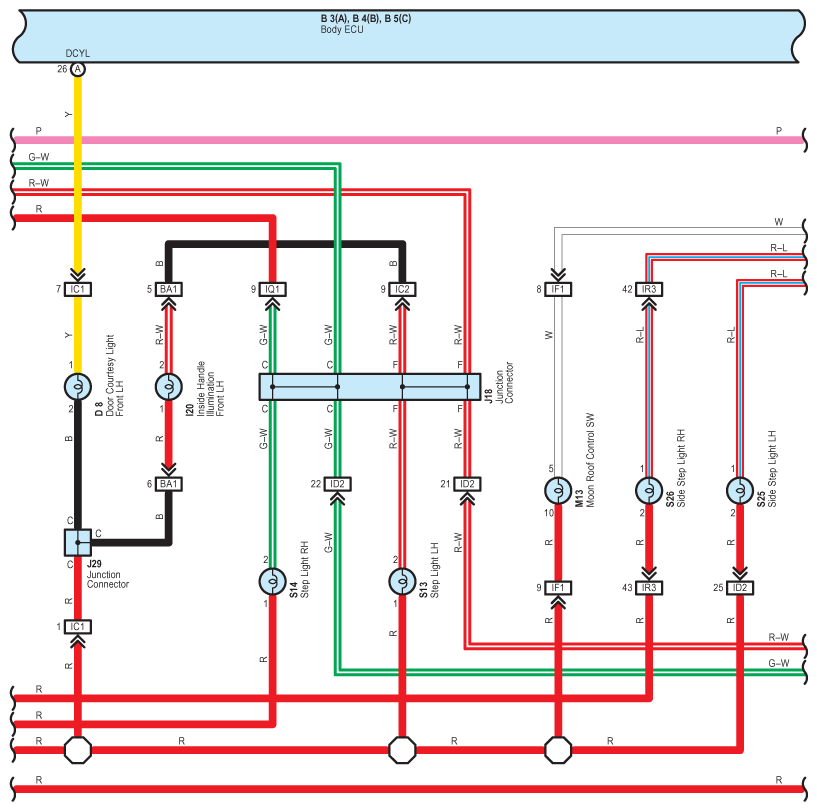

Fig 5: Multiplex Communication System (BEAN) - Circuit Diagram (5 Of 21)

G07619794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

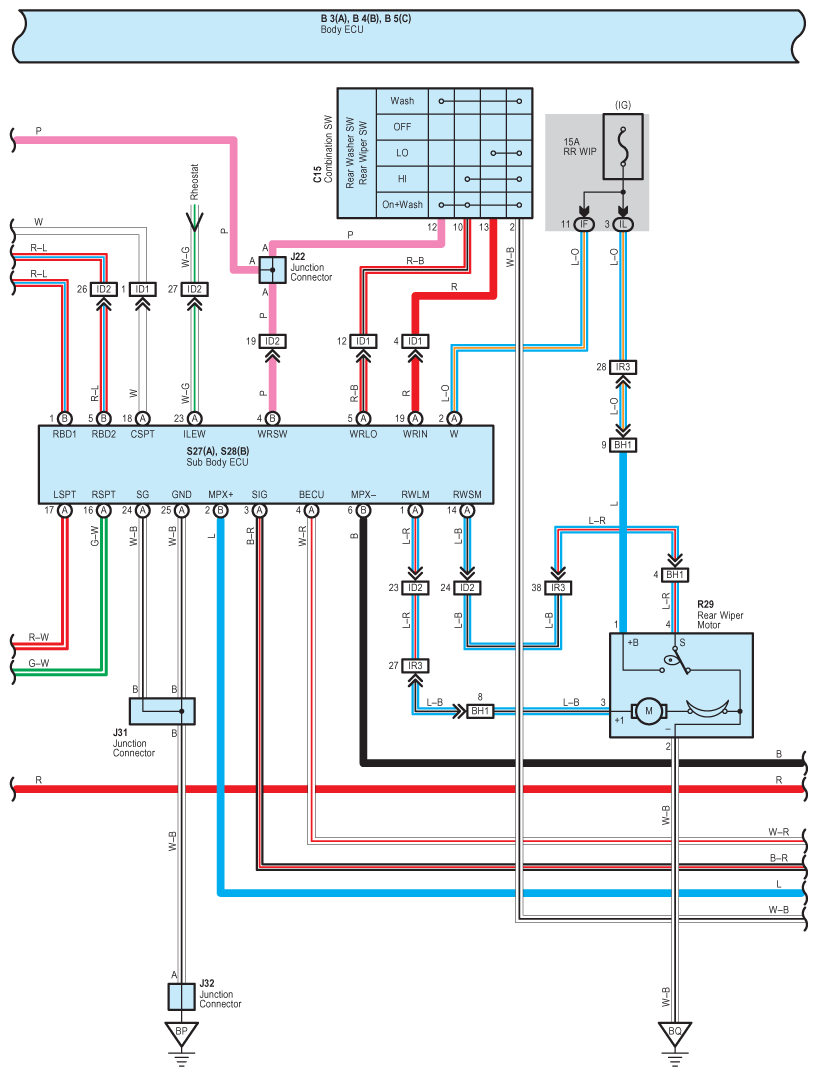

Fig 6: Multiplex Communication System (BEAN) - Circuit Diagram (6 Of 21)

G07619795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Multiplex Communication System (BEAN) - Circuit Diagram (7 Of 21)

G07619796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

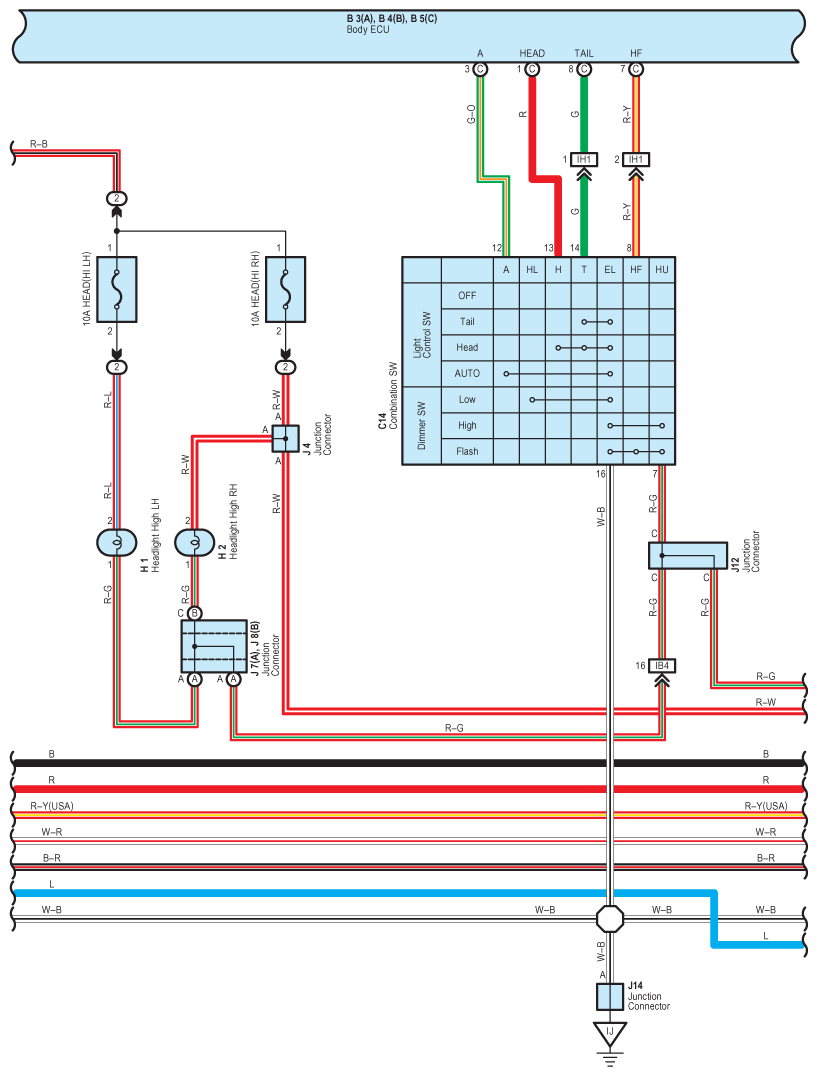

Fig 8: Multiplex Communication System (BEAN) - Circuit Diagram (8 Of 21)

G07619797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

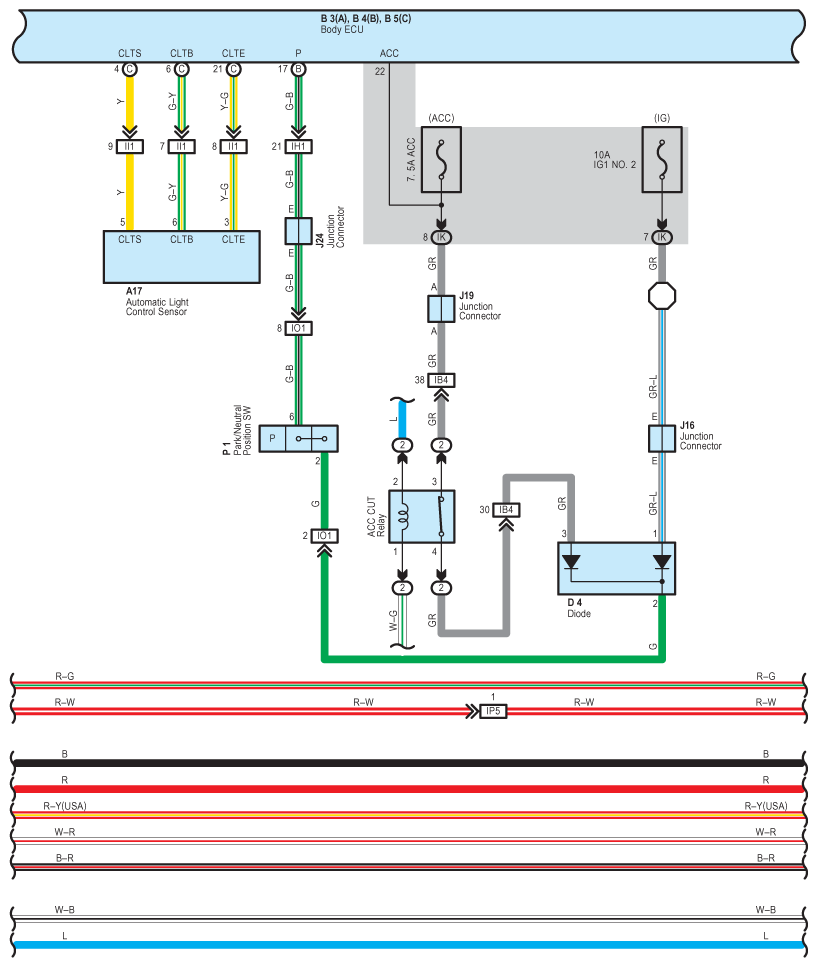

Fig 9: Multiplex Communication System (BEAN) - Circuit Diagram (9 Of 21)

G07619798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

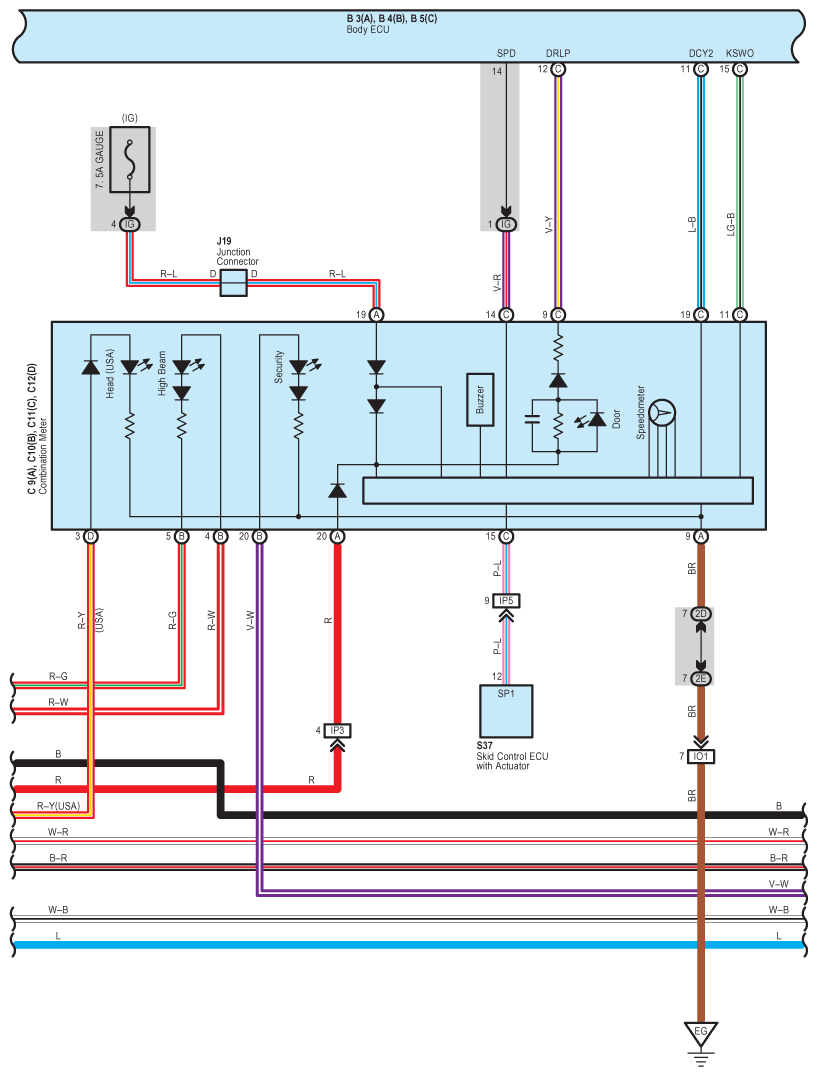

Fig 10: Multiplex Communication System (BEAN) - Circuit Diagram (10 Of 21)

G07619799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

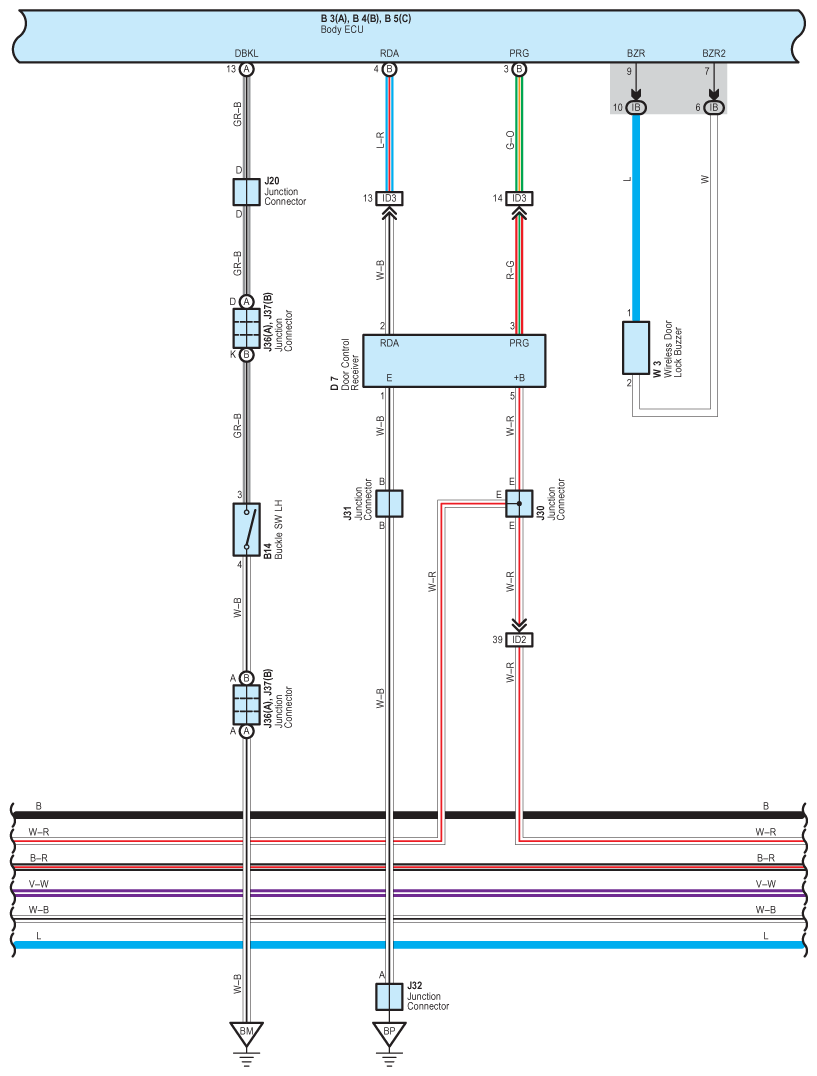

Fig 11: Multiplex Communication System (BEAN) - Circuit Diagram (11 Of 21)

G07619800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

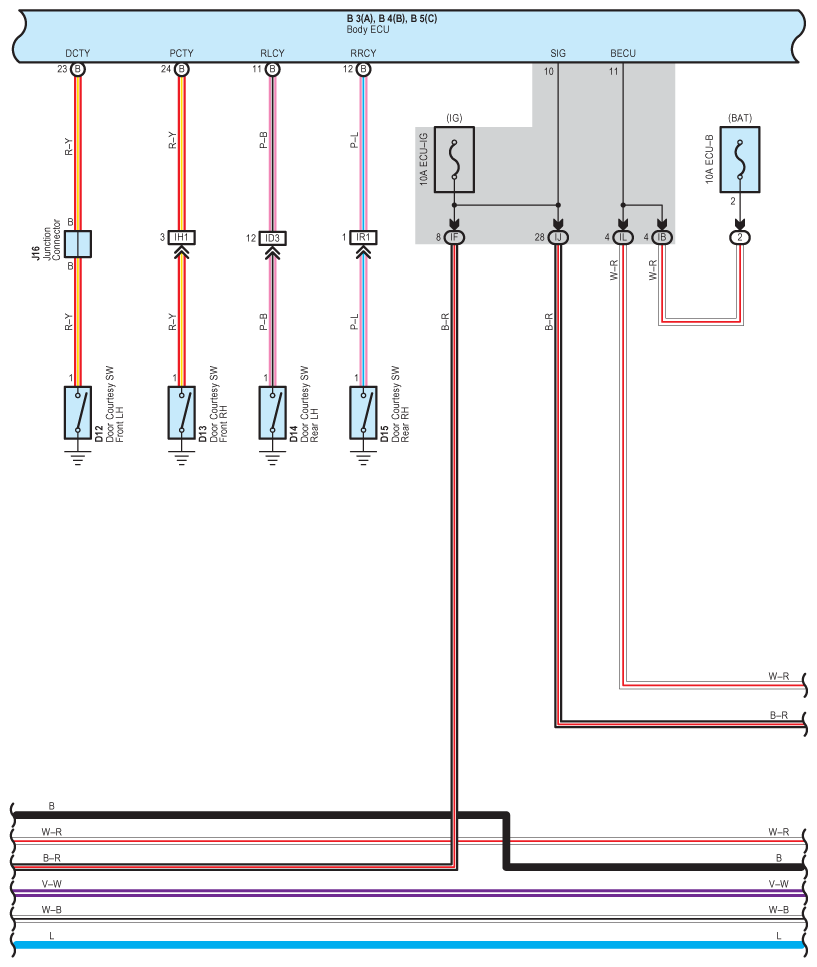

Fig 12: Multiplex Communication System (BEAN) - Circuit Diagram (12 Of 21)

G07619801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

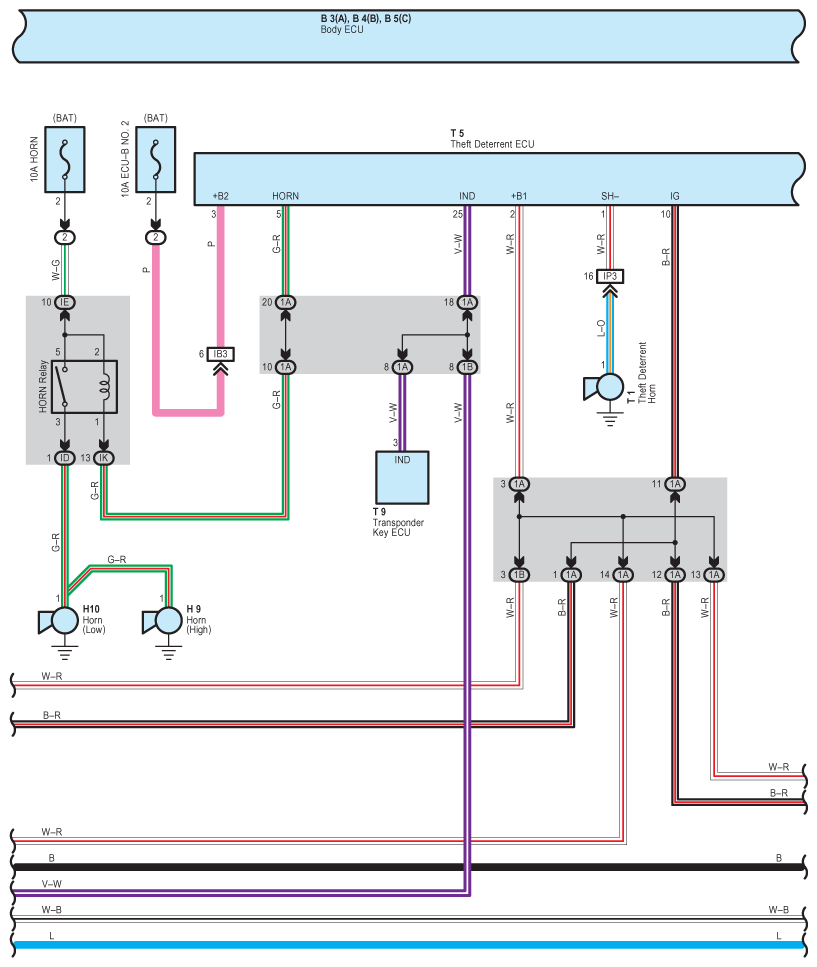

Fig 13: Multiplex Communication System (BEAN) - Circuit Diagram (13 Of 21)

G07619802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

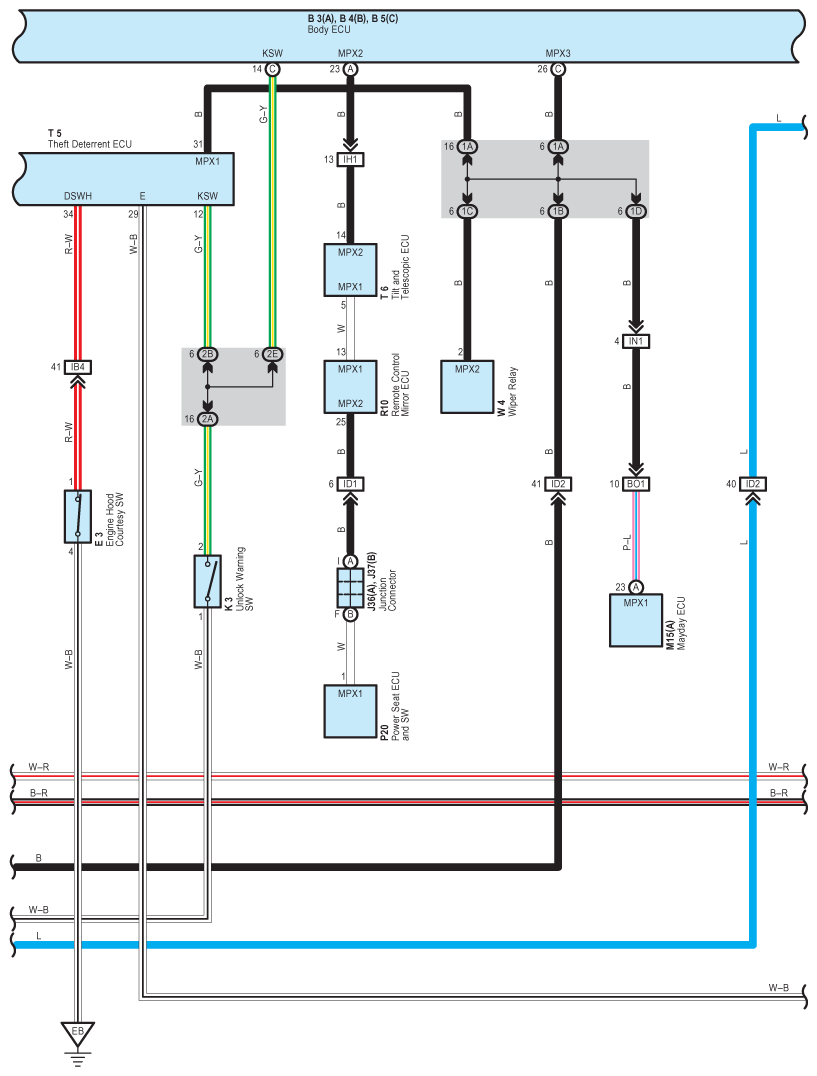

Fig 14: Multiplex Communication System (BEAN) - Circuit Diagram (14 Of 21)

G07619803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

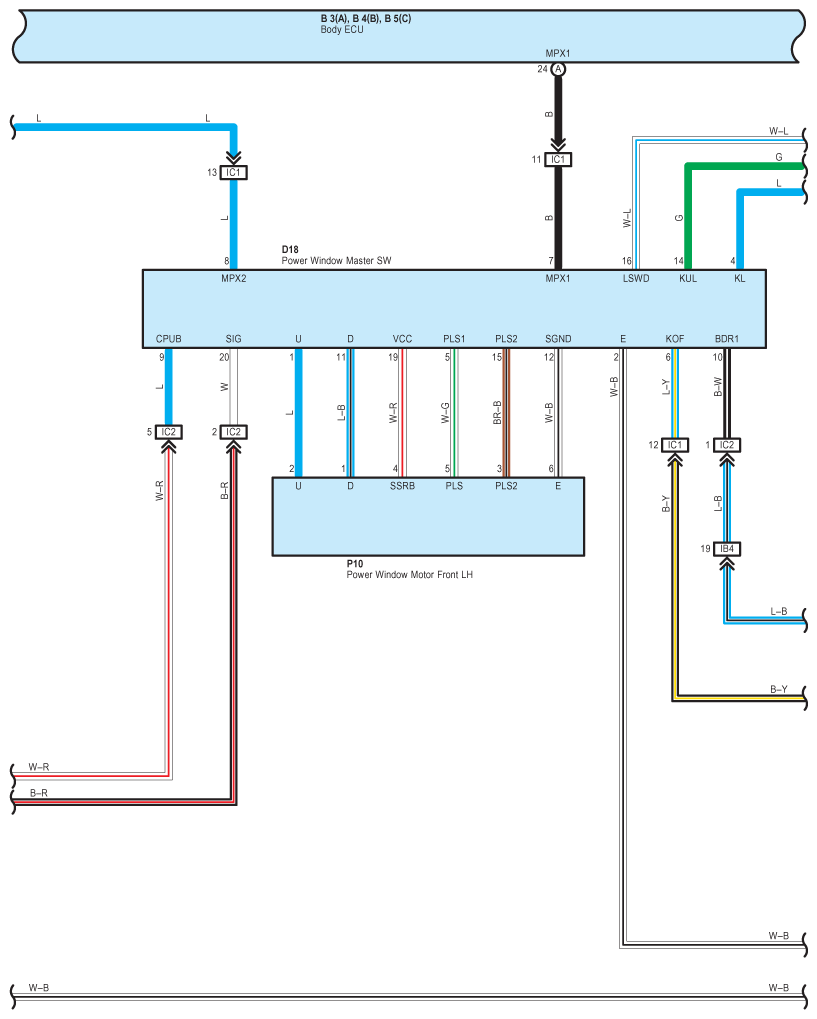

Fig 15: Multiplex Communication System (BEAN) - Circuit Diagram (15 Of 21)

G07619804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

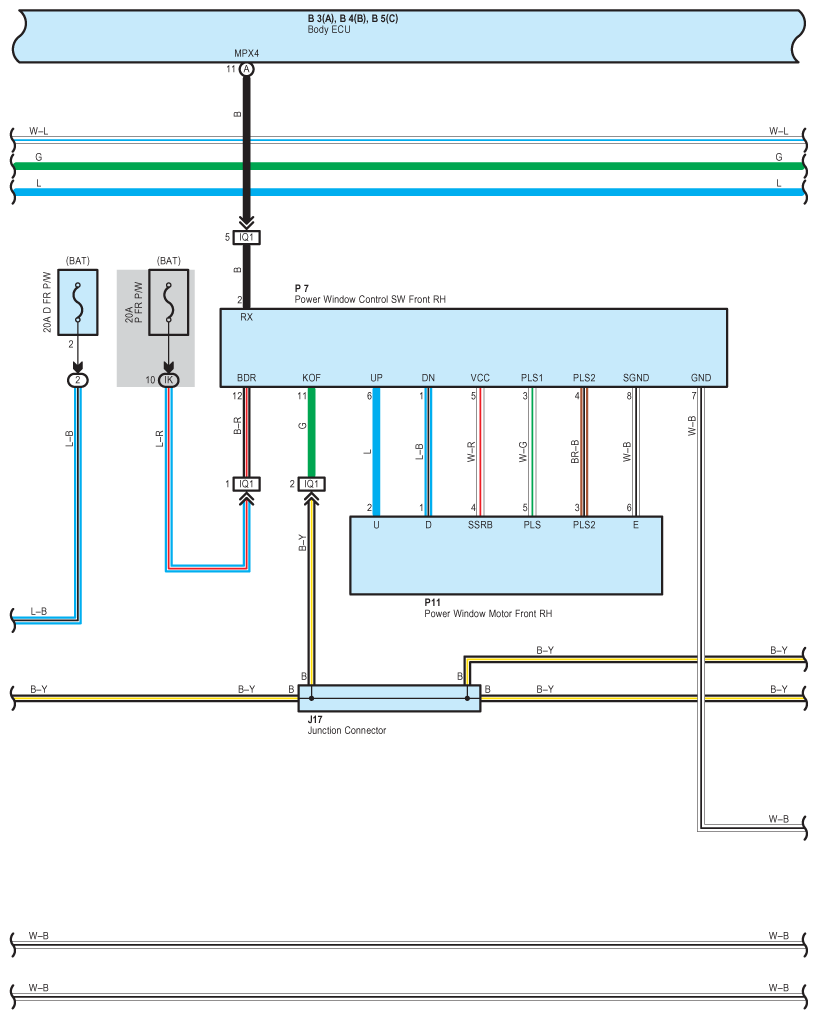

Fig 16: Multiplex Communication System (BEAN) - Circuit Diagram (16 Of 21)

G07619805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

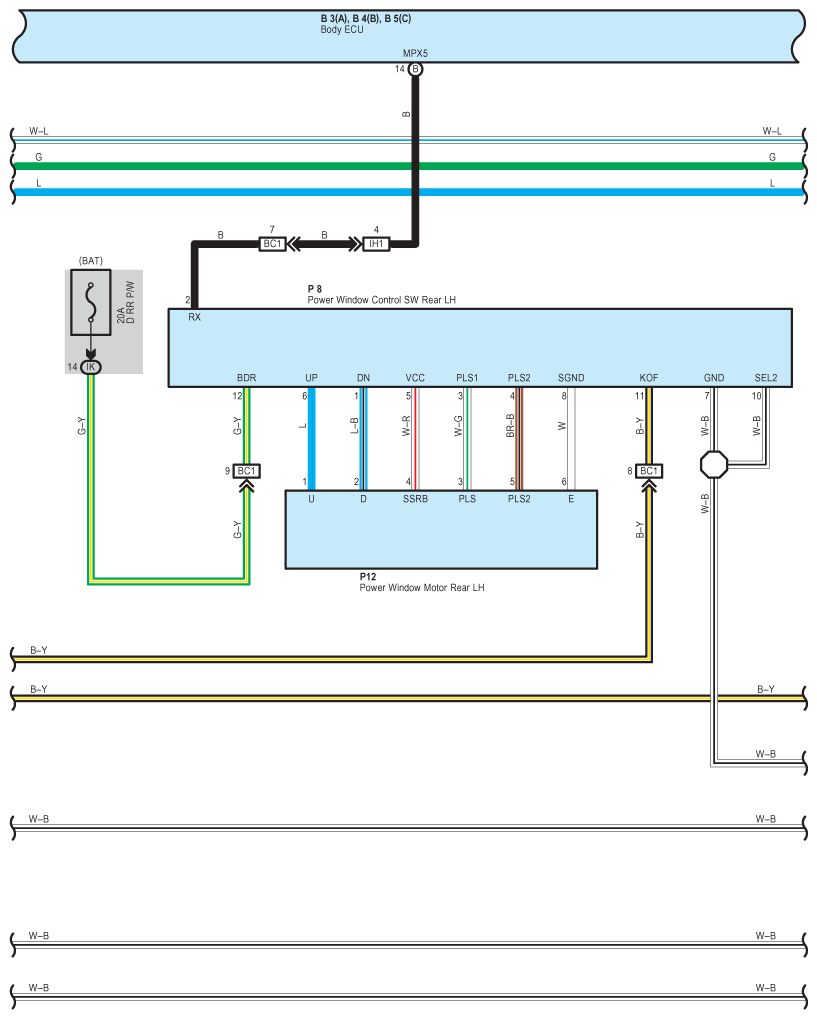

Fig 17: Multiplex Communication System (BEAN) - Circuit Diagram (17 Of 21)

G07619806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

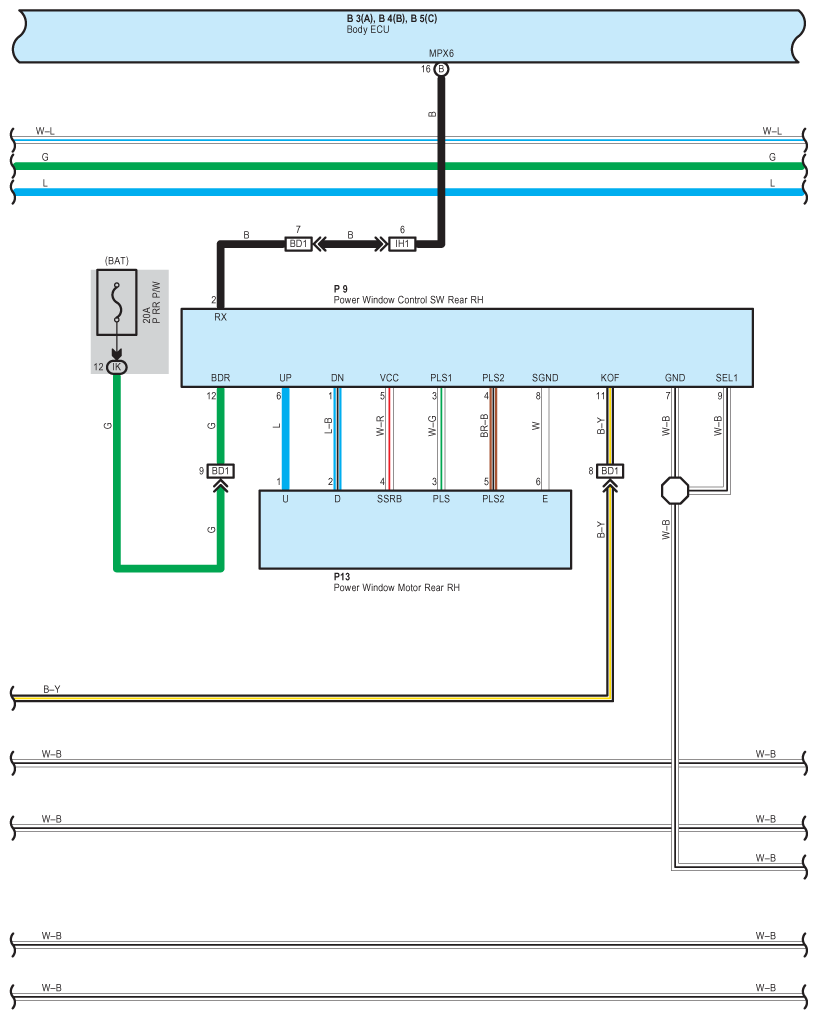

Fig 18: Multiplex Communication System (BEAN) - Circuit Diagram (18 Of 21)

G07619807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

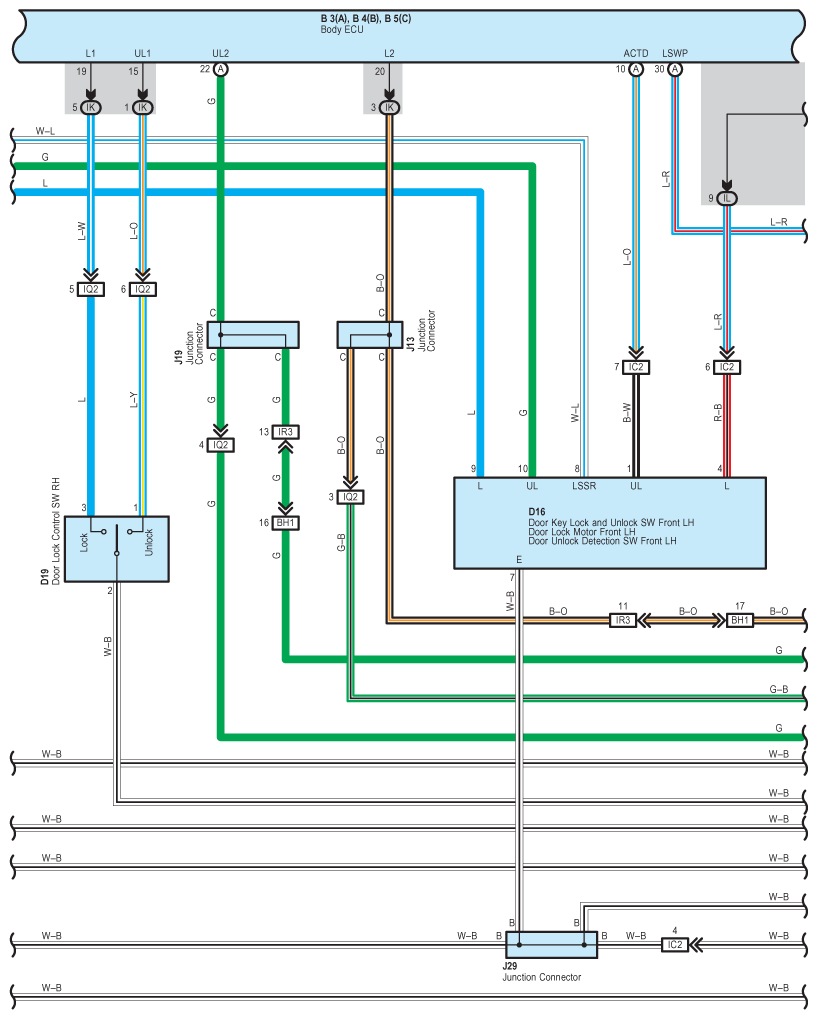

Fig 19: Multiplex Communication System (BEAN) - Circuit Diagram (19 Of 21)

G07619808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

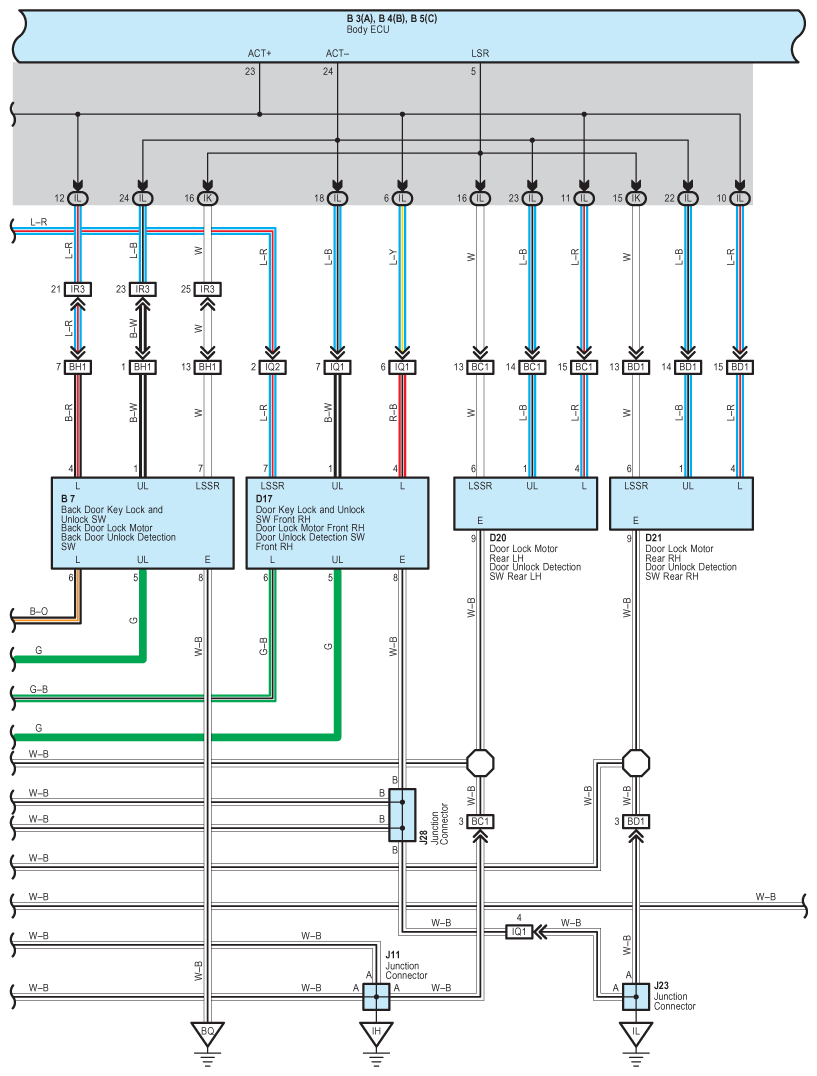

Fig 20: Multiplex Communication System (BEAN) - Circuit Diagram (20 Of 21)

G07619809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

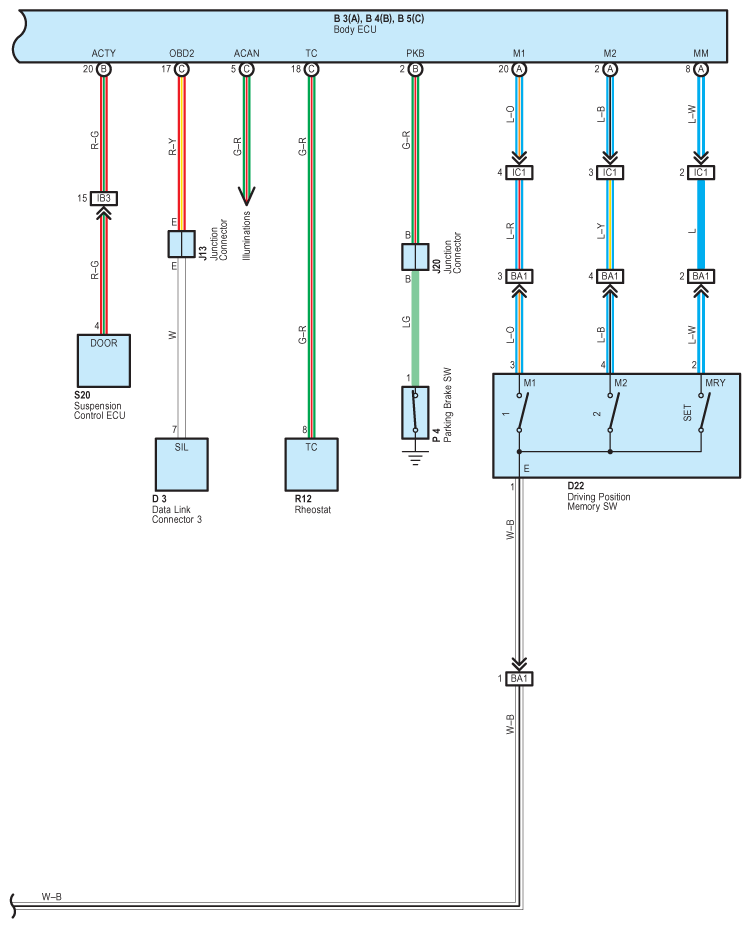

Fig 21: Multiplex Communication System (BEAN) - Circuit Diagram (21 Of 21)

G07619810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
