Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| BM | Base of left "B" pillar. See Figure. |
| BN | Base of right "B" pillar. See Figure. |
| BO | Left rear wheelwell, near fuel door. See Figure. |
| BP | Left rear of vehicle, below taillight. See Figure. |
| BQ | Center rear of hatch. See Figure. |
| BR | Right rear of vehicle, below taillight. See Figure. |
| EA | Right front inner fender. See Figure. |
| EB | Left front inner fender. See Figure. |
| EC | Right rear of engine compartment. See Figure. |
| ED | Top right rear of engine. See Figure. |
| EE | Rear of right cylinder head. See Figure. |
| EF | Rear of left cylinder head. See Figure. |
| EG | Rear of left cylinder head. See Figure. |

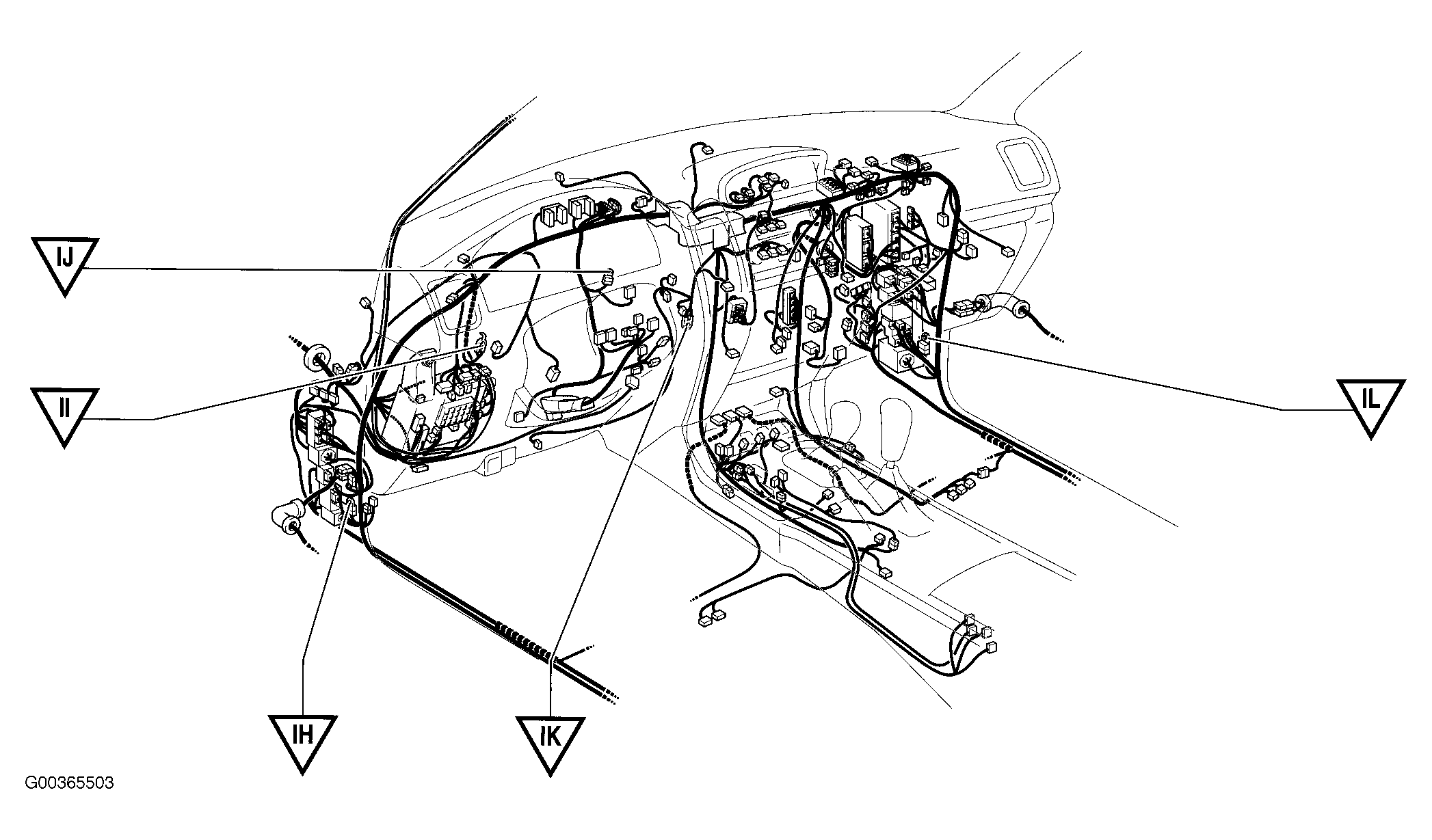

| IH | Behind left end of dash. See Figure. |
| II | Behind left center of dash. See Figure. |
| IJ | Behind left center of dash. See Figure. |
| IK | Behind center of dash. See Figure. |
| IL | Behind right side of dash. See Figure. |
