Crankshaft Position Sensor: Removal: Removal

  1. REMOVE ENGINE UNDER COVER ASSEMBLY REAR
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crank position sensor connector.

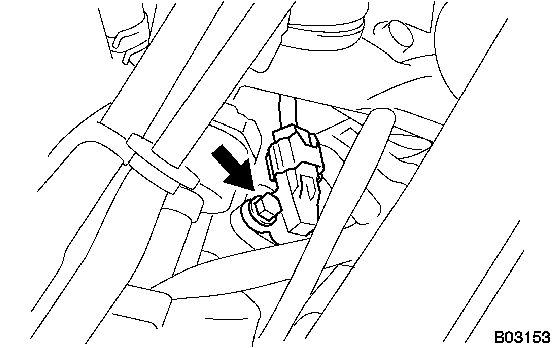

      Fig 1: Identifying Crankshaft Position Sensor Bolt
      GTY120755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor.
