CAN Communication System

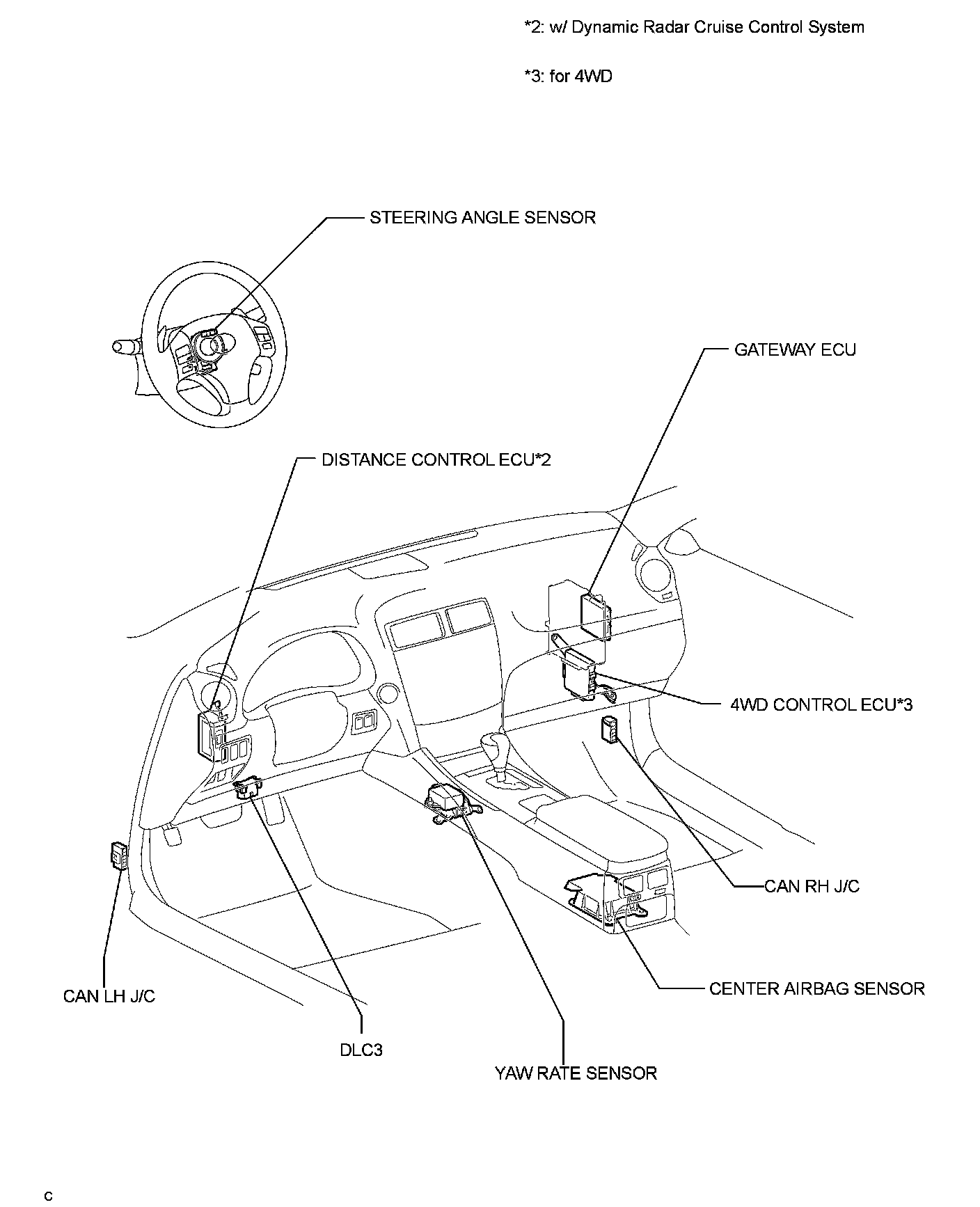

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
