Multiplex Communication System








MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: PARTS LOCATION

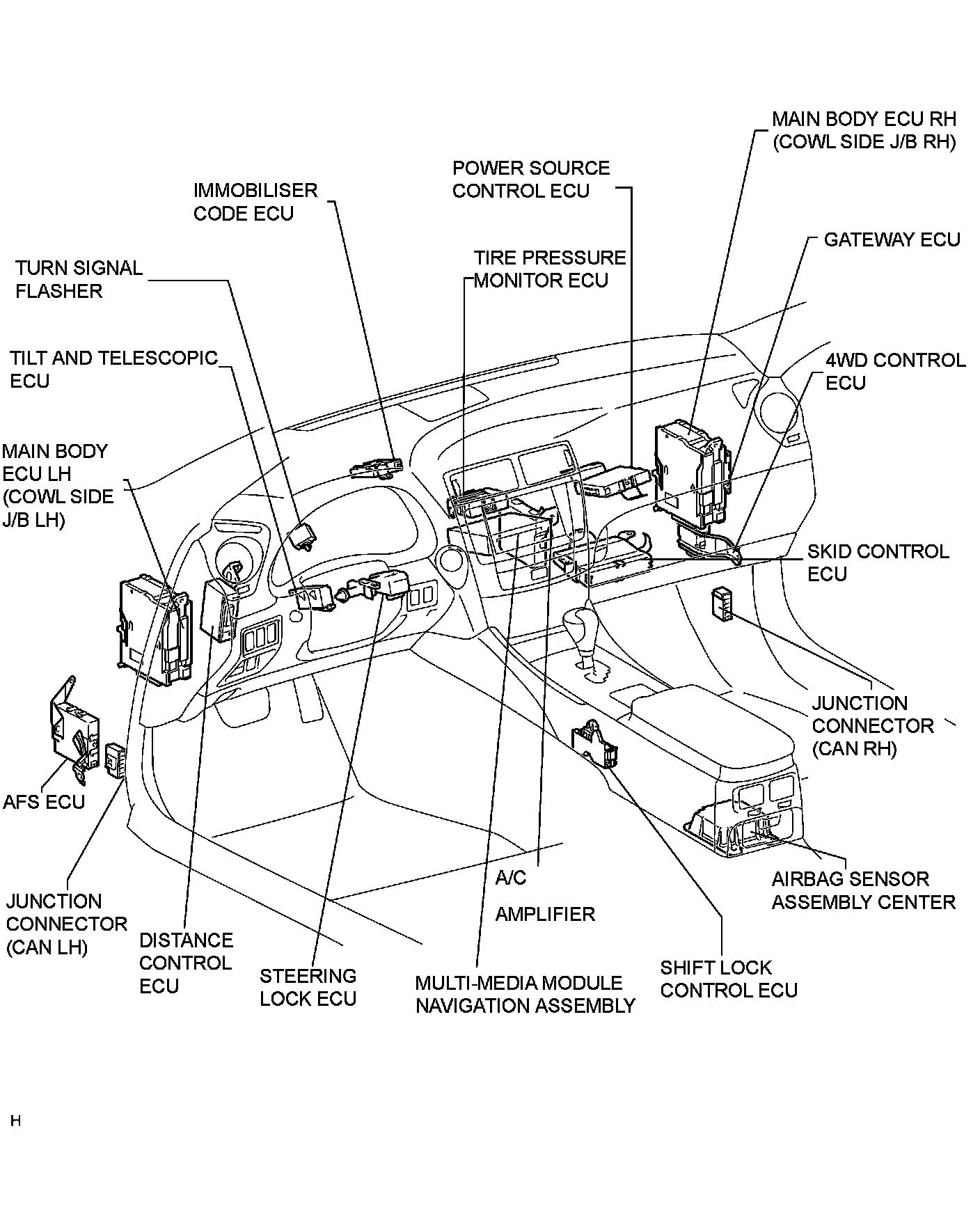

PARTS LOCATION

ILLUSTRATION
