CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: INSTALLATION

INSTALLATION

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY





(a) Tighten the 3 bolts on the millimeter wave radar sensor assembly.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
HINT:

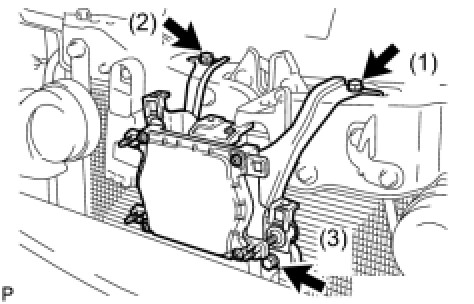

Tighten the bolts in the order indicated in the illustration.

(b) Connect the connector.
2. INSTALL FRONT BUMPER ASSEMBLY
3. INSTALL COOL AIR INTAKE DUCT SEAL
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. ADJUST MILLIMETER WAVE RADAR SENSOR Adjustments
6. ADJUST FOG LIGHT AIM Adjustments
