Installation

4GR-FSE ENGINE CONTROL SYSTEM: INTEGRATION RELAY: INSTALLATION

INSTALLATION

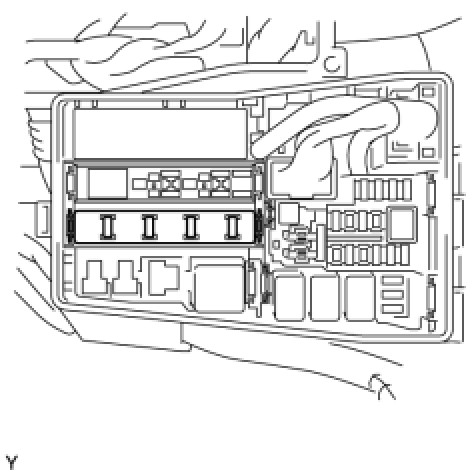

1. INSTALL INTEGRATION RELAY





(a) Connect the 3 connectors.
(b) Attach the integration relay to the engine room No. 2 relay block.
(c) Install the No. 2 relay block cover.
2. INSTALL ENGINE ROOM SIDE COVER LH Installation
3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
