Smart Access System with Push-Button Start: Notes

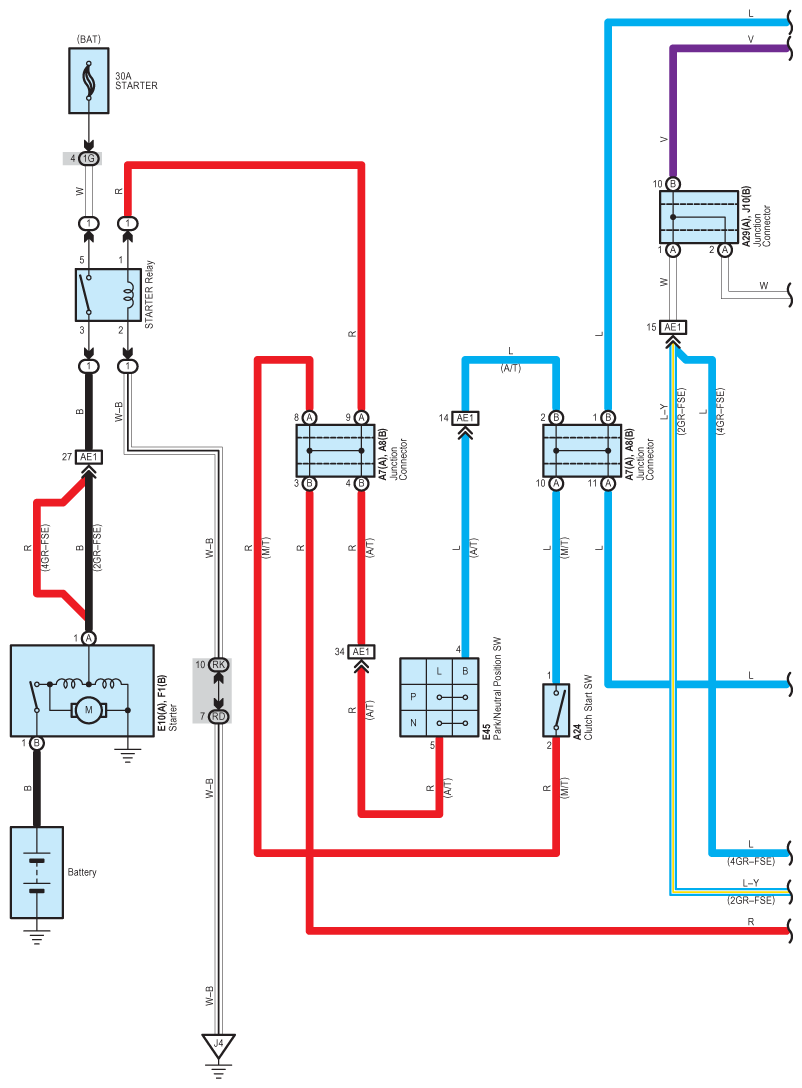

Fig 1: Smart Access System With Push-Button Start - Circuit Diagram (1 Of 20)

G07588746

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

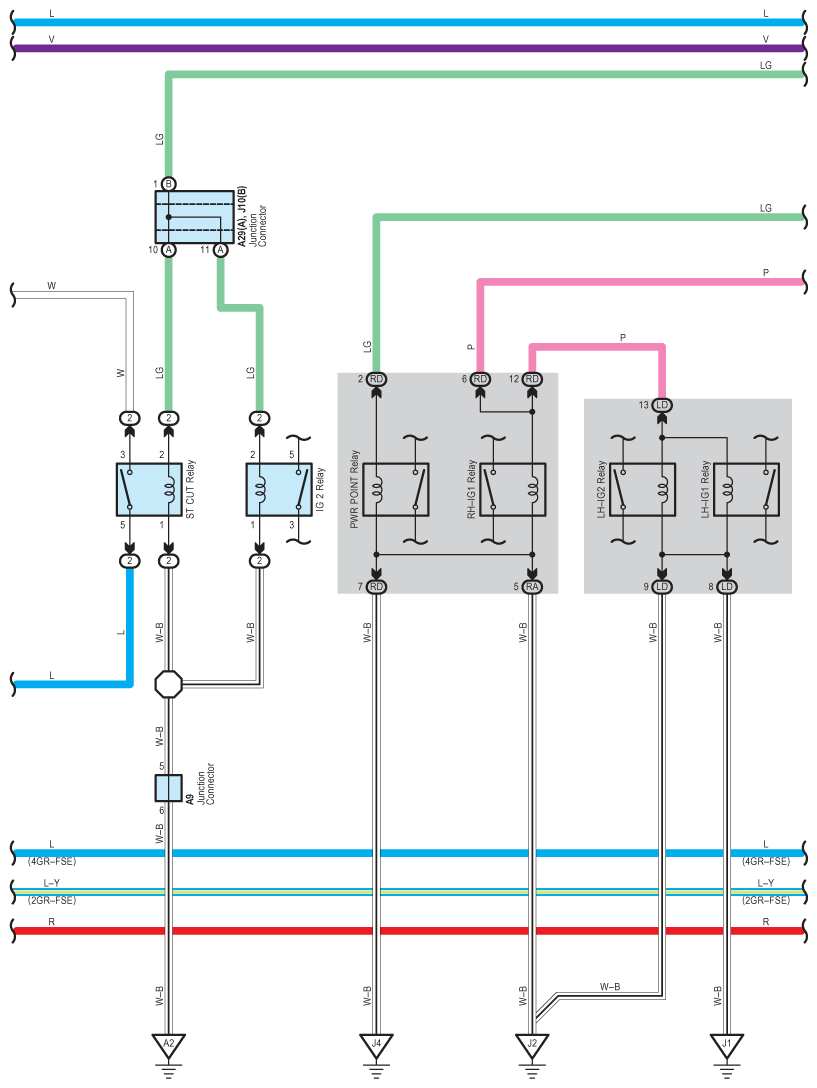

Fig 2: Smart Access System With Push-Button Start - Circuit Diagram (2 Of 20)

G07588747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

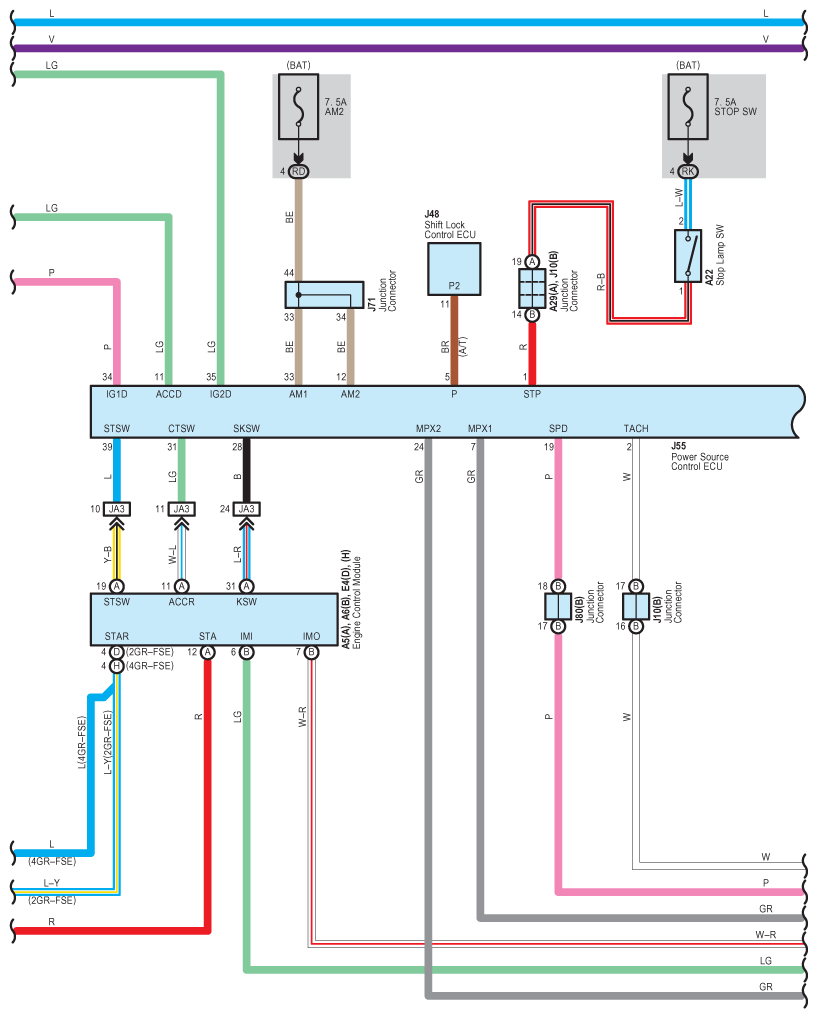

Fig 3: Smart Access System With Push-Button Start - Circuit Diagram (3 Of 20)

G07588748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

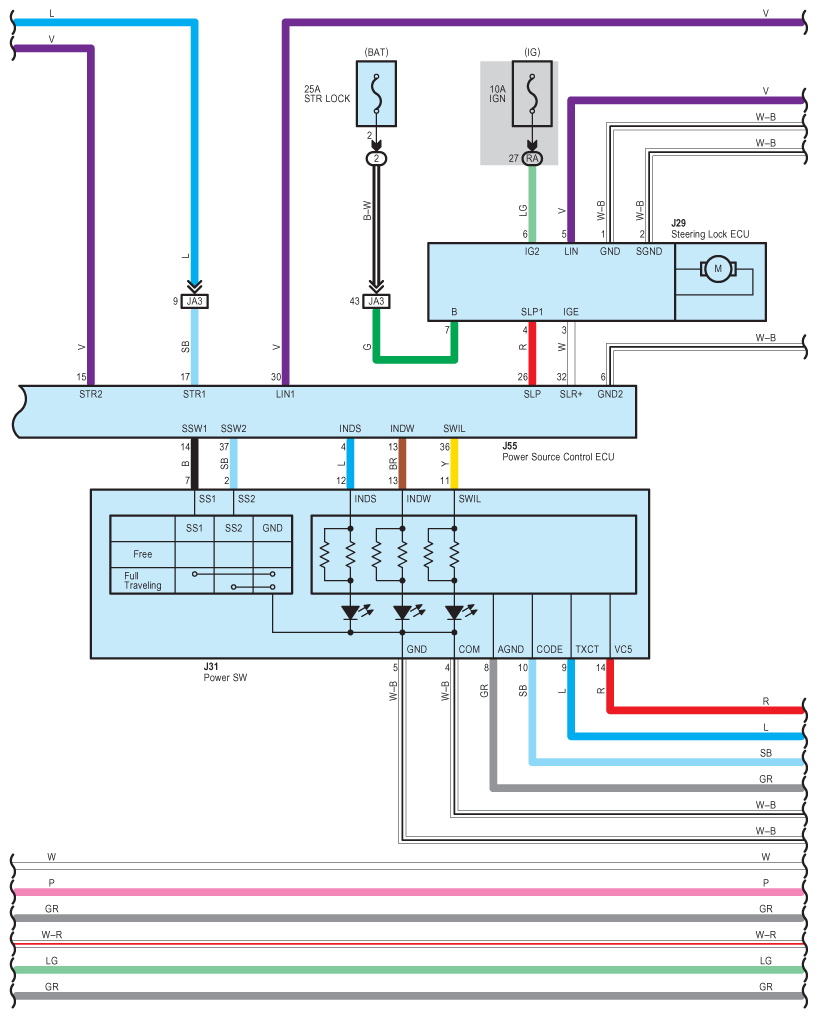

Fig 4: Smart Access System With Push-Button Start - Circuit Diagram (4 Of 20)

G07588749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

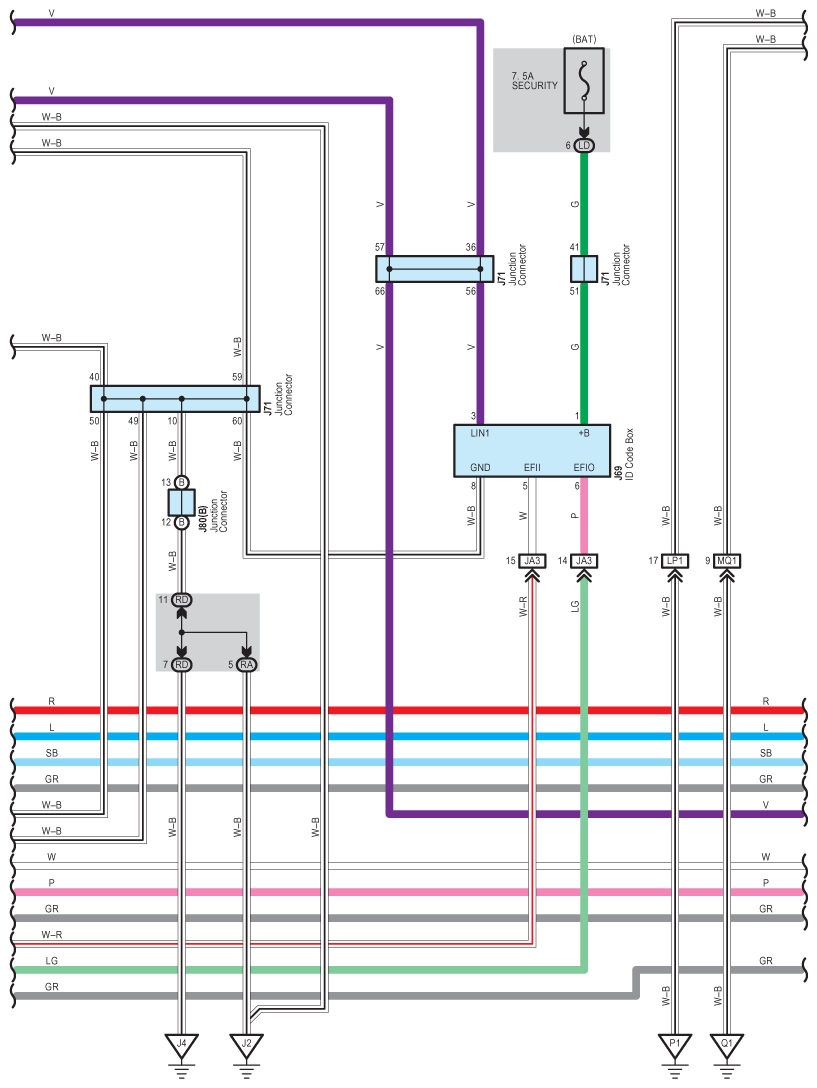

Fig 5: Smart Access System With Push-Button Start - Circuit Diagram (5 Of 20)

G07588750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

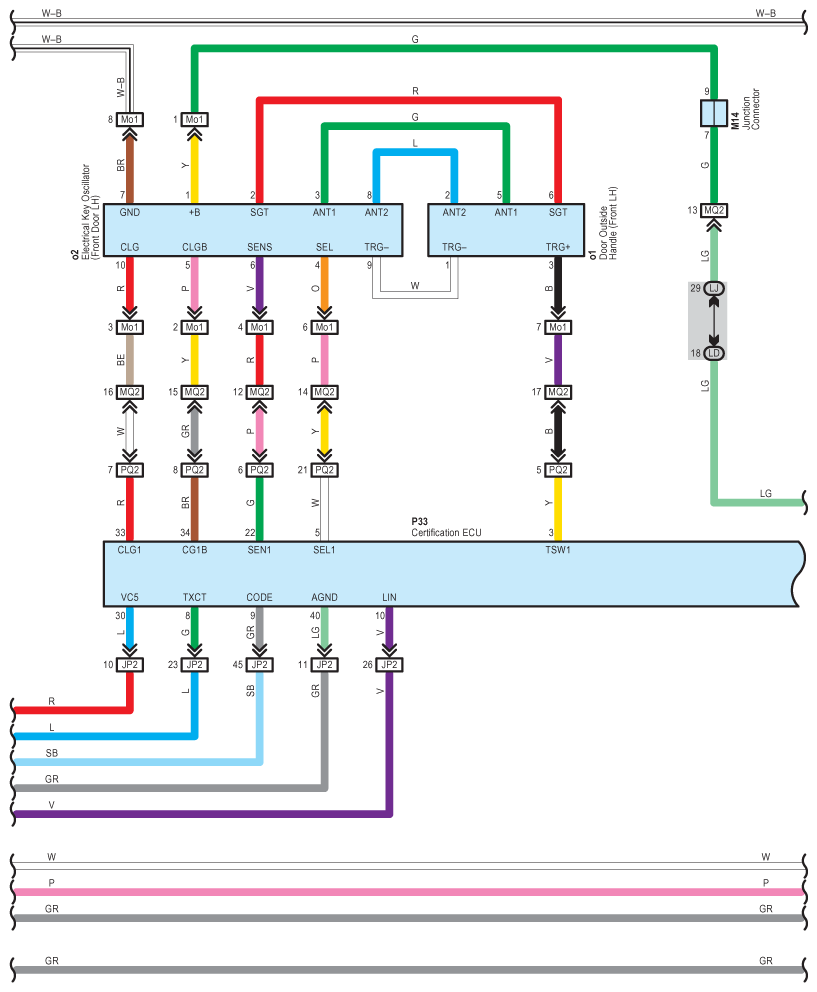

Fig 6: Smart Access System With Push-Button Start - Circuit Diagram (6 Of 20)

G07588751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

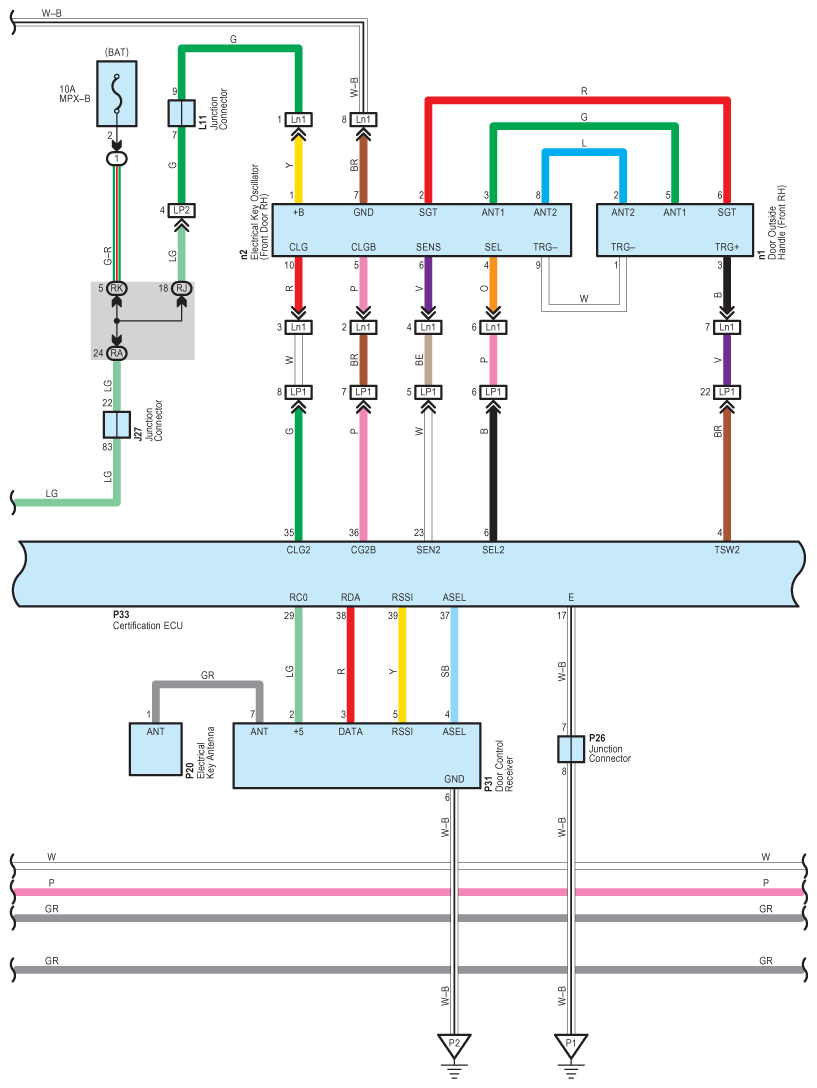

Fig 7: Smart Access System With Push-Button Start - Circuit Diagram (7 Of 20)

G07588752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

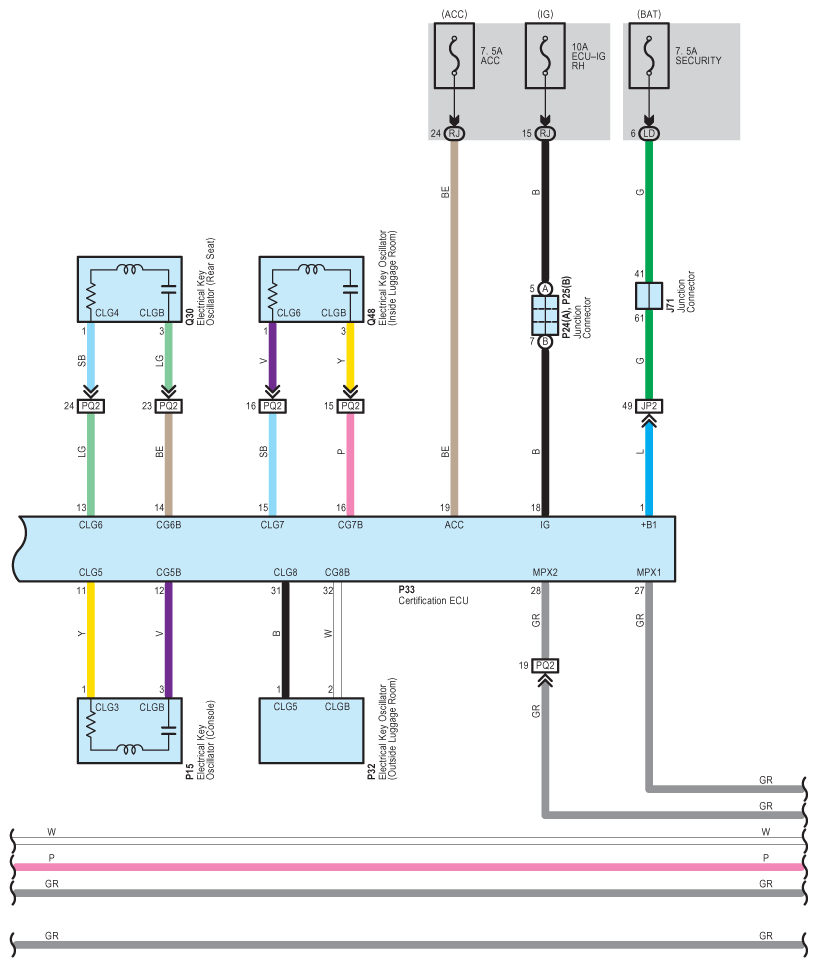

Fig 8: Smart Access System With Push-Button Start - Circuit Diagram (8 Of 20)

G07588753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

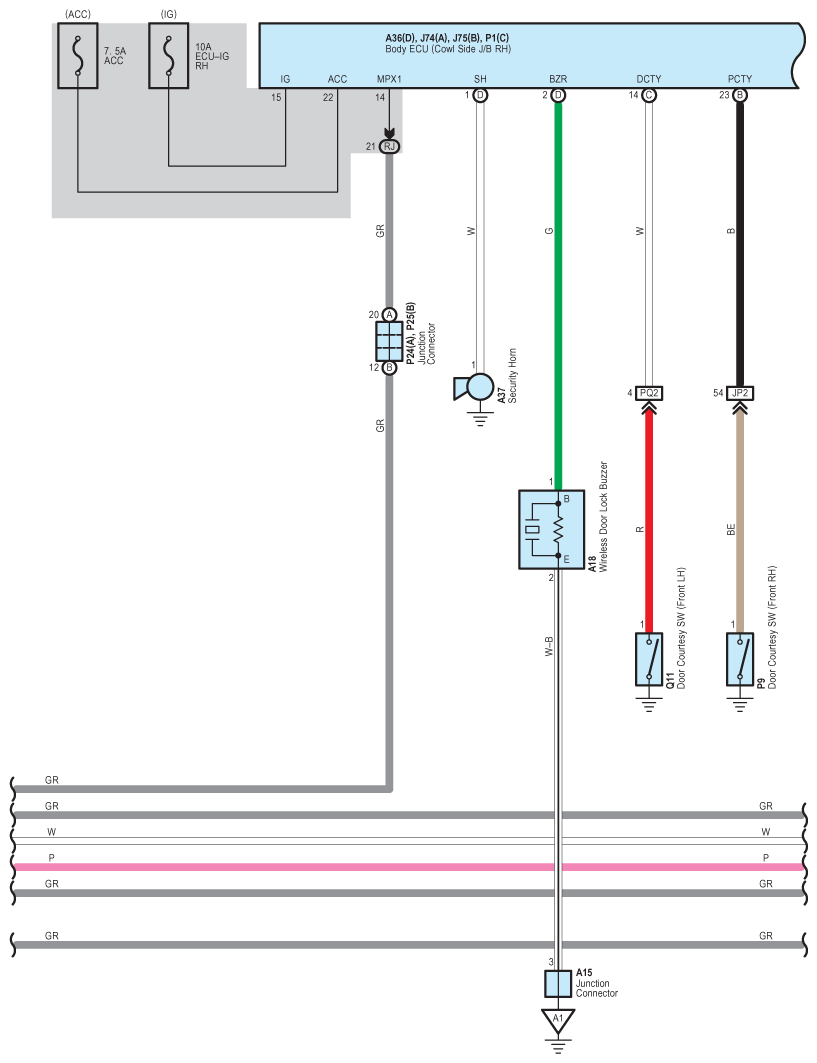

Fig 9: Smart Access System With Push-Button Start - Circuit Diagram (9 Of 20)

G07588754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

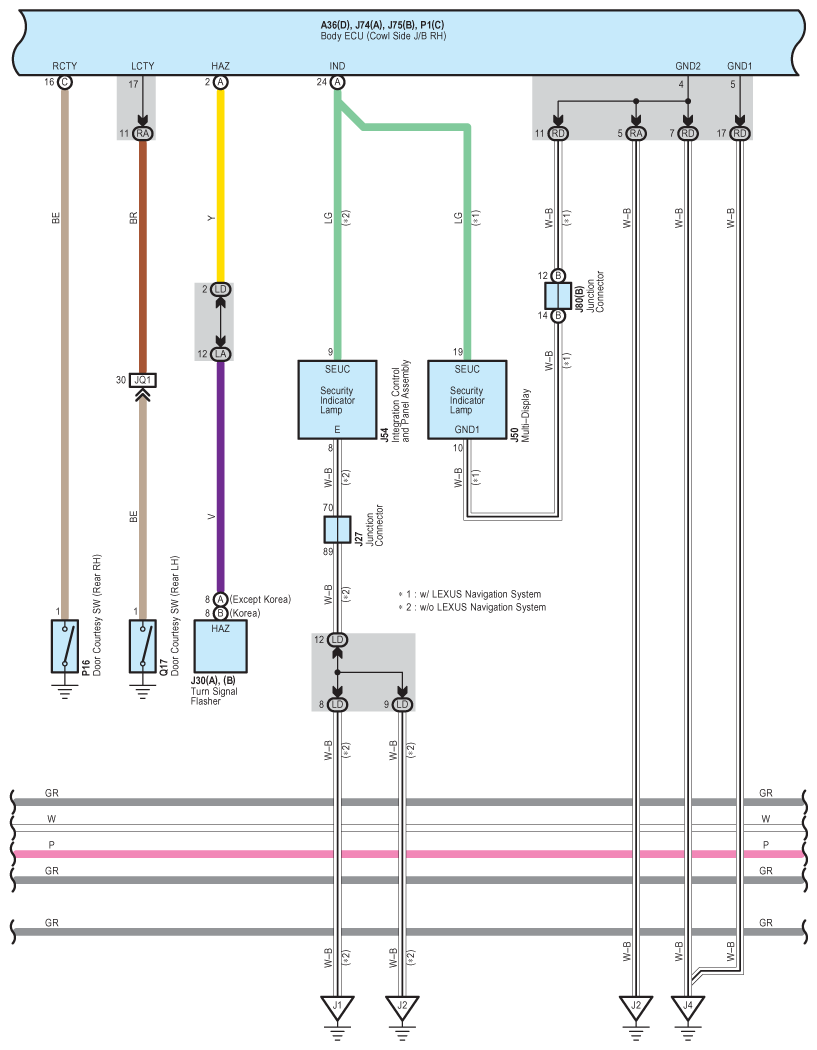

Fig 10: Smart Access System With Push-Button Start - Circuit Diagram (10 Of 20)

G07588755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

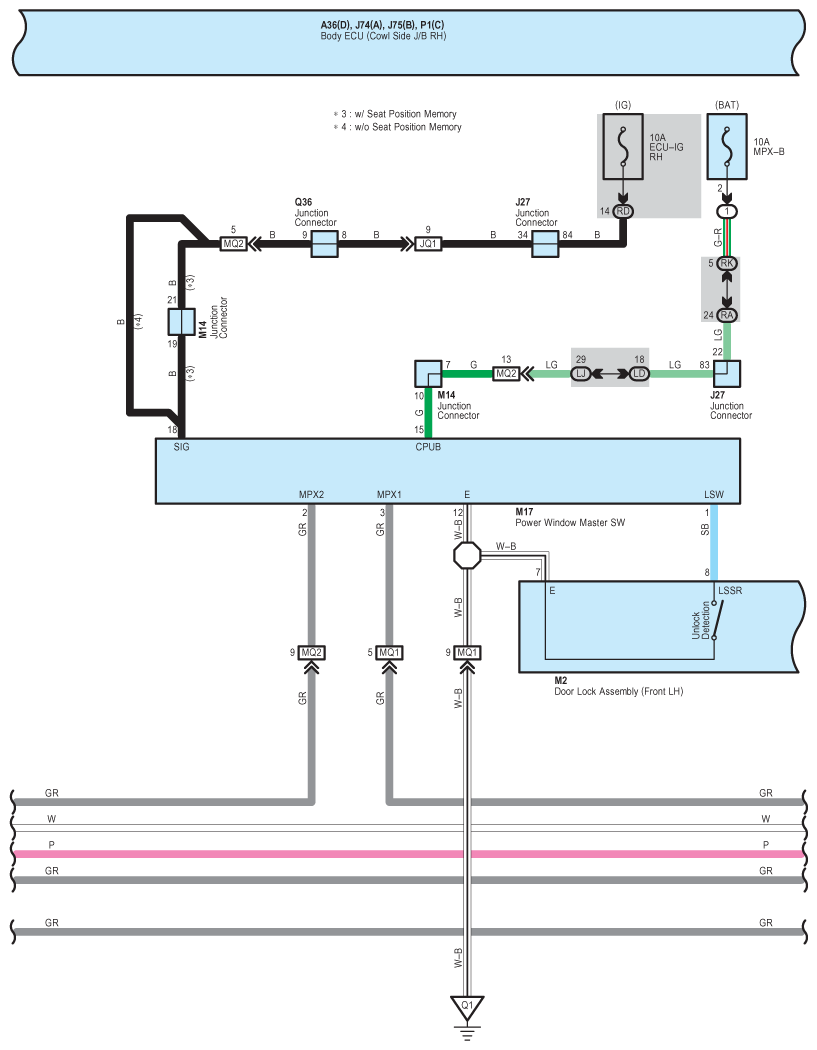

Fig 11: Smart Access System With Push-Button Start - Circuit Diagram (11 Of 20)

G07588756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

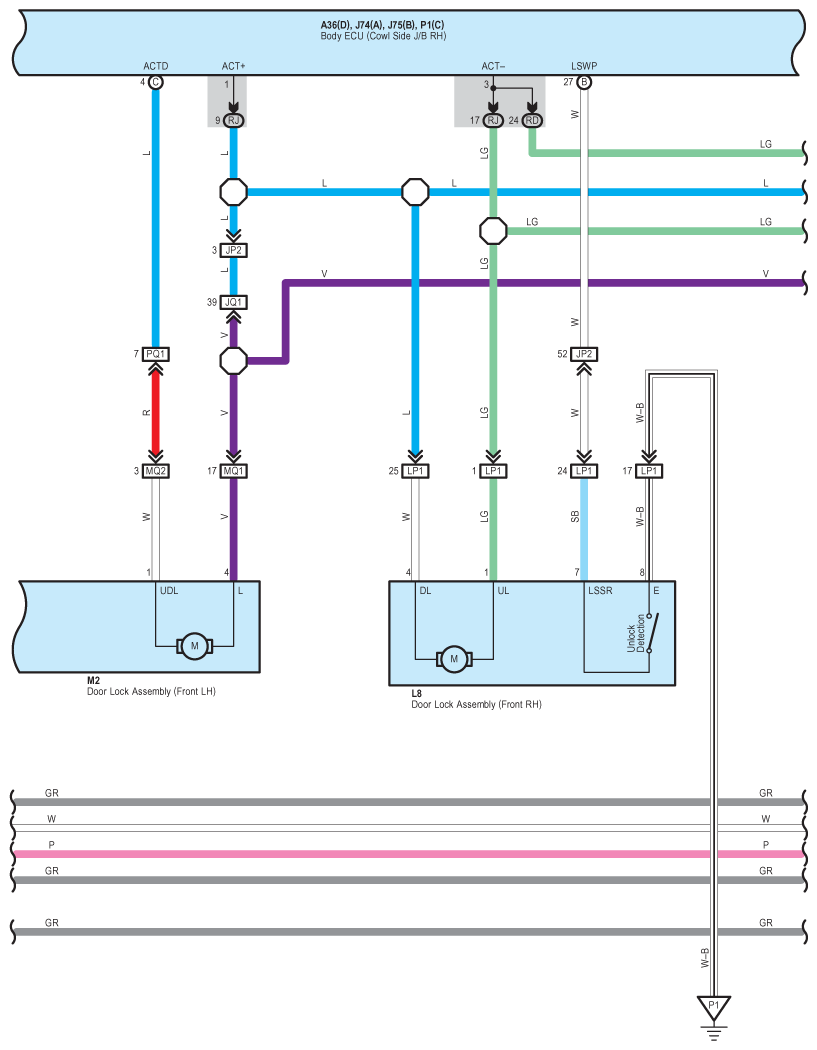

Fig 12: Smart Access System With Push-Button Start - Circuit Diagram (12 Of 20)

G07588757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

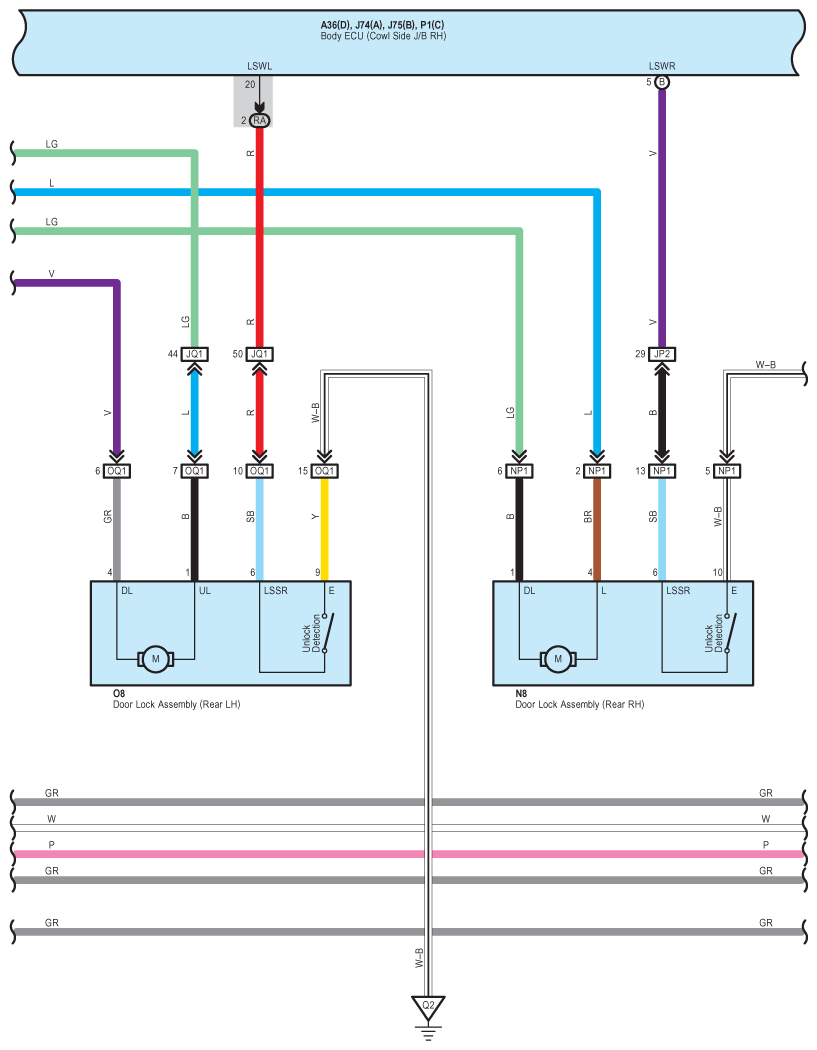

Fig 13: Smart Access System With Push-Button Start - Circuit Diagram (13 Of 20)

G07588758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Smart Access System With Push-Button Start - Circuit Diagram (14 Of 20)

G07588759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

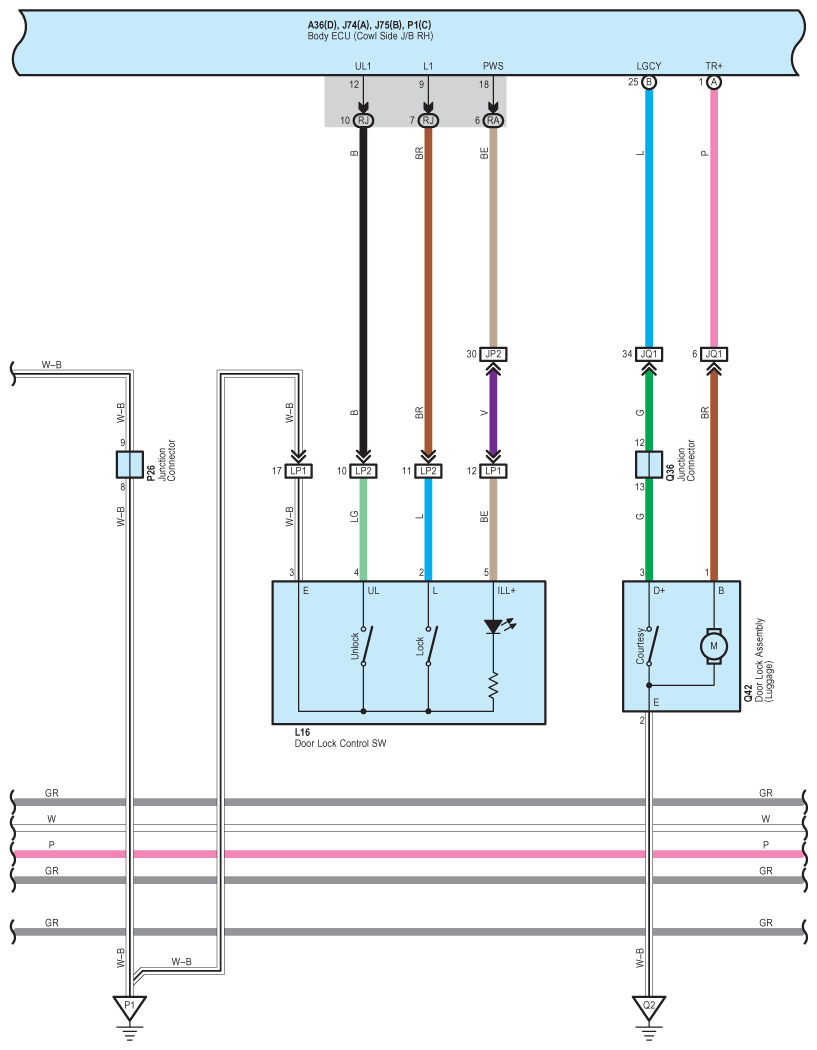

Fig 15: Smart Access System With Push-Button Start - Circuit Diagram (15 Of 20)

G07588760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

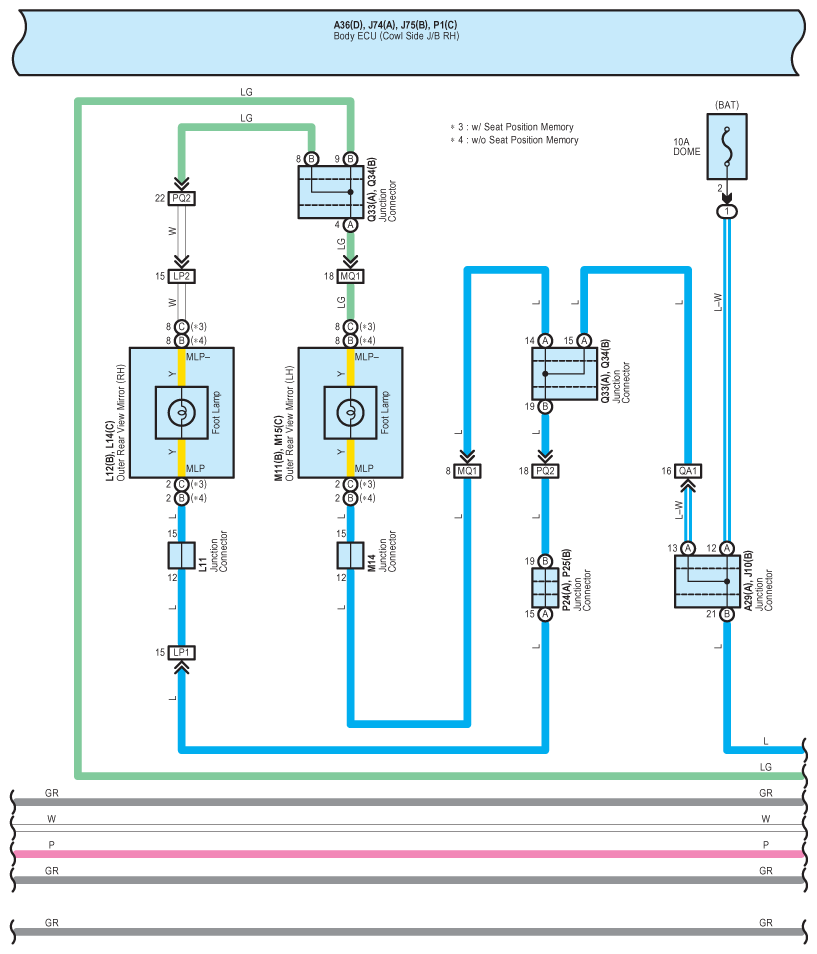

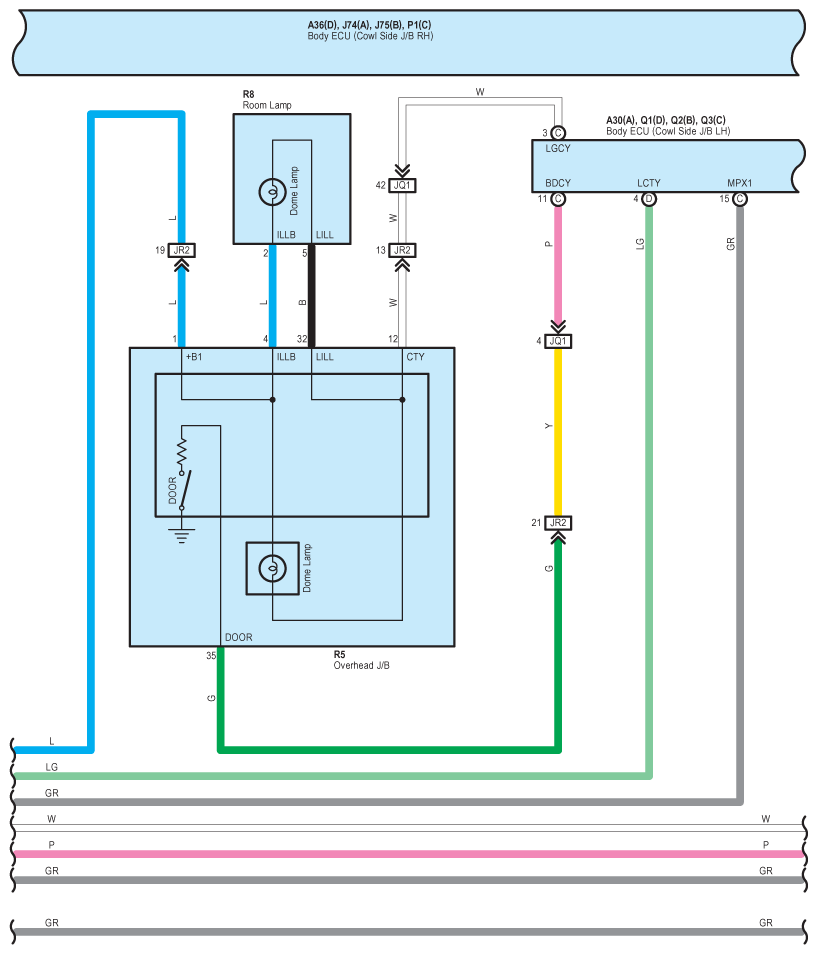

Fig 16: Smart Access System With Push-Button Start - Circuit Diagram (16 Of 20)

G07588761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

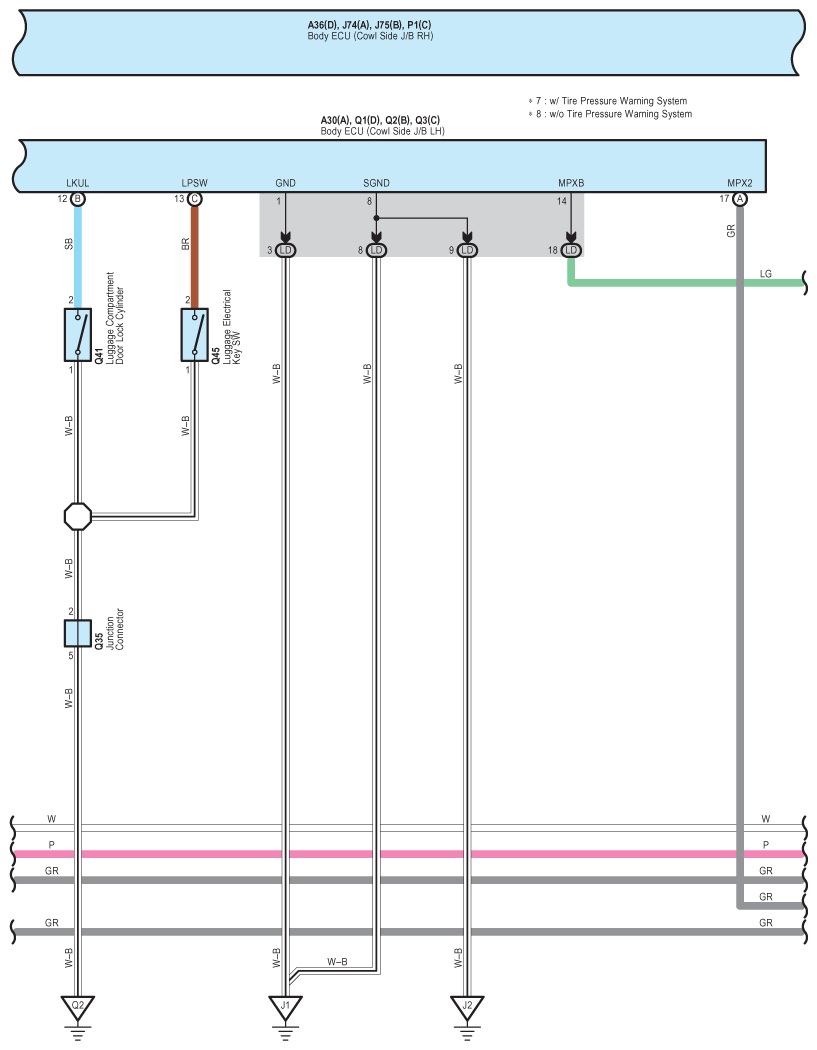

Fig 17: Smart Access System With Push-Button Start - Circuit Diagram (17 Of 20)

G07588762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

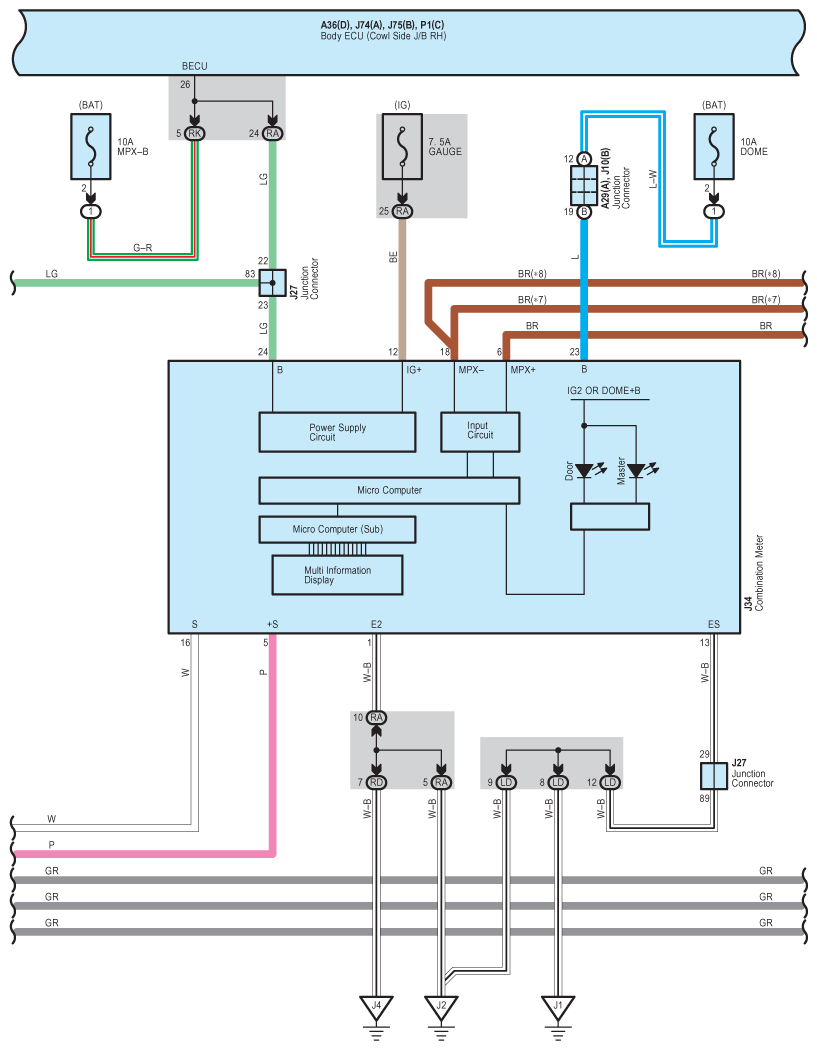

Fig 18: Smart Access System With Push-Button Start - Circuit Diagram (18 Of 20)

G07588763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

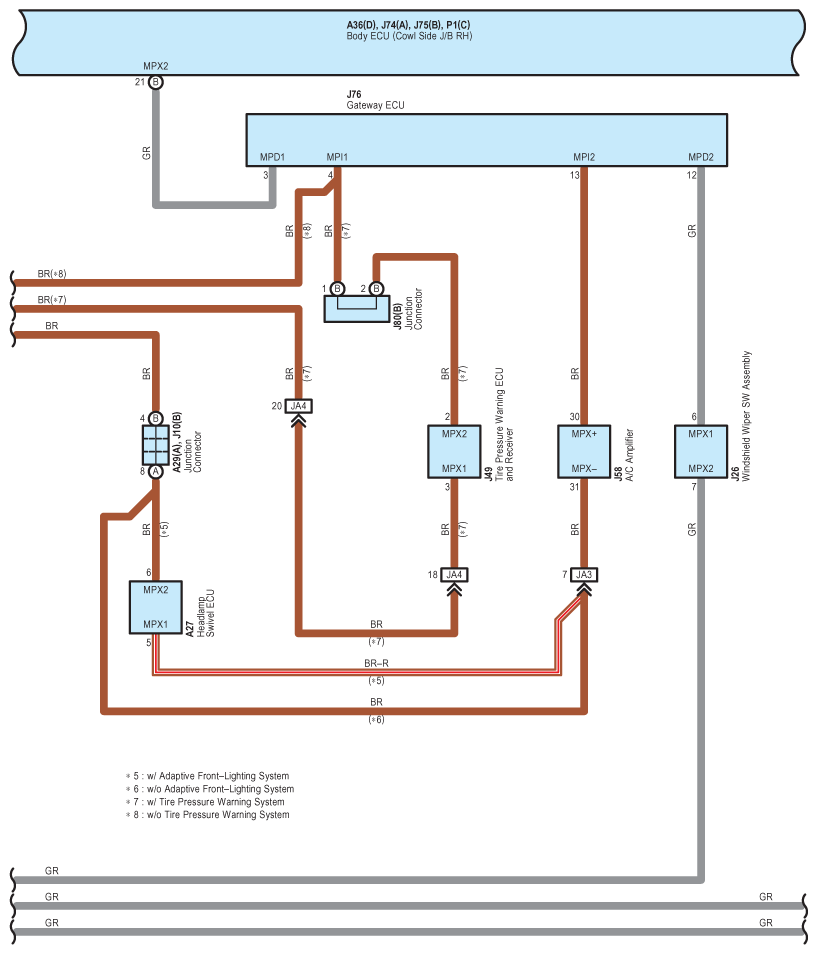

Fig 19: Smart Access System With Push-Button Start - Circuit Diagram (19 Of 20)

G07588764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

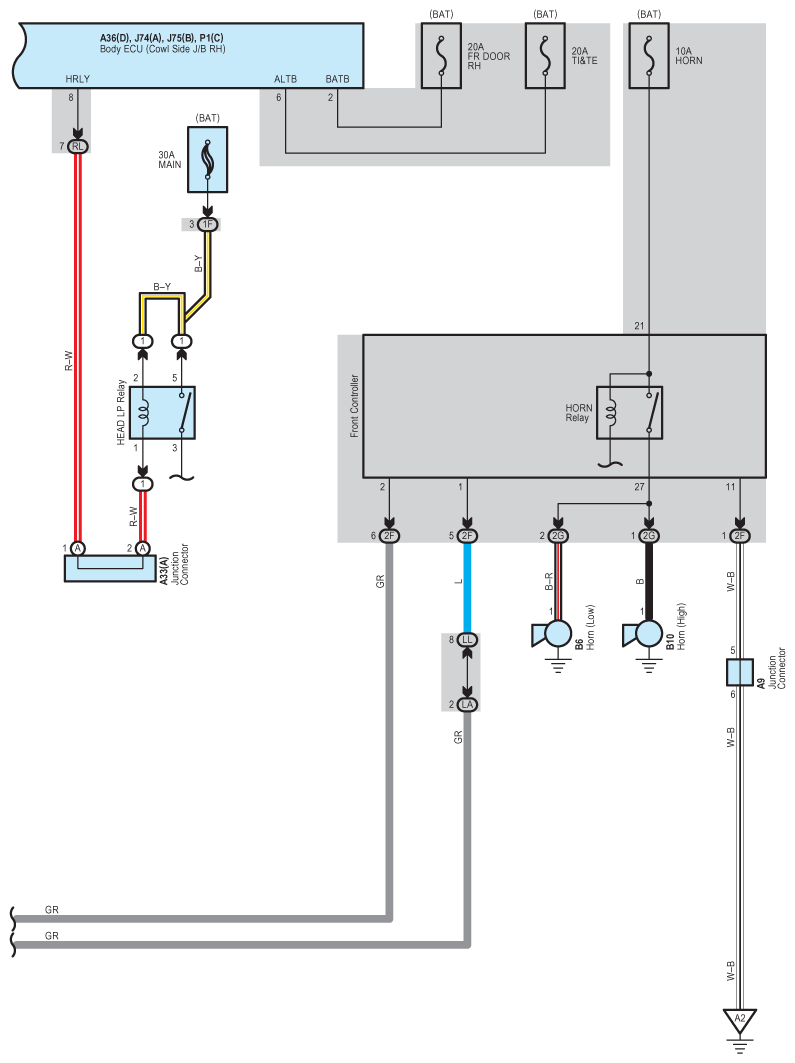

Fig 20: Smart Access System With Push-Button Start - Circuit Diagram (20 Of 20)

G07588765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
