Rear Power Window Switch: Installation: Installation

  1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Engage the 2 claws and install the rear power window regulator switch assembly.
      Fig 1: Identifying Claws & Rear Power Window Regulator Switch Assembly
      GTY140978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    1. Connect the connector.
    2. Engage the 2 claws and 2 clips and install the rear power window regulator switch assembly with rear door armrest base panel.

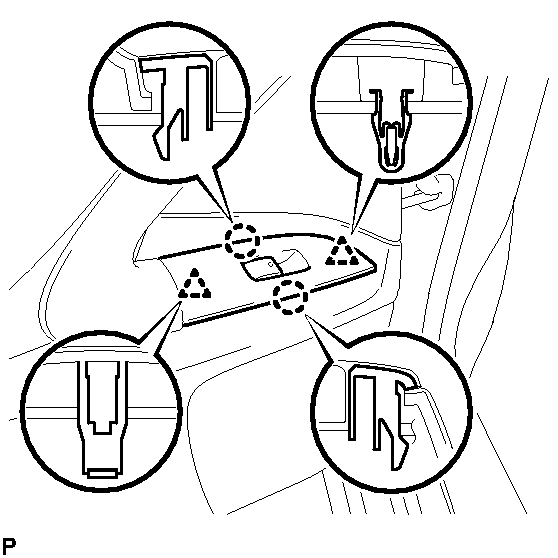

      Fig 2: Installing Rear Power Window Regulator Switch Assembly
      GTY128120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
