Components

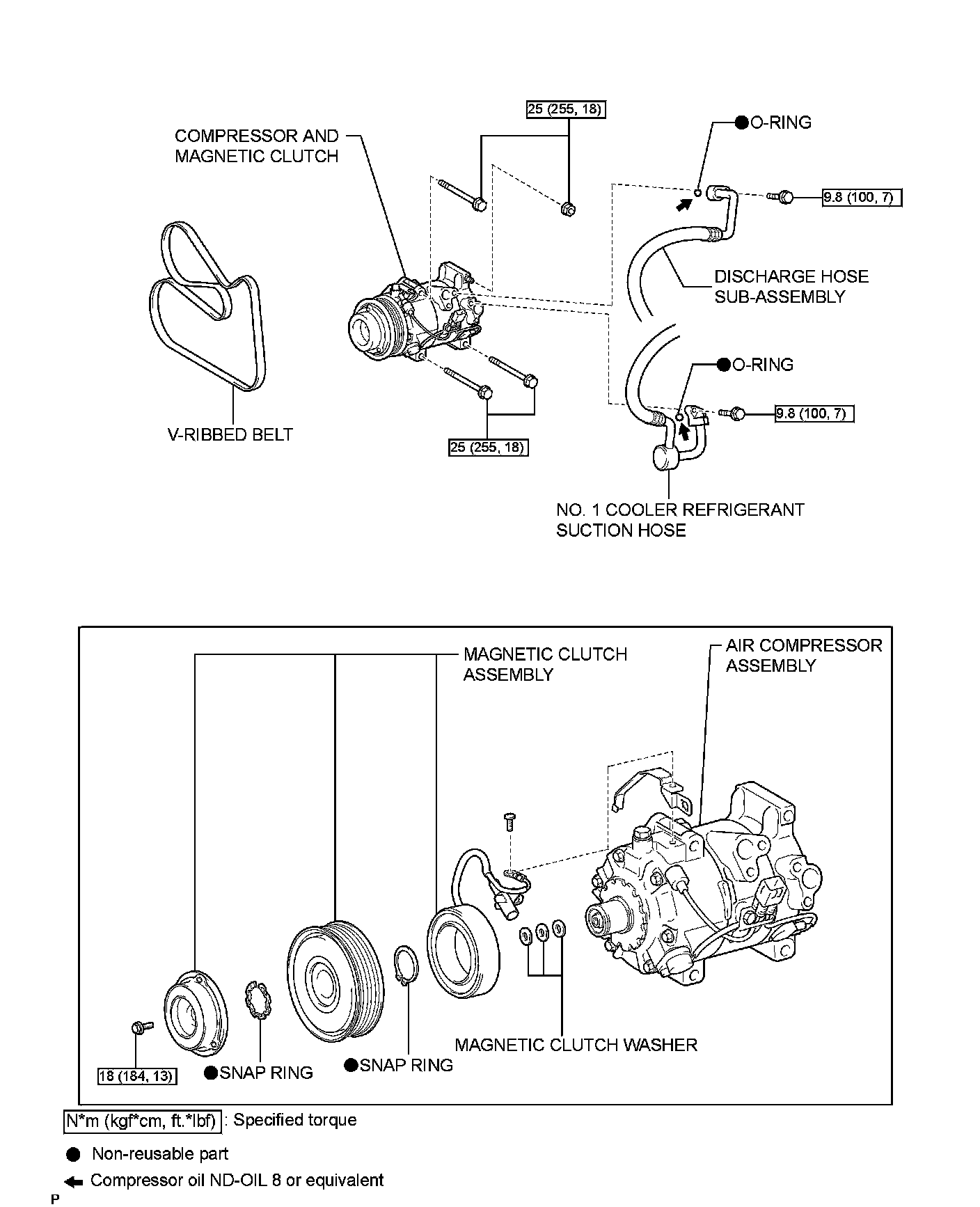

AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH (for 2WD): COMPONENTS
COMPONENTS
ILLUSTRATION
